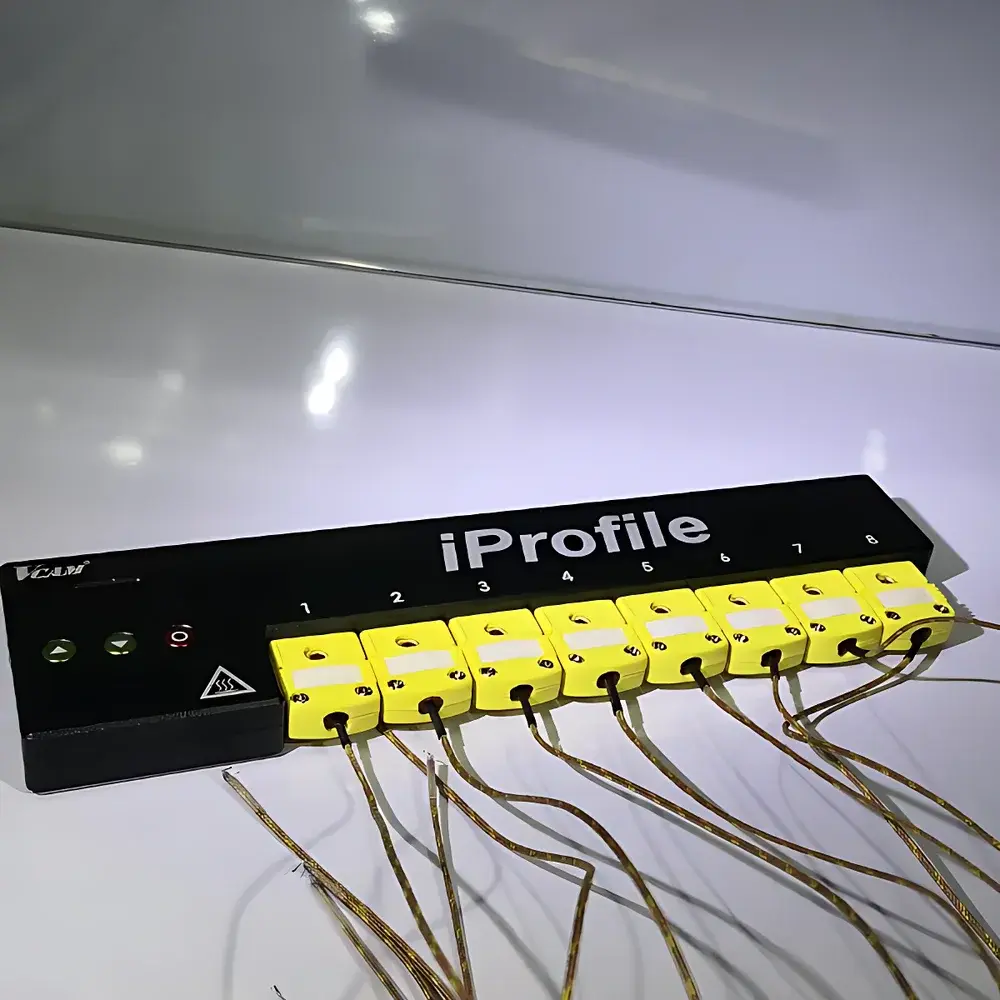

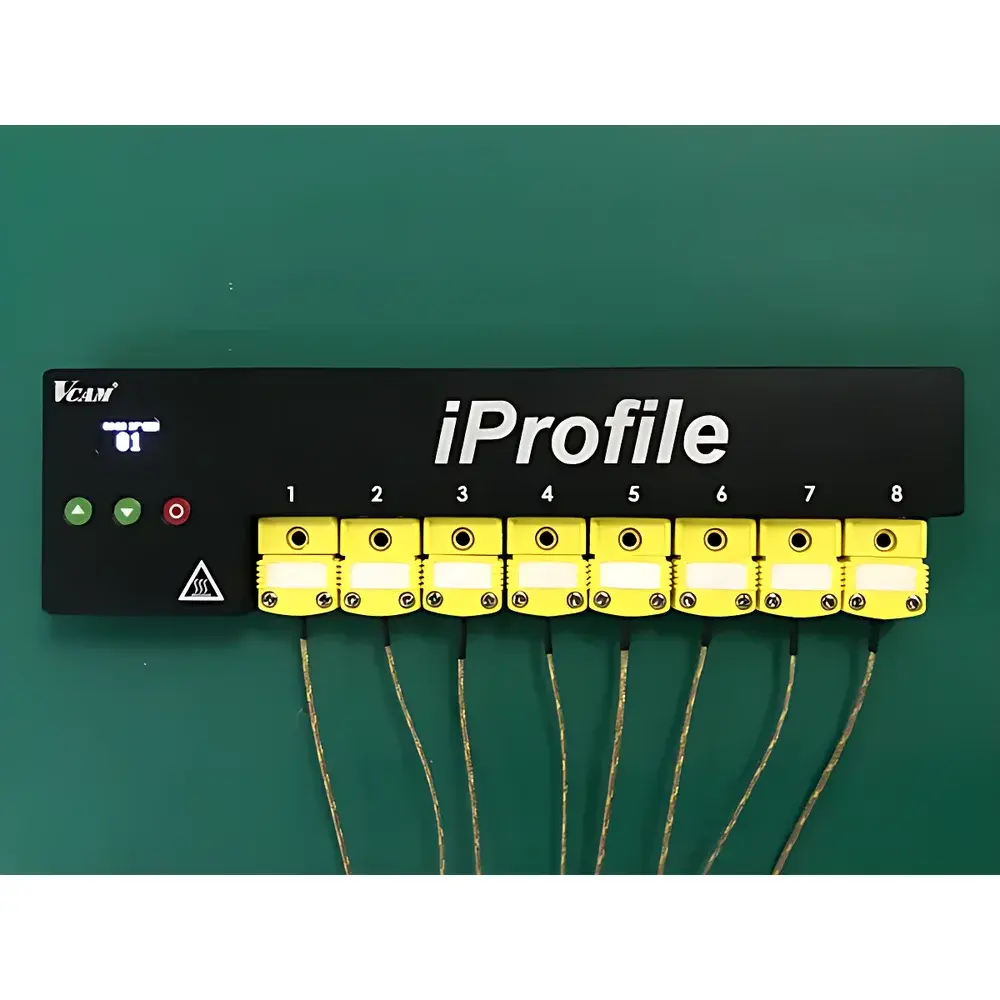

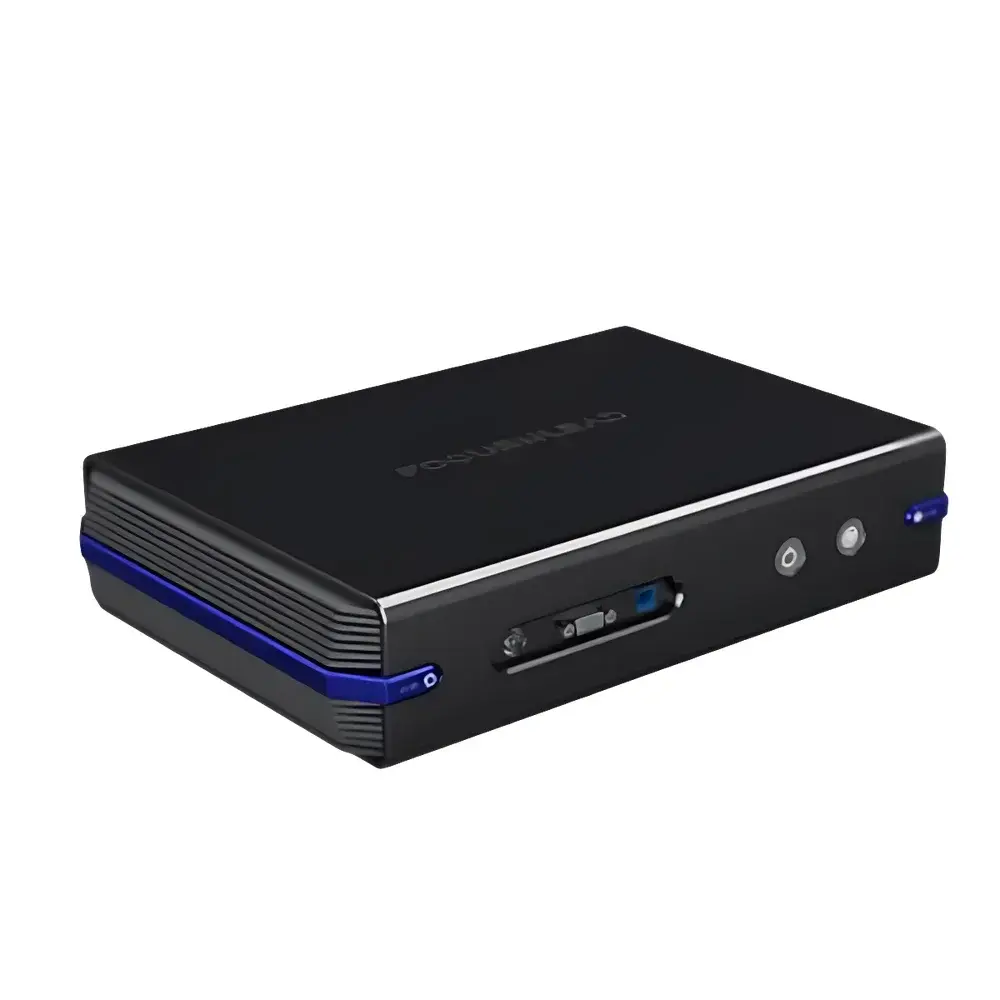

Vcam I608L 8-Channel Furnace Temperature Profiling System
| Brand | Vcam |
|---|---|
| Model | I608L |
| Channels | 8 |
| Measurement Principle | Thermocouple-Based Contact Sensing |
| Temperature Range | 0–500 °C |
| Resolution | 0.1 °C |
| Operating Ambient | 0–50 °C (instrument), 0–500 °C (probe) |
| Display | Integrated High-Contrast LCD Screen |
| Data Interface | USB 2.0 + Optional Wi-Fi Module |
| Compliance | CE, RoHS, ISO/IEC 17025-Compatible Calibration Traceability |
| Software Platform | VcamTempSuite v4.2 (Windows 10/11, x64) |
Overview
The Vcam I608L is an industrial-grade, 8-channel furnace temperature profiling system engineered for high-fidelity thermal process validation and continuous monitoring in demanding manufacturing and laboratory environments. It operates on standardized thermocouple input (Type K standard, configurable to J/T/E/N), delivering contact-based temperature measurement with 0.1 °C resolution across the full 0–500 °C range. Designed specifically for thermal profile acquisition in reflow ovens, wave soldering systems, annealing furnaces, and laser welding enclosures, the I608L captures time-synchronized thermal transients with microsecond-level timestamp alignment across all channels—enabling precise identification of thermal gradients, soak durations, peak deviations, and ramp-rate consistency. Its compact, ruggedized chassis (IP54-rated enclosure) and heat-resistant probe cabling (up to 500 °C continuous exposure) support repeated insertion into narrow oven apertures (<35 mm width), a critical requirement for SMT line qualification per IPC-TM-650 2.6.25 and J-STD-020D.2.
Key Features
- Simultaneous 8-channel synchronized sampling at user-selectable rates (1–10 Hz default; up to 20 Hz burst mode)
- Integrated real-time clock with NTP synchronization support for cross-system temporal alignment
- On-device LCD display with touch-enabled waveform navigation, zoom, and overlay comparison
- Multi-trigger logic: start/stop via time, temperature threshold, external TTL signal, or manual button press
- Configurable alarm thresholds per channel with visual/audio alerts and automatic log flagging
- Internal non-volatile memory (16 GB) supporting >10,000 profiles (typical 5-min reflow cycle @ 5 Hz)
- Field-upgradable firmware and dual-mode connectivity: direct USB mass storage mode + optional IEEE 802.11n Wi-Fi module for remote telemetry
Sample Compatibility & Compliance
The I608L accepts industry-standard miniature thermocouple probes (0.25–1.0 mm diameter) with Teflon/FEP insulation and ceramic or stainless-steel sheaths—compatible with IPC-7530A-compliant thermal profiling fixtures. All factory calibration certificates are traceable to NIM (China National Institute of Metrology) standards and include uncertainty budgets per ISO/IEC 17025:2017 requirements. The system supports audit-ready data integrity features including electronic signatures, immutable event logs, and 21 CFR Part 11-compliant user permission tiers (Admin / Engineer / Operator) when used with VcamTempSuite’s GxP mode enabled. It meets electromagnetic compatibility requirements per EN 61326-1:2013 and environmental robustness per IEC 60068-2-1/2 (cold/heat testing).
Software & Data Management
VcamTempSuite v4.2 provides comprehensive post-acquisition analysis and reporting. It enables multi-profile statistical comparison (Cp/Cpk, ΔT uniformity maps, slope deviation heatmaps), automated pass/fail evaluation against IPC-A-610 or internal SOP limits, and export to CSV, PDF, XML, and industry-standard .tpf (Thermal Profile Format) for integration with MES platforms (e.g., Siemens Opcenter, Rockwell FactoryTalk). Audit trails record every parameter change, report generation, and user login event with SHA-256 hashing. Raw binary logs include embedded metadata (operator ID, fixture ID, oven zone, ambient RH/T), ensuring full traceability throughout product lifecycle documentation.
Applications
- SMT reflow process development and DOE-driven optimization of thermal profiles for lead-free and low-voiding pastes
- Qualification and periodic verification of conveyorized wave soldering systems per IPC-J-STD-001G
- Thermal uniformity mapping in batch and continuous industrial furnaces (annealing, stress-relief, sintering)
- Process window index (PWI) calculation and constraint-based thermal envelope modeling
- Validation of laser welding thermal cycles in automotive battery module assembly lines
- Calibration transfer studies between lab reference ovens and production equipment
FAQ
What thermocouple types does the I608L support?
Type K is factory-default; firmware update enables Type J, T, E, and N via software configuration.
Can the system operate inside a running reflow oven?
Yes—the probe cables and junctions are rated for continuous 500 °C exposure; the logger unit remains external via extended cable routing.
Is raw data export compliant with FDA 21 CFR Part 11?
When operated in GxP mode with digital signature enforcement and audit trail logging enabled, yes—full electronic record integrity is maintained.
How is time synchronization handled across multiple I608L units?
Via NTP server sync over Ethernet/Wi-Fi or GPS-disciplined oscillator option (add-on module).
Does VcamTempSuite support automated report generation for ISO 9001 audits?
Yes—customizable templates include revision-controlled headers, calibration status flags, and statistical summary tables meeting ISO 9001:2015 clause 8.5.1 requirements.
