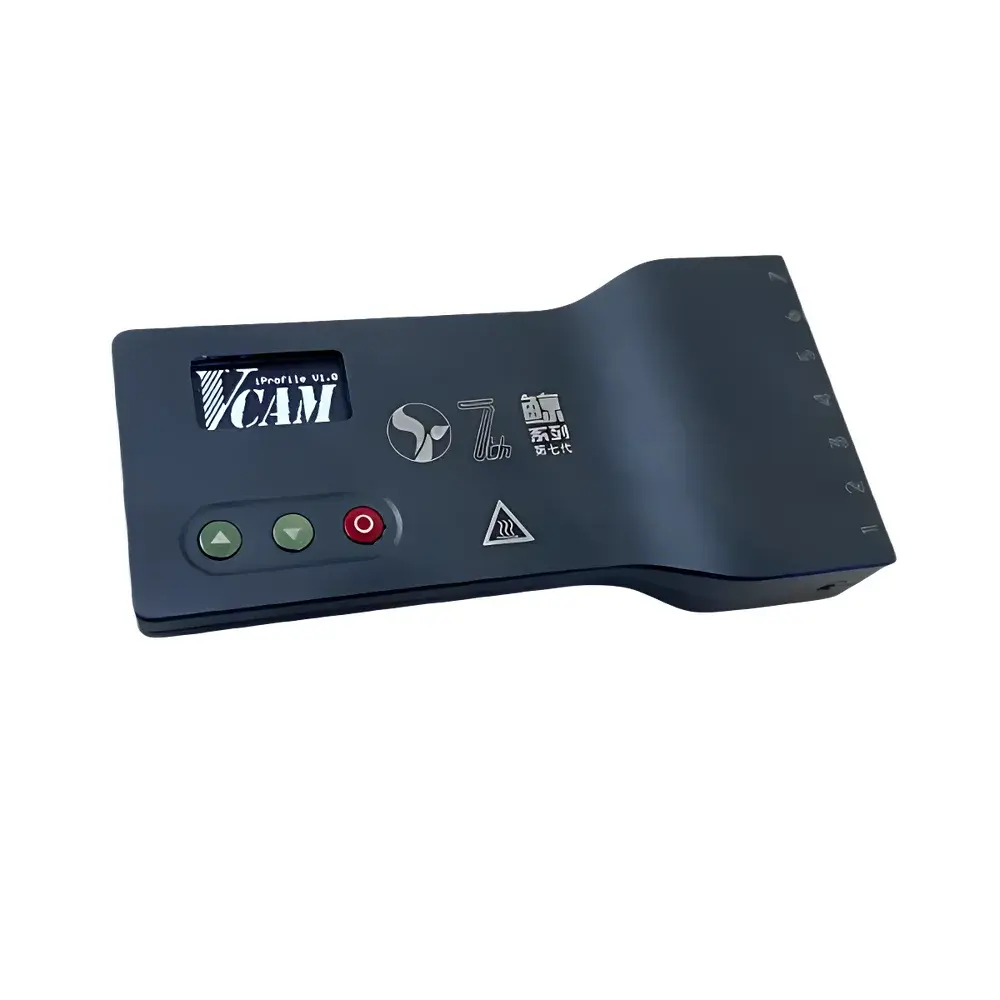

Vcam I7 Series Furnace Temperature Profiling System
| Brand | Vcam |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | I7 Series Furnace Temperature Profiling System |
| Temperature Measurement Principle | Thermocouple-Based |
| Measurement Method | Contact |
| Temperature Range | −50 °C to 700 °C |
| Resolution | 0.1 °C |
| Accuracy | ±0.5 °C |
Overview
The Vcam I7 Series Furnace Temperature Profiling System is an industrial-grade thermal validation instrument engineered for precise, time-synchronized multi-point temperature mapping inside ovens, reflow soldering systems, annealing furnaces, curing ovens, and heat-treatment chambers. It operates on the fundamental principle of thermocouple-based contact measurement—leveraging calibrated Type K (or optionally Type J/T) thermocouples to capture real-time thermal profiles with high temporal resolution and spatial fidelity. Unlike single-point handheld thermometers, the I7 Series integrates up to 16 independent thermocouple inputs within a ruggedized, high-temperature data logger housing rated for continuous operation at ambient temperatures up to 85 °C and transient exposure to radiant heat up to 120 °C. Its primary function is to support thermal process qualification, equipment commissioning, and routine performance verification in accordance with ISO 9001, ASME BPE, and ICH Q5C thermal stability requirements.
Key Features
- Simultaneous acquisition from up to 16 thermocouple channels with synchronized timestamping (10–100 Hz user-selectable sampling rate)
- Rugged aluminum alloy enclosure with IP65-rated ingress protection and integrated thermal shielding for furnace insertion
- Internal rechargeable Li-ion battery supporting >48 hours of continuous logging at 1 Hz sampling
- Onboard memory capacity of 16 MB (expandable via microSD slot), enabling storage of >1 million data points per channel
- Real-time Bluetooth 5.0 wireless telemetry for remote monitoring during profiling runs (optional)
- Pre-calibrated thermocouple inputs traceable to NIST standards; factory calibration certificate included
- Auto-ranging analog-to-digital conversion with 24-bit resolution and cold-junction compensation (CJC) accuracy of ±0.2 °C
Sample Compatibility & Compliance
The I7 Series is compatible with standard miniature thermocouple probes (0.25–1.0 mm OD) suitable for insertion into conveyor belts, PCB assemblies, metal fixtures, ceramic setters, and composite tooling. Probe configurations include welded-tip, grounded/ungrounded junctions, and insulated sheaths (304/316 SS, Inconel 600). The system complies with electromagnetic compatibility (EMC) requirements per EN 61326-1:2013 and meets essential safety requirements under IEC 61010-1:2010 for electrical equipment used in measurement, control, and laboratory applications. While not certified for hazardous locations, it supports validation protocols aligned with FDA 21 CFR Part 11 when used with compliant software workflows—including electronic signatures, audit trails, and data integrity controls.
Software & Data Management
Vcam ThermalStudio™ v4.x (Windows 10/11 compatible) provides full post-processing functionality: profile alignment, slope analysis, time-above-temperature (TAT) calculation, zone-specific deviation reporting, and delta-T trending across multiple runs. Raw data exports in CSV, XML, and PDF formats conform to ASTM E2251-22 (Standard Practice for Calibration of Thermocouples). The software supports automated report generation compliant with ISO/IEC 17025 documentation requirements, including metadata stamping (operator ID, location, instrument serial number, calibration due date). All data files are digitally signed and checksum-verified to ensure immutability. Optional integration with LIMS or MES platforms is available via OPC UA or RESTful API endpoints.
Applications
- Reflow soldering profile validation for SMT manufacturing lines (IPC-J-STD-020 / IPC-7530)
- Thermal uniformity mapping in pharmaceutical drying ovens and sterilization autoclaves
- Process window qualification for powder coating and paint curing operations
- Heat treatment cycle verification in metallurgical annealing and tempering furnaces
- Calibration verification of fixed-mount oven sensors (e.g., RTDs, thermistors) against reference-grade thermocouples
- Root cause analysis of thermal-related defects such as warpage, delamination, or incomplete cross-linking
FAQ
What thermocouple types are supported?
Standard configuration supports Type K thermocouples; optional firmware enables Type J, T, E, and N with appropriate probe selection and CJC compensation.
Is the logger intrinsically safe for use in explosive atmospheres?
No. The I7 Series is not ATEX or IECEx certified and must be operated outside classified hazardous zones.
How often does the system require recalibration?
Annual recalibration is recommended per ISO/IEC 17025 guidelines; calibration interval may be extended based on internal risk assessment and historical stability data.
Can the device operate while charging?
Yes—continuous logging is maintained during USB-C charging, with automatic battery/switchover management.
Does ThermalStudio support multi-language UI?
English and simplified Chinese interfaces are included; additional language packs (German, Japanese, Korean) are available upon request.
