Vcam ID900/DW800 Automated Solder Paste Dispensing System for SMT Printing

Overview

The Vcam ID900/DW800 Automated Solder Paste Dispensing System is an industrial-grade precision dispensing platform engineered for high-reliability solder paste application in surface mount technology (SMT) production lines—specifically optimized for flexible printed circuit (FPC) and flat-panel display (FPD) manufacturing environments. Unlike conventional manual or semi-automated paste handling systems, this unit implements closed-loop volumetric control based on servo-driven positive displacement metering, ensuring repeatable deposition volume accuracy across variable stencil apertures and substrate geometries. The system integrates directly with standard SMT printing stations (e.g., DEK, MPM, GKG), eliminating intermediate transfer steps and minimizing paste oxidation, slump, and viscosity drift. Its architecture supports both continuous-feed operation (ID900) and batch-mode dispensing (DW800), with real-time feedback from load cells and optical flow sensors enabling dynamic adjustment of extrusion pressure and dwell time per print cycle.

Key Features

• Servo-motor-controlled dispensing mechanism delivering ±1.2% volumetric repeatability under stable thermal conditions (23 ± 2°C)

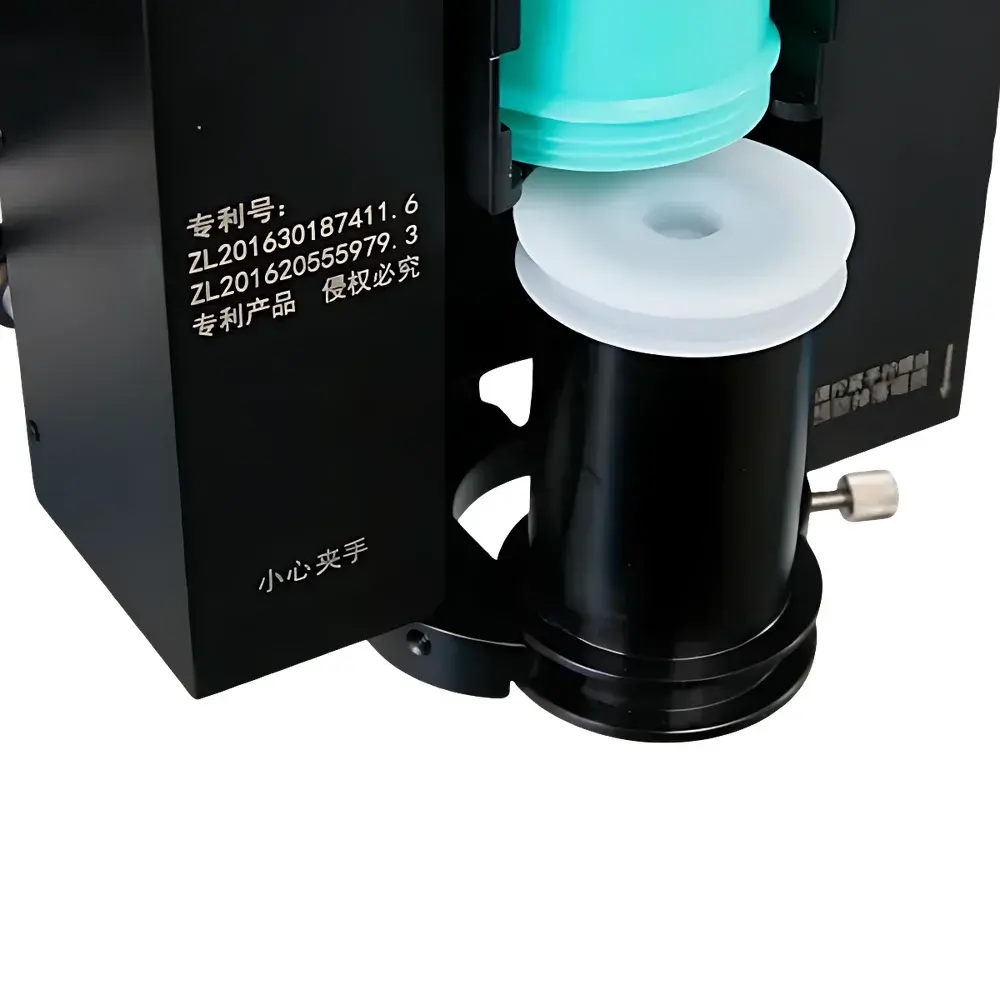

• Direct integration with OEM paste cans—no repackaging required—reducing contamination risk and material waste by up to 18% versus cartridge-based systems
• Closed-loop dynamic feed compensation responding to paste rheology shifts detected via in-line torque monitoring and backpressure sensing

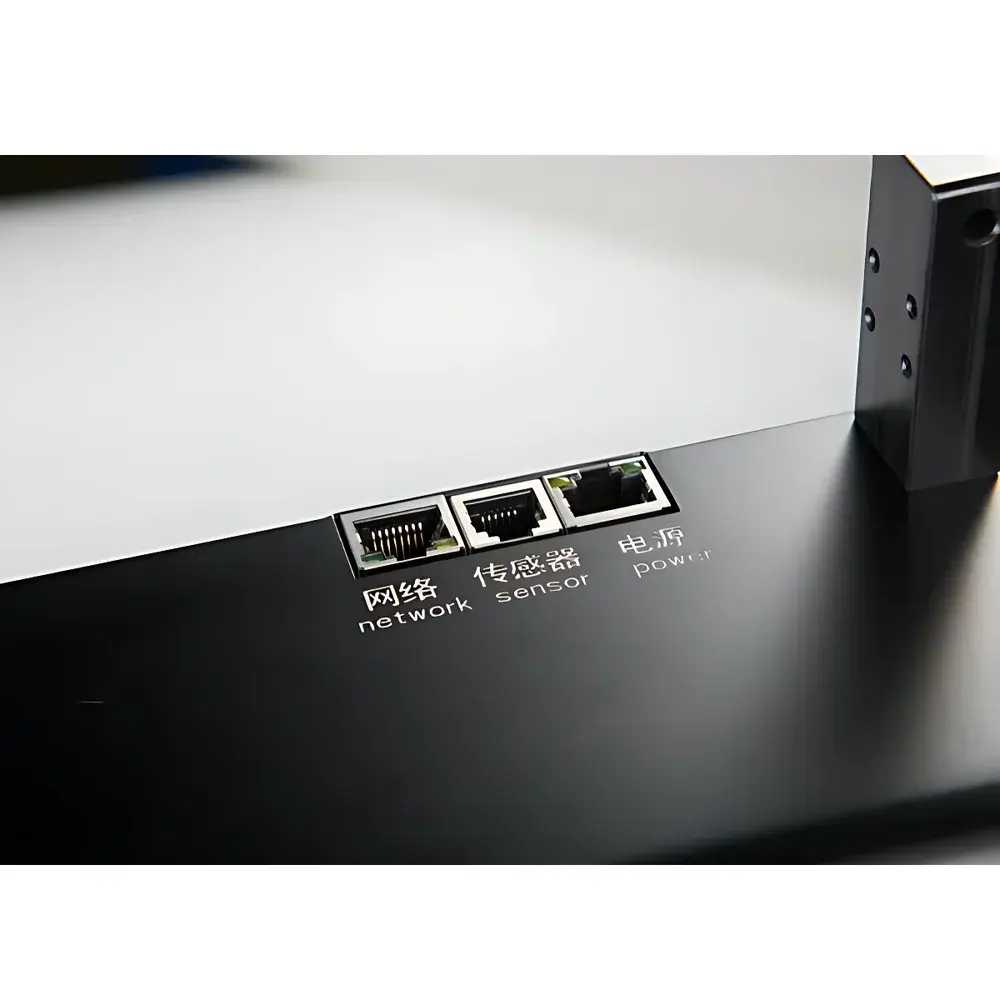

• Remote multi-machine orchestration via Ethernet/IP protocol; compatible with MES/SCADA interfaces including Siemens SIMATIC IT and Rockwell FactoryTalk
• Mobile-responsive HMI accessible via Android/iOS tablets; supports offline parameter backup and over-the-air firmware updates
• ID900-exclusive environmental monitoring suite: integrated temperature/humidity/airflow sensors with configurable alarm thresholds and SNMP trap generation
• Steel mesh and squeegee life tracking based on cumulative stroke count and real-time edge-wear estimation using image-based scraper profile analysis
• Data-driven predictive maintenance engine correlating operational metrics (e.g., motor current variance, pressure hysteresis, dispensing cycle deviation) with component MTBF models
• Role-based access control supporting up to five permission tiers (Operator, Technician, Process Engineer, QA Manager, Administrator)
• Full operational logging with SHA-256 hashed timestamps; exportable in CSV and PDF formats compliant with internal audit documentation standards

Sample Compatibility & Compliance

The ID900/DW800 accommodates standard SMT solder pastes (Type 3–5, SAC305, SN100C, low-residue no-clean formulations) in 500 g and 1 kg sealed cans. It maintains compatibility with stainless steel and nickel alloy stencils (thickness: 100–200 µm), as well as polyurethane and composite squeegees. All firmware and data handling modules conform to IEC 62443-3-3 security requirements for industrial automation systems. Audit trail functionality satisfies FDA 21 CFR Part 11 electronic record and signature criteria when deployed with time-synchronized NTP servers and external digital certificate management. The system supports IQ/OQ documentation packages aligned with IPC-7527 and J-STD-005 specifications.

Software & Data Management

The embedded Vcam Control Suite v4.2 provides local GUI and cloud-connected analytics via TLS 1.3-secured API endpoints. Core capabilities include statistical process control (SPC) charting (X̄-R, Cpk, Ppk), automated yield trend detection using moving-window anomaly scoring, and root-cause correlation mapping across paste lot numbers, ambient conditions, and equipment uptime. Cloud SPC dashboards are accessible through role-limited portals with configurable data retention policies (default: 90 days, extendable to 36 months). All traceability reports—including full print-cycle metadata, operator ID, environmental logs, and paste consumption per board—generate in one click and comply with IPC-A-610 Rev. H documentation conventions.

Applications

Primary deployment contexts include high-mix, low-volume FPC assembly for wearable electronics and automotive HUD modules; medium-volume panel-level packaging for OLED driver ICs; and R&D prototyping labs requiring rapid paste formulation evaluation under controlled shear history. Secondary use cases encompass lead-free paste qualification studies, stencil life validation protocols, and cross-facility process harmonization initiatives governed by ISO/IEC 17025-accredited quality systems.

FAQ

Does the system support third-party paste brands beyond Vcam-branded materials?
Yes—provided the paste meets J-STD-005 viscosity and metal content specifications and is supplied in ISO-standardized 500 g or 1 kg pressurized cans.
Is calibration traceable to national metrology institutes?
Volumetric calibration is performed using NIST-traceable gravimetric standards prior to shipment; field recalibration tools and procedures are included in the service kit.
Can historical dispensing data be exported for external SPC software integration?
Yes—CSV exports include timestamped volume, pressure, temperature, and machine state variables; API access enables direct ingestion into Minitab, JMP, or custom Python-based analytics pipelines.
What cybersecurity certifications does the embedded controller hold?
The controller firmware complies with IEC 62443-4-2 SL2 requirements and undergoes annual penetration testing by TÜV Rheinland-certified assessors.
Is the ID900’s environmental monitoring module certified for Class 1000 cleanroom operation?
Sensors meet ISO 14644-1 Class 6 (1,000) particulate limits; full system installation requires optional HEPA-filtered air purge kits for cleanroom-rated deployment.
