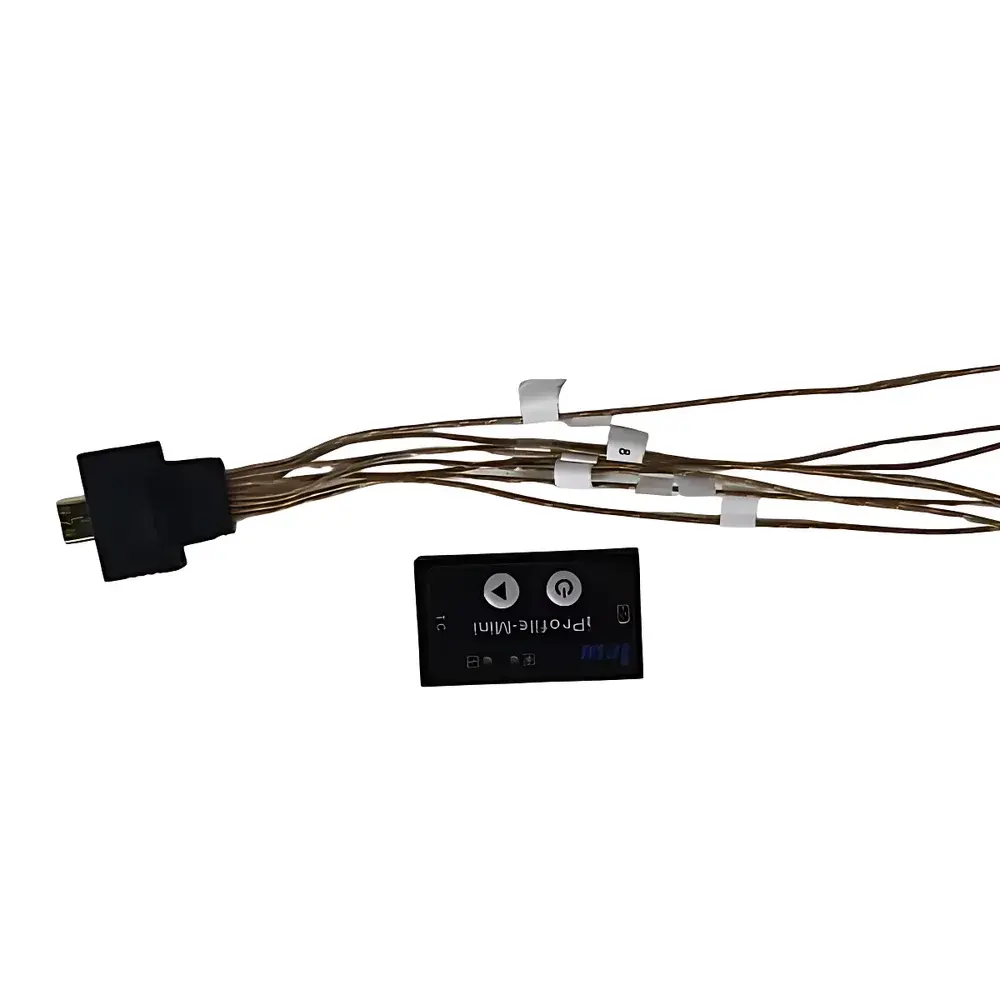

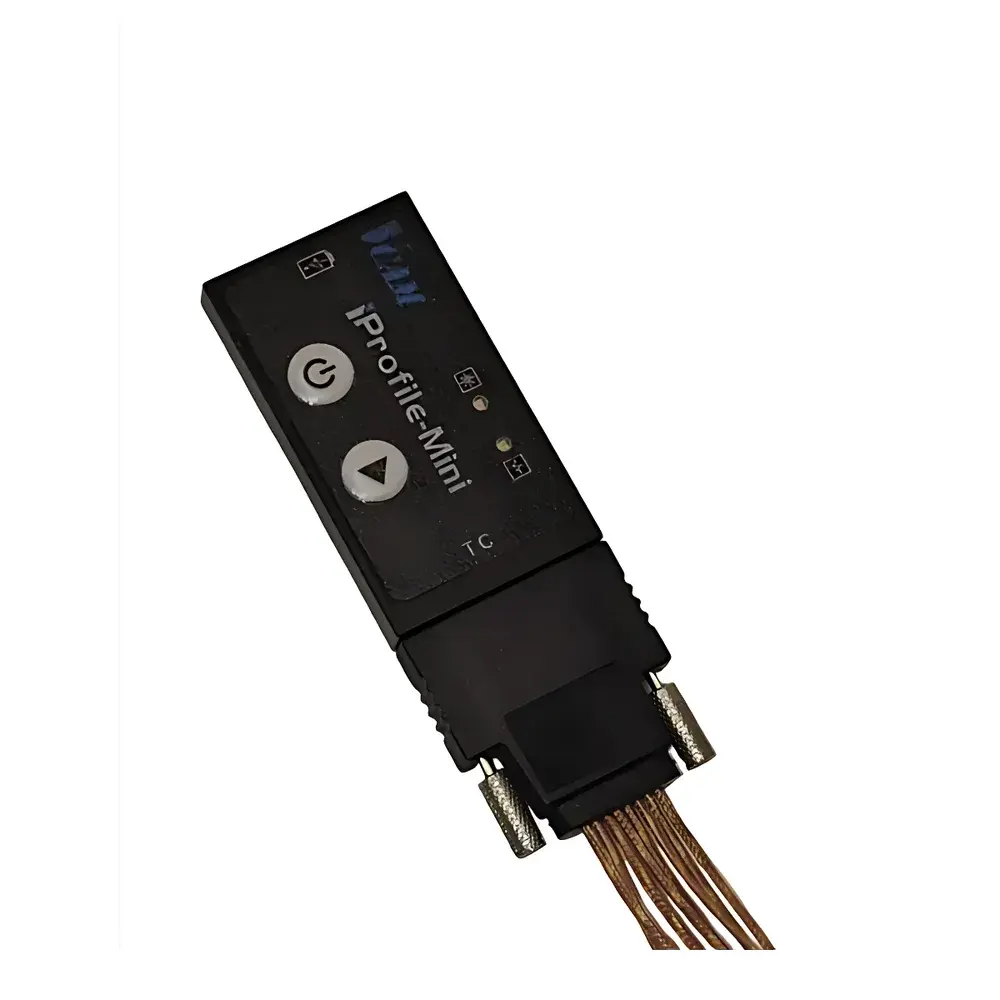

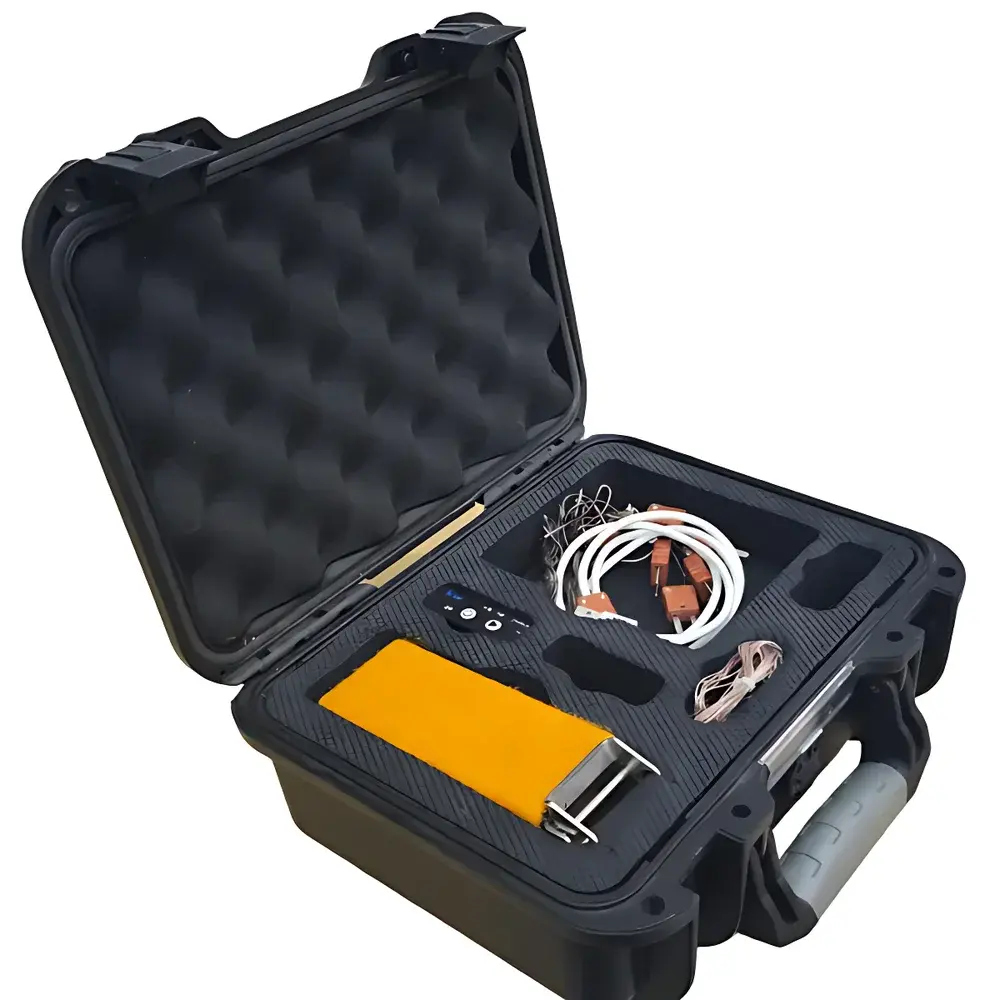

Vcam Mini Furnace Temperature Profiler

Overview

The Vcam Mini Furnace Temperature Profiler is an engineered solution for high-fidelity thermal mapping and process validation in constrained industrial heating environments. Designed around thermocouple-based contact measurement, it operates on the Seebeck principle to deliver calibrated, time-synchronized temperature data across eight independent channels. Its compact form factor enables deployment in narrow furnace zones—such as reflow ovens, sintering chambers, vacuum brazing systems, and batch annealing furnaces—where conventional profilers cannot fit without structural modification. Unlike infrared or wireless alternatives, the Mini Profiler ensures direct physical contact with critical thermal zones, eliminating emissivity-related uncertainty and enabling traceable, repeatable measurements under dynamic thermal gradients. It serves as a foundational tool for thermal process qualification (TPQ), equipment commissioning, and routine thermal uniformity audits per industry-recognized protocols.

Key Features

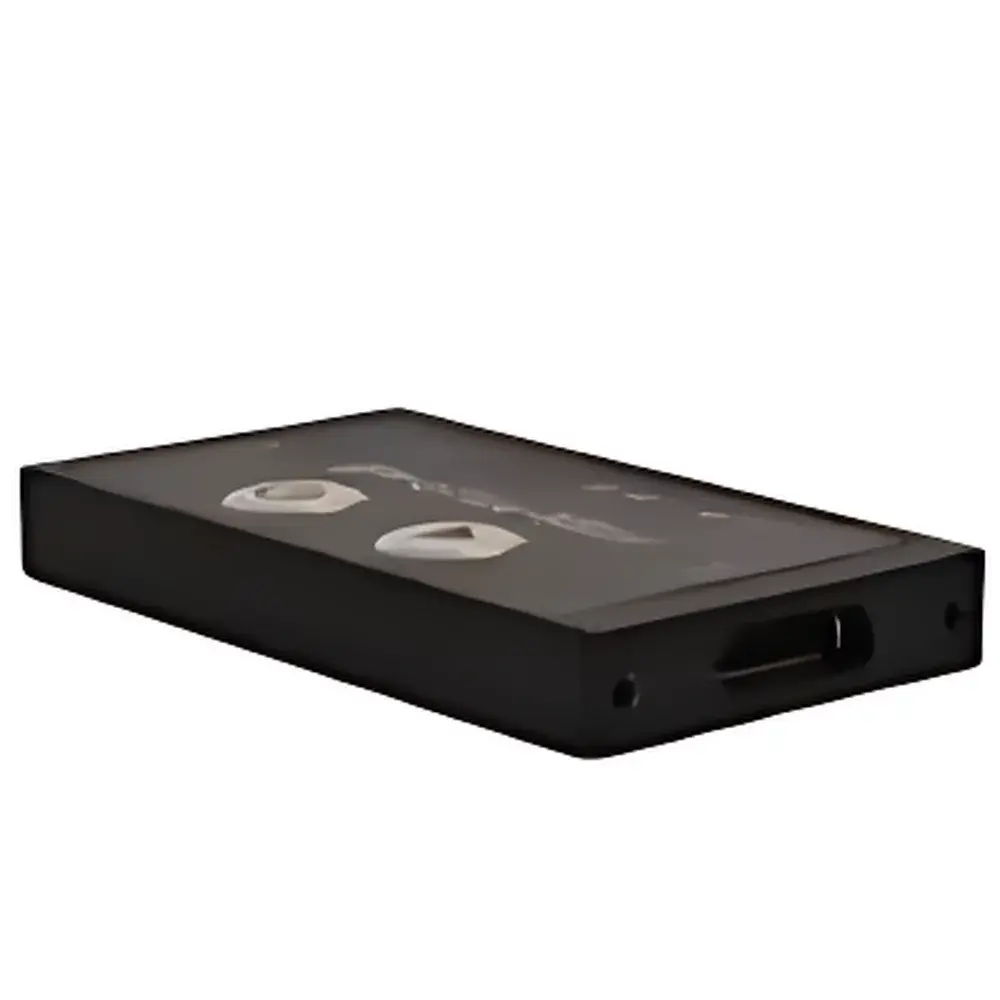

• Ultra-compact mechanical footprint—designed for insertion into furnaces with internal clearances as low as 35 mm without requiring oven retrofitting or permanent sensor installation.
• Eight-channel synchronous acquisition with hardware-level timestamping, supporting multi-zone profiling across conveyor belts, stacked PCBs, or layered ceramic substrates.
• High-stability Type K thermocouples with cold-junction compensation and factory calibration certificates traceable to NIST-equivalent national standards.
• Onboard memory (≥16 MB) supports continuous logging at user-configurable intervals (100 ms to 10 s), with real-time USB-C data streaming capability for live monitoring.
• Integrated SPC/CPK engine computes process capability indices (Cp, Cpk, Pp, Ppk) directly from raw thermal profiles, aligned with ISO 22514-2 and AIAG SPC manual conventions.
• One-click report generation exports PDF and CSV outputs compliant with ISO 9001:2015 clause 8.5.1 (Control of production and service provision) and ISO/IEC 17025:2017 clause 7.8 (Reporting of results).

Sample Compatibility & Compliance

The Mini Profiler is compatible with solid-state and gas-fired industrial furnaces operating across -50 °C to 700 °C, including nitrogen, forming gas, and vacuum atmospheres. Its thermocouple probes are rated for continuous exposure up to 700 °C and withstand thermal shock typical of rapid ramp/soak/cool cycles. All firmware and data handling routines conform to ISO/IEC 17025:2017 requirements for measurement traceability, uncertainty estimation, and record retention. The device supports audit-ready data integrity features—including immutable timestamps, operator ID tagging, and electronic signature prompts—aligning with FDA 21 CFR Part 11 expectations for regulated manufacturing environments.

Software & Data Management

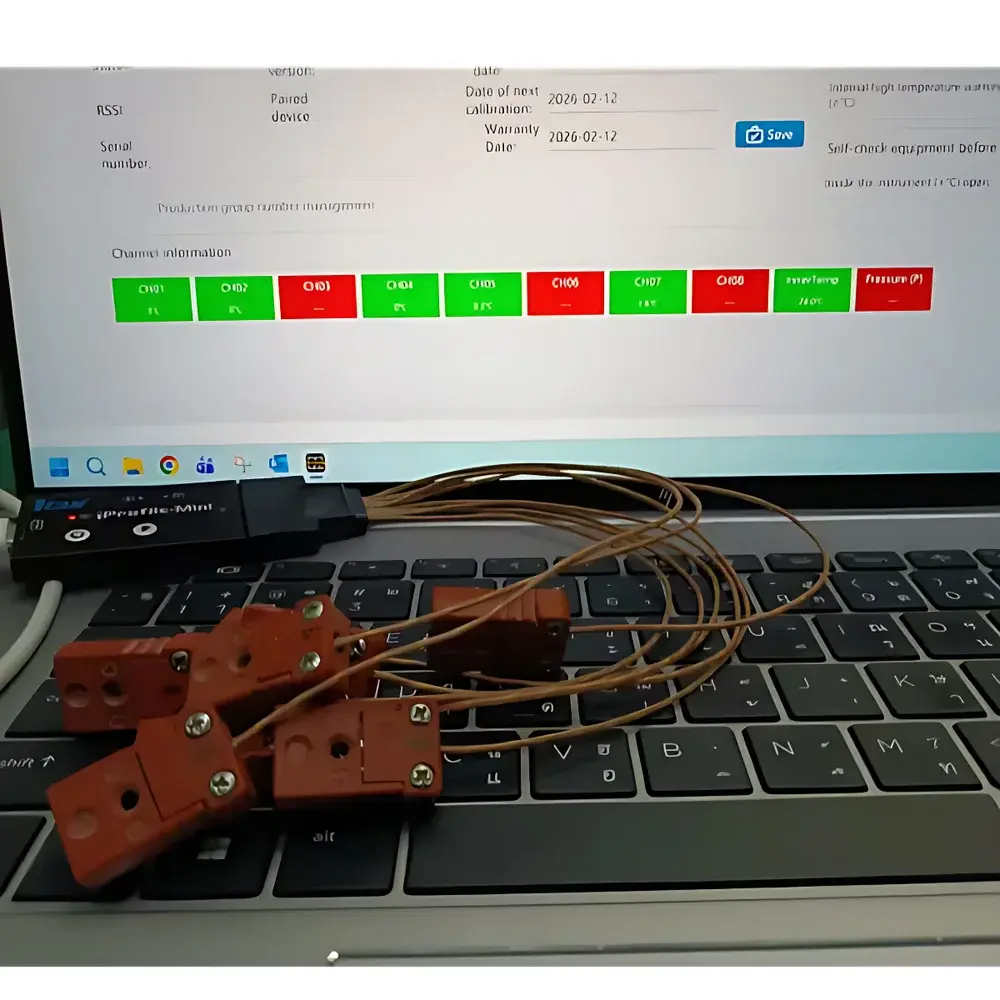

Vcam ThermalSuite™ software (Windows 10/11, 64-bit) provides full configuration, visualization, and analysis functionality. It includes dual-mode operation: offline batch analysis for historical profile comparison and online mode for real-time overlay of setpoint vs. actual thermal curves. Raw binary logs are stored in vendor-neutral .tdms format (NI Technical Data Management Streaming), ensuring long-term readability without proprietary lock-in. Audit trails capture all parameter changes, report generations, and calibration events with ISO 13485-compliant metadata. Export modules support XML-based integration with MES platforms (e.g., Siemens Opcenter, Rockwell FactoryTalk) and LIMS systems via configurable REST API endpoints.

Applications

• Semiconductor packaging: Reflow profile validation for lead-free solder paste (SAC305, SN100C) across QFN, BGA, and wafer-level CSP assemblies.
• Automotive electronics: Thermal cycle verification of power module curing, battery cell drying, and ECU board reflow under AEC-Q200 stress conditions.
• Aerospace composites: Cure monitoring of carbon-fiber pre-pregs in autoclaves and oven-based layup processes per AMS2750E Zone Certification requirements.
• R&D laboratories: Multi-variable thermal response studies involving material phase transitions, polymer crosslinking kinetics, and catalyst activation thresholds.
• Education: Hands-on instruction in thermal metrology fundamentals, statistical process control theory, and ISO/IEC 17025 documentation practices.

FAQ

What thermocouple types are supported?
The Mini Profiler ships standard with calibrated Type K thermocouples; optional Type J, T, and N configurations are available upon request with corresponding calibration certificates.
Is external power required during profiling runs?
No—the unit operates autonomously on its internal rechargeable Li-ion battery, rated for ≥8 hours of continuous logging at 1 Hz sampling rate.
Can the device be used in vacuum or inert-gas furnaces?
Yes—its probe sheaths are constructed from 316 stainless steel with hermetically sealed junctions, rated for operation in vacuum down to 10⁻³ mbar and inert atmospheres up to 700 °C.
How is measurement uncertainty quantified?
Total system uncertainty is calculated per GUM (JCGM 100:2008) methodology, incorporating thermocouple tolerance, cold-junction compensation error, ADC resolution, and temporal drift—typically ≤±0.65 °C at 200 °C (k=2).
Does the software support automated compliance reporting for ISO 9001 or IATF 16949?
Yes—predefined templates generate audit-ready reports that map thermal performance metrics directly to relevant clauses of ISO 9001:2015, IATF 16949:2016, and JEDEC J-STD-020D.1.
