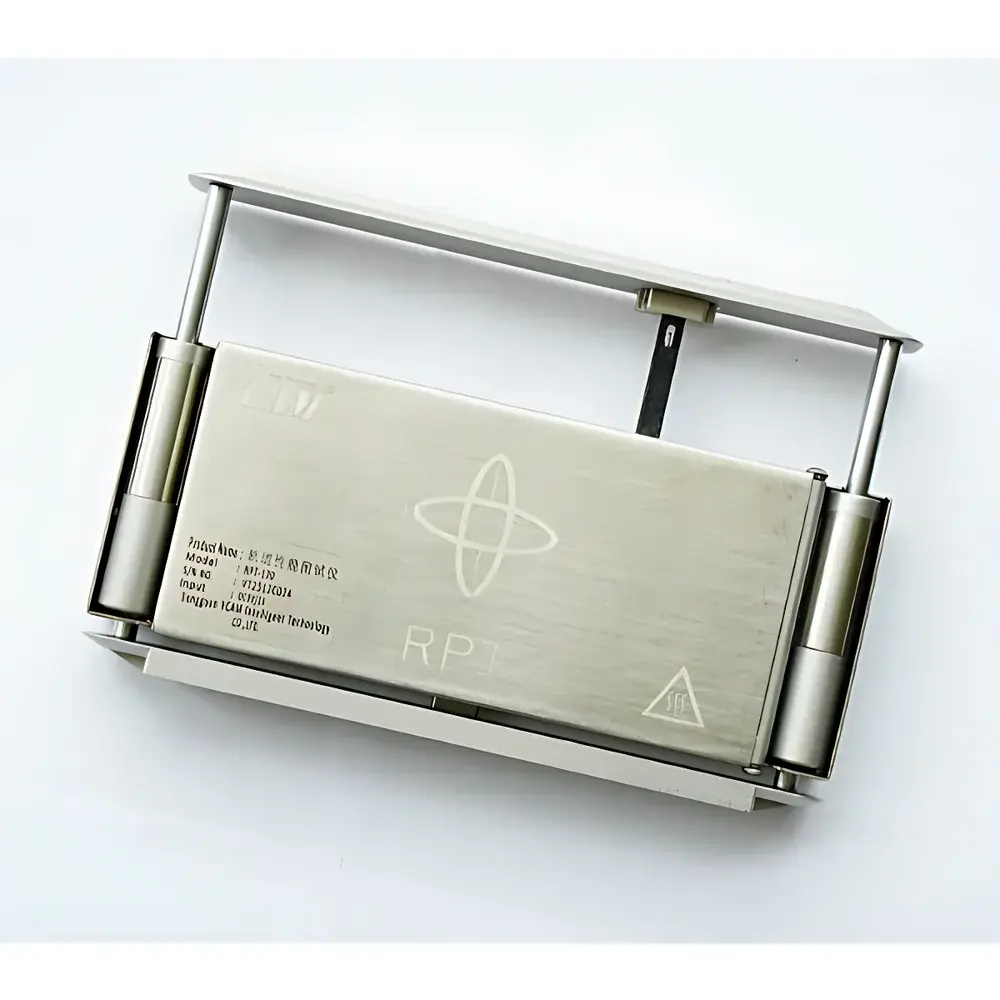

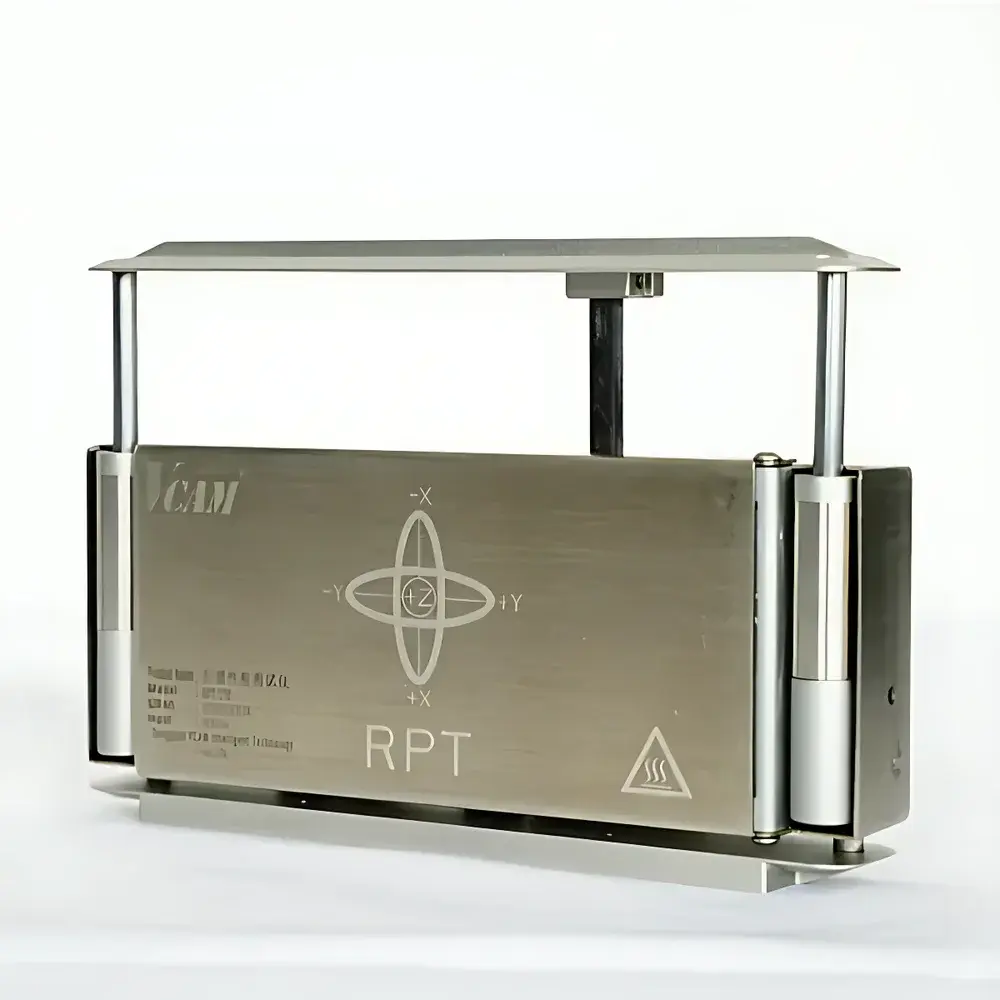

Vcam RPT 100 Reflow Oven Conveyor Track Performance Test Kit
| Brand | Vcam |
|---|---|
| Model | RPT 100 |
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Regional Classification | Domestic (China) |
| Pricing | Available Upon Request |
Overview
The Vcam RPT 100 Reflow Oven Conveyor Track Performance Test Kit is an engineered metrology solution designed for quantitative, non-intrusive assessment of critical mechanical and thermal parameters in SMT reflow oven conveyor systems. It operates on the principle of synchronized multi-sensor data acquisition—integrating high-resolution inertial measurement units (IMUs), optical encoders, precision thermistors, and contactless displacement sensors—to capture real-time dynamic behavior of the conveyor track during operational cycles. Unlike qualitative visual inspections or isolated point measurements, the RPT 100 delivers traceable, time-stamped datasets aligned to ISO/IEC 17025–compatible calibration hierarchies. Its primary engineering purpose is to support predictive maintenance, process validation, and equipment qualification under IPC-A-610, J-STD-001, and IEC 61188-5-2 guidelines—ensuring that thermal profiles remain consistent with solder paste manufacturer specifications and that mechanical drift does not compromise component placement accuracy or thermal transfer uniformity.
Key Features
- Multi-parameter synchronous acquisition: Simultaneous logging of track deformation (±0.05 mm resolution), chain speed (0.1–2.5 m/min, ±0.3% full scale), vibration amplitude (10 Hz–2 kHz bandwidth, ±0.01 g RMS), slope angle (±0.02°, digital inclinometer), parallelism deviation (laser-assisted dual-point referencing), and ambient air temperature (±0.2°C, NIST-traceable).
- By-Pass monitoring mode: Enables real-time comparison between nominal oven setpoints and actual track-localized thermal conditions without interrupting production flow.
- SPC-ready data export: Native support for X-bar/R, Cpk/Ppk, and capability indices per ANSI/ASQ Z1.4 and ISO 22514-2; all statistical calculations performed in accordance with MSA (Measurement Systems Analysis) requirements.
- Modular sensor deployment: Interchangeable probe configurations allow adaptation to single- or double-lane ovens, wide-body conveyors (up to 600 mm width), and hybrid convection/vapor-phase systems.
- Robust industrial-grade enclosure: IP65-rated housing with ESD-safe construction, rated for continuous operation at ambient temperatures up to 55°C and humidity ≤90% RH non-condensing.
Sample Compatibility & Compliance
The RPT 100 is compatible with standard SMT reflow ovens utilizing stainless steel or ceramic-coated conveyor chains—including but not limited to Heller, BTU, Rehm, Grieve, and ERSA platforms. It supports both nitrogen-purged and air-atmosphere reflow environments. All measurement protocols align with IPC-TM-650 Section 2.6.27 (Conveyor Speed Verification), IPC-CC-830B (Thermal Profile Validation), and ASTM F2222-21 (Standard Practice for Thermal Profiling of Printed Circuit Board Assemblies). Data integrity meets FDA 21 CFR Part 11 requirements for electronic records and signatures when deployed with optional audit-trail-enabled software licensing.
Software & Data Management
The included Vcam TrackInsight™ v3.2 software provides a validated Windows-based interface for configuration, real-time visualization, automated report generation (PDF/Excel), and long-term trend analysis. Raw sensor streams are stored in HDF5 format with embedded metadata (timestamp, oven ID, operator ID, calibration certificate ID). Version-controlled firmware updates are delivered via secure HTTPS channel with SHA-256 signature verification. Optional integration with MES platforms (e.g., Siemens Opcenter, Rockwell FactoryTalk) is supported through OPC UA 1.04-compliant drivers, enabling direct ingestion into enterprise quality dashboards.
Applications
- Preventive maintenance scheduling based on empirical degradation thresholds (e.g., cumulative vibration energy >120 dB re 1g²/Hz over 10⁶ cycles triggers bearing replacement).
- IQ/OQ/PQ documentation for new reflow oven commissioning, including baseline establishment for slope stability and chain tension repeatability across three consecutive thermal cycles.
- Root cause analysis of tombstoning, solder bridging, or voiding anomalies by correlating localized track deflection events with thermal profile deviations at specific zones (pre-heat, soak, reflow, cooling).
- Supplier qualification audits: Objective quantification of track performance against contractual SLAs (e.g., parallelism tolerance ≤0.15 mm over 1.2 m span).
- Regulatory readiness: Generation of GLP-compliant audit trails for medical device PCB assembly lines subject to ISO 13485:2016 clause 7.5.2.1 (Production process validation).
FAQ
Is the RPT 100 compatible with lead-free and low-temperature solder profiles?
Yes. The system captures thermal gradients independent of peak temperature, supporting profiles ranging from 150°C (Sn-Bi) to 260°C (high-reliability Pb-free alloys) with equal fidelity.
Can test data be exported for third-party SPC software such as Minitab or JMP?
Yes. CSV and XML exports include column headers compliant with AIAG SPC standard formats, preserving timestamp alignment and unit metadata.
Does the kit include on-site calibration services?
Calibration certificates are provided with each shipment (NIST-traceable for temperature and dimensional sensors); on-site recalibration is available under annual service agreements.
What is the typical deployment time per oven?
Full sensor installation, baseline profiling, and report generation require ≤90 minutes for a standard 8-zone reflow oven, assuming pre-approved access windows during scheduled maintenance.
How is sensor positioning verified for repeatability across multiple tests?
A machined aluminum reference jig ensures identical mounting geometry; positional repeatability is verified using integrated laser alignment aids and documented in every test log.
