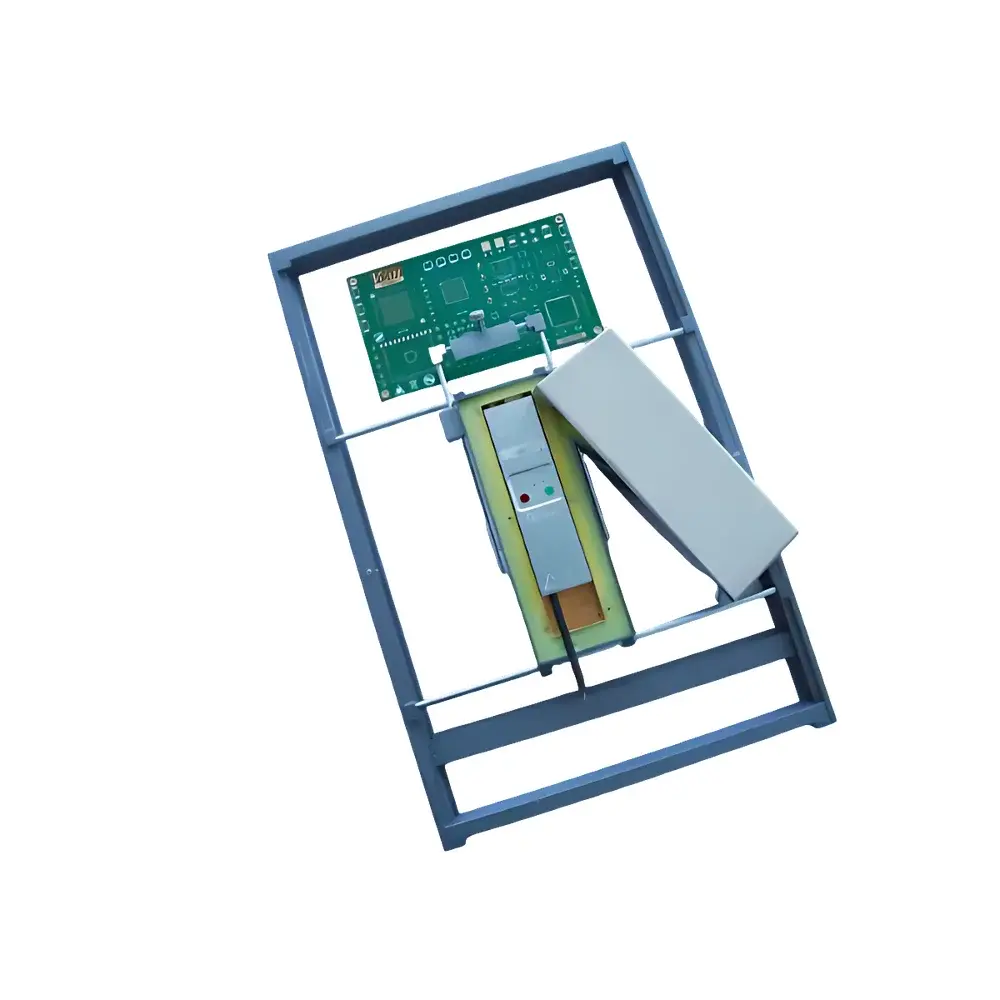

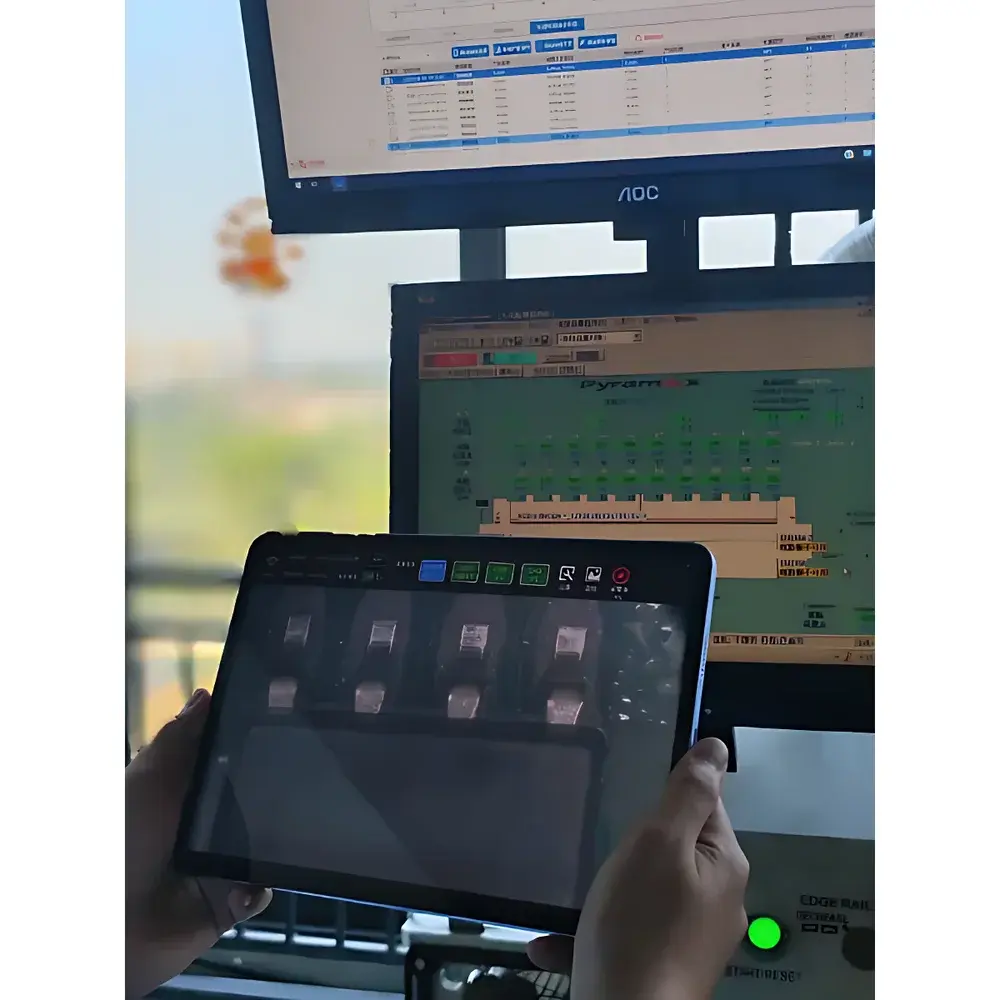

VCAM RSV Industrial Smart Welding Inspection System
| Brand | VCAM |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Region of Manufacture | Domestic (China) |
| Model | RSV |
| Pricing | Upon Request |
| Image Sensor Resolution | 5.0 MP Full-Color CMOS |
Overview
The VCAM RSV Industrial Smart Welding Inspection System is a purpose-built optical monitoring and analytical platform engineered for real-time, high-fidelity visual assessment of soldering processes—particularly in reflow soldering lines used in SMT (Surface Mount Technology) manufacturing. Leveraging high-resolution 5.0 MP full-color imaging combined with synchronized thermal profiling, the RSV system implements multi-modal data fusion to deliver objective, quantifiable process verification. Its core architecture is grounded in calibrated machine vision principles: spatial resolution enables sub-millimeter defect discrimination (e.g., bridging, tombstoning, insufficient wetting, voiding), while temporal synchronization with thermocouple-based temperature acquisition allows pixel-accurate correlation between thermal events and visual morphology changes. Designed for integration into ISO 9001–compliant production environments, the RSV operates as a closed-loop quality assurance node—not merely capturing images, but generating auditable evidence aligned with IPC-A-610 and J-STD-001 acceptance criteria.
Key Features
- 5.0 MP full-color CMOS imaging sensor with adjustable exposure control and LED-stabilized illumination for consistent color fidelity across varying ambient conditions
- Real-time video streaming synchronized with up to 8-channel thermocouple inputs (±0.5 °C accuracy per channel, 100 Hz sampling)
- Automated defect classification engine trained on annotated datasets of common solder joint anomalies—including cold solder joints, solder balling, pad lifting, and intermetallic compound (IMC) layer irregularities
- Four-dimensional process analytics: spatiotemporal image sequences + thermal curve profiles + vibration signatures (via optional MEMS accelerometer input) + time-stamped metadata logging
- On-device edge processing for low-latency anomaly flagging; configurable pass/fail thresholds per joint type and PCB layer stack-up
- Hardware-level timestamp synchronization (PTP v2.1 compliant) ensuring traceability across distributed inspection nodes in multi-lane production lines
Sample Compatibility & Compliance
The RSV system supports inspection of standard SMT substrates ranging from 50 mm × 50 mm to 510 mm × 460 mm (max PCB size), accommodating single- and double-sided assemblies with component heights up to 25 mm. It is compatible with leaded and lead-free solder pastes (SnPb, SAC305, SAC405), including fine-pitch QFNs, 01005 passives, and large-area thermal pads. All software modules comply with FDA 21 CFR Part 11 requirements for electronic records and signatures, featuring role-based access control, audit trail generation, and immutable log archiving. The system meets CE marking requirements under the Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU. Calibration certificates are issued per ISO/IEC 17025-accredited procedures upon installation and annually thereafter.
Software & Data Management
The VCAM VisionSuite™ software provides a unified interface for configuration, analysis, and reporting. It includes an embedded database (SQLite with optional PostgreSQL backend) supporting structured query of inspection results by lot ID, date range, line number, or defect category. Reports conform to industry-standard formats: PDF (for internal QA review), CSV (for MES/ERP integration), and XML (for automated SPC charting via Minitab or JMP). Audit trails record all user actions—including parameter modifications, report exports, and calibration events—with SHA-256 hashing for integrity verification. Data retention policies are configurable per ISO 13485 Annex A.7.5.2 guidelines, supporting both on-premise NAS storage and encrypted cloud backup (AWS S3 with client-managed KMS keys).
Applications
- Reflow oven process validation and DOE (Design of Experiments) support for thermal profile optimization
- First-article inspection (FAI) of high-reliability PCBAs destined for aerospace, medical, and automotive applications
- Root-cause analysis of yield loss correlated with specific thermal ramp rates or peak temperature deviations
- Supplier qualification audits requiring objective, repeatable solder joint assessment
- Training and standardization of operator visual inspection protocols using ground-truth reference imagery
- Integration with factory-wide digital twin frameworks for predictive maintenance of reflow equipment based on thermal drift trends
FAQ
Does the RSV system require external PC hardware for operation?
No—the RSV integrates an industrial-grade embedded controller with dual-core ARM Cortex-A72 CPU and 4 GB LPDDR4 RAM, enabling standalone operation without dependency on external workstations.
Can inspection criteria be customized per product family or customer specification?
Yes—VisionSuite™ supports rule-based inspection templates, including geometric tolerancing (GD&T) overlays, contrast threshold tuning, and custom defect severity scoring matrices.
Is remote diagnostics and firmware update supported?
Yes—secure TLS 1.3–encrypted remote access is available via VPN or Zero Trust Network Access (ZTNA) architecture, with OTA (over-the-air) updates signed using ECDSA-P384 cryptographic signatures.
What is the maximum frame rate at full 5.0 MP resolution?
The system captures at 30 fps at native resolution; reduced ROI (region-of-interest) modes enable up to 120 fps for high-speed motion analysis.
How is temperature data synchronized with video frames?
Hardware-level PTP (Precision Time Protocol) synchronization ensures sub-millisecond alignment between thermal sampling timestamps and corresponding video frame capture interrupts.
