VEGA VEGAMET 342 Embedded Process Display and Control Monitor

Overview

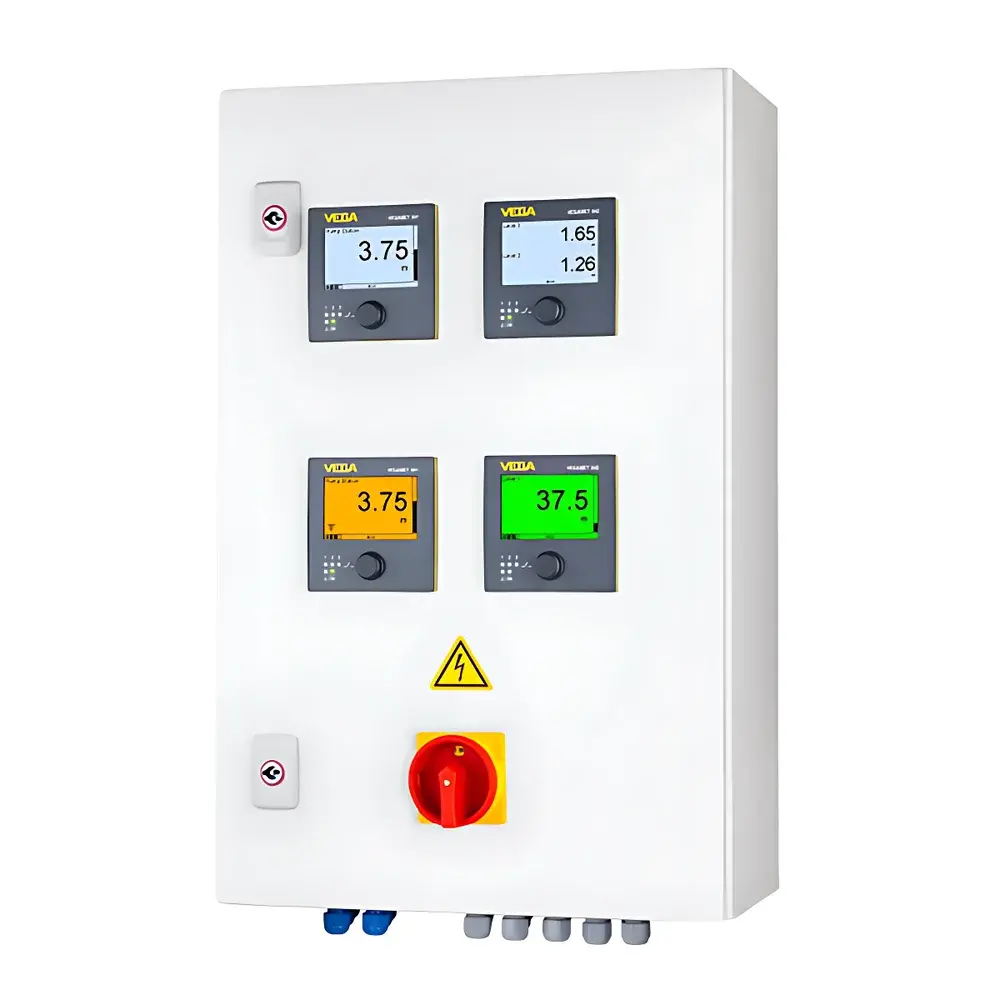

The VEGA VEGAMET 342 is an embedded industrial display and control monitor engineered for real-time visualization, signal conditioning, and logic-based process supervision in demanding plant environments. Designed specifically for integration into control cabinets and operator panels, this DIN-standard (144 × 144 mm) device serves as a centralized interface for two independent 4–20 mA level or pressure transmitters—commonly used with VEGA’s radar, guided wave radar, ultrasonic, or hydrostatic sensors. Its core function is to acquire analog process signals, perform arithmetic operations (sum, difference, average, accumulation), execute limit monitoring, and drive discrete outputs—including pump control, overflow prevention per German Water Resources Act (WHG), and flow regulation in open channels or weirs. Unlike programmable logic controllers requiring IEC 61131-3 coding, the VEGAMET 342 operates via intuitive parameterization, eliminating the need for custom software development while maintaining full traceability and functional safety integrity.

Key Features

• Two isolated 4–20 mA inputs with HART® transparency support—enabling simultaneous connection of primary and secondary level instruments or redundant measurement setups
• Two galvanically isolated 4–20 mA outputs for retransmission to DCS/SCADA systems or cascade control loops
• Three user-configurable SPDT process relays rated for 250 V AC / 5 A resistive load; one relay may be assigned exclusively to fault indication (e.g., sensor failure, signal out-of-range, power loss)
• Integrated loop power supply (20–28 V DC, up to 50 mA per channel) eliminates external power adapters for connected 2-wire transmitters

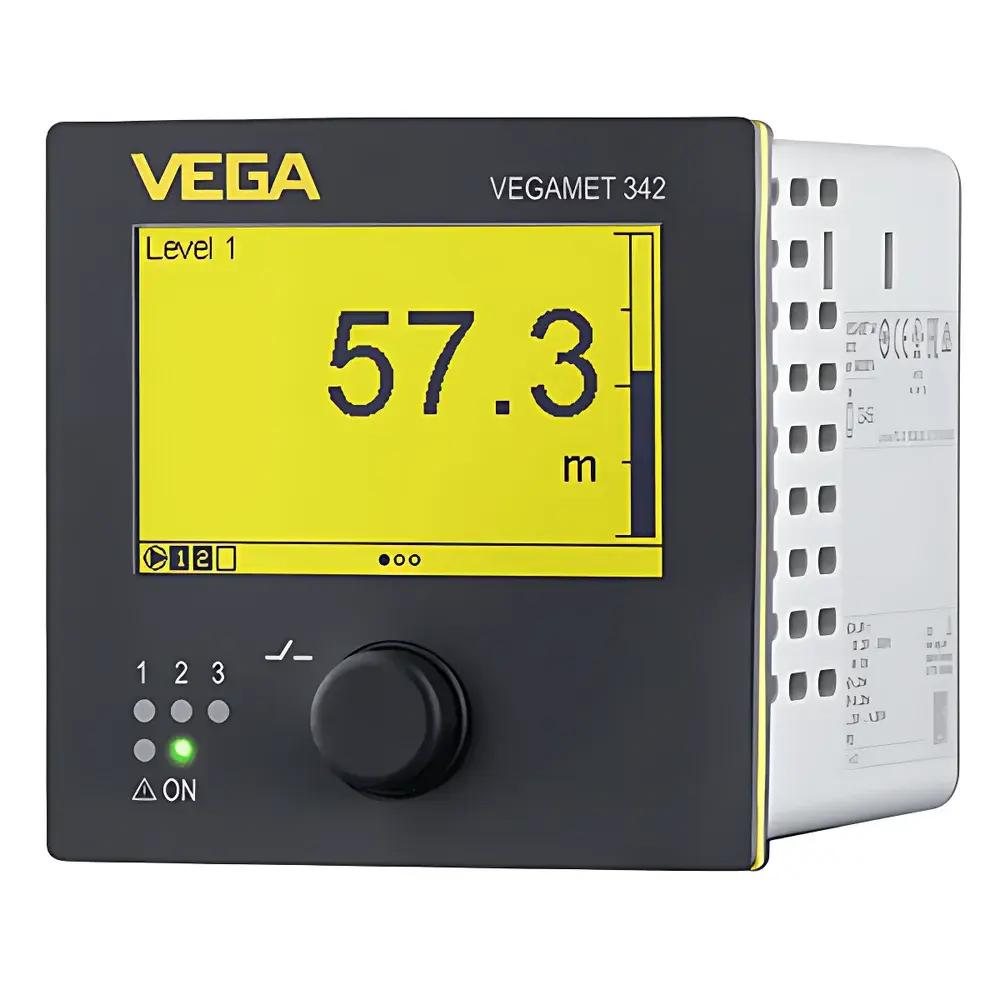

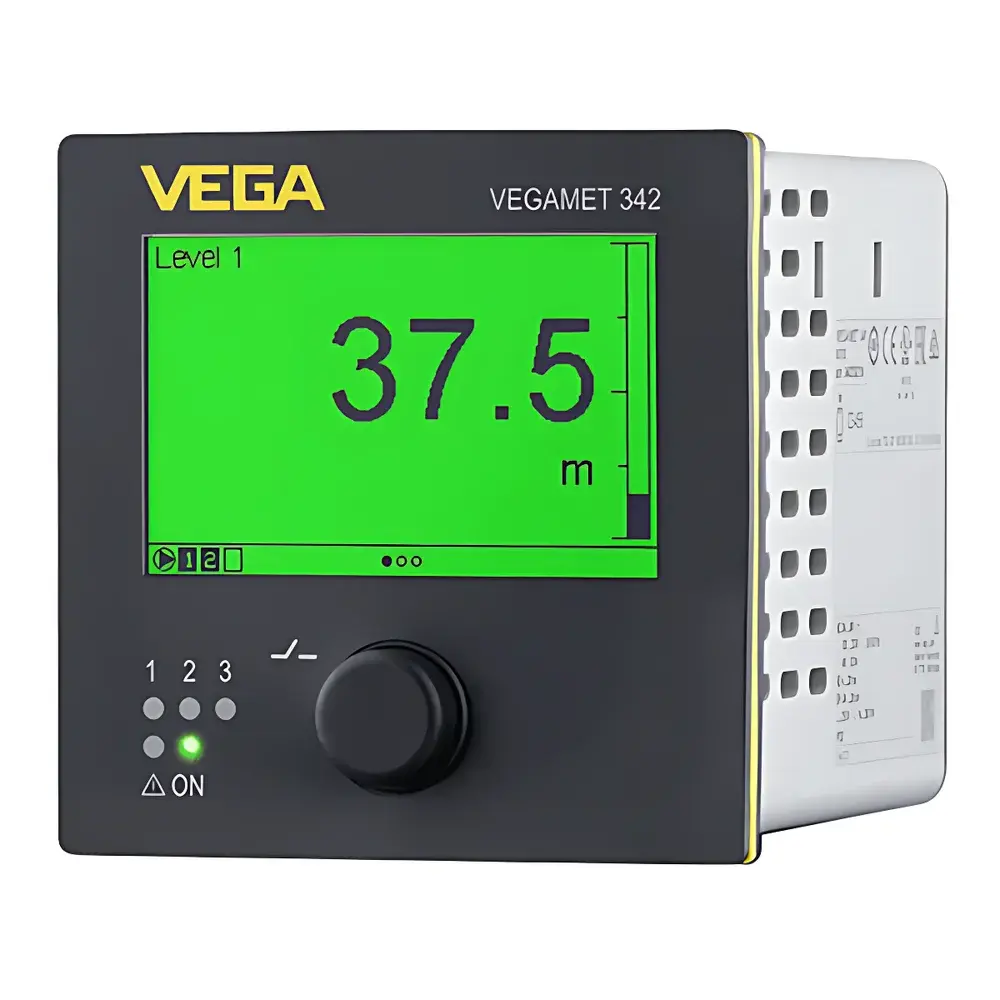

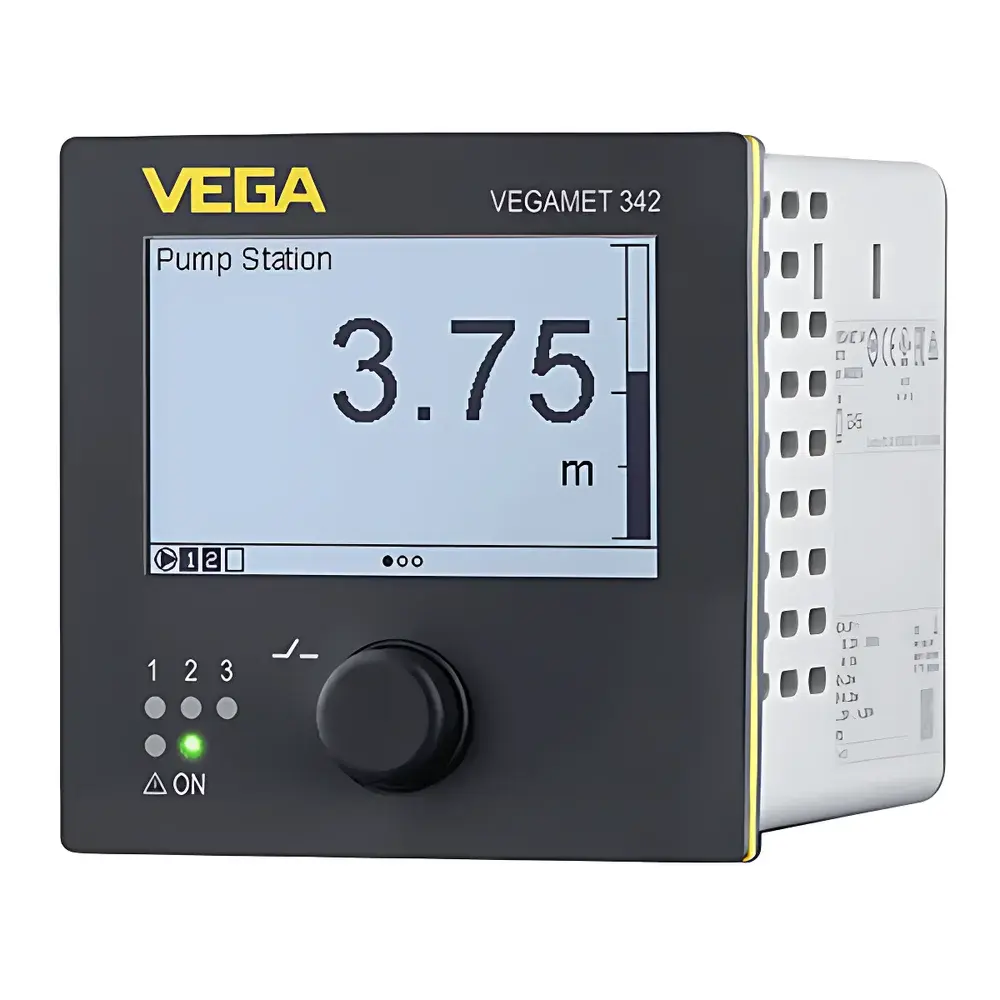

• High-visibility monochrome LCD with adjustable contrast and backlight—designed for legibility under ambient illumination ranging from 0 to 10,000 lux
• Local operation via ergonomic rotary encoder and tactile push buttons—supporting zero-point adjustment, scaling, and relay threshold setting without tools
• Bluetooth 5.0 interface compliant with Bluetooth SIG standards—enabling secure, password-protected commissioning and diagnostics using the VEGA Tools mobile application (iOS/Android)
• Robust aluminum front bezel and IP65-rated housing suitable for panel mounting in corrosive or humid industrial enclosures

Sample Compatibility & Compliance

The VEGAMET 342 is compatible with all standard 4–20 mA analog output sensors used in continuous level, interface level, and differential pressure applications—including but not limited to VEGA’s own PLICSCOM, VEGAPULS, VEGASON, and VEGABAR product families. It meets essential regulatory requirements for hazardous area operation: ATEX Directive 2014/34/EU (II 1/2 G Ex ia IIC T4 Ga / II 1/2 D Ex ia IIIC T135°C Da), IECEx certification (Ex ia IIC T4 Ga), and DNV-GL marine type approval for Class A/B/C installations on offshore platforms and vessels. For environmental compliance, its overflow protection logic aligns with §60a WHG (Wasserhaushaltsgesetz) provisions governing containment and spill prevention in German industrial facilities. The device adheres to EMC Directive 2014/30/EU (EN 61326-1), Low Voltage Directive 2014/35/EU (EN 61000-6-2/-4), and RoHS 2011/65/EU.

Software & Data Management

Configuration and diagnostics are performed exclusively through VEGA Tools—a vendor-specific, platform-independent application distributed free of charge. The software supports firmware updates, parameter backup/restore, event log export (CSV), and real-time signal monitoring. All configuration changes are timestamped and stored locally within non-volatile memory. While the VEGAMET 342 does not implement FDA 21 CFR Part 11 electronic signature functionality (as it lacks user role management), its audit trail—comprising relay activation timestamps, alarm events, and manual calibration entries—supports GLP/GMP-aligned operational review when integrated into validated systems. No cloud connectivity or remote telemetry is embedded; data exchange remains strictly local via Bluetooth or front-panel interaction.

Applications

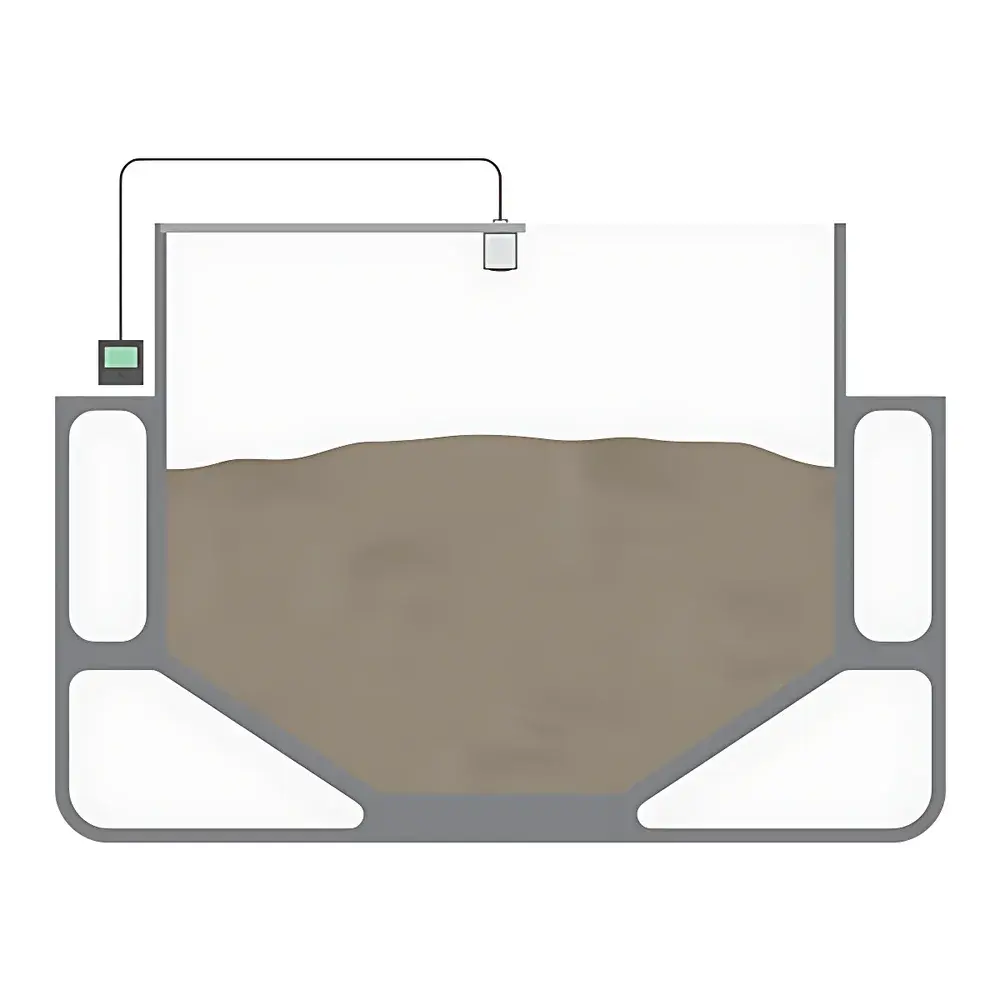

The VEGAMET 342 is deployed across industries where simplicity, reliability, and regulatory adherence outweigh computational complexity. Typical use cases include: wastewater treatment plants managing influent/effluent tank levels with automatic pump staging; chemical dosing stations regulating additive injection based on differential level readings; food & beverage silos implementing overfill prevention with dual-sensor redundancy; marine ballast control systems meeting DNV-GL Class Rules for liquid level supervision; and pharmaceutical buffer tanks requiring WHG-compliant containment monitoring. Its ability to compute accumulated flow from weir or flume signals makes it suitable for ISO 4064-compliant water metering applications where pulse outputs are unavailable.

FAQ

Can the VEGAMET 342 replace a PLC in basic control tasks?

Yes—for discrete logic functions such as high-level shutdown, pump alternation, or overflow interlock, provided no sequential or time-based logic beyond simple hysteresis is required.
Is HART communication supported on both input channels?

HART transparency is enabled by default; however, only one channel can be actively interrogated at a time using VEGA Tools via the device’s internal modem emulation.
Does the unit support Modbus RTU or other fieldbus protocols?

No—VEGAMET 342 is strictly an analog I/O concentrator with no built-in digital fieldbus interface.
What is the maximum cable length between the VEGAMET 342 and a 4–20 mA transmitter?

With standard 1.5 mm² shielded twisted pair and 24 V DC loop supply, maximum distance is 600 m (per EN 60079-27).
Can relay assignments be changed during operation?

Yes—all relay functions—including setpoints, hysteresis, and fail-safe states—are fully reconfigurable online without power cycling.
