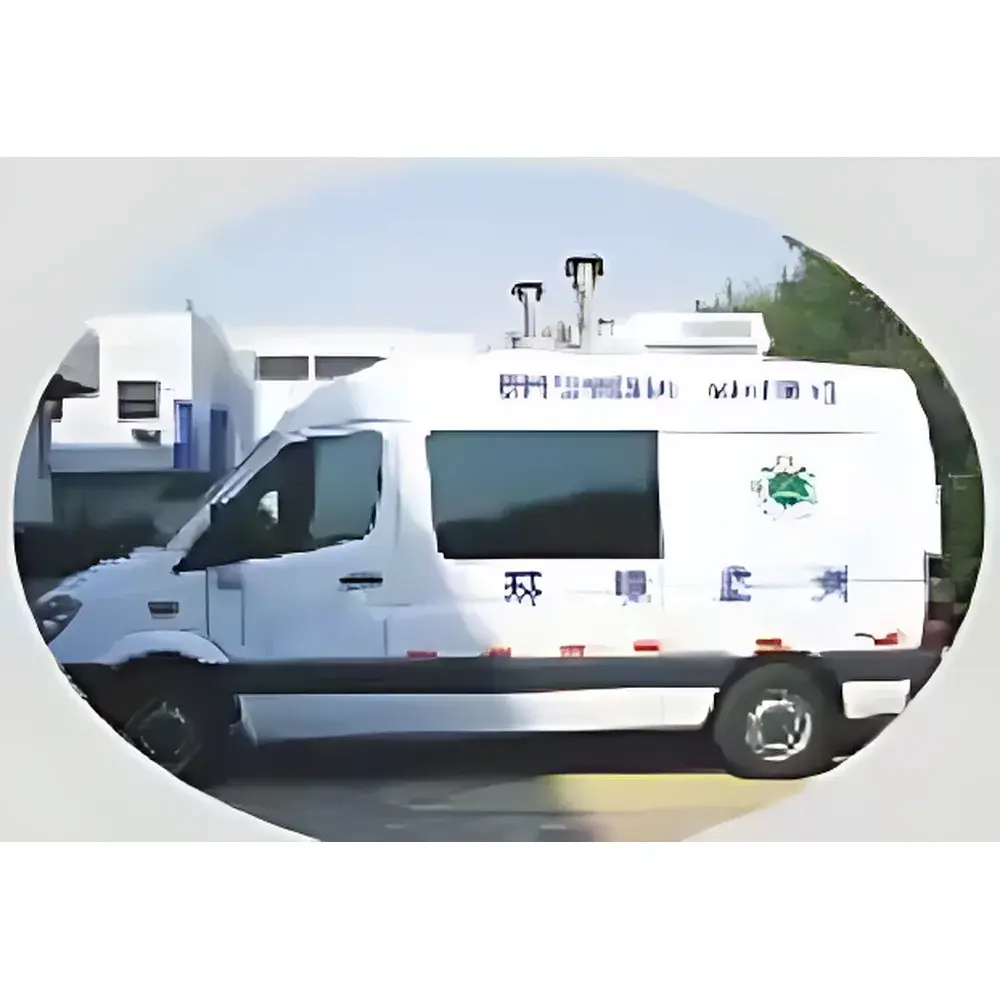

Vehicle-Mounted Air Quality Monitoring Station BCNX-AQ05
| Origin | Beijing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | BCNX-AQ05 |
| Pricing | Upon Request |
Overview
The BCNX-AQ05 Vehicle-Mounted Air Quality Monitoring Station is an integrated, mobile environmental monitoring platform engineered for real-time, on-the-move assessment of ambient air quality in compliance with China’s national standard GB 3095–2012 “Ambient Air Quality Standards.” Designed for both routine surveillance and emergency response scenarios, the system employs standardized electrochemical, optical scattering (for particulate matter), and metal oxide semiconductor sensing technologies—calibrated and validated against reference-grade instrumentation—to deliver traceable, field-deployable measurements. Its vehicle-integrated architecture enables dynamic spatial mapping of pollutants across heterogeneous urban, industrial, and peri-urban environments without compromising analytical integrity. The station is fully compatible with SUV or mid-size van chassis modifications, featuring reinforced shock absorption, IP65-rated external sensor housings, and temperature- and humidity-stabilized internal compartments to ensure operational reliability under variable road conditions and climatic stress.
Key Features
- Modular, multi-parameter design compliant with GB 3095–2012—supports simultaneous measurement of PM10, PM2.5, SO2, H2S, NOx (NO/NO2), O3, CO, and BTX (benzene, toluene, xylene) compounds
- Integrated GPS + GIS engine enabling real-time georeferencing of concentration data; overlay capability with synchronized HD video feed from onboard pan-tilt-zoom (PTZ) cameras
- Optional meteorological module (wind speed/direction, temperature, relative humidity, atmospheric pressure, rainfall) for co-located environmental context and source apportionment modeling
- Onboard data logger with ≥32 GB internal storage, supporting continuous acquisition at 1-minute resolution and automatic time-synchronization via NTP/GPS
- Automated particulate zero-calibration using clean-air purge cycles and dynamic heating control (±0.5 °C stability) to mitigate condensation-induced bias in high-humidity conditions
- Self-diagnostic firmware with fault logging, sensor health monitoring, and remote alerting via LTE/4G cellular uplink
- Compact, service-oriented mechanical layout—modular sensor trays, tool-less access panels, and standardized 19″ rack-mount compatibility for rapid field maintenance
Sample Compatibility & Compliance
The BCNX-AQ05 is intended for ambient air sampling only—not for stack emissions or indoor microenvironments. All gas-phase sensors undergo factory calibration against NIST-traceable certified standards, with documented uncertainty budgets per ISO/IEC 17025 requirements. Particulate mass concentration outputs are algorithmically corrected for humidity and temperature drift using dual-channel nephelometric detection and beta attenuation correlation. System-level validation reports include intercomparison results with FRM/FEM reference instruments per EPA CTM-036 and EN 14625 protocols. Data output formats comply with China’s “Environmental Monitoring Data Transmission Technical Specification” (HJ 212–2017) and support optional XML/JSON export for integration into provincial EIS platforms.
Software & Data Management
The embedded Linux-based control unit runs proprietary AQ-Monitor Suite v3.2, offering local touchscreen interface and secure remote access via TLS 1.2-encrypted web portal. Software features include configurable alarm thresholds (with SMS/email escalation), audit-trail-enabled parameter modification logs, and GLP-compliant electronic signatures for calibration events. Raw and processed datasets are timestamped with UTC/GMT synchronization and stored with SHA-256 checksums to ensure data integrity. Export options include CSV, NetCDF, and EPA-compatible AQS format. Optional cloud-hosted dashboard (AWS-hosted, SOC 2 Type II certified) provides role-based access control, historical trend analysis, and API endpoints for third-party GIS or decision-support systems.
Applications
- Rapid-response deployment during chemical spills, dust storms, or wildfire smoke events
- Mobile source emission characterization along traffic corridors and near port facilities
- Urban airshed profiling for hotspot identification and policy evaluation (e.g., low-emission zone enforcement)
- Industrial fence-line monitoring and community exposure assessment
- Calibration validation of fixed-site networks through spatially dense traverses
- Academic field campaigns requiring geotagged, time-resolved multipollutant datasets
FAQ
Is the BCNX-AQ05 certified for regulatory reporting in China?
Yes—the system meets technical verification requirements outlined in HJ 93–2013 and HJ 653–2013 for mobile ambient air monitoring equipment used in official environmental supervision.
Can the system operate continuously while the vehicle is in motion?
Yes—vibration-damped sensor mounts, inertial navigation compensation, and airflow stabilization ducts ensure stable sampling at speeds up to 80 km/h.
What is the recommended calibration frequency?
Gas sensors require quarterly span calibration with certified standards; PM modules undergo automated zero checks every 24 hours and full calibration every 6 months or after 2,000 operating hours.
Does the system support integration with existing municipal air quality platforms?
Yes—it supports HJ 212–2017 protocol out-of-the-box and offers custom middleware development for legacy SCADA or EU AirBase-compatible ingestion pipelines.
Is remote firmware update capability available?
Yes—over-the-air (OTA) updates are supported via authenticated HTTPS push, with rollback functionality and version-controlled release notes archived in the audit log.
