Vientiane Environment WX-TD1 Photocatalytic Insect Trap Lamp
| Brand | Vientiane Environment |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | China |
| Model | WX-TD1 |
| Price | USD 425 (approx.) |
Overview

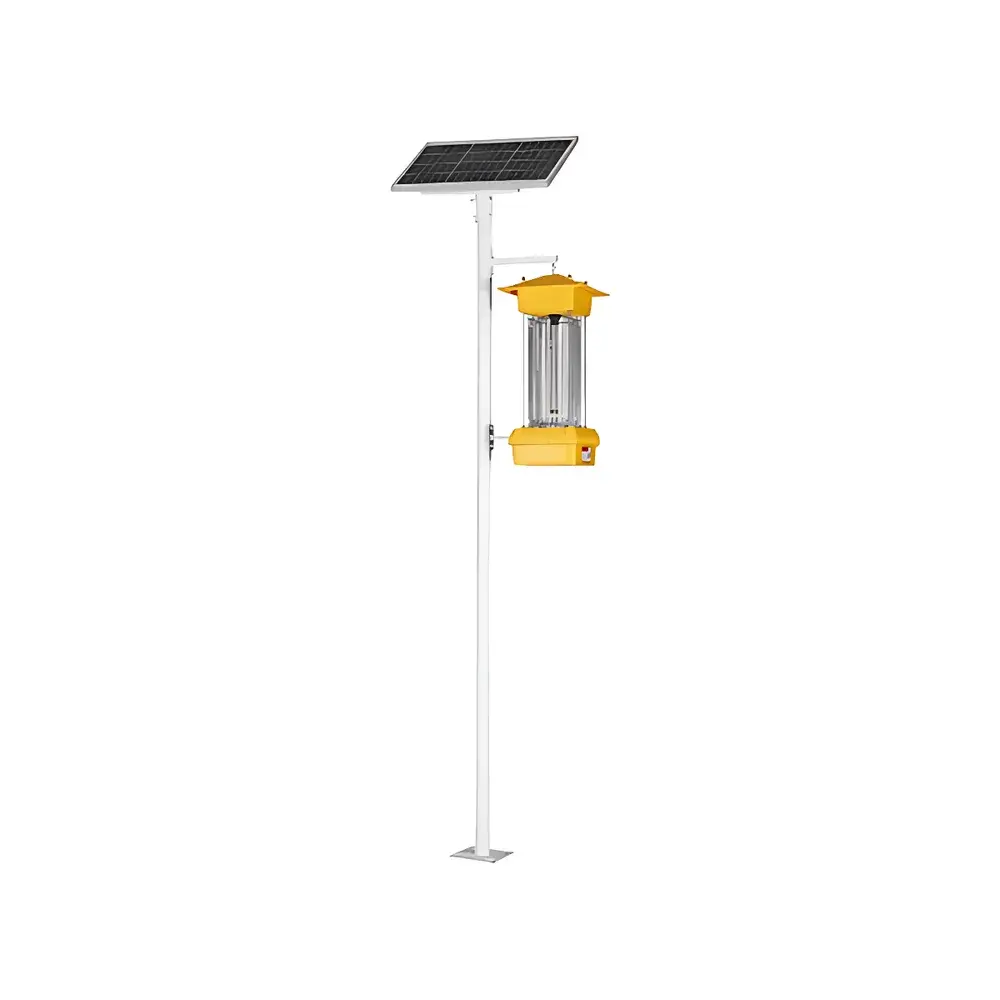

The Vientiane Environment WX-TD1 Photocatalytic Insect Trap Lamp is an intelligent, solar-powered pest monitoring and control device engineered for integrated pest management (IPM) programs in agricultural ecosystems. It operates on the principle of phototaxis-driven attraction—utilizing high-efficiency UV-A (320–400 nm) emission from cold-cathode fluorescent lamps (CCFL) combined with optimized spectral output to maximize insect attraction. The lamp integrates electrocution via a high-voltage grid (≥5 kV DC), mechanical collection into a detachable insect container, and optional pheromone-assisted targeting via a dedicated lure chamber. Designed in strict compliance with GB/T 24689.2–2017 “Plant Protection Machinery – Insect Traps”, it serves as both a surveillance tool for pest population dynamics and a physical control measure aligned with reduced-pesticide farming practices.
Key Features
- Solar-rechargeable power architecture: 40 W monocrystalline PV panel (ηa ≥ 21%) paired with a 12 V / 20 Ah Li-ion battery (IEC 62620–2014 certified; ≥90% capacity retention after 500 cycles)
- Multi-sensor environmental intelligence: Real-time acquisition of ambient temperature, relative humidity, battery voltage/current, solar panel output, signal strength (4G/5G), and tilt angle (±0.5° resolution)
- Adaptive operational logic: Dual-mode photoperiod control (2–20 lx activation; 30–200 lx deactivation), rain-sensing auto-protection, and programmable temperature hysteresis (sleep at <0°C; resume at >6°C)
- Configurable time-scheduling: Up to eight user-defined daily operation windows with ≤10 min timing deviation per cycle
- Geospatial integration: Built-in北斗+GPS dual-mode positioning module; GIS-based fleet visualization across web and mobile platforms (Web, iOS, Android, WeChat Mini Program)
- High-reliability electrocution system: Effective high-voltage grid area >0.31 m²; epoxy-resin sealed HV wiring (≥120 mm² coverage); aluminum conduit routing for low-voltage lines (screw ID ≥3.5 mm, OD ≤6 mm)
- Structural durability: 3 m corrosion-resistant pole (salt spray test ≥170 h per GB/T 2423.17–2008); seamless funnel geometry (top ID ≥300 mm; bottom ID ≥105 mm; vertical height ≥150 mm)
Sample Compatibility & Compliance
The WX-TD1 is validated for field deployment across paddy, orchard, vineyard, vegetable greenhouse, and open-field cropping systems. Its UV-A spectrum targets Lepidoptera (e.g., Helicoverpa armigera, Chilo suppressalis), Coleoptera (e.g., Anomala corpulenta), and Diptera (e.g., Drosophila suzukii) without interference from non-target beneficials when deployed at recommended spacing (20–30 m intervals). All safety labeling adheres to GB 10396 requirements. Electrical insulation, creepage distance, and clearance meet IEC 61000-6-2/6-4 immunity and emission standards. Mechanical construction conforms to IP65 ingress protection rating. Regulatory alignment includes GB/T 24689.2–2017, GB/T 2423.17–2008, and ISO 9001:2015 manufacturing quality framework.
Software & Data Management
The embedded microcontroller supports OTA firmware updates and remote parameter configuration via secure MQTT/HTTPS protocols. The cloud platform provides role-based access (admin, technician, agronomist) with audit-trail logging compliant with GLP data integrity principles. Core telemetry includes hourly insect count totals (with timestamp, temperature, RH metadata), battery SOC history, grid fault logs (short-circuit, overvoltage, reverse polarity), and event-triggered alerts (tilt >5°, unauthorized displacement, power loss). Data export supports CSV/Excel formats with customizable date-range filters. All location data is encrypted in transit and at rest; no raw GPS coordinates are stored beyond 90 days unless explicitly retained under site-specific data governance policy.
Applications
- Real-time pest density mapping for precision scouting in large-scale cereal and oilseed farms
- Early-warning detection of migratory moth species prior to egg-laying onset
- Validation of mating disruption efficacy in pheromone-treated orchards
- Long-term phenological trend analysis (e.g., first capture date, peak flight period) across growing seasons
- Regulatory reporting support for organic certification audits (e.g., USDA NOP, EU EC 834/2007 Annex II)
- Extension service dashboards for county-level pest advisory systems
FAQ
Does the WX-TD1 require external AC power?
No. It operates autonomously on solar energy with battery backup; no grid connection is necessary.
Can the photoperiod sensitivity threshold be adjusted remotely?
Yes. Light-activation and deactivation lux thresholds (default 2–20 lx / 30–200 lx) are configurable via the web portal or mobile app.
Is the insect counting function optically or mechanically based?
Counting is performed via infrared beam interruption at the funnel outlet—providing non-contact, high-reliability enumeration without specimen damage.
What level of data security does the cloud platform provide?
End-to-end TLS 1.2+ encryption, RBAC authentication, and session timeout enforcement comply with ISO/IEC 27001 information security controls.
How is maintenance status tracked for pheromone lures?
The system logs installation date and estimated expiry (based on manufacturer-specified shelf life), triggering automated replacement reminders via push notification and dashboard alert.
