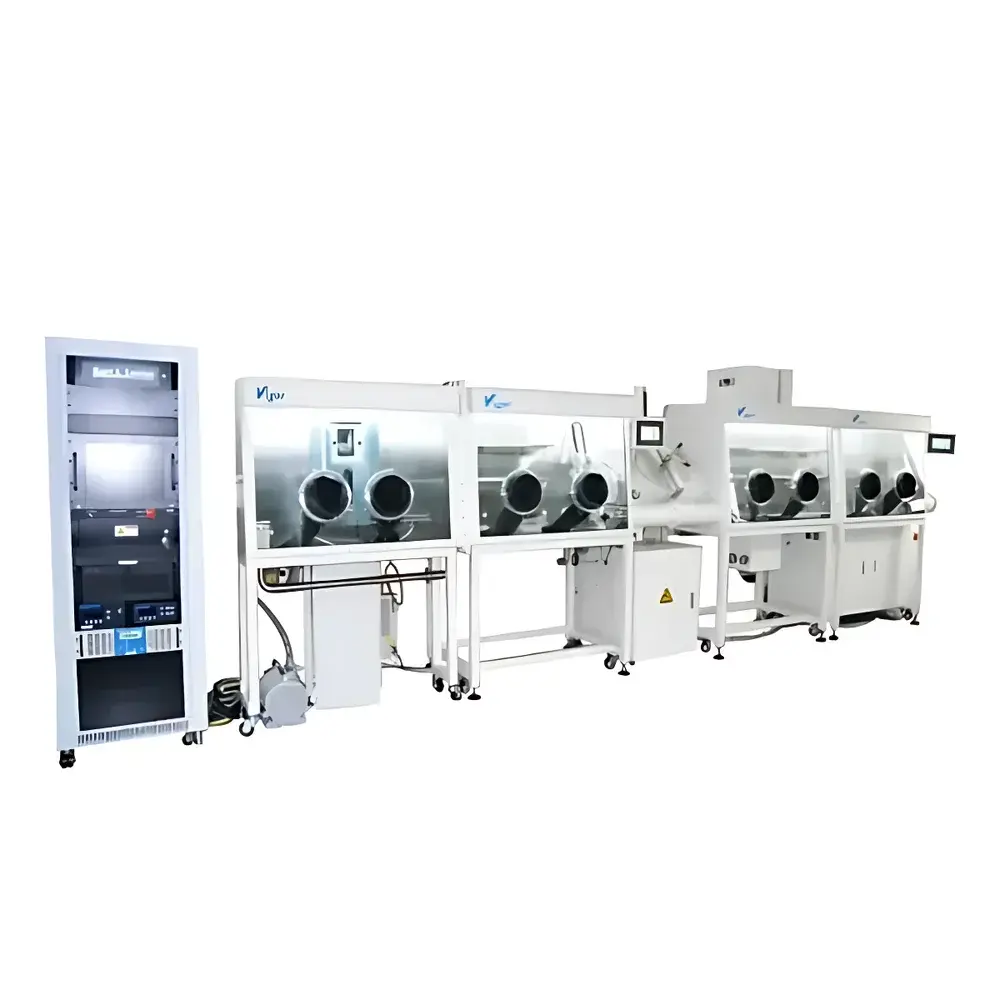

Vigor Vigor Single-Station Glove Box for Flexible Solar Cell Manufacturing

Overview

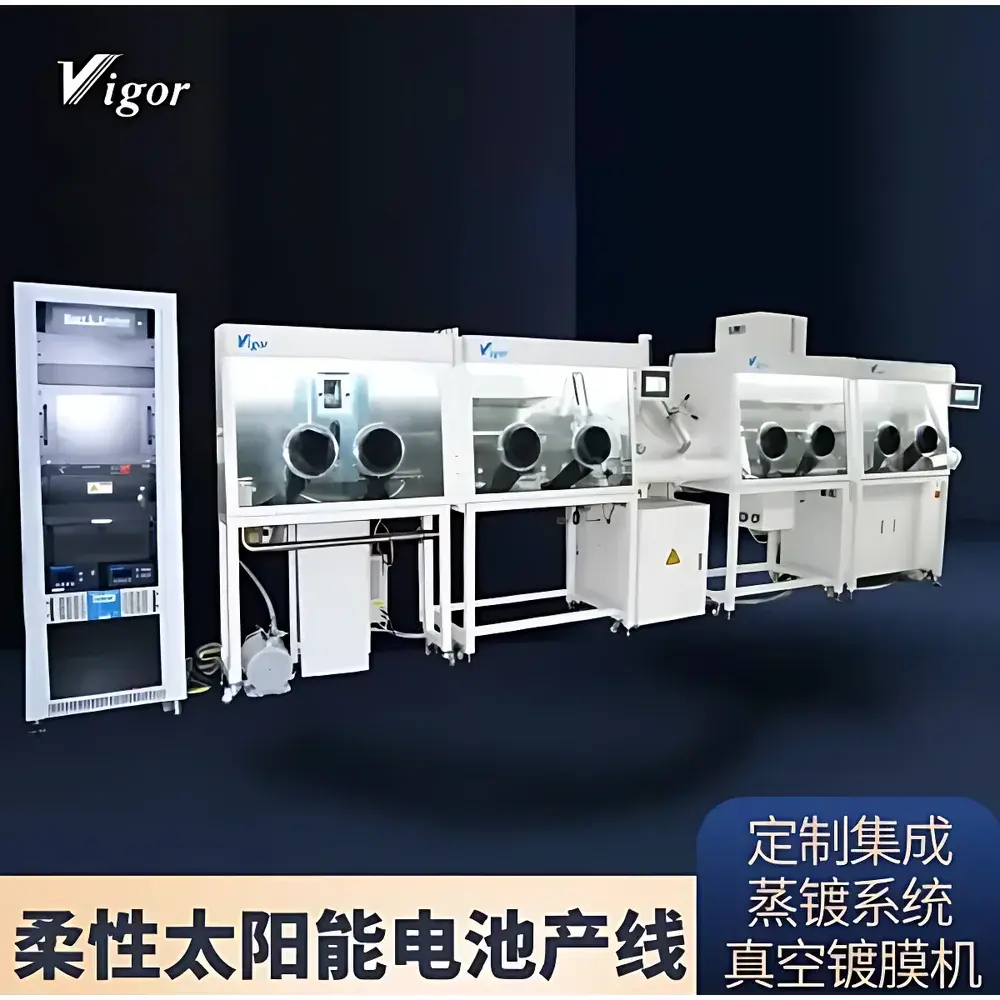

The Vigor Single-Station Glove Box is an engineered inert-atmosphere workstation designed specifically for the fabrication, characterization, and handling of oxygen- and moisture-sensitive materials used in flexible solar cell development. Built upon a robust stainless-steel chamber architecture with electropolished 304L interior surfaces, this glove box employs dual-stage purification technology—comprising a continuous catalytic deoxygenation system and a molecular sieve-based dehydration unit—to achieve and maintain stable O₂ and H₂O levels below 1 ppm (v/v) under steady-state operation. Its operational principle relies on closed-loop recirculation through high-efficiency purifiers, monitored in real time via integrated electrochemical O₂ and tunable diode laser (TDLAS) H₂O sensors. The system is configured for seamless integration into pilot-scale thin-film photovoltaic R&D workflows, supporting vacuum transfer interfaces, feedthroughs for electrical biasing, and optional glove ports compatible with ISO-KF 40 and CF-35 flanges.

Key Features

• Single-station ergonomic layout with 600 mm × 600 mm × 600 mm (W×D×H) main chamber volume, optimized for manual manipulation of flexible substrates up to 300 mm × 300 mm
• Automated purge sequence with programmable ramp rates, pressure stabilization logic, and leak-rate verification (<0.05 vol%/hr per ASTM E1089)
• Integrated touch-panel HMI with local data logging (1 Hz sampling), alarm history, and configurable setpoint thresholds for O₂, H₂O, and chamber pressure

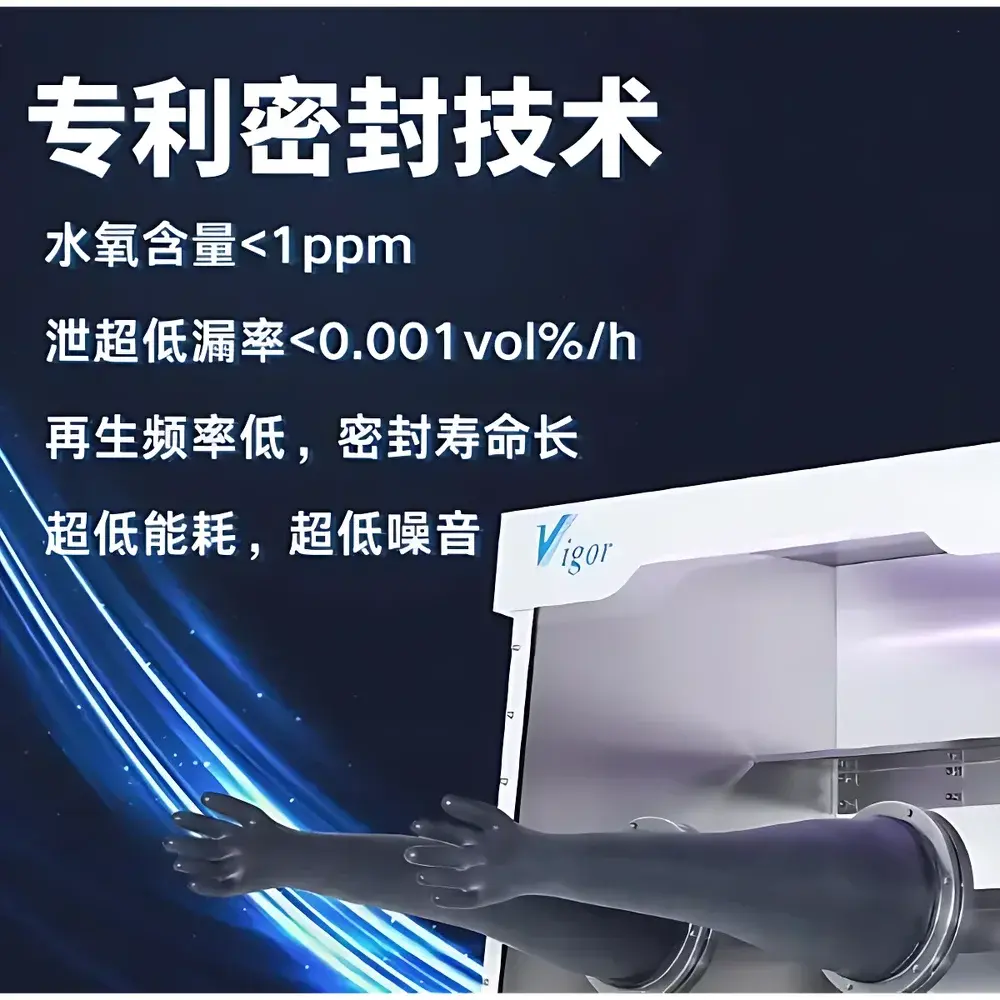

• Double-glove configuration (butyl rubber, 0.4 mm thickness) with reinforced wrist cuffs and quick-release clamping system meeting ISO 14644-1 Class 5 cleanroom compatibility
• Optional auxiliary modules: antechamber with auto-cycle vacuum/N₂ purge, solvent-resistant internal coating (PTFE-lined), and Ethernet-enabled remote monitoring via Modbus TCP

Sample Compatibility & Compliance

The Vigor glove box accommodates a broad range of photovoltaic material systems—including perovskite precursors (e.g., MAPbI₃, FA₀.₈₃Cs₀.₁₇Pb(I₀.₈₃Br₀.₁₇)₃), organic semiconductors (e.g., PTB7-Th, PM6:Y6), and metal oxide charge transport layers (NiOₓ, SnO₂)—without risk of ambient-induced degradation. Chamber internal geometry supports roll-to-plate substrate loading and manual spin-coating, thermal evaporation, and blade-coating operations. All wetted materials comply with USP Class VI biocompatibility requirements; gasket elastomers meet FDA 21 CFR 177.2600 specifications. The system conforms to IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions), and its safety interlocks satisfy EN 60204-1 for machinery electrical equipment.

Software & Data Management

Data acquisition and system control are managed through Vigor’s proprietary GloveBox Control Suite (v3.2), a Windows-based application supporting audit-trail-enabled user authentication (role-based access control), electronic signatures, and 21 CFR Part 11–compliant data integrity protocols. Raw sensor outputs, purge cycle logs, and operator actions are timestamped and stored in encrypted SQLite databases with automatic daily backup to network shares or USB media. Export formats include CSV (for Excel/Origin analysis) and PDF (for GLP-compliant report generation). Optional OPC UA server integration enables interoperability with LIMS and MES platforms in GMP-aligned battery R&D facilities.

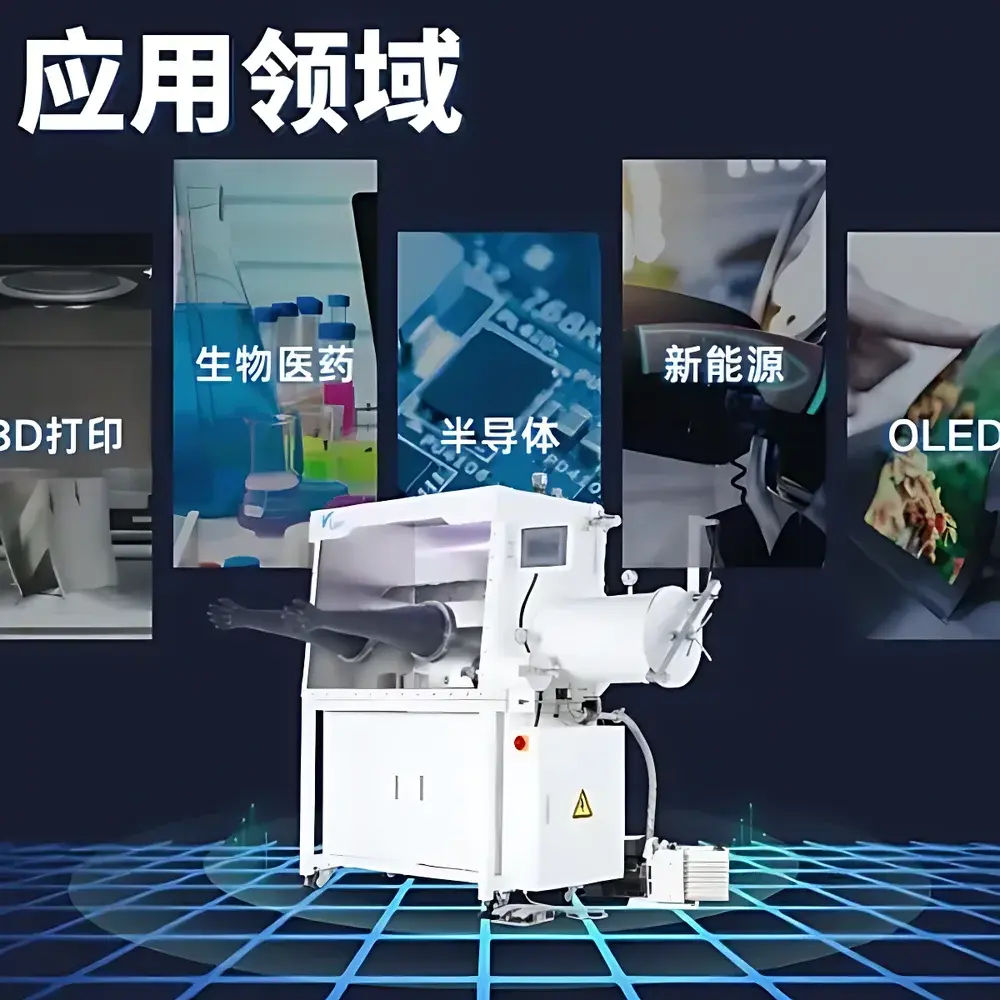

Applications

• Controlled-atmosphere deposition of perovskite absorber layers and hole/electron transport films
• In-situ characterization of flexible solar cells using portable UV-Vis-NIR spectrometers and four-point probe stations
• Encapsulation process development under inert conditions to evaluate edge-seal adhesion and barrier film performance
• Stability testing of unencapsulated devices per ISOS-D-1 (dark storage) and ISOS-L-1 (light soaking) protocols
• Electrode interface engineering for solid-state dye-sensitized and quantum dot solar cells

FAQ

What inert gas supply is required for continuous operation?
Standard operation uses high-purity N₂ (≥99.999%) or Ar (≥99.998%); inlet pressure must be maintained between 0.3–0.6 MPa with dew point ≤ −70°C.
Can the glove box be retrofitted with additional feedthroughs post-installation?
Yes—up to four 16 mm diameter electrical or pneumatic feedthroughs can be added via standardized ISO-KF 16 ports without chamber disassembly.
Is validation documentation available for IQ/OQ protocols?
Vigor provides factory-verified Installation Qualification (IQ) templates and Operational Qualification (OQ) test scripts aligned with ISO 14644-3 and ASTM E509, including as-delivered leak rate, purge efficiency, and sensor calibration certificates.
What maintenance intervals are recommended for the purification system?
Catalyst cartridges require replacement every 12 months under continuous use; molecular sieves every 18 months; gloves every 6–12 months depending on chemical exposure frequency and abrasion severity.
