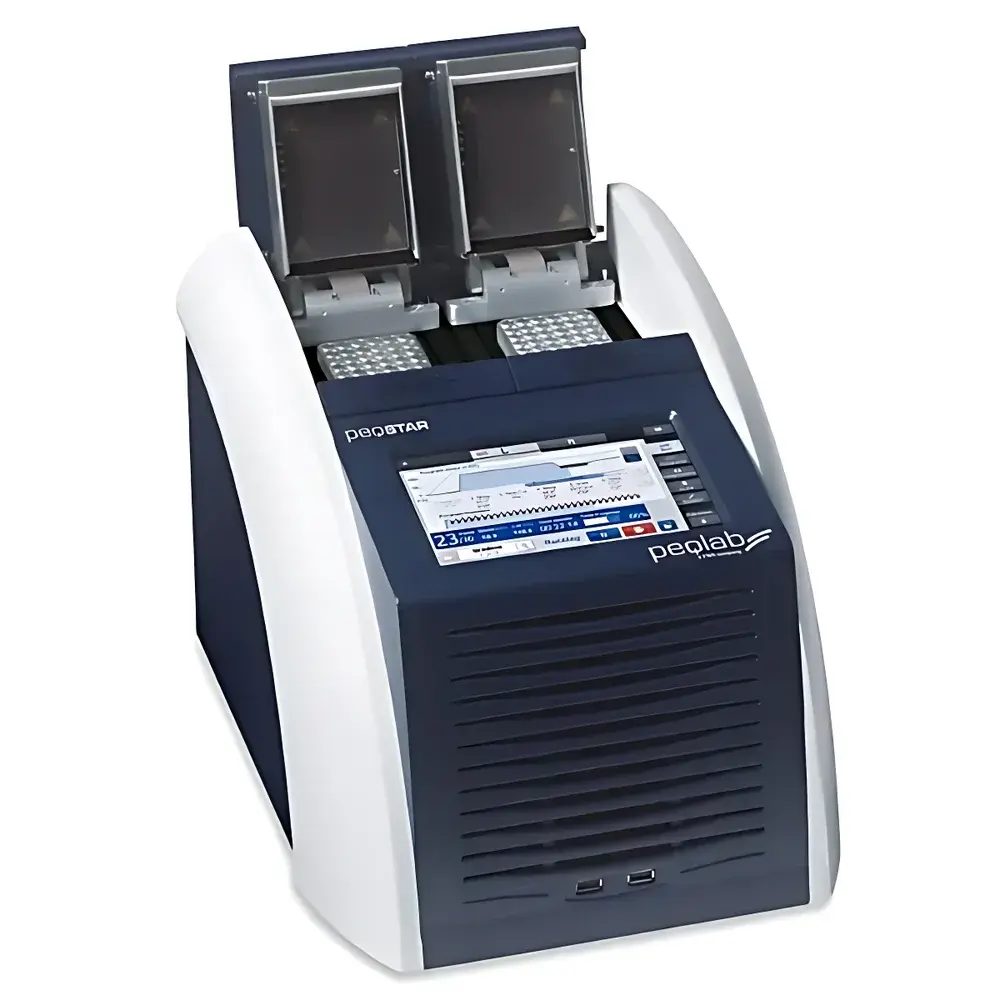

VWR Doppio Gradient Dual-Module Thermal Cycler

Overview

The VWR Doppio Gradient Dual-Module Thermal Cycler is an engineered solution for high-throughput, precision polymerase chain reaction (PCR) applications in molecular biology laboratories. Built upon Peqlab’s 20+ years of thermal cycler design expertise—and now part of the VWR International portfolio—the Doppio leverages dual independent Peltier-based heating/cooling modules to deliver true parallel amplification under distinct thermal profiles. Each module operates with closed-loop temperature control using PT1000 platinum resistance thermometers and 2×8-channel real-time Peltier monitoring, eliminating overshoot and ensuring dynamic thermal stability across the full operating range (4.0–105.0 °C). Its architecture conforms to fundamental thermodynamic principles of nucleic acid denaturation, annealing, and extension, supporting both standard and gradient PCR protocols with rigorous reproducibility required for assay development, qPCR pre-amplification, and library preparation workflows.

Key Features

• Dual independent thermal modules—each equipped with 8 high-efficiency Peltier elements and ultra-low-noise cooling fans—enabling simultaneous execution of two separate PCR programs without cross-interference.
• Universal block compatibility: supports 48×0.2 mL tubes, 24×0.5 mL tubes, and 8-tube strips per module; anodized aluminum blocks ensure rapid heat transfer while resisting corrosion from repeated thermal cycling and reagent exposure.
• Programmable ramp rates from 0.1 to 3.0 °C/s (max 5.0 °C/s), with real-time feedback control to maintain target accuracy (±0.1 °C) and inter-well uniformity (±0.2 °C at 72 °C).
• Gradient functionality per module: 8-step linear temperature gradients spanning 35–105 °C, with maximum span of 30 °C and gradient accuracy of ±0.1 °C—ideal for empirical optimization of annealing temperatures.
• Integrated thermal lid with auto-adjusting pressure and height calibration, programmable from 40–120 °C, minimizing evaporation and condensation during extended cycles.
• 800×480-pixel TFT color touchscreen with Windows-style GUI, graphical menu navigation, and on-device program editing—including time/temperature increment/decrement, Tm calculation, and one-touch incubation modes for restriction digestion, ligation, or ELISA steps.
• Embedded data integrity safeguards: password-protected user access, automatic power-fail recovery (resumes interrupted runs), audit-trail-capable logging via USB or Ethernet, and compliance-ready firmware architecture aligned with ISO 9001 and NIST traceability standards.

Sample Compatibility & Compliance

The Doppio accommodates standard consumables used in academic, clinical, and industrial molecular labs—including thin-walled 0.2 mL PCR tubes, 0.5 mL tubes, and 8-strip formats—without adapter requirements. Its thermal performance has been validated per IEC 61010-1 (safety) and EN 61326-1 (EMC), and it carries CE marking for use in EU-regulated environments. While not inherently 21 CFR Part 11 compliant out-of-the-box, the instrument supports GLP/GMP-aligned workflows through optional networked deployment, encrypted USB data export, and timestamped audit logs when integrated with validated LIMS or electronic lab notebook (ELN) systems.

Software & Data Management

The Doppio ships with free PC-based software compatible with Windows 10/11 for protocol design, remote monitoring, and batch export of run metadata (cycle count, temperature profiles, timestamps, error logs). Optional ZigBee wireless modules enable secure, low-latency remote control from up to 30 meters distance—eliminating cable clutter in biosafety cabinets or shared core facilities. With 500,000 internal program storage capacity and unlimited expansion via USB flash drives or Ethernet-connected file servers, the system supports long-term method archiving and version-controlled SOP deployment. All exported data are saved in CSV and XML formats, facilitating integration with third-party analysis platforms and automated reporting pipelines.

Applications

• High-efficiency PCR optimization via dual-gradient screening across two independent temperature ranges.
• Parallel amplification of multiple targets—e.g., multiplex pathogen detection panels or allele-specific genotyping assays—without sequential instrument occupancy.
• Pre-sequencing library amplification where thermal consistency directly impacts adapter ligation efficiency and fragment size distribution.
• qRT-PCR pre-amplification requiring strict cycle fidelity and minimal well-to-well variation for downstream quantification accuracy.
• Enzymatic incubations (e.g., restriction digests, ligations, phosphatase treatments) using programmable hold steps with precise endpoint temperature control.
• Training and teaching labs benefit from intuitive interface design, visual progress tracking, and built-in MP3 alert customization for hands-free workflow signaling.

FAQ

Can the Doppio run two different gradient protocols simultaneously?
Yes—each of the two modules supports independent gradient programming with customizable start/end temperatures and step resolution.
Is the thermal lid height manually adjustable?
No—the lid features automatic pressure and height calibration based on tube type and volume, ensuring optimal contact without user intervention.
Does the instrument support FDA 21 CFR Part 11 compliance?
The base firmware does not include electronic signature or role-based access controls required for Part 11, but it provides foundational audit trail capabilities (timestamps, user IDs, parameter changes) that can be extended via validated third-party middleware.
What is the maximum number of cycles supported per program?
There is no hard upper limit; users may define programs exceeding 100 cycles, subject to hardware longevity considerations and thermal fatigue modeling.
Are firmware updates available, and how are they installed?
Firmware updates are distributed by VWR technical support and installed via USB drive or Ethernet connection, with version rollback capability and checksum verification.
