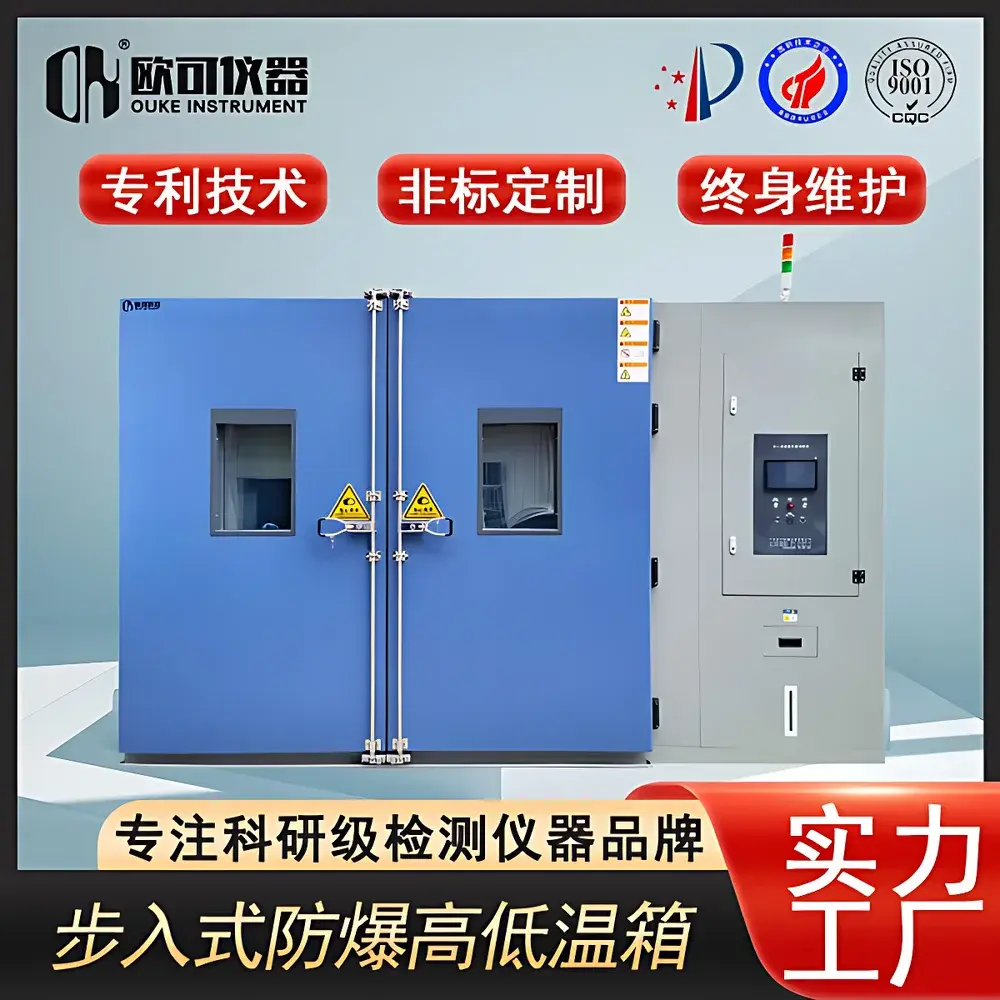

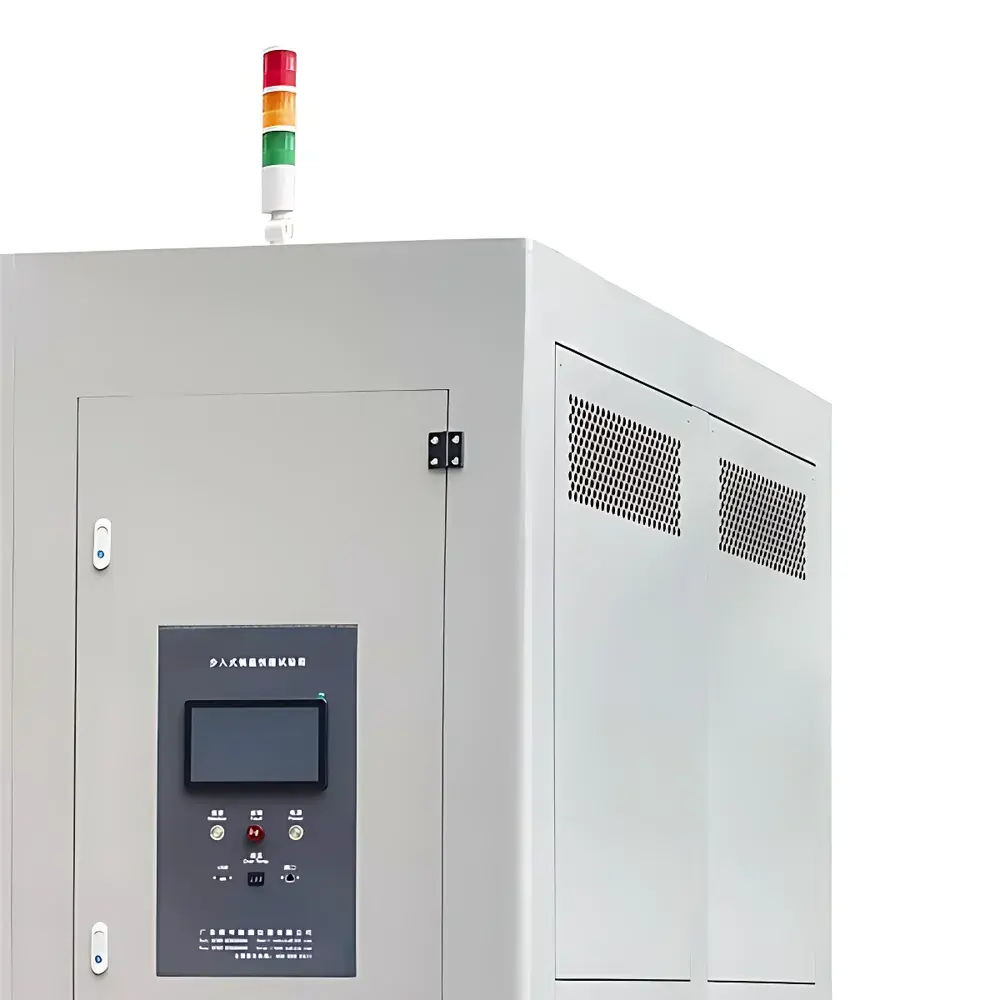

OK Walk-in Thermal Cycling Environmental Test Chamber OK-STH-5m³

Overview

The OK Walk-in Thermal Cycling Environmental Test Chamber OK-STH-5m³ is an engineered solution for accelerated reliability assessment under controlled, programmable thermal stress. Designed around the principles of thermal fatigue simulation, it subjects full-scale products or batched assemblies to repeated, rate-controlled transitions between defined high- and low-temperature setpoints—mimicking real-world thermal cycling environments such as diurnal temperature swings, operational on/off transients, or orbital thermal profiles in aerospace applications. Unlike static temperature chambers or two-zone thermal shock systems, this chamber implements continuous, slope-defined ramping (heating and cooling) within a single, walk-in workspace, enabling evaluation of cumulative thermo-mechanical strain over hundreds or thousands of cycles. Its architecture integrates high-redundancy refrigeration, high-power resistive heating, precision air distribution, and a deterministic programmable logic controller (PLC)-based control system—all calibrated and validated for reproducible thermal cycling performance across its operational envelope.

Key Features

• Modular Thermal System: Configurable multi-stage refrigeration (scroll or semi-hermetic piston compressors standard; optional parallel screw compressor arrays for enhanced ramp-rate capability), paired with high-density tubular heaters delivering uniform thermal input across large internal volumes.
• Programmable Ramp Control: Supports multi-segment thermal profiles with independent specification of ramp rates (1.0–4.0°C/min), dwell durations at upper/lower limits, and cycle repetition counts up to 9999—enabling precise replication of MIL-STD-810H Method 503.6, IEC 60068-2-14, and JEDEC JESD22-A104E test protocols.
• Uniform Air Distribution: High-CFM centrifugal circulation fans coupled with optimized baffle-guided airflow ensure spatial temperature uniformity ≤ ±3°C during both ramp and dwell phases—even at extreme setpoints (e.g., −70°C or +150°C).

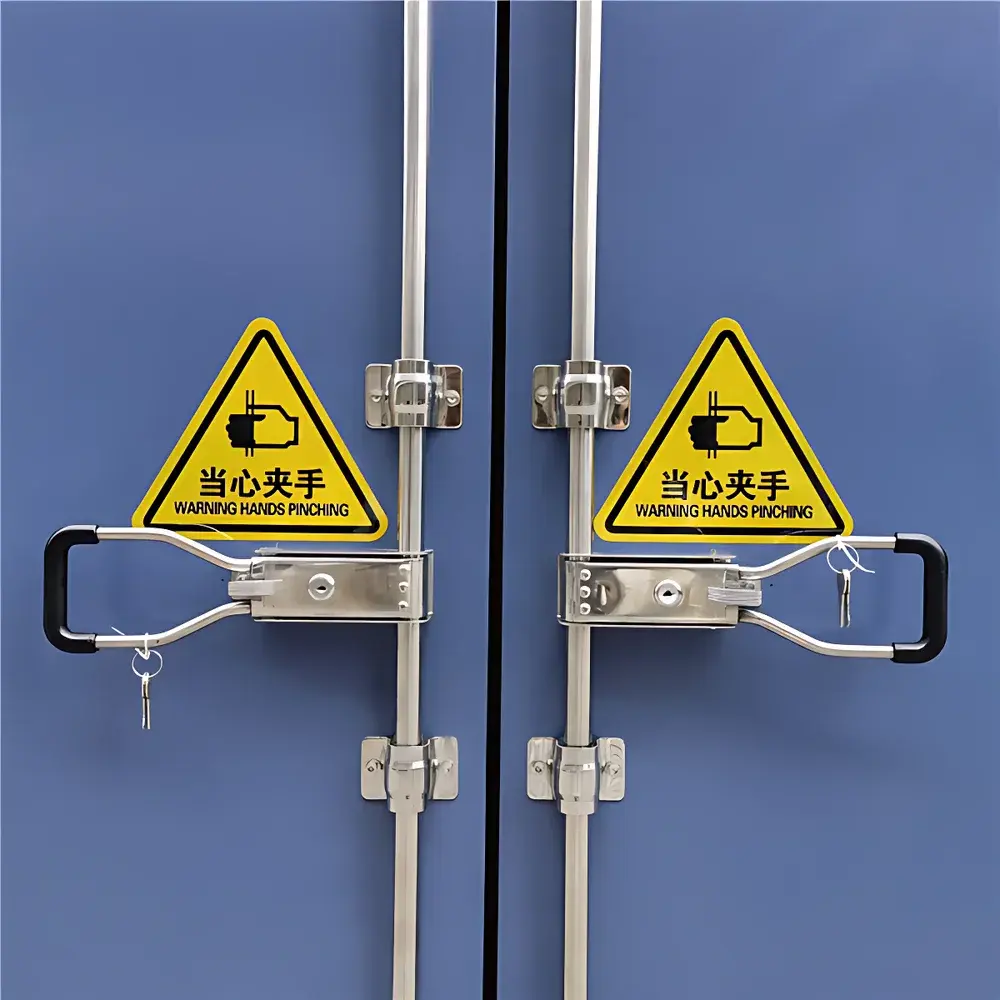

• Structural Integrity: Double-wall insulated construction with vacuum-insulated panels (VIPs) or high-density polyurethane foam (≥150 mm thickness), reinforced door seals, and thermally compensated observation windows minimize thermal leakage and mechanical degradation over long-term cyclic operation.

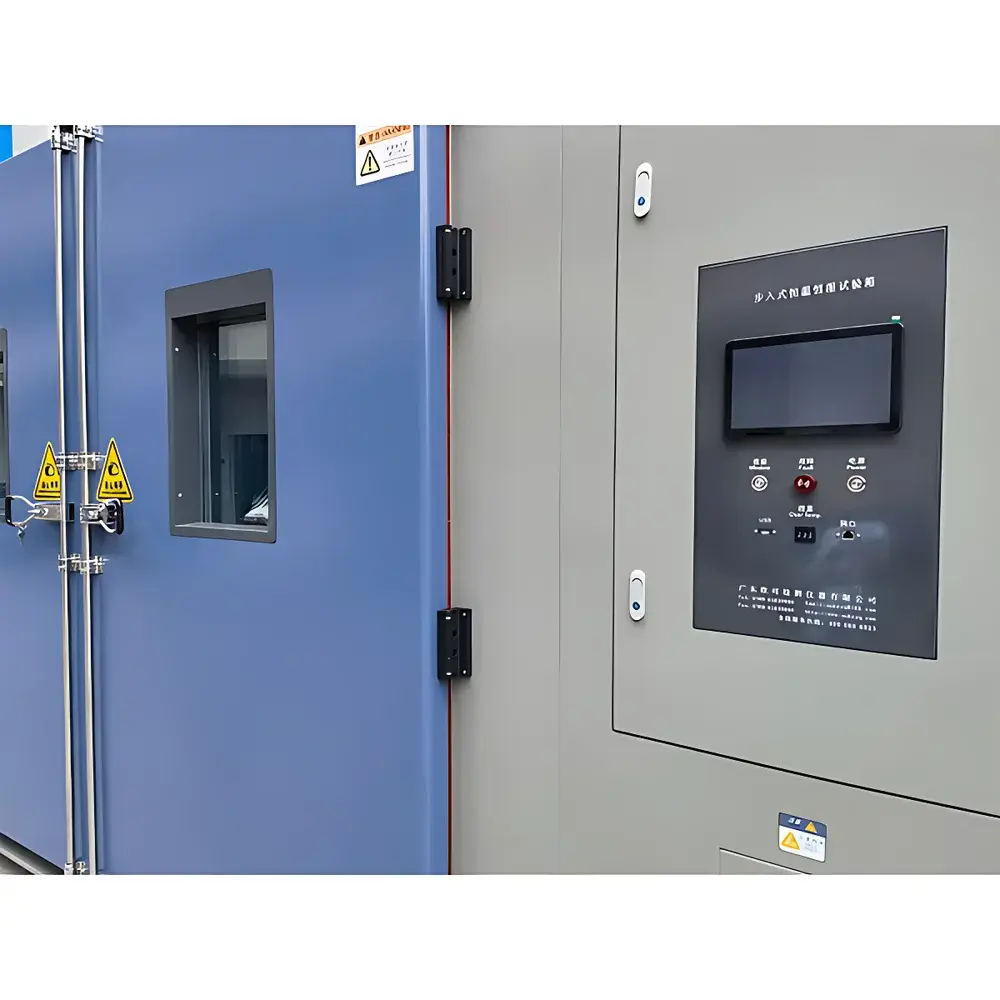

• Real-time Monitoring Interface: Touchscreen HMI with data logging (internal SD card + USB export), alarm history, and configurable event triggers—including door-open detection, compressor fault, and deviation exceedance alerts.

Sample Compatibility & Compliance

The OK-STH-5m³ accommodates full-system testing of automotive ECUs, battery modules, avionics enclosures, solar inverters, and structural composite panels—up to 5 m³ nominal volume (customizable). Its design adheres to key international standards governing environmental testing infrastructure, including ISO 16750-4 (road vehicles), ASTM D3418 (thermal transitions of polymers), and IEC 60068-3-5 (guidance on thermal test methods). While not certified to UL or CE as a standalone safety appliance, all electrical and refrigerant components comply with IEC 61000-6-2/6-4 EMC requirements and ASHRAE 15 refrigerant safety guidelines. Optional validation packages support IQ/OQ documentation per GLP and GMP frameworks, including traceable NIST-calibrated sensor verification and uncertainty budgets per ISO/IEC 17025.

Software & Data Management

The embedded control firmware supports native export of time-stamped temperature logs (CSV format) with timestamp resolution ≤1 second. Optional PC-based software (OK-EnviroLink™) enables remote monitoring via Ethernet/IP, automated report generation (PDF/Excel), and integration with enterprise LIMS or PLM systems through OPC UA or Modbus TCP. Audit trails—including user login events, parameter modifications, and profile execution history—are retained for ≥30 days and exportable for FDA 21 CFR Part 11-compliant environments when deployed with Windows OS and electronic signature modules.

Applications

• Automotive: Validation of ADAS sensors, traction inverters, and 48V battery systems against thermal cycling-induced solder joint fatigue (IPC-9701).
• Aerospace: Ground-based simulation of low-earth orbit thermal cycles for satellite payload electronics (per ECSS-E-ST-10-04C).
• Electronics Manufacturing: Reliability screening of PCBAs prior to burn-in, per Telcordia GR-468-CORE and JEDEC JESD22-A104E.
• Materials Science: Investigation of interfacial delamination in metal-polymer laminates and coefficient-of-thermal-expansion (CTE) mismatch effects in ceramic substrates.
• Energy Storage: Cycle-life correlation studies for lithium-ion battery packs under variable ambient thermal profiles.

FAQ

What is the maximum achievable ramp rate for the OK-STH-5m³?

Standard configuration delivers 1.0–4.0°C/min average ramp rate across the full temperature span. Higher linear ramp rates (e.g., ≥5°C/min) require custom refrigeration upgrades and are quoted separately.
Can the chamber be configured for sub-zero operation down to −70°C while maintaining ±1°C control accuracy?

Yes—model variants with cascade refrigeration and enhanced insulation achieve −70°C minimum setpoint with ±1°C steady-state control accuracy and ≤±3°C uniformity during dwell phases.
Is external power conditioning required?

A dedicated 3-phase 400V ±10% supply with minimum 63A circuit protection is recommended. Voltage stabilization is advised where grid fluctuations exceed ±5%.
How is temperature uniformity verified during qualification?

Per ISO 16750-4 Annex B, 9-point sensor mapping (3×3 grid at mid-height) is performed at both extremes of the operating range, with results documented in the Factory Acceptance Test (FAT) report.
Does OK Instruments provide installation and commissioning support?

Yes—on-site mechanical/electrical commissioning, sensor calibration verification, and operator training are included in standard delivery terms for international clients.
