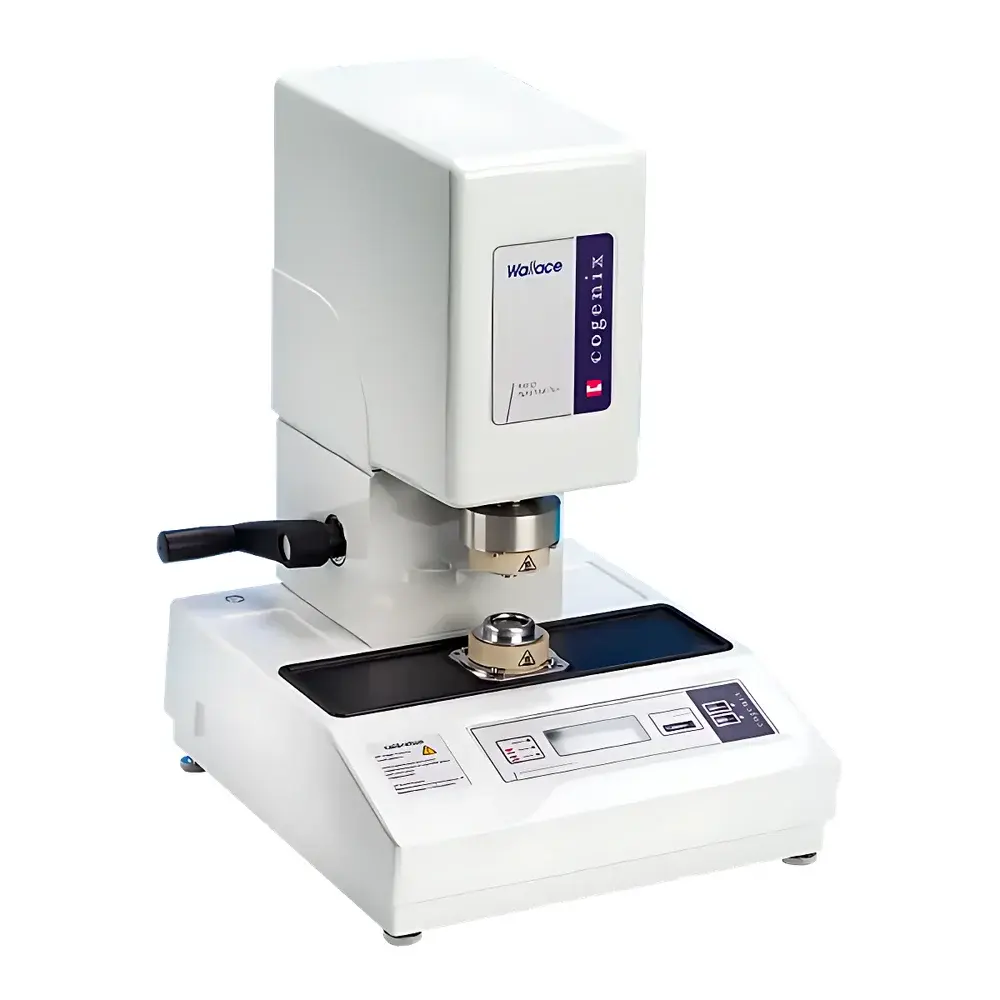

Wallace P14 Rapid Plastometer

Overview

The Wallace P14 Rapid Plastometer is a precision-engineered instrument designed specifically for the quantitative assessment of plasticity in raw and unvulcanized natural rubber—critical for quality control in rubber compounding, plantation grading, and polymer processing laboratories. It operates on the fundamental principle of measuring the permanent deformation (in millimeters) of a rubber specimen subjected to a standardized compressive load (100 N ± 0.5 N) at a controlled temperature (70 °C ± 1 °C) for a fixed duration (15 minutes), per GB/T 3517–2022 and aligned methodologies including ASTM D926 and ISO 2007. The resulting plasticity value (often reported as “P” or “Plasticity Index”) serves as a primary indicator of molecular degradation, mastication efficiency, and processability. Crucially, the P14 enables direct calculation of Plasticity Retention Index (PRI) when used in tandem with oxidative aging tests—making it indispensable for evaluating antioxidant efficacy and thermal stability in raw rubber stocks.

Key Features

• Compliance-ready architecture engineered to meet the mechanical and thermal tolerances specified in GB/T 3517–2022, including precise 1 mm parallel-plate gap control with semi-automatic calibration routine.
• Integrated PID-controlled heating system maintaining ±1 °C uniformity across the platen surface during the full 15-minute dwell period.
• Digital load cell with traceable calibration capability, supporting periodic verification against certified weights per ISO/IEC 17025 requirements.
• Real-time LCD display showing elapsed time, current temperature, applied load status, and instantaneous deformation—enabling immediate operator verification without external software.
• Configurable reporting modes: single-test output, median-of-three, or arithmetic mean—supporting both routine QC and method validation protocols.
• Built-in diagnostic self-check at power-on and prior to each test cycle, flagging anomalies in thermal stabilization, load application, or gap positioning.
• Acoustic and visual alarm system activated upon deviation from setpoint tolerance (e.g., temperature drift > ±1.5 °C, load variance > ±2 N, or premature unloading).

Sample Compatibility & Compliance

The P14 accepts standard cylindrical rubber specimens (diameter 16.0 ± 0.2 mm, height 10.0 ± 0.2 mm), prepared in accordance with GB/T 3517–2022 Section 6. Specimens must be free of air bubbles, surface irregularities, or contamination that could affect compression homogeneity. The instrument is validated for use with Hevea brasiliensis-derived natural rubber (RSS, STR, SVR grades), synthetic polyisoprene, and selected butyl rubber formulations exhibiting comparable viscoelastic response below T_g. All operational parameters—including platen parallelism, thermal gradient distribution, and dwell timing—are verified annually against NPL-traceable reference standards. Documentation supports GLP-compliant audit trails, including user-defined sample IDs, operator login stamps, and immutable timestamps—fully compatible with FDA 21 CFR Part 11–aligned data integrity frameworks when paired with Wallace’s optional LIMS interface module.

Software & Data Management

While the P14 operates as a standalone benchtop unit, its RS-232 and USB-B ports enable seamless integration with Wallace’s PlastoLink™ PC software (v3.2+). This platform provides automated report generation in PDF/XLSX formats compliant with ISO/IEC 17025 clause 7.8.2; batch-level statistical analysis (X̄–R charts, Cp/Cpk); electronic signature capture; and long-term archival with SHA-256 hash logging. Audit logs record every parameter change, calibration event, and test execution—including who initiated the action, when, and from which workstation. Data export supports CSV ingestion into enterprise QMS platforms such as TrackWise or MasterControl.

Applications

• Raw material acceptance testing of field latex concentrates and baled natural rubber at import terminals and compounder facilities.
• Monitoring mastication consistency in internal mixers and two-roll mills—correlating P-values with Mooney viscosity trends.
• PRI determination for antioxidant screening per GB/T 3517–2022 Annex B, supporting R&D of heat-resistant rubber compounds for automotive and aerospace applications.
• Production line release testing where rapid turnaround (< 20 min/test) and minimal operator intervention are required.
• Inter-laboratory proficiency testing programs accredited to ISO/IEC 17043, leveraging the P14’s inter-unit reproducibility (CV ≤ 2.1% across five accredited labs, n=30).

FAQ

What standards does the Wallace P14 comply with?
GB/T 3517–2022, ASTM D926 (as referenced practice), ISO 2007, and JIS K 6238.
Is temperature calibration traceable to national standards?
Yes—integrated PT100 sensor calibrated against UKAS-accredited dry-block calibrators (±0.1 °C uncertainty at 70 °C).
Can the P14 store test results internally?
No—data retention requires connection to PlastoLink™ software or third-party SCADA systems via serial/USB interface.
What maintenance intervals are recommended?
Platen surface inspection and cleaning after every 50 tests; full mechanical and thermal calibration annually or per ISO/IEC 17025 internal schedule.
Does the P14 support multi-language UI?
English and Chinese firmware options are available; all exported reports default to English for international regulatory submission.
