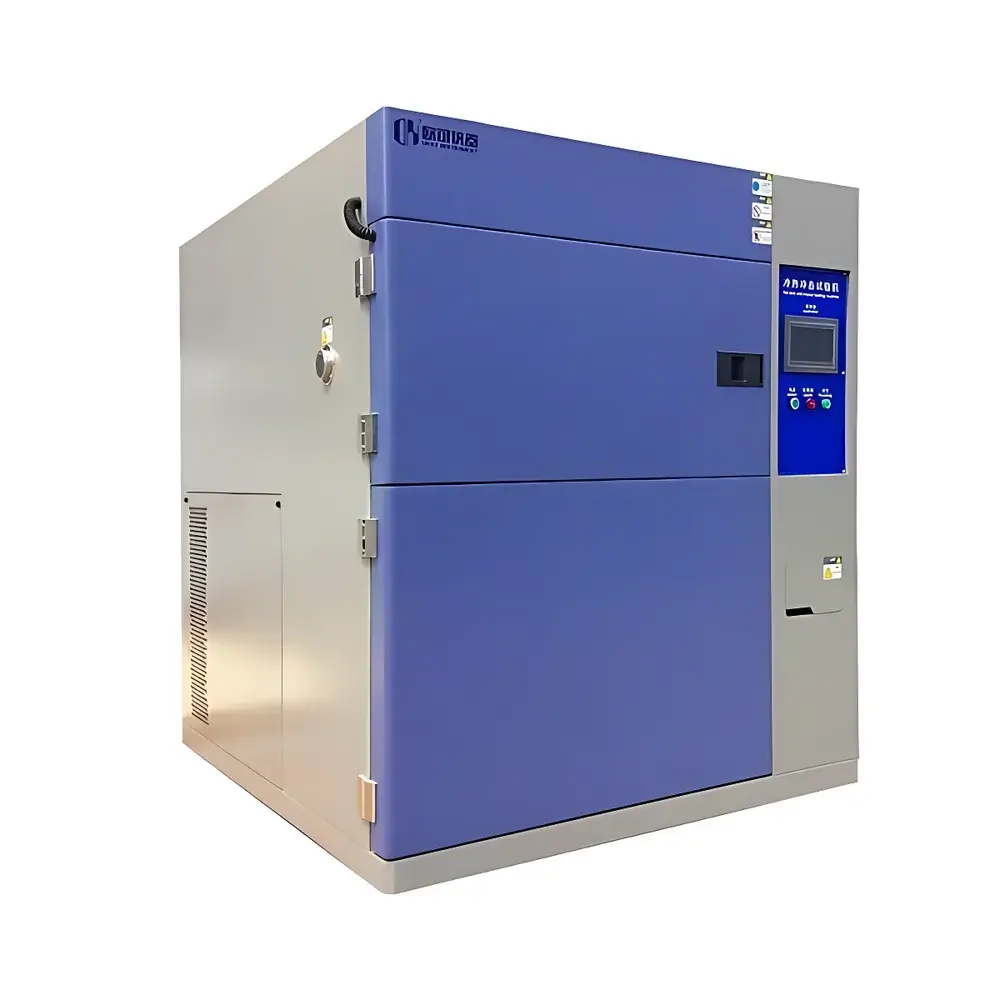

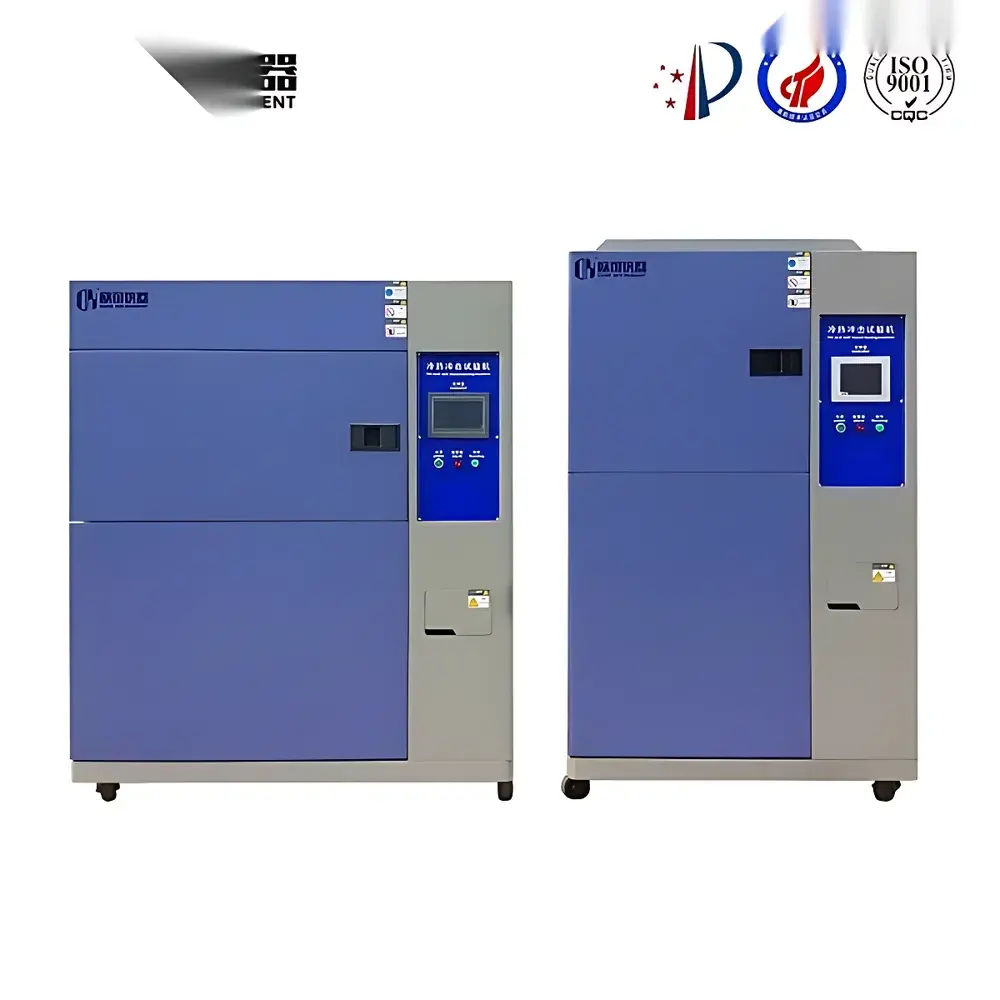

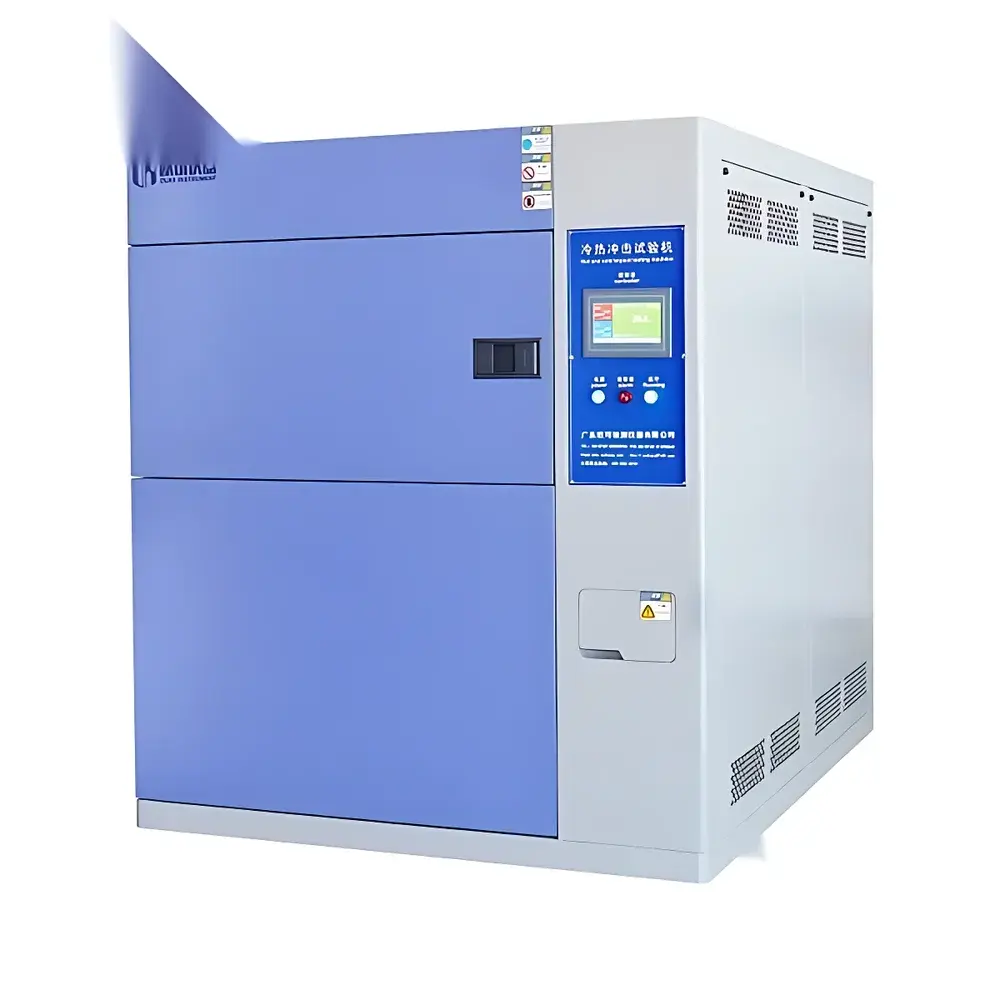

Water-Cooled Thermal Shock Test Chamber

Overview

The Water-Cooled Thermal Shock Test Chamber is a precision-engineered environmental test system designed to evaluate the structural integrity, material stability, and functional reliability of large-scale components, assemblies, and finished products under rapid and extreme temperature transitions. Operating on a three-zone architecture—comprising independent high-temperature, low-temperature, and test chambers—the system enables controlled thermal shock exposure via mechanical transfer of test specimens between conditioned zones. This design eliminates air-mixing artifacts and ensures highly reproducible thermal ramp rates, critical for validating performance against military, automotive, aerospace, and industrial electronics standards. Unlike air-cooled alternatives, the water-cooled configuration delivers superior thermal capacity, stable compressor operation under continuous duty cycles, and reduced ambient heat load—making it suitable for integration into temperature-controlled laboratories or production QA environments where long-term operational consistency is required.

Key Features

• Three-chamber segregated architecture (hot zone, cold zone, test zone) with automated specimen transfer mechanism for true thermal shock simulation
• Wide selectable low-temperature capability: standard configurations support −60°C, −40°C, −20°C, or 0°C minimum; high-temperature limit fixed at +80°C
• Humidity control range 20–98% RH, with optional extended ranges (5–98% RH or 10–98% RH) available upon specification
• High-efficiency insulation combining rigid polyurethane foam (≥150 mm thickness) and ultra-fine glass wool for minimized thermal leakage and energy consumption
• Internal chamber constructed from SUS304B stainless steel; outer enclosure fabricated from imported SUS304-grade stainless steel for corrosion resistance and cleanroom compatibility
• Heating system utilizes finned stainless-steel tubular heaters with distributed thermal load management
• Intuitive human-machine interface: 10.4-inch full-color TFT touchscreen controller with bilingual (English/Chinese) menu navigation and real-time trend logging
• Embedded microprocessor-based PID control with SSR output and programmable timer logic for precise dwell time, transition timing, and cycle sequencing

Sample Compatibility & Compliance

This chamber accommodates large-format test articles—including automotive ECUs, avionics modules, medical imaging subsystems, satellite payload components, and industrial control cabinets—up to user-defined internal dimensions (custom-engineered per installation requirements). Its mechanical transfer design avoids airflow turbulence during specimen movement, preserving thermal boundary conditions essential for ASTM D5229/D5229M and ISO 16750-4-compliant testing. The system conforms to key international and national environmental stress screening (ESS) and qualification standards, including IEC 60068-2-14 (Test N: Change of Temperature), GB/T 2423.22 (Temperature Change), GJB 150.5A (Military Standard Environmental Test Methods), and EIA-364-32 (Thermal Shock Testing of Electrical Connectors). All control firmware supports audit-ready data logging compliant with GLP and GMP documentation requirements, including timestamped setpoint history, actual chamber readings, alarm events, and operator login metadata.

Software & Data Management

The embedded controller provides native data acquisition at up to 1 Hz sampling resolution, storing up to 10,000 hours of continuous temperature/humidity profiles internally. Export functionality supports CSV and Excel-compatible formats via USB 2.0 port. Optional PC-based software enables remote monitoring, multi-chamber fleet management, statistical process control (SPC) charting, and automated report generation aligned with ISO/IEC 17025 laboratory accreditation criteria. Full traceability features include electronic signatures, role-based access control, and 21 CFR Part 11-compliant audit trails when configured with optional validation packages.

Applications

• Qualification testing of automotive electronics per ISO 16750-4 and QC/T 17-92 for thermal cycling durability
• Reliability screening of printed circuit board assemblies (PCBAs) in aerospace and defense systems
• Accelerated aging studies for polymer encapsulants, conformal coatings, and adhesive bonds
• Environmental stress screening (ESS) in high-reliability manufacturing lines
• Material compatibility assessment for cryogenic-to-ambient transitions in medical device packaging
• Validation of thermal management designs in battery modules and power electronics enclosures

FAQ

What distinguishes water-cooled thermal shock chambers from air-cooled models?
Water-cooled systems offer higher thermal mass handling capacity, more stable refrigeration compressor operation under repeated cycling, and lower ambient heat rejection—critical for labs with limited HVAC capacity or multi-shift operation.
Can this chamber perform humidity-controlled thermal shock tests?
Yes. The integrated humidification and dehumidification system enables combined temperature-humidity shock protocols per IEC 60068-2-30 (Damp Heat, Cycle) and customized test plans requiring concurrent RH modulation.
Is custom chamber sizing supported?
Absolutely. Internal dimensions are fully configurable to meet client facility constraints and specimen envelope requirements, with engineering support for structural reinforcement, door orientation, and utility interface planning.
Does the system support automated test sequence programming?
Yes. The controller supports up to 99 programmable test patterns, each with unlimited segments, dwell times, ramp rates, and conditional branching logic for complex qualification profiles.
What calibration and validation documentation is provided?
Standard delivery includes as-built drawings, factory calibration certificates traceable to NIST-equivalent national standards, and IQ/OQ documentation templates compatible with FDA, ISO 13485, and AS9100 quality systems.
