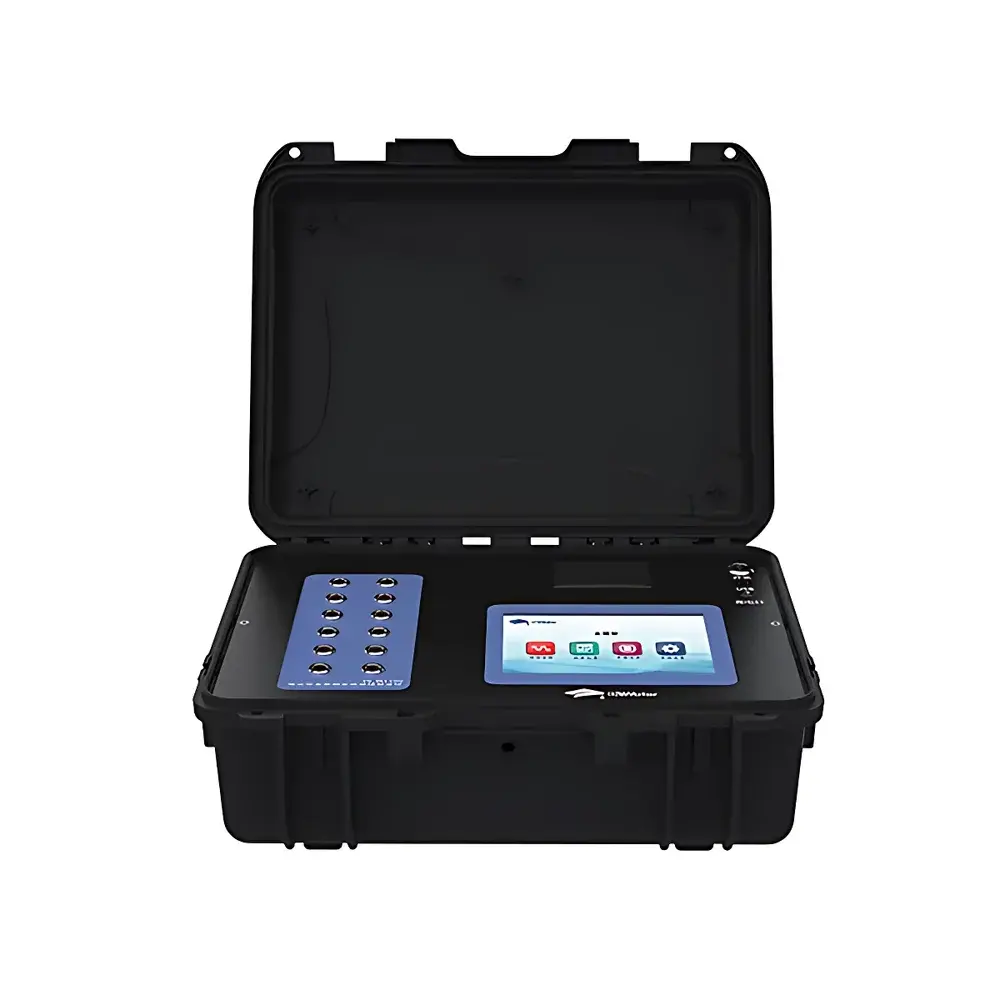

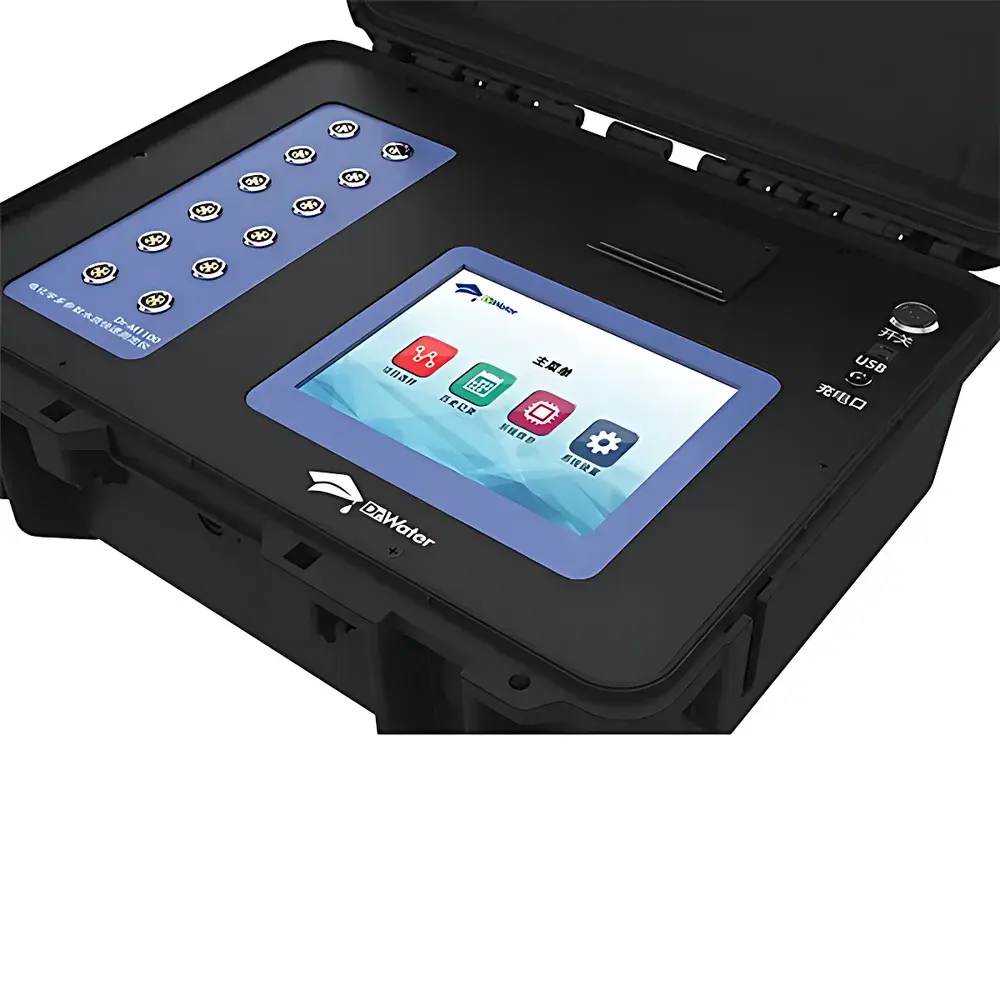

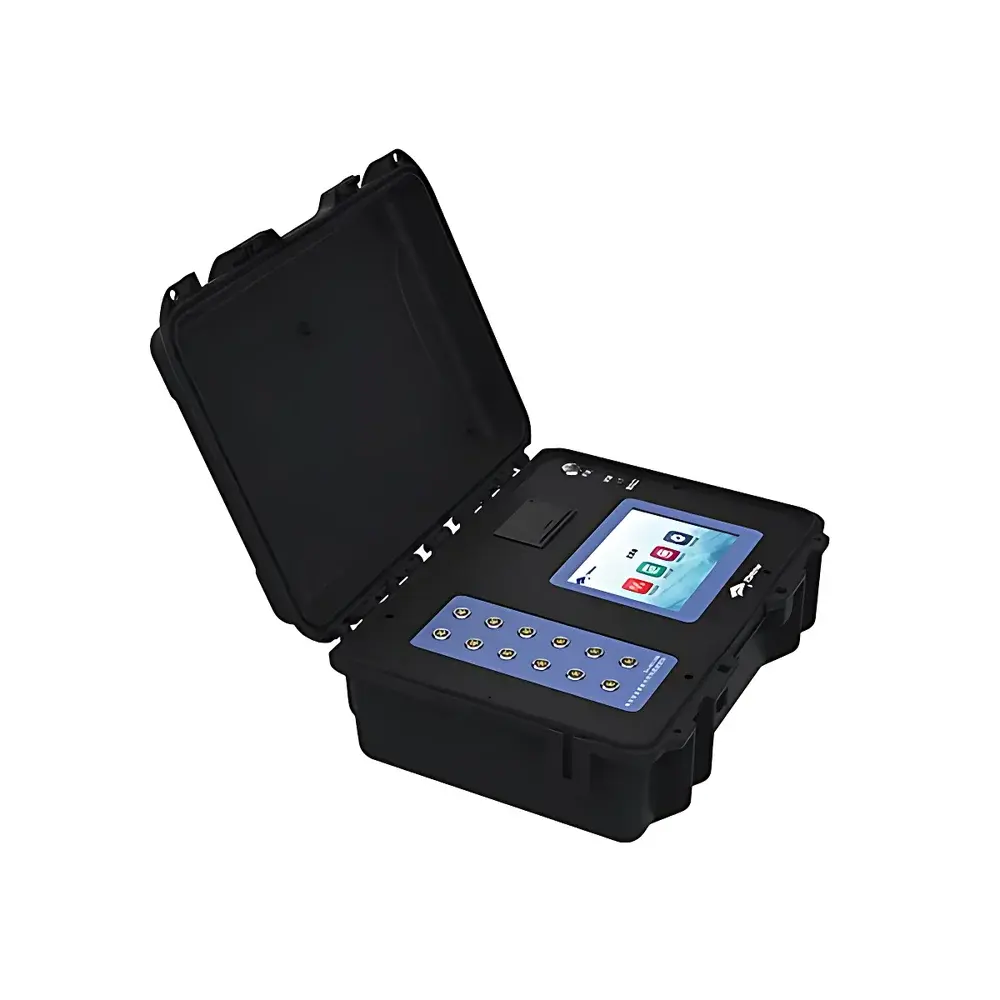

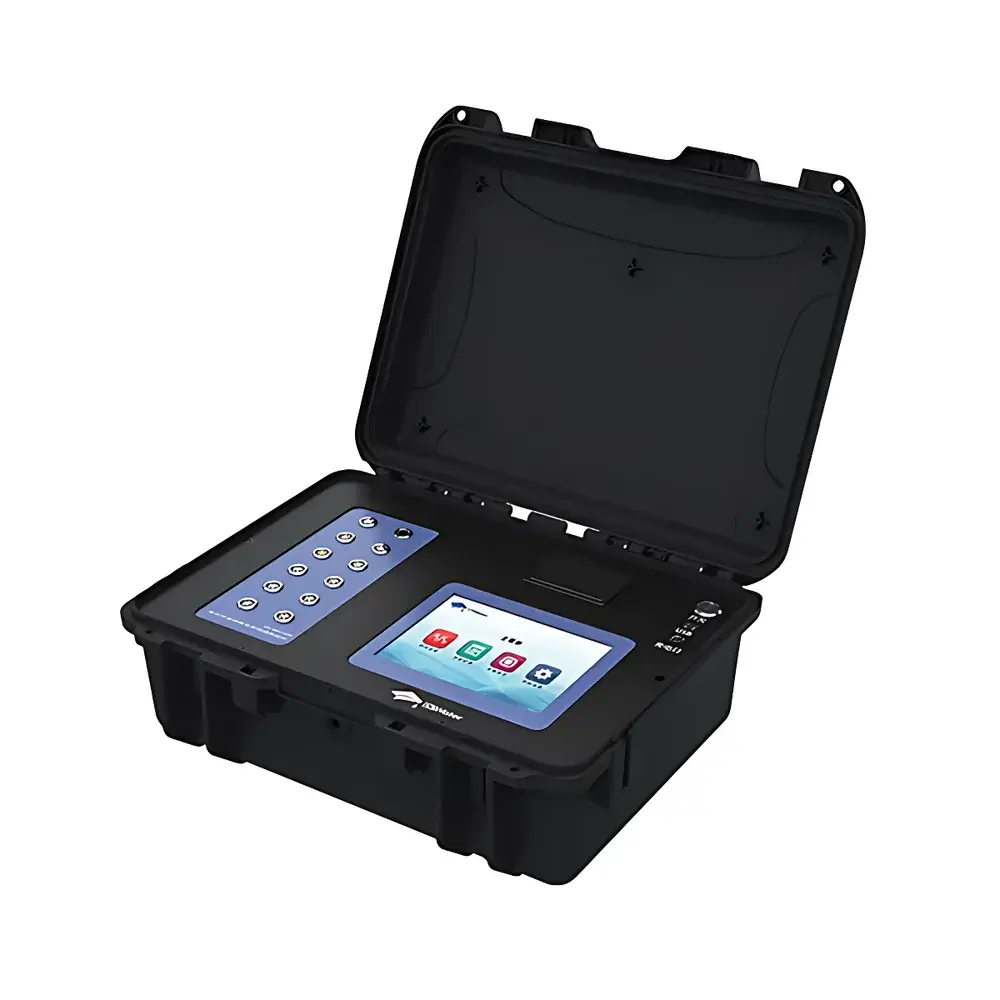

Water Doctor Dr-M1102 Portable Ammonia Nitrogen Analyzer
| Brand | Water Doctor |
|---|---|
| Origin | Hunan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | Dr-M1102 |
| Instrument Type | Portable |
| Measurement Principle | Electrochemical (Ion-Selective Electrode) |
| Range | 0–100 mg/L NH₃–N |
| Accuracy | ±10% FS |
| Detection Limit | 0 mg/L (defined by electrode sensitivity and signal-to-noise ratio) |
| Measurement Time | ≤60 s per parameter |
| Simultaneous Channels | 6 independent electrode ports |
| Display | 8-inch HD color capacitive touchscreen |
| Data Storage | 1,000,000 measurement records with timestamp, location (optional GPS), and electrode ID |
| Power Supply | Rechargeable Li-ion battery (≥12 h continuous operation) |
| IP Rating | IP68 for electrodes |
| Operating Environment | 0–50 °C, ≤85% RH (non-condensing) |
| Connectivity | USB 2.0, optional Bluetooth 5.0 module |
| Software Compliance | Audit-trail enabled logging, user-access levels, data export in CSV/Excel format |
Overview
The Water Doctor Dr-M1102 Portable Ammonia Nitrogen Analyzer is an integrated multi-parameter field instrument engineered for rapid, reagent-free quantification of ammonia nitrogen (NH₃–N) in aqueous matrices using solid-state ion-selective electrode (ISE) technology. Unlike colorimetric or spectrophotometric methods, the Dr-M1102 employs potentiometric detection based on Nernstian response of a selectively permeable membrane to ammonium ions (NH₄⁺) under controlled pH conditions. This electrochemical principle eliminates the need for hazardous reagents—such as Nessler’s reagent or salicylate—thereby ensuring zero chemical waste generation, operator safety, and compliance with ISO 5667-3 and EPA Method 350.1 guidelines for field-deployable nutrient analysis. Designed for dual-use environments—from riverbank sampling stations to municipal lab quality control workflows—the system integrates six independent digital electrode interfaces, each auto-recognized and calibrated via embedded firmware, enabling simultaneous monitoring of NH₃–N alongside co-located parameters including pH, dissolved oxygen (DO), conductivity, turbidity, ORP, TDS, temperature, and custom-configurable sensors (e.g., chlorophyll-a, blue-green algae, oil-in-water). Its modular architecture supports GLP-compliant data integrity through time-stamped records, electrode-specific calibration history, and tamper-evident storage.
Key Features
- Reagent-free electrochemical detection: Eliminates consumables, reduces operational cost, and avoids regulatory handling requirements for toxic chemicals.
- Six-channel synchronized measurement: Independent digital electrode ports support concurrent real-time acquisition without cross-talk or signal interference.
- Auto-identification & plug-and-play electrode interface: Each high-precision digital sensor contains embedded calibration coefficients and type metadata, enabling automatic configuration upon insertion.
- Intelligent temperature compensation: On-board thermistor network enables dynamic correction across 0–50 °C, maintaining accuracy per ISO 7888 and ASTM D1293 standards.
- Triple readout modes: Real-time streaming, timed endpoint (user-defined interval), and programmable interval logging for unattended deployment.
- Extended field endurance: Integrated 12,000 mAh Li-ion battery delivers ≥12 hours of continuous operation; AC adapter enables benchtop use with stable power supply.
- Ruggedized field design: Main unit rated IP54; electrodes certified IP68 for submersion up to 2 m for 30 min; housing resistant to acid, alkali, and UV degradation.
Sample Compatibility & Compliance
The Dr-M1102 is validated for use with natural waters (rivers, lakes, reservoirs), wastewater effluents, drinking water distribution systems, aquaculture ponds, and industrial process streams. It meets functional equivalency requirements of ISO 14911 (ammonia determination by ISE), EN 27888 (water quality — determination of ammonium), and US EPA Region 9 Field Screening Guidance for NH₃–N. Electrode performance conforms to IUPAC recommendations for selectivity coefficients (log KNH4,Na ≤ –3.2), ensuring minimal interference from potassium, sodium, calcium, and magnesium ions within typical freshwater and brackish matrices. All stored data comply with 21 CFR Part 11 readiness when paired with optional audit-trail software extension, supporting GMP-aligned environmental laboratories undergoing third-party accreditation (e.g., ISO/IEC 17025).
Software & Data Management
The embedded firmware features a bilingual (English/Chinese) graphical interface with intuitive icon-driven navigation. Data management includes timestamped storage of up to one million records—including electrode serial numbers, calibration dates, ambient temperature, and user IDs—with full traceability. Export options include USB mass-storage mode (CSV/Excel-compatible), direct thermal printing of reports, and optional cloud synchronization via Bluetooth-enabled gateway devices. Firmware updates are delivered via signed OTA packages to ensure cryptographic integrity. Audit-log functionality captures all critical events: calibration actions, parameter modifications, user logins/logouts, and data deletions—meeting GLP documentation requirements for regulatory submissions.
Applications
- Field-based ambient water quality surveillance by national and provincial environmental monitoring stations.
- Real-time effluent compliance verification at WWTPs and industrial discharge points per local permit limits.
- Process control in drinking water treatment plants during breakpoint chlorination and nitrification monitoring.
- Research-grade nutrient profiling in limnological and marine ecology studies requiring spatial-temporal resolution.
- QA/QC support for ISO 17025-accredited third-party testing laboratories performing routine water analysis.
- Emergency response deployment during algal bloom events or accidental ammonia releases into surface waters.
FAQ
What measurement principle does the Dr-M1102 use for ammonia nitrogen detection?
It utilizes potentiometric detection via a solid-contact ammonium-selective electrode, operating on Nernst equation principles without chemical reagents.
Can the instrument measure ammonia nitrogen in seawater or high-salinity samples?
Yes—electrodes feature optimized membrane formulations and built-in salinity compensation algorithms compliant with ASTM D511 and ISO 15681-2 for saline matrices up to 35 psu.
Is calibration traceable to national standards?
Calibration solutions are certified reference materials (CRMs) traceable to NIST SRM 3194 (ammonium standard); instrument validation follows ISO/IEC 17025 Clause 6.4 procedures.
How is data security ensured during field use?
All stored measurements are encrypted at rest; user authentication requires role-based access (admin/operator/guest); audit logs record every data modification event.
Does the system support external GPS integration?
Yes—via optional Bluetooth GNSS receiver; geotagged measurements are embedded directly into exported CSV files for GIS mapping.
