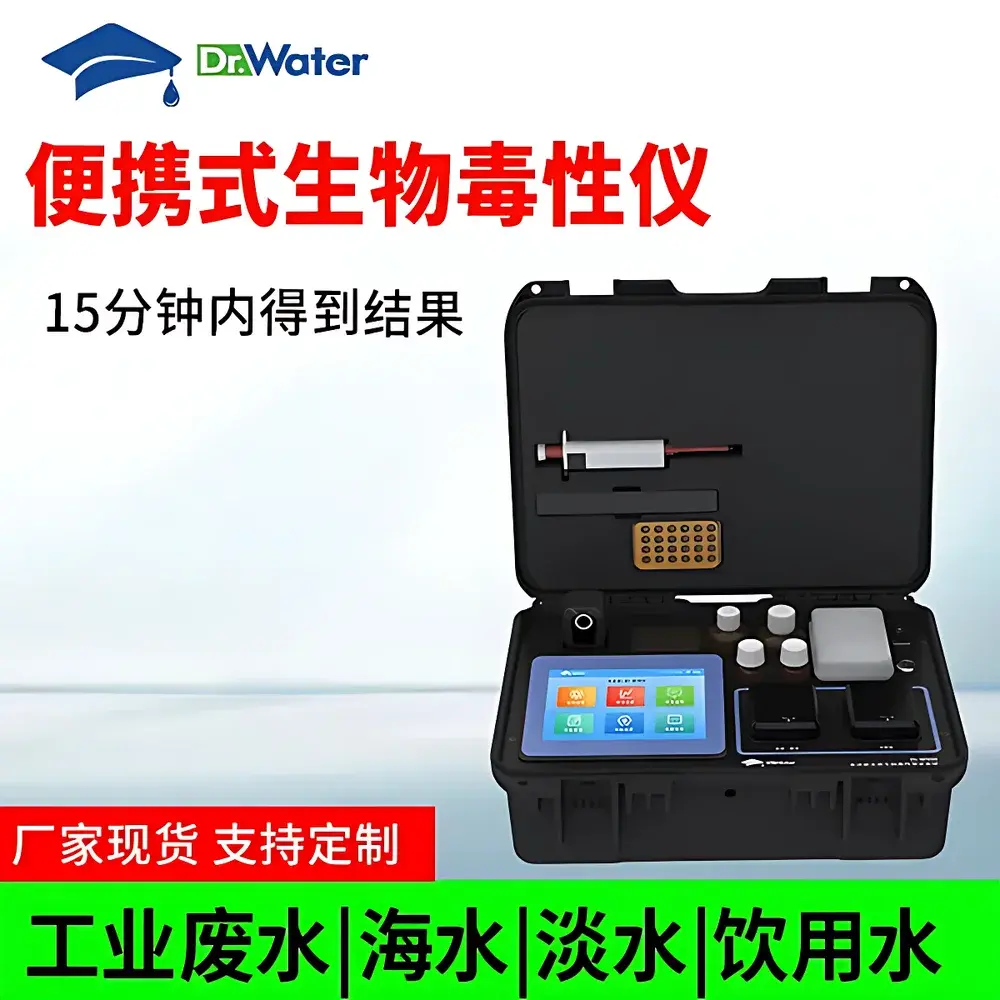

Water Doctor Dr-W900 Portable Bioluminescent Toxicity Analyzer

Overview

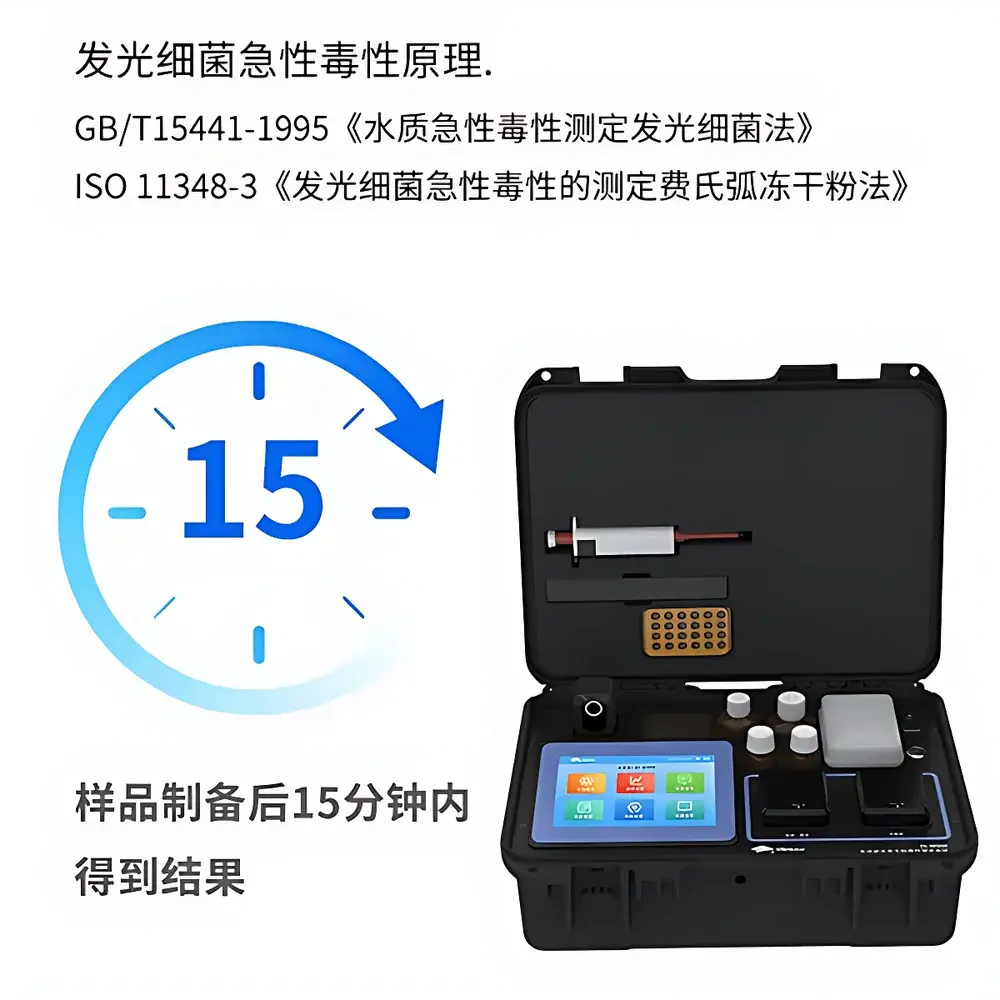

The Water Doctor Dr-W900 Portable Bioluminescent Toxicity Analyzer is an integrated field-deployable instrument engineered for rapid, quantitative assessment of acute aquatic toxicity using standardized bioluminescence inhibition methodology. It operates on the well-established principle that viable, metabolically active bioluminescent bacteria—primarily Aliivibrio fischeri (formerly Vibrio fischeri), supplemented by Photobacterium phosphoreum and Vibrio qinghaiensis—emit stable light under optimal physiological conditions. Exposure to toxicants disrupts cellular respiration and energy metabolism, resulting in measurable, concentration-dependent suppression of luminescence intensity. This inhibition rate (% inhibition) correlates linearly with toxicant concentration across a broad spectrum (>6,000 known chemical classes), enabling semi-quantitative screening and relative toxicity ranking without prior knowledge of contaminant identity. The Dr-W900 implements this principle within a rugged, self-contained platform compliant with ISO 11348-3 (Determination of the inhibitory effect of water samples on the light emission of Aliivibrio fischeri) and GB/T 15441–1995 (Determination of acute toxicity in water using bioluminescent bacteria), ensuring methodological traceability and regulatory acceptability for environmental compliance and emergency response applications.

Key Features

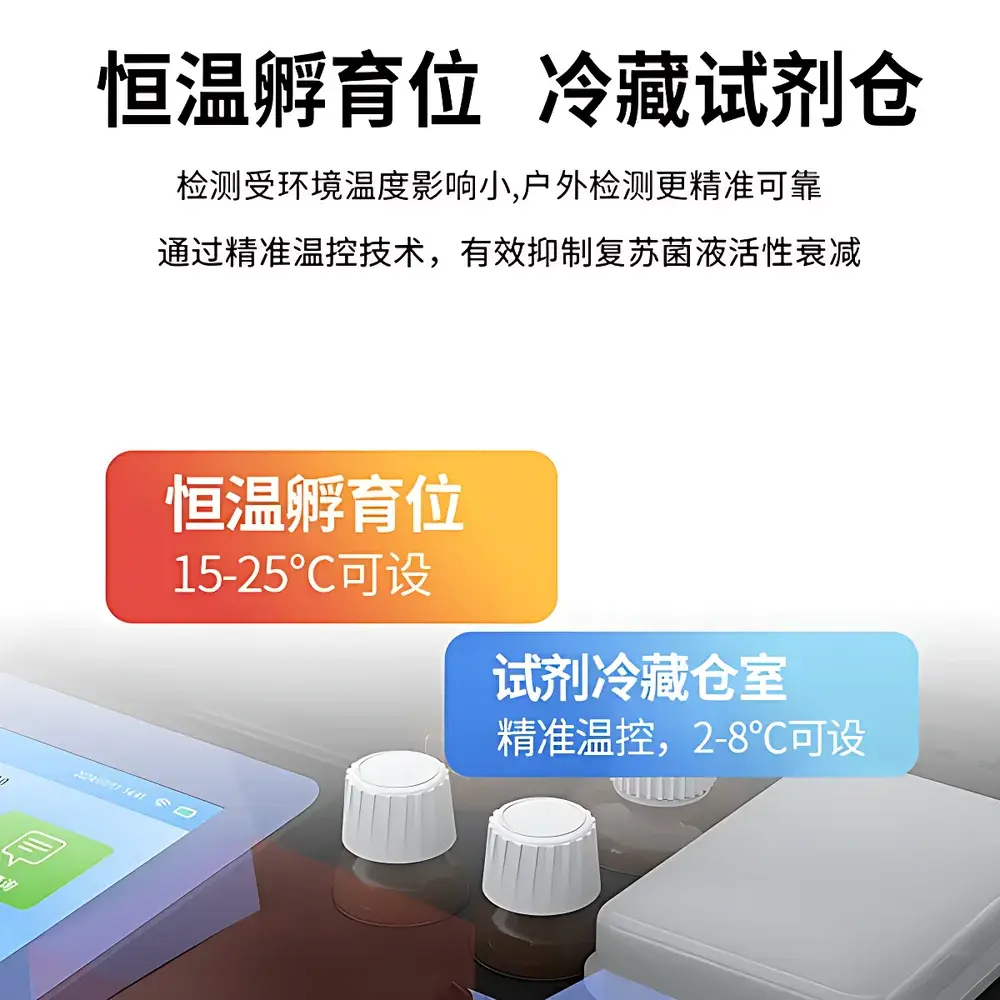

• Integrated thermal management architecture: Independent, precision-controlled zones for reagent refrigeration (2–8 °C, ±1 °C), sample incubation (10-position, 15–25 °C, ±1 °C), and optical detection (15–25 °C, ±1 °C), minimizing thermal drift and ensuring reproducibility across ambient conditions (10–40 °C).
• High-sensitivity photodetection: Silicon photomultiplier (SiPM) sensor with low-noise amplification and optimized spectral response for bioluminescent emission (peak ~490 nm), delivering high signal-to-noise ratio and long-term stability.
• Field-ready power system: Integrated 30,000 mAh Li-ion battery supporting ≥8 hours of continuous operation or >72 hours standby; dual-power capability via AC adapter for lab-based use.

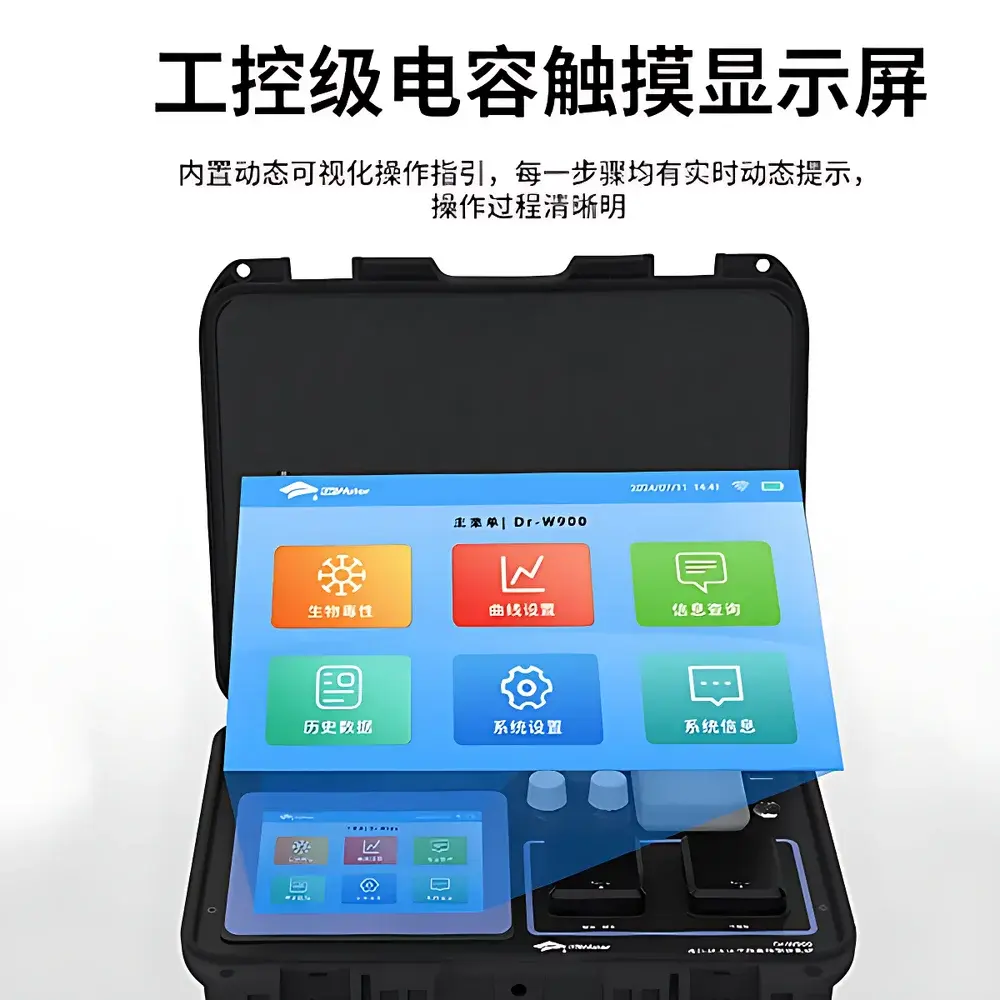

• Industrial-grade human-machine interface: 8-inch capacitive IPS touchscreen (1024 × 768), glove-compatible, with embedded Android OS and fully localized English UI option; dynamic step-by-step visual guidance and real-time bacterial reactivation progress tracking.

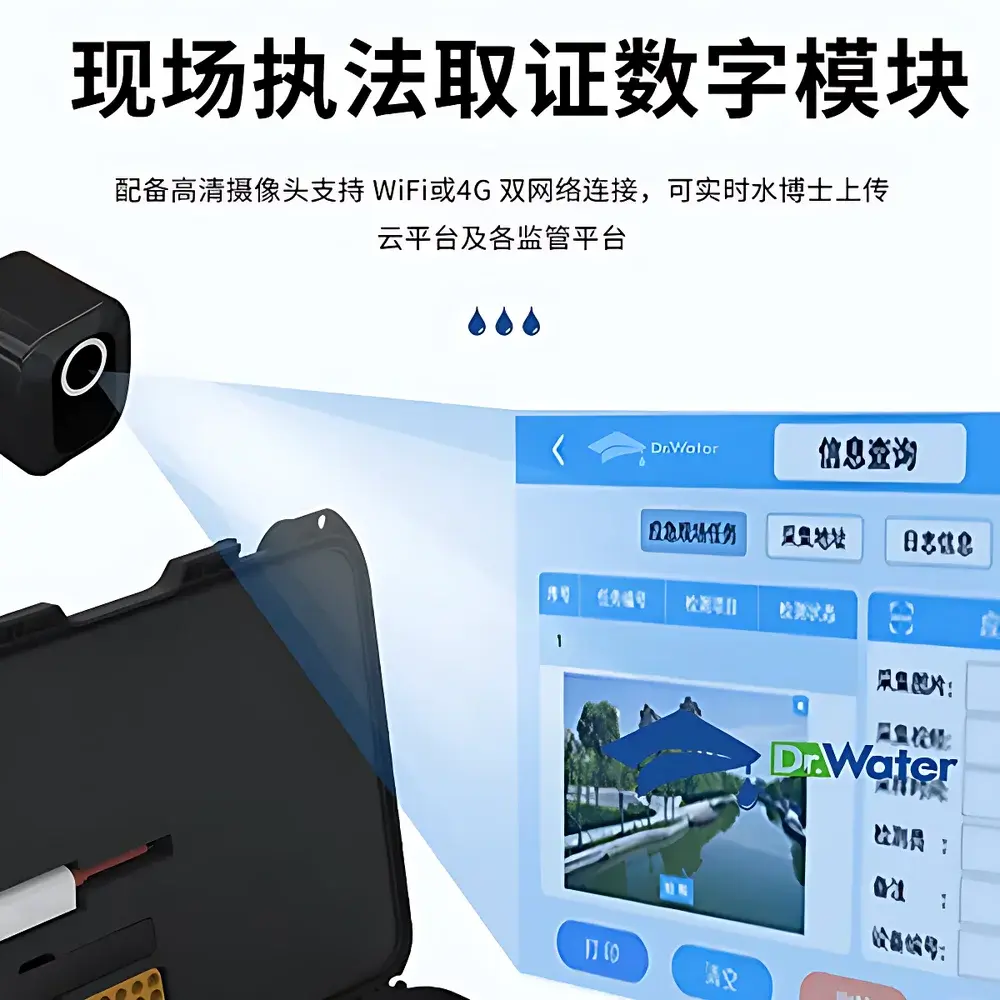

• Onboard data handling: Internal thermal printer for immediate A4-report generation; dual-network connectivity (Wi-Fi + 4G LTE) for secure cloud upload to Water Doctor Cloud Platform; local storage capacity for up to 80 million test records with time-stamped metadata.
• Regulatory-grade calibration and QA/QC: Built-in blank correction, inhibition rate threshold alarms, and deviation alerts for calibration validation; audit-trail capable data logging aligned with GLP principles.

Sample Compatibility & Compliance

The Dr-W900 is validated for direct analysis of untreated and filtered aqueous matrices including drinking water, groundwater, surface water (rivers, lakes, reservoirs), seawater, wastewater (municipal and industrial effluents), and leachates. Solid-phase extracts and sediment pore waters may be assessed following standardized extraction protocols (e.g., ISO 13843). All operational parameters—including incubation duration (typically 15 min), temperature setpoints, and bacterial strain selection—are rigorously aligned with ISO 11348-3 and GB/T 15441–1995. The instrument supports full traceability through timestamped raw luminescence values, inhibition calculations, and user-annotated metadata, facilitating compliance with national environmental monitoring programs and emergency response frameworks requiring documented, auditable toxicity screening.

Software & Data Management

The embedded Android-based firmware provides intuitive workflow navigation, automated curve fitting for dose-response calibration (1–20 concentration points), and real-time calculation of EC₅₀ equivalents. Data export is supported via USB, Bluetooth, Wi-Fi, and 4G interfaces in CSV and PDF formats. Cloud synchronization enables centralized data aggregation, remote instrument monitoring, and role-based access control. The Water Doctor Cloud Platform maintains immutable, time-stamped records with versioned firmware logs, satisfying requirements for data integrity under GLP-aligned quality systems. Optional integration with third-party LIMS and national environmental information platforms is available via RESTful API.

Applications

• Routine surveillance of drinking water sources and distribution networks for early warning of contamination events.
• Emergency response to chemical spills, industrial accidents, or deliberate contamination incidents.
• Compliance verification of wastewater discharge permits per national and municipal regulatory thresholds.
• Ecotoxicological screening of industrial effluents, pharmaceutical manufacturing discharges, and agricultural runoff.
• Support for environmental impact assessments (EIA), remediation monitoring, and sediment toxicity evaluation.
• Field validation of treatment efficacy in decentralized water purification units and mobile filtration systems.

FAQ

What bioluminescent bacterial strains are supported by the Dr-W900?
The instrument is validated for use with freeze-dried preparations of Aliivibrio fischeri (ISO 11348-3 reference strain), Photobacterium phosphoreum, and Vibrio qinghaiensis. Strain-specific calibration curves and protocol templates are preloaded.
Does the Dr-W900 meet FDA or EPA regulatory requirements for toxicity testing?
While not an EPA-registered method per se, the Dr-W900 implements ISO 11348-3—a globally recognized standard accepted by many regulatory authorities as a screening tool for acute toxicity. Its data are admissible for Tier-1 hazard identification and prioritization in risk assessment workflows.
How is data integrity ensured during field deployment?
All measurements include embedded timestamps, operator ID, GPS coordinates (optional), instrument serial number, and environmental sensor readings (ambient temperature, battery voltage). Audit trails are cryptographically signed and retained locally and in the cloud.
Can the Dr-W900 perform multi-point calibration curves in situ?
Yes—the instrument supports manual or auto-generated calibration curves using 1–20 concentration points, with linear or logistic regression fitting and residual error reporting.
Is remote firmware update and diagnostic support available?
Firmware updates, configuration backups, and real-time diagnostics can be performed over-the-air via secure TLS-encrypted 4G/Wi-Fi connections through the Water Doctor Cloud Portal.
