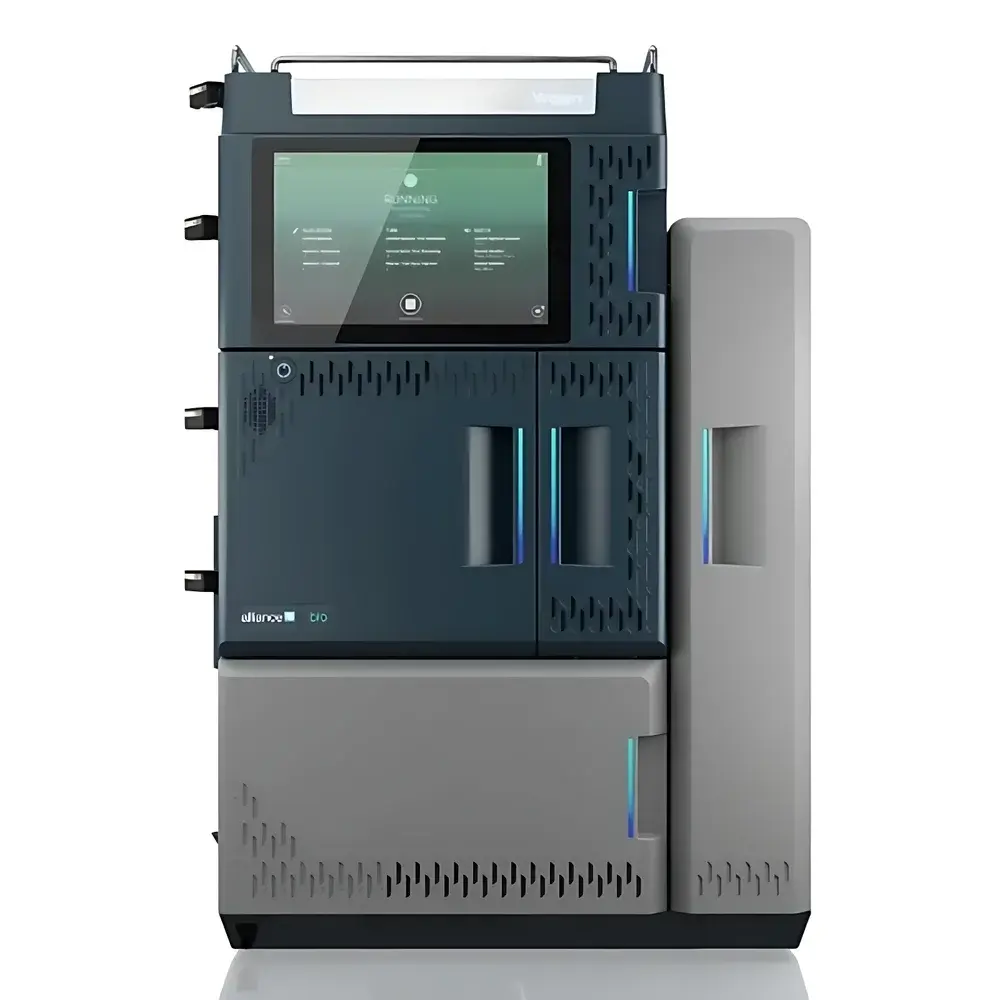

Waters Alliance iS Bio HPLC System

Overview

The Waters Alliance iS Bio HPLC System is a purpose-built, high-reliability liquid chromatography platform engineered for routine quality control (QC) analysis of biopharmaceutical products—including monoclonal antibodies (mAbs), antibody-drug conjugates (ADCs), fusion proteins, and other large-molecule therapeutics. It operates on the fundamental principle of reversed-phase (RP), size-exclusion (SEC), ion-exchange (IEX), or hydrophobic interaction chromatography (HIC), depending on column selection and mobile phase configuration. Designed specifically to address the analytical challenges inherent in biomolecule stability, adsorption, and surface-induced degradation, the system integrates MaxPeak High Performance Surface (HPS) technology across critical fluidic pathways—including the sample loop, needle seat, and flow cell—to minimize nonspecific protein binding and metal-catalyzed oxidation. This results in enhanced peak shape fidelity, improved low-abundance analyte recovery, and significantly higher inter- and intra-run reproducibility—particularly critical for release testing under ICH Q5, Q6B, and USP guidelines.

Key Features

• MaxPeak HPS Technology: Chemically inert, metal-free fluidic surfaces reduce biomolecule adsorption and leachable metal contamination, enabling robust analysis of sensitive biologics without pre-injection passivation or excessive column conditioning.
• Intelligent System Guidance: Embedded touchscreen interface with context-aware workflow prompts guides users through method loading, system suitability testing, injection sequence setup, and report generation—reducing procedural deviations and operator-dependent variability.
• Integrated System Suitability Monitoring: Real-time evaluation of retention time stability, peak symmetry (As), resolution (Rs), and %RSD of replicate injections—automatically flagged against user-defined acceptance criteria aligned with USP and EP 2.2.46.
• Modular Architecture: Compatible with Waters 2489 UV/Vis detector, 2998 Photodiode Array (PDA) detector, and ACQUITY QDa Mass Detector for orthogonal detection; supports up to four solvent channels and dual-pump gradient capability.
• GLP/GMP-Ready Configuration: Audit trail functionality, electronic signature support, and user-access-level controls compliant with FDA 21 CFR Part 11 requirements when deployed with Empower 3 FR or later software versions.

Sample Compatibility & Compliance

The Alliance iS Bio HPLC System accommodates a broad range of biological sample matrices—including purified protein solutions, cell culture harvests, formulated drug products, and stability study samples—with minimal carryover (<0.005% for mAb monomer assays). Its low-dead-volume flow path and pressure-rated components (up to 5,000 psi) ensure compatibility with sub-2 µm particle columns used in UHPLC-like separations while maintaining HPLC-grade robustness. The system meets ISO 9001-certified manufacturing standards and is validated per IQ/OQ protocols supporting compliance with ICH Q2(R2), USP , and Annex 11 requirements for computerized system validation in regulated environments.

Software & Data Management

Controlled via Waters Empower Chromatography Data Software (CDS) 3 FR or higher, the system supports full lifecycle data integrity—from acquisition and processing to reporting and archival. Empower’s secure database architecture enforces role-based permissions, automated backup scheduling, and immutable audit trails for all method edits, result reprocessing, and instrument event logs. Raw data files (.arw) are stored with embedded metadata including instrument configuration, calibration status, and environmental conditions (e.g., column oven temperature, detector lamp hours). Optional integration with Waters UNIFI Scientific Information System enables cross-platform data aggregation, trending analysis, and statistical process control (SPC) charting for continuous QC performance monitoring.

Applications

• Release testing of monoclonal antibodies: purity assessment by SEC-HPLC, charge variant profiling via IEX-HPLC, and aggregate quantification.
• Stability-indicating assays for forced degradation studies (thermal, oxidative, acidic/basic stress).
• Process intermediate monitoring during purification steps (e.g., Protein A eluate analysis).
• Excipient compatibility screening in formulation development.
• Comparability studies across manufacturing batches or facility transfers.

FAQ

Is the Alliance iS Bio HPLC System compatible with existing Waters column heaters and autosamplers?

Yes—it supports legacy Waters 717plus and 2767 Sample Managers, as well as the newer ACQUITY UPLC Sample Manager FTN, when configured with appropriate firmware and driver updates.
Does MaxPeak HPS eliminate the need for silanol masking agents in mobile phases?

While not eliminating the need entirely, MaxPeak HPS significantly reduces silanol activity-related tailing and retention shifts—especially for basic proteins—allowing lower concentrations of amine modifiers and more consistent method transfer across instruments.
Can the system be upgraded to support mass spectrometry coupling?

Yes—via optional LC-MS interface kits and compatible solvent delivery modules; however, optimal sensitivity for intact mass analysis requires integration with a dedicated MS-compatible pump and degasser configuration.
What regulatory documentation is provided with the system?

Each unit ships with Factory Acceptance Test (FAT) reports, IQ/OQ documentation templates, and a Certificate of Conformance traceable to NIST standards; GMP-compliant validation support services are available through Waters Global Services.
