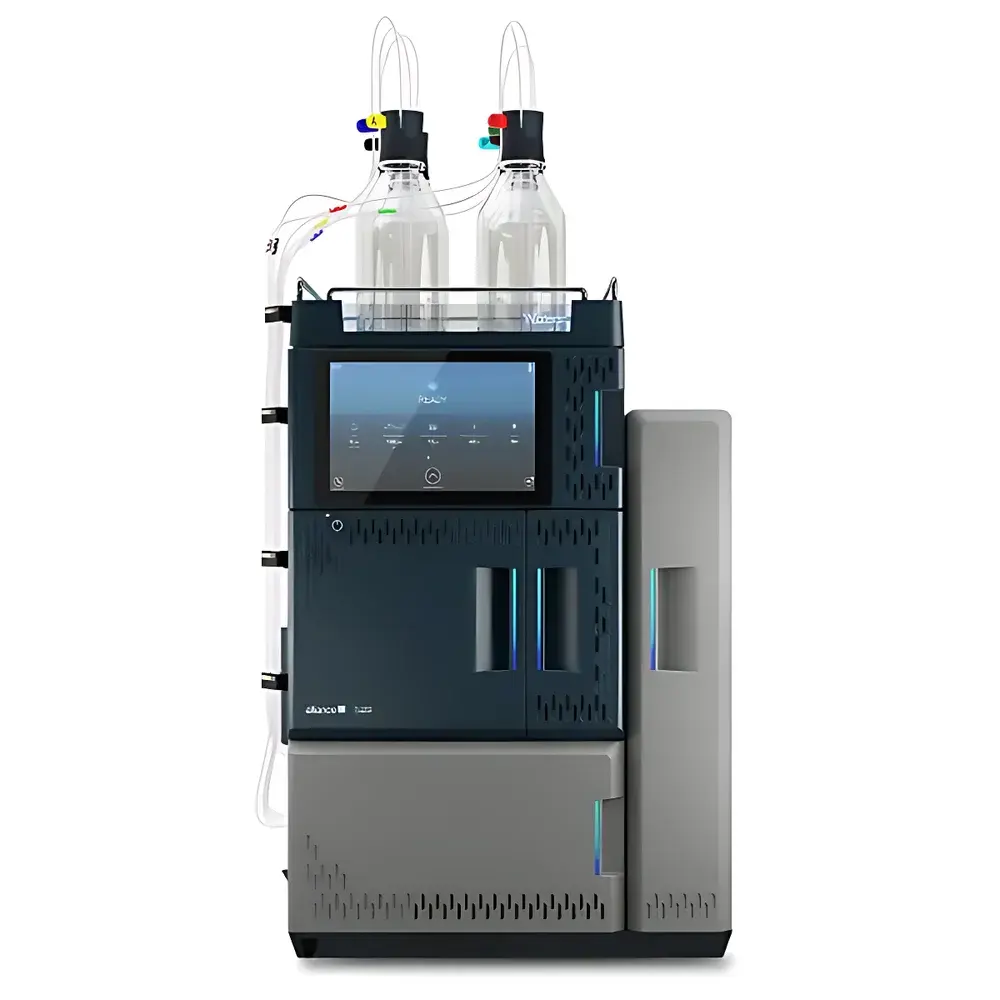

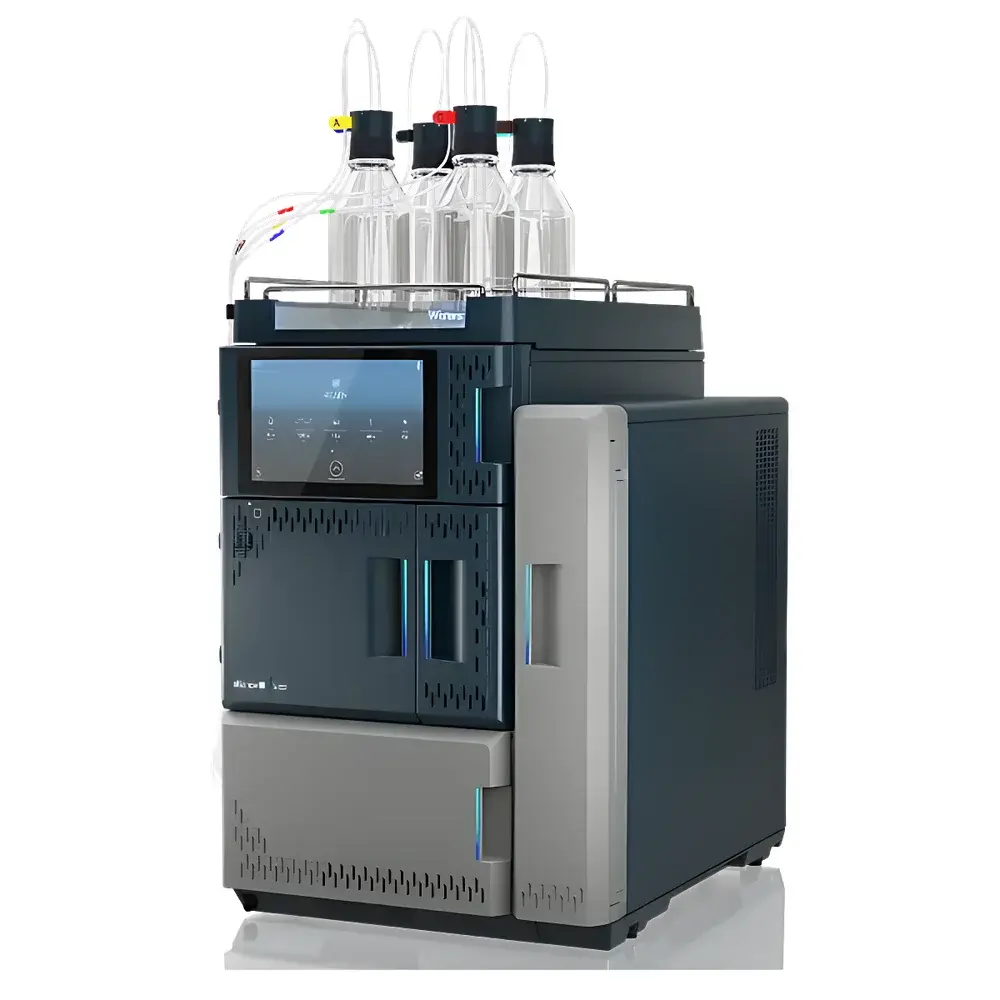

Waters Alliance iS HPLC System

Overview

The Waters Alliance iS HPLC System is an engineered solution for regulated quality control laboratories requiring consistent, auditable, and operationally resilient liquid chromatography performance. Built upon the proven Alliance platform architecture, it integrates hardware intelligence with software-defined workflow governance to address systemic challenges in method transfer, operator variability, and regulatory traceability. Its core measurement principle relies on high-pressure gradient elution coupled with UV/Vis detection—optimized for reproducible retention time stability, peak shape fidelity, and baseline noise control under routine QC conditions. Unlike legacy systems requiring manual configuration checks and post-run validation, the Alliance iS embeds pre-run verification logic directly into its control firmware and Empower CDS interface—ensuring that column identity, sample integrity, solvent level/status, and system readiness are confirmed prior to injection. This design philosophy aligns with ICH Q5A/Q5B principles for analytical consistency across global manufacturing sites and supports seamless transition from development to release testing without requalification.

Key Features

• Pre-injection system verification: Automated validation of column presence (via eConnect RFID), sample vial positioning, solvent volume and expiration date, and detector lamp status before sequence initiation.
• Tool-free fluidic assembly: Color-coded, keyed solvent lines and snap-fit fittings eliminate misconnections and reduce leak incidence by over 65% compared to threaded ferrule-based systems.
• Intelligent Method Translator Application (iMTA): Assists in converting legacy methods from competitive platforms—including Agilent 1200/1260 and Shimadzu LC-20 series—into Empower-compatible formats while flagging parameter conflicts.
• Method Matching Engine: Compares method requirements (e.g., dwell volume tolerance, gradient delay, column oven ramp rate) against actual instrument capabilities and warns users if execution risks data integrity.
• Touchscreen-guided operational workflows: Step-by-step instructions for system priming, equilibration, shutdown, and leak-check procedures—standardized across all user roles to minimize training dependency.
• Integrated health monitoring: Real-time visualization of pump pressure stability, autosampler carryover, detector lamp energy decay, and column oven thermal uniformity through both local display and remote waters_connect dashboard.

Sample Compatibility & Compliance

The Alliance iS HPLC System accommodates standard 4–40 mm ID analytical columns, 96-well and 384-well microtiter plate formats, and vials ranging from 1.5 mL to 4 mL. Its column manager maintains temperature stability within ±0.5 °C across a 5–85 °C range, supporting both reversed-phase and HILIC applications requiring precise thermal control. All hardware and firmware components comply with IEC 61000-6-3 (EMC) and UL 61010-1 safety standards. When operated with Empower CDS v3.8.1 or later and configured with audit trail enabled, the system satisfies FDA 21 CFR Part 11 requirements for electronic records and signatures—including immutable timestamped logging of all touchscreen-initiated actions (e.g., method load, sequence start, purge command). Full system configuration history—including firmware revision, detector lamp hours, and column usage cycles—is automatically archived in Empower’s Audit Trail and Sample Set History modules.

Software & Data Management

Empower CDS serves as the central data acquisition, processing, and reporting engine—fully synchronized with the Alliance iS hardware layer. The system leverages Empower’s native Sequence Processor to enforce method-dependent parameter locking, preventing unauthorized deviation during run execution. All chromatographic data—including raw detector signals, valve timing logs, and pressure transducer outputs—are stored in Empower’s secure, encrypted project database. The integrated System Audit Trail captures every interaction made via the instrument’s touchscreen interface—including user login/logout events, method edits, and diagnostic test initiations—and maps them directly to Empower’s centralized audit log. For enterprise-scale deployment, Waters Connect enables centralized monitoring of fleet-wide instrument uptime, predictive maintenance alerts, and automated firmware update distribution—all accessible through a browser-based console compliant with TLS 1.2+ encryption protocols.

Applications

The Alliance iS HPLC System is validated for use in pharmaceutical release testing per USP , EP 2.2.46, and JP 6.01; biologics purity assessment per ICH Q5; excipient identification per USP Analytical Instrument Qualification guidelines; and environmental contaminant screening per EPA Method 8330B. It supports isocratic and binary gradient separations at flow rates from 0.05 to 5.0 mL/min and pressures up to 5,000 psi. Common applications include assay quantitation of small-molecule APIs, related substances profiling, residual solvent analysis, and forced degradation product characterization. Its robustness in unattended overnight operation makes it suitable for high-throughput batch release workflows where turnaround time and data repeatability are critical success metrics.

FAQ

Does the Alliance iS HPLC System support third-party column brands?
Yes—it accepts standard 1/4-28 threaded columns and fittings; however, only Waters eConnect-enabled columns provide automatic recognition, lifetime tracking, and method-specific calibration recall.
Can existing Alliance systems be upgraded to iS functionality?
No—Alliance iS is a distinct hardware platform with redesigned fluidics, updated electronics, and embedded firmware not retrofittable onto prior Alliance models.
Is method transfer supported between Alliance iS and ACQUITY UPLC systems?
Yes—Empower’s Method Translation Tool facilitates scaling of gradient profiles and flow parameters between HPLC and UPLC platforms while preserving resolution and selectivity.
How is data integrity ensured during network outages?
All acquisitions are buffered locally on the instrument’s internal SSD and synchronized to Empower upon network recovery, with checksum validation applied to prevent partial or corrupted transfers.
What documentation packages are provided for 21 CFR Part 11 compliance?
Waters supplies a complete IQ/OQ/PQ protocol suite, Risk Assessment Report (RAR), and System Configuration Specification (SCS)—all aligned with ASTM E2500 and GAMP5 guidance.
