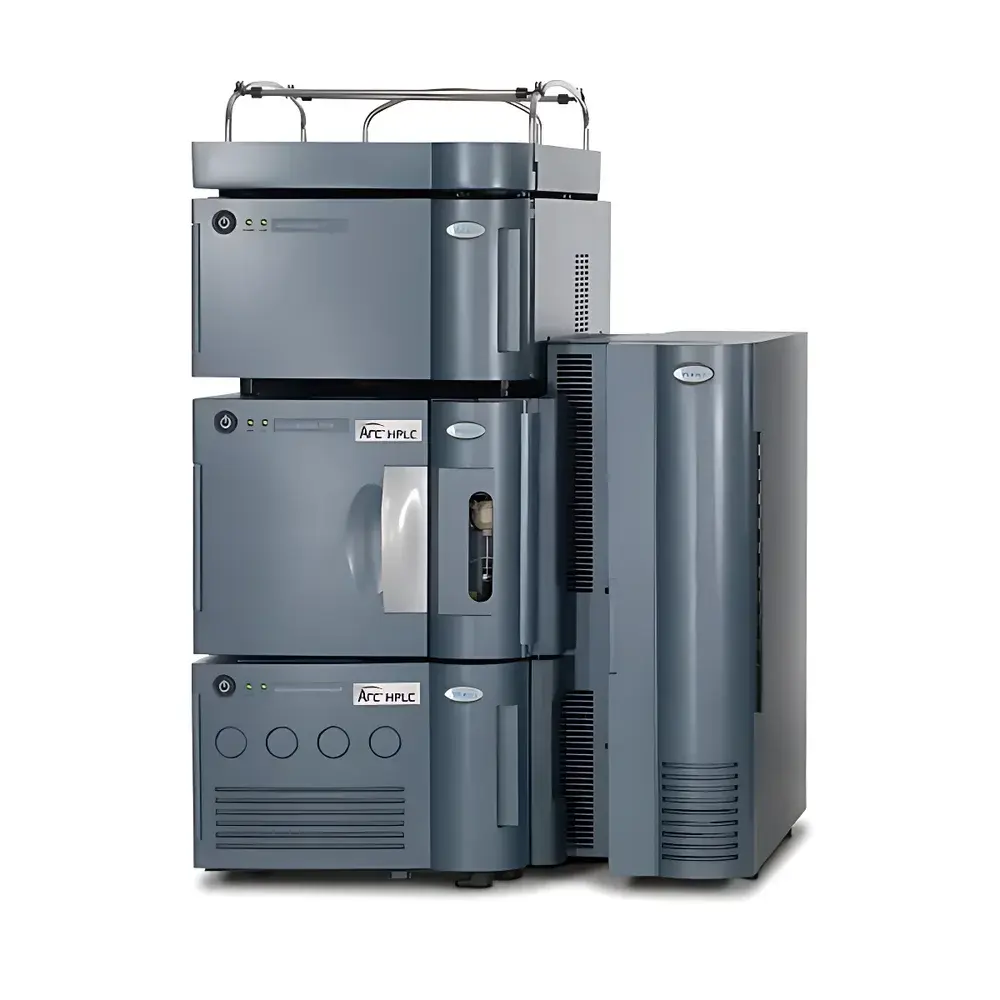

Waters Arc HPLC System

Overview

The Waters Arc HPLC System is a purpose-engineered conventional high-performance liquid chromatograph designed for laboratories requiring robust, reproducible, and regulatory-compliant separations without the complexity or cost of ultra-high-pressure systems. Built on Waters’ decades of chromatographic expertise, the Arc platform operates within the standard pressure regime (≤400 bar) while delivering exceptional method transfer fidelity, baseline stability, and system suitability performance. Its architecture follows classical LC principles—using positive-displacement piston pumps, low-diffusion flow paths, and thermally stabilized detector cells—to ensure retention time reproducibility, peak shape integrity, and quantitative accuracy across diverse small-molecule applications. Unlike UHPLC systems that demand sub-2-µm particles and specialized hardware, the Arc HPLC maintains full compatibility with widely adopted 3–5 µm reversed-phase columns (e.g., XSelect HSS T3, CSH C18), making it ideal for QC labs, contract testing facilities, and academic core facilities where method longevity, inter-laboratory consistency, and audit readiness are paramount.

Key Features

• Smart Gradient Start™ Technology: Dynamically adjusts gradient initiation timing to match the dwell volume of legacy instruments (e.g., Alliance HPLC), enabling method transfer without manual gradient table edits or system recalibration.
• Quaternary Solvent Manager with Auto•Blend Plus™: Delivers precise, real-time mixing of up to four solvents; optional integrated solvent selection valve expands capacity to ten solvents. Auto•Blend Plus allows direct entry of mobile phase pH and ionic strength targets, automating buffer preparation and minimizing human error in routine QC workflows.
• Low-Residue Needle-in-Loop Autosampler: Features continuous needle washing during sequence execution using user-definable wash solvents and cycles—critical for viscous APIs, peptides, or highly retained impurities. Residual carryover remains below 0.01% under validated conditions.
• Thermally Controlled Column Compartment: Maintains column temperature from ambient to 85 °C with ±0.5 °C stability, supporting method robustness across seasonal lab fluctuations and multi-site deployments.
• Integrated Solvent Degassing & Seal Wash: Reduces downtime caused by salt precipitation or seal wear—especially during high-buffer-content methods—extending maintenance intervals and improving uptime reliability.
• Empower™ Software Integration: Native support for Waters Empower Chromatography Data System (CDS), including full audit trail, electronic signatures, and 21 CFR Part 11 compliance features such as user access control, change tracking, and report generation for FDA/EMA inspections.

Sample Compatibility & Compliance

The Arc HPLC System supports a broad range of sample types—including pharmaceutical actives, degradation products, excipients, natural product extracts, and synthetic intermediates—across regulated and non-regulated environments. It meets key pharmacopeial requirements for system suitability testing per USP , EP 2.2.46, and JP G15, consistently achieving ≤0.5% RSD for injection precision (e.g., losartan potassium assay), USP plate count >2000, and tailing factor <2.0 under standard test conditions. All hardware components and firmware revisions undergo rigorous design verification against ISO 9001 and ISO/IEC 17025 calibration traceability standards. The system is prequalified for GLP and GMP environments when deployed with Empower CDS configured in compliance mode, including full electronic record retention, metadata capture, and automated report archiving.

Software & Data Management

The Arc HPLC integrates natively with Waters Empower 3 and Empower 4 CDS, serving as the central hub for acquisition, processing, review, and reporting. Empower’s structured data model ensures all raw chromatograms, method parameters, instrument logs, and audit events are stored in a relational database with immutable timestamps and user attribution. Features include customizable review workflows, automated system suitability pass/fail logic, batch-level trending, and export to PDF/A-2 or CSV for external LIMS integration. For laboratories subject to FDA inspection, Empower’s Part 11 module provides role-based permissions, electronic signatures with biometric or token-based authentication, and comprehensive audit trail exports—including changes to integration parameters, peak detection settings, or calibration curves.

Applications

The Arc HPLC System is routinely deployed in pharmaceutical quality control for release testing of drug substances and products, stability-indicating assays, dissolution profiling, and impurity quantitation per ICH Q3B(R3). Its method transfer fidelity makes it especially valuable for labs migrating legacy Alliance-based methods into modernized infrastructure without revalidation. In academia and contract research organizations, it supports natural product isolation characterization, polymer additive analysis, and environmental contaminant screening (e.g., pesticides, PAHs). Its compatibility with both volatile and non-volatile mobile phases—including ammonium formate, phosphate buffers, and TFA-containing gradients—enables broad applicability across acidic, basic, and zwitterionic analytes. Method scalability studies (e.g., column dimension reduction from 4.6 × 250 mm to 4.6 × 100 mm, particle size downscaling from 5 µm to 3.5 µm) demonstrate consistent resolution enhancement and reduced solvent consumption—without compromising system suitability.

FAQ

Can the Arc HPLC System run methods originally developed on Waters Alliance HPLC systems?
Yes—via Smart Gradient Start™ and native dwell volume matching, Arc preserves retention times and peak shapes without modifying gradient tables or re-optimizing methods.
Is Empower software included with the Arc HPLC System?
Empower is licensed separately but fully supported; configuration packages for 21 CFR Part 11 compliance and GxP validation are available upon request.
What column dimensions and particle sizes are supported?
Standard support includes 2.1–4.6 mm ID columns, lengths from 30–300 mm, and particles from 3–10 µm—optimized for 3–5 µm reversed-phase media used in pharmacopeial methods.
Does the Arc HPLC support column switching?
An optional integrated 3-position column switch valve enables automated method screening or multi-column workflows without manual intervention.
How is system suitability verified on the Arc platform?
Built-in Empower templates automate calculation of USP parameters (plate count, tailing factor, resolution, %RSD), with pass/fail thresholds configurable per SOP and exportable for regulatory submissions.
