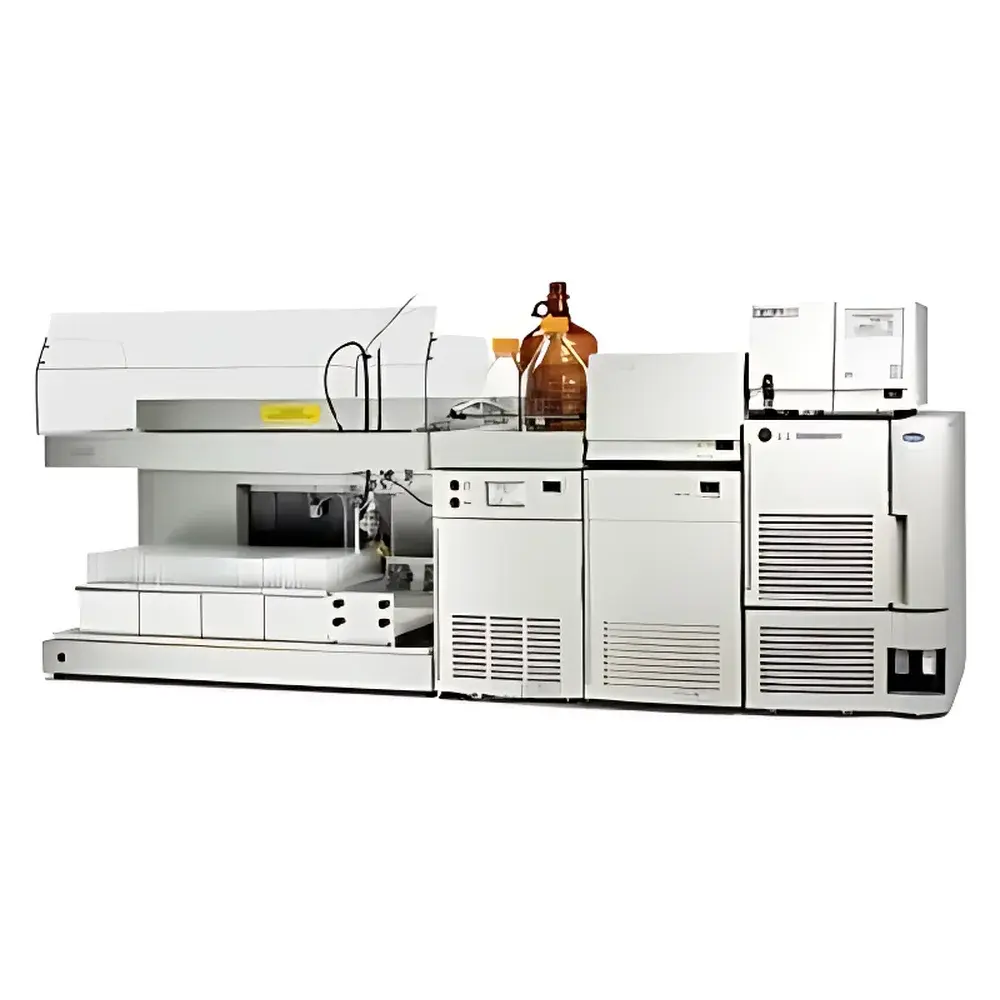

Waters AutoPurification System

Overview

The Waters AutoPurification System is a high-performance, modular preparative liquid chromatography platform engineered for reproducible, scalable compound isolation in synthetic chemistry, natural product research, and early-stage pharmaceutical development. Built upon robust high-pressure LC architecture, it operates on the fundamental principle of differential partitioning—separating analytes based on their relative affinities for stationary and mobile phases under precisely controlled gradient or isocratic elution conditions. Unlike analytical systems optimized solely for detection sensitivity, the AutoPurification platform prioritizes mass recovery, fraction integrity, and column loading efficiency—enabling reliable purification across milligram to gram quantities without method re-optimization. Its native integration with mass spectrometry allows real-time molecular weight–guided fraction collection, significantly reducing iterative purification cycles and accelerating lead compound characterization.

Key Features

• Modular, field-upgradable architecture supporting seamless transition from analytical screening to preparative-scale purification
• Native HPLC/MS coupling with time-synchronized data acquisition and mass-triggered fraction collection
• Optimized Bed Density (OBD) column technology delivering enhanced sample loading capacity and extended column lifetime under high-load conditions
• Multi-detector compatibility: configurable integration with UV/Vis absorbance, evaporative light scattering (ELS), charged aerosol detection (CAD), and analog signal inputs
• Unattended operation capability with automated solvent selection, gradient programming, injection sequencing, and fraction routing
• Rugged high-pressure fluidic design rated for sustained operation at pressures consistent with modern preparative UPLC/HPLC workflows

Sample Compatibility & Compliance

The system accommodates a broad range of compound classes—including small molecules, peptides, polar metabolites, and moderately stable natural products—across reversed-phase, normal-phase, and HILIC separation modes. All hardware components comply with CE marking requirements for laboratory instrumentation. FractionLynx software supports audit trail functionality, electronic signatures, and user access control—aligning with GLP and GMP documentation expectations. While not pre-certified for 21 CFR Part 11 out-of-the-box, the software architecture permits configuration to meet FDA-regulated environments when deployed with validated IT infrastructure and procedural controls.

Software & Data Management

FractionLynx application software serves as the central command interface for method development, run scheduling, real-time monitoring, and post-run analysis. It enables intelligent fraction triggering based on peak apex, threshold crossing, or retention time windows—using any combination of detector signals. All acquisition parameters, collection events, and instrument status logs are timestamped and stored in a relational database structure. Raw data files adhere to Waters’ proprietary .raw format, fully compatible with Empower™ and MassLynx™ for cross-platform review. Export options include CSV, PDF reports, and structured XML for LIMS integration. Version-controlled method templates support laboratory-wide standardization and regulatory traceability.

Applications

• Synthetic chemistry support: rapid isolation of reaction products and intermediates following parallel synthesis or combinatorial libraries
• Metabolite purification from biological matrices prior to structural elucidation by NMR or HRMS
• Impurity isolation and characterization for ICH Q5/Q6 compliance studies
• Natural product dereplication and bioactivity-guided fractionation workflows
• Preparative chiral separations using dedicated polysaccharide-based columns
• Process development support for API purification at early clinical stages

FAQ

Can the AutoPurification System operate without mass spectrometry?
Yes—the system functions independently with UV/Vis or ELS detection and supports full automation including gradient programming, fraction collection, and method recall.
Is column backflushing supported?
Backflush capability is available via optional valve configuration and is programmable within FractionLynx methods for routine column maintenance.
What solvent compatibility does the system offer?
All fluidic paths are chemically resistant to common HPLC solvents including acetonitrile, methanol, THF, dichloromethane, and aqueous buffers within pH 2–8; extended pH ranges require optional wetted-material upgrades.
How is method transfer between analytical and preparative scales achieved?
FractionLynx includes scale-up wizards that apply linear velocity and retention time normalization principles to preserve selectivity while adjusting flow rate, injection volume, and column dimensions.
Does Waters provide validation documentation for regulated labs?
Waters supplies Installation Qualification (IQ) and Operational Qualification (OQ) protocols; Performance Qualification (PQ) must be performed in-house per user-defined acceptance criteria and process requirements.
