Waters DESI XS Ambient Ionization Source

Overview

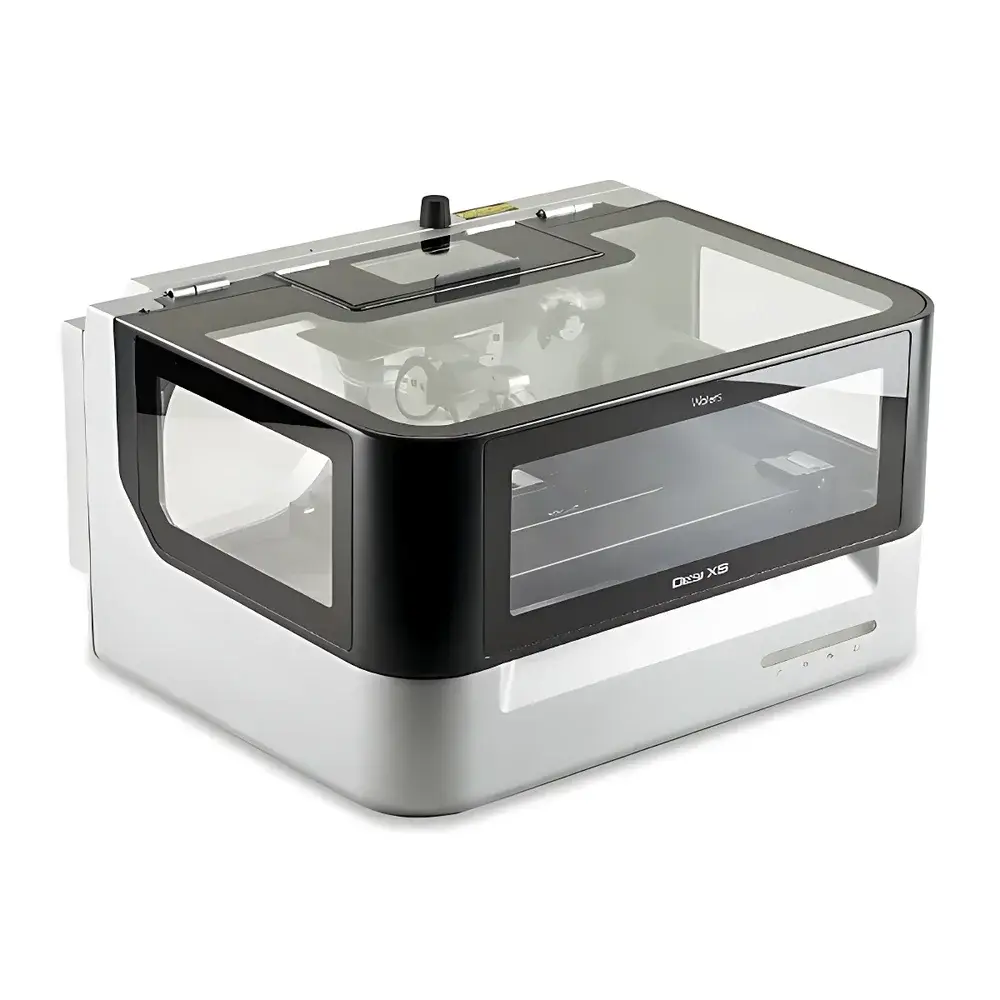

The Waters DESI XS is a next-generation ambient ionization source engineered specifically for high-fidelity mass spectrometry (MS) imaging applications. It implements desorption electrospray ionization (DESI), a solvent-based atmospheric-pressure surface sampling technique that enables direct, label-free molecular analysis from untreated solid samples—including tissue sections, pharmaceutical tablets, and polymer surfaces—without prior matrix application or vacuum transfer. Unlike conventional ionization methods requiring extensive sample preparation, DESI operates under ambient conditions, preserving spatial integrity while delivering chemically specific ion signals across defined XY coordinates. The DESI XS builds upon over a decade of Waters’ investment in MS imaging, incorporating proprietary mechanical, optical, and control-system enhancements to deliver improved reproducibility, environmental robustness, and operational consistency across high-throughput imaging campaigns.

Key Features

• Partially Enclosed Housing Design: Minimizes atmospheric turbulence and solvent vapor dispersion, enhancing signal stability during extended raster scans and reducing cross-contamination between adjacent sample regions.
• Integrated Side-View Camera System: Provides real-time visualization of the DESI spray plume relative to sample topography, enabling precise nozzle-to-surface distance optimization—a critical parameter governing ion yield and spatial resolution.
• Precision Spray Actuator: Features a spring-arm assembly with cage-roller bearings to maintain consistent spray geometry under repeated mechanical stress, ensuring long-term alignment fidelity during multi-hour acquisitions.
• Advanced Stepper-Motor Stage: Co-developed with a leading microscopy stage manufacturer, it delivers sub-10 µm positional repeatability and employs an S-curve acceleration profile to eliminate mechanical vibration—preserving fragile tissue morphology during raster motion.
• Automated Gas & Voltage Management: Electronically coordinated shutdown of nebulizing gas flow and high-voltage supply at acquisition end reduces consumable usage, extends spray tip lifetime, and lowers residual solvent exposure in laboratory environments.
• Native Platform Integration: Fully compatible with Waters’ high-resolution mass spectrometers—including the SELECT SERIES Cyclic IMS, SYNAPT XS, and Xevo G2-XS QTof—enabling seamless method transfer and synchronized instrument control via MassLynx™ and HDI™ software environments.

Sample Compatibility & Compliance

The DESI XS supports diverse sample types without derivatization or matrix coating: frozen or FFPE tissue sections (5–20 µm thickness), dried blood spots, plant leaves, forensic trace evidence, and thin-layer chromatography plates. Its ambient operation eliminates vacuum-induced dehydration artifacts common in MALDI workflows. From a regulatory standpoint, the source’s deterministic motion control, hardware-enforced parameter logging, and integration with HDI™ software support audit-trail generation and electronic signature capabilities compliant with FDA 21 CFR Part 11 and ISO/IEC 17025 requirements. It is routinely deployed in GLP-compliant biomarker discovery studies and preclinical drug distribution mapping where spatial quantification traceability is mandated.

Software & Data Management

Data acquisition is managed through MassLynx™ v4.2 or later, with post-acquisition processing performed in HDI™ Software (v2.5+). HDI™ provides pixel-wise spectral deconvolution, multivariate image registration, co-localization analysis across multiple analytes, and export to open formats (imzML, mzML) for third-party tools such as SCiLS Lab or Cardinal. The DESI XS enables full metadata capture—including exact nozzle position, solvent composition, spray voltage, and dwell time per pixel—which is embedded directly into raw file headers. This ensures full traceability for regulatory submissions and facilitates retrospective reprocessing when new algorithms or calibration standards become available.

Applications

• Neurochemical Mapping: Spatial profiling of phospholipids, gangliosides, and neurotransmitter metabolites in rodent and human brain sections—demonstrated in peer-reviewed studies showing regional segregation of sphingomyelin (red), phosphatidylcholine (green), and sulfatide (blue) isoforms.
• Pharmaceutical Development: Quantitative assessment of active pharmaceutical ingredient (API) distribution within solid dosage forms, including detection of crystalline vs. amorphous phase heterogeneity and excipient-drug interactions.
• Clinical Tissue Diagnostics: Discrimination of tumor margins in intraoperative frozen sections using lipidomic signatures, supporting rapid decision-making in oncology surgery.
• Plant Metabolomics: In situ localization of alkaloids, flavonoids, and defense-related phytochemicals across leaf vasculature and epidermal layers.
• Dual-Mode Imaging: Combined DESI/MALDI acquisition on SYNAPT XS platforms allows orthogonal validation of small-molecule and peptide distributions within identical tissue sections—enhancing confidence in biomolecular annotation.

FAQ

Is the DESI XS compatible with non-Waters mass spectrometers?
No. The DESI XS is engineered exclusively for integration with Waters high-resolution mass spectrometry platforms and relies on proprietary hardware synchronization protocols not available on third-party instruments.
What solvent systems are validated for use with the DESI XS?
Standard configurations support methanol/water/formic acid (50:50:0.1 v/v/v) and acetonitrile/isopropanol/ammonium acetate (40:40:20 mM), though custom solvent delivery modules can be configured for specialized applications.
Does the DESI XS require routine recalibration?
No routine recalibration is required. The system maintains geometric and electrical stability across >500 hours of cumulative operation; however, daily performance verification using a standardized tissue phantom is recommended for regulated environments.
Can the DESI XS be used for quantitative imaging?
Yes—when coupled with internal standard normalization and matrix-matched calibration curves, DESI XS enables semi-quantitative spatial mapping with inter-run CVs <15% for endogenous lipids in biological tissues.
How does the DESI XS improve spatial resolution compared to prior-generation sources?
Through optimized spray focus, reduced plume divergence, and vibration-free stage motion, the DESI XS achieves effective lateral resolution of ~50–75 µm on tissue—representing a 30–40% improvement over legacy DESI implementations under identical acquisition parameters.
