Waters ionKey/MS Integrated UPLC-MS System

Overview

The Waters ionKey/MS is an engineered microfluidic integration platform that unifies ultra-performance liquid chromatography (UPLC) separation directly within the electrospray ionization (ESI) source of compatible Waters mass spectrometers. Unlike conventional LC-MS configurations requiring discrete column hardware, tubing, fittings, and external source optimization, the ionKey/MS embeds a monolithic 150 µm internal diameter (ID) separation channel—packed with 1.7 µm ethylene bridged hybrid (BEH) particles—into a single, self-contained iKey™ cartridge. This architecture leverages Couette-flow-based nanospray ESI principles, where analyte elution occurs at sub-microliter-per-minute flow rates directly into the ion source, minimizing post-column dispersion and maximizing ion transmission efficiency. The system delivers UPLC-grade chromatographic resolution and peak capacity equivalent to 2.1 mm ID columns while operating at ~95% lower solvent consumption and enabling up to 10-fold sensitivity gains in quantitative multiple reaction monitoring (MRM) assays. It is purpose-built for laboratories performing low-abundance biomarker quantitation, metabolomics profiling, peptide mapping, and regulated bioanalysis where sample scarcity, matrix complexity, and regulatory traceability are critical constraints.

Key Features

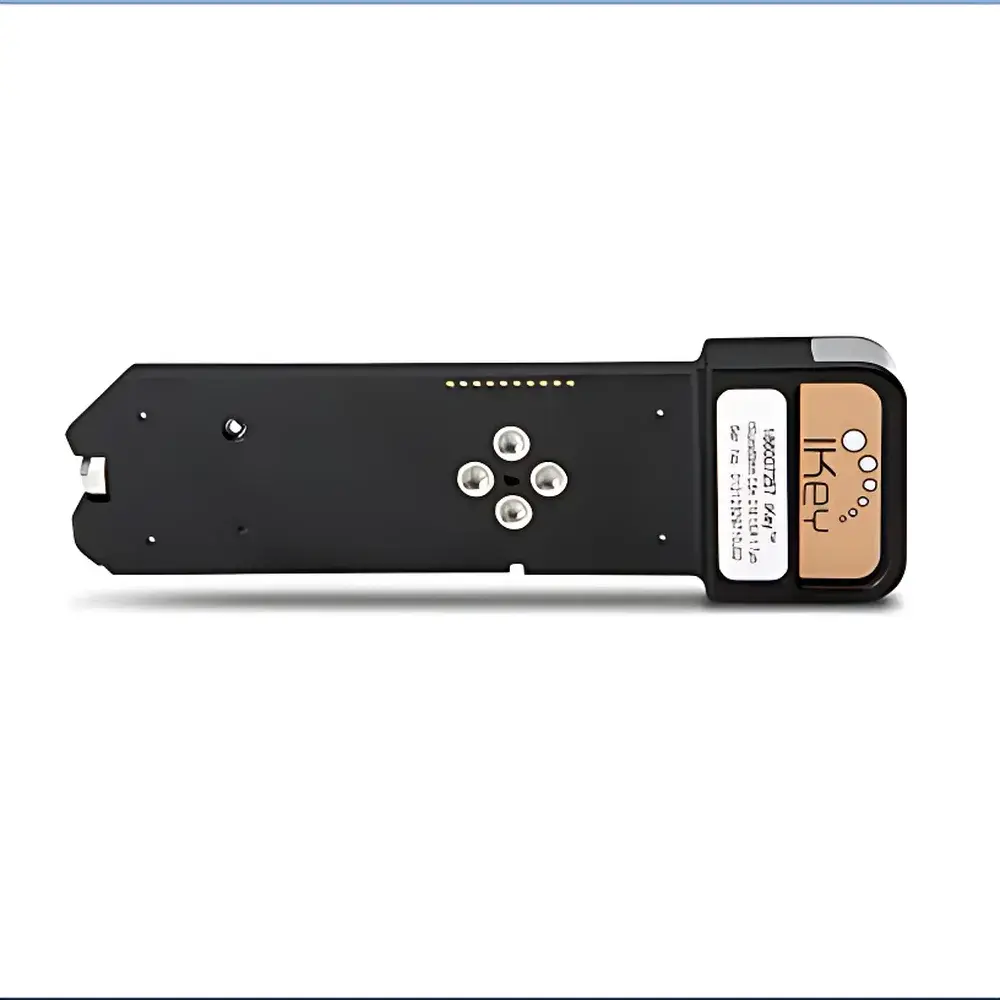

• Integrated microfluidic separation: iKey™ cartridge combines column, ESI emitter, heater, and electronic interface in one disposable unit—eliminating manual column installation, alignment, and source tuning.
• UPLC-equivalent performance: Delivers >90% of the resolution and reproducibility of 2.1 mm ID UPLC methods using a 150 µm ID monolithic channel packed with 1.7 µm BEH C18 particles.
• Enhanced sensitivity: Achieves detection limits down to low-attomole levels for peptides and small molecules due to near-quantitative ion transfer and reduced electrochemical surface adsorption.
• Reduced operational variability: Plug-and-play design minimizes inter-operator differences in source setup, improving method transferability across instruments and sites.
• Low-flow operation: Operates at 0.5–5 µL/min flow rates—compatible with standard ACQUITY UPLC M-Class systems—enabling extended column lifetime and improved MS stability.
• Regulatory-ready architecture: Supports full audit trail logging, electronic signatures, and instrument method versioning when used with Waters UNIFI Software under 21 CFR Part 11-compliant configurations.

Sample Compatibility & Compliance

The ionKey/MS supports broad analyte classes including peptides, intact proteins (≤30 kDa), polar metabolites, lipids, and small-molecule pharmaceuticals. Its low dead-volume interface and minimized surface adsorption make it particularly suitable for basic, hydrophobic, or labile compounds prone to degradation or loss in conventional nano-LC setups. The iKey cartridge is manufactured under ISO 13485-certified processes and qualified per Waters’ internal QC protocols for retention time precision (RSD < 0.2% over 100 injections) and peak area reproducibility (RSD < 3%). When deployed in GLP or GMP environments, the system complies with ICH M10 guidance on bioanalytical method validation and supports data integrity requirements aligned with FDA and EMA expectations for chromatographic-mass spectrometric workflows.

Software & Data Management

Control and data acquisition are fully integrated via Waters UNIFI Scientific Information System or MassLynx v4.2+. UNIFI enables automated iKey cartridge recognition, method-specific calibration, real-time pressure monitoring, and seamless correlation of chromatographic parameters with spectral metadata. All raw data files (.raw) include embedded cartridge lot numbers, usage counters, and thermal history logs. Audit trails record every user action—including method edits, sequence changes, and reprocessing events—with timestamps, operator IDs, and reason codes. Electronic signatures meet ALCOA+ principles and are configurable for multi-level approval workflows required in regulated bioanalysis.

Applications

• Quantitative bioanalysis of therapeutic proteins and ADCs in plasma using immunocapture-LC-MS/MS.
• High-throughput targeted metabolomics in limited-volume clinical specimens (e.g., dried blood spots, cerebrospinal fluid).
• Peptide mapping and PTM characterization of monoclonal antibodies with enhanced signal-to-noise for low-stoichiometry modifications.
• Residue analysis in environmental and food safety testing where sample volume and solvent disposal are constrained.
• Method development acceleration for discovery proteomics, reducing column screening time by >70% compared to traditional nano-LC approaches.

FAQ

Is the ionKey/MS compatible with non-Waters mass spectrometers?
No—the iKey cartridge requires proprietary electrical and fluidic interfaces designed exclusively for Waters Xevo-series and SELECT SERIES Cyclic IMS platforms equipped with iKey-enabled ion sources.
What is the expected lifetime of a single iKey cartridge?
Under typical bioanalytical conditions (e.g., 100–200 injections of plasma digests), each iKey provides >150 injections with <5% retention time drift and <10% peak area decline—validated per Waters Application Note 720006749EN.
Can iKey cartridges be regenerated or reused?
No—iKey cartridges are single-use, factory-packed devices. Reuse is not supported due to irreversible particle bed compression and potential carryover contamination.
Does ionKey/MS require special training for routine operation?
Minimal training is required; operators need only load the iKey into the source bay, select the corresponding method in UNIFI, and initiate the sequence—no manual ESI voltage or gas parameter adjustments are necessary.
How does ionKey/MS support compliance with 21 CFR Part 11?
When deployed with UNIFI in validated mode, the system enforces role-based access control, electronic signatures for critical actions, immutable audit trails, and secure data archiving—all documented in Waters’ Part 11 Validation Package (VP-UNIFI-IONKEY-2023).
