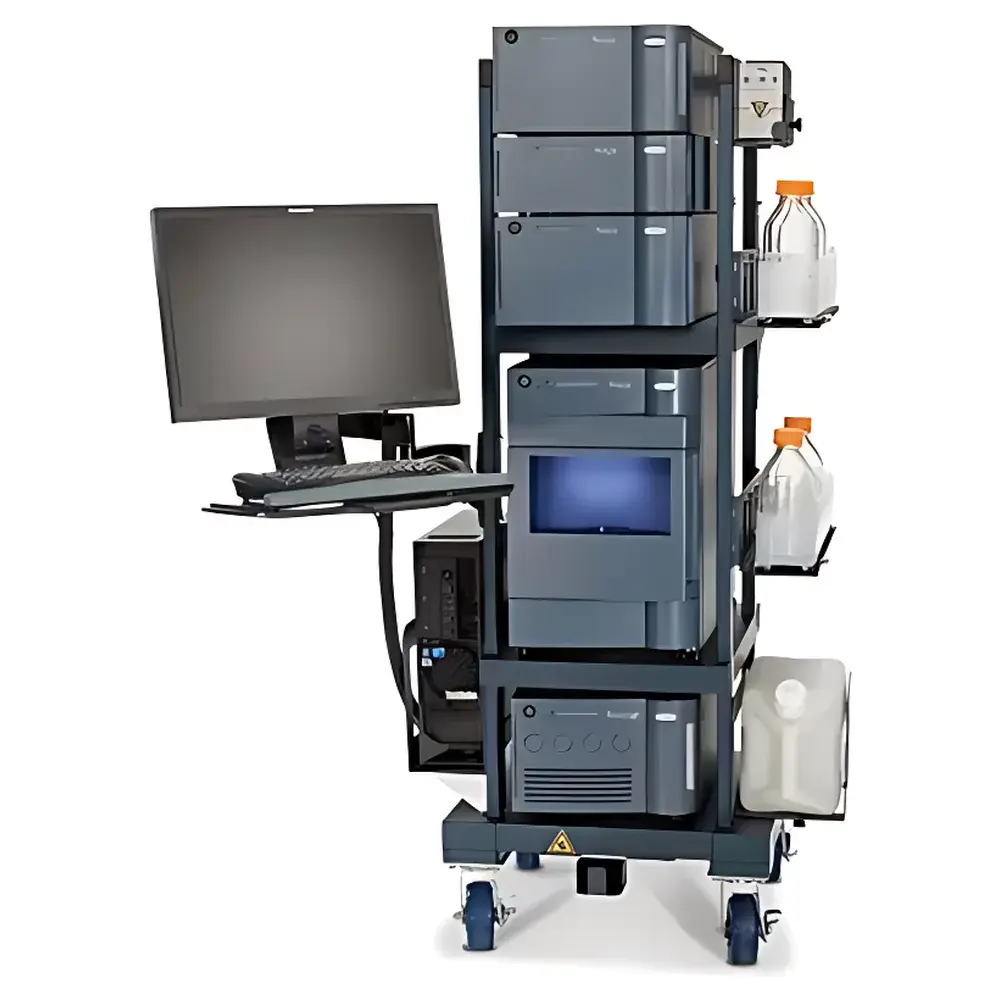

Waters PATROL UPLC Process Analytical Technology System

Overview

The Waters PATROL UPLC Process Analytical Technology System is an engineered solution for real-time, in-process chemical analysis in regulated pharmaceutical, biotechnology, and fine chemical manufacturing environments. Built upon ultra-high-performance liquid chromatography (UPLC®) separation science, the system implements the core principles of Process Analytical Technology (PAT) as defined by the U.S. FDA’s Guidance for Industry. It enables continuous or frequent at-line monitoring of critical process streams—such as reactor effluents, crystallization slurries, purification fractions, and final drug substance batches—to quantitatively assess Critical Quality Attributes (CQAs) without offline sample transfer delays. Unlike conventional HPLC systems, the PATROL UPLC integrates robust fluidic architecture, thermally stabilized column compartments, and high-fidelity UV/Vis detection optimized for industrial deployment. Its measurement principle relies on pressure-driven, sub-2-µm particle-packed column chromatography coupled with high-speed spectral data acquisition (up to 80 Hz), delivering resolution, sensitivity, and quantitative linearity unattainable with spectroscopic PAT tools alone.

Key Features

• Real-time UPLC-based quantification with sub-minute cycle times for routine process stream analysis
• Factory-integrated hardware platform designed for 24/7 operation in GMP-compliant manufacturing suites
• On-board self-diagnostics with predictive maintenance alerts and remote system health monitoring via secure web interface
• Modular flow path configuration supporting both at-line sampling loops and in-line flow cells (compatible with 1/8″ and 1/4″ tubing interfaces)
• Temperature-controlled autosampler and column oven (ambient to 60 °C) ensuring retention time stability across shifts and seasons
• Fully compliant with 21 CFR Part 11 requirements: electronic signatures, audit trail, user access controls, and data immutability enforcement
• Seamless integration with DCS, SCADA, and MES platforms via OPC UA and Modbus TCP protocols for automated trigger-based analysis

Sample Compatibility & Compliance

The PATROL UPLC accommodates a broad range of process-relevant matrices—including aqueous buffers, organic solvent mixtures, suspensions, and low-viscosity intermediates—when paired with appropriate filtration, dilution, and injection modules. Sample introduction is configurable for direct flow-through analysis or discrete vial-based at-line sampling. The system meets ASTM E2500-13 (Guide for Specification, Design, and Verification of Pharmaceutical and Biopharmaceutical Manufacturing Systems) and aligns with ICH Q5, Q7, and Q9 frameworks. All firmware, software, and calibration procedures are documented per GAMP 5 standards, supporting qualification activities (IQ/OQ/PQ) and regulatory inspection readiness.

Software & Data Management

Powered by Waters Empower™ PAT Method Studio and PAT Server software, the system supports method development, validation, and deployment in a single environment. PAT-specific workflows include automated peak tracking, multivariate calibration (e.g., PLS regression), and real-time CQA trending with configurable SPC limits. Raw chromatographic data, metadata, and audit logs are stored in a secure, time-stamped relational database with automatic backup and version control. Data export formats include CSV, XML, and ASTM E1384-compliant analytical data interchange structures for enterprise LIMS integration.

Applications

• Reaction endpoint determination in API synthesis via real-time impurity and intermediate profiling
• In-process monitoring of monoclonal antibody purification steps (e.g., Protein A elution pool purity assessment)
• Crystallization kinetics tracking through solute concentration and polymorph ratio quantification
• Final blend uniformity verification in solid dosage form manufacturing
• Stability-indicating assay during accelerated aging studies under controlled environmental chambers
• Supporting Quality by Design (QbD) initiatives through design space mapping and control strategy validation

FAQ

What distinguishes PATROL UPLC from traditional HPLC systems used in QC labs?
It is purpose-built for continuous process integration—not batch-oriented testing—with hardened hardware, automated diagnostics, and PAT-specific software for real-time decision support.
Can PATROL UPLC be validated for GMP production environments?
Yes. The system ships with vendor-supplied qualification documentation packages, including URS, FRS, and test protocols aligned with Annex 11 and GAMP 5.
Does it support multi-analyte quantification in complex matrices?
Yes. Its UPLC separation power combined with wavelength-switching UV detection enables simultaneous quantification of ≥12 analytes with <2% RSD precision across dynamic ranges spanning three orders of magnitude.
How is data integrity ensured during long-term unattended operation?
All data transactions are timestamped, digitally signed, and logged in immutable audit trails; system-level encryption and role-based access prevent unauthorized modification or deletion.
Is remote troubleshooting supported?
Yes. Waters Remote Assist provides secure, encrypted technician access for diagnostics and firmware updates without compromising network security boundaries.
