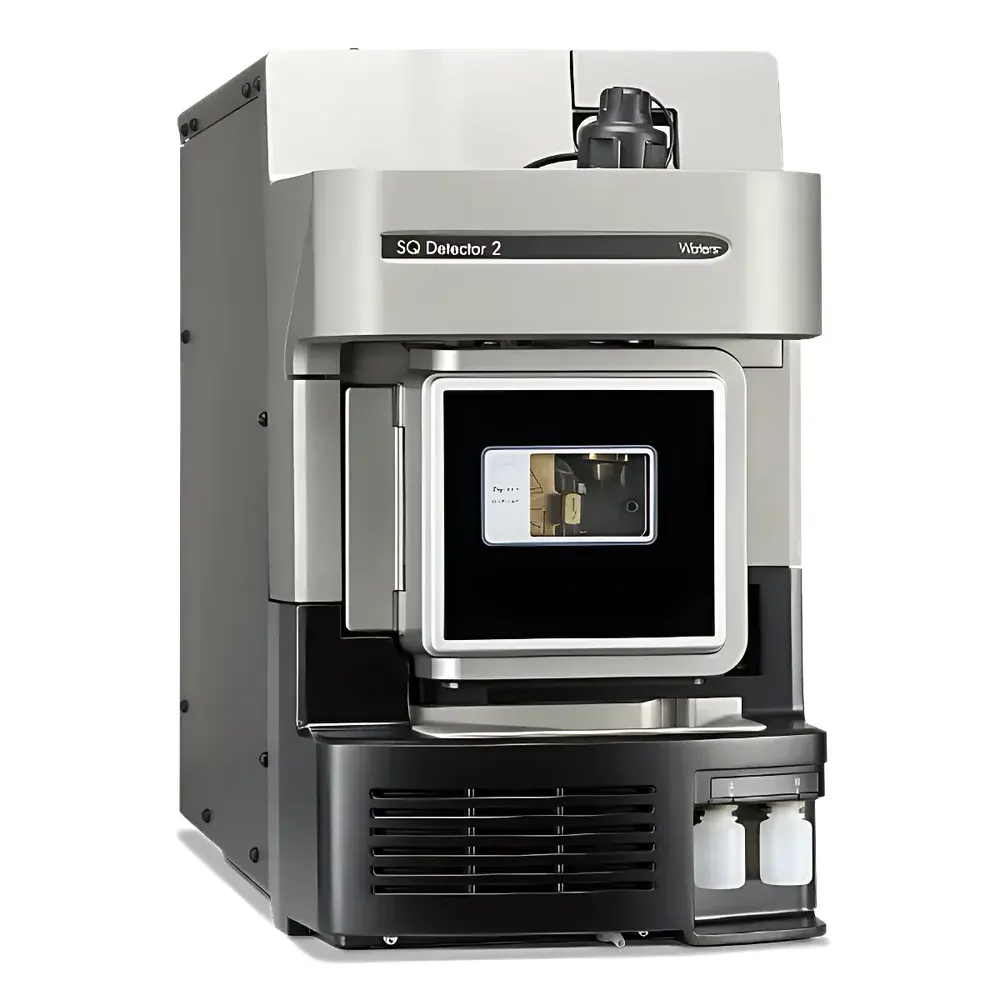

Waters SQD2 Single Quadrupole Mass Spectrometer

Overview

The Waters SQD2 Single Quadrupole Mass Spectrometer is a robust, benchtop mass detection platform engineered for precision, reproducibility, and broad chromatographic interoperability. Operating on the fundamental principle of quadrupole mass filtering—where ions are selectively transmitted based on their mass-to-charge ratio (m/z) under dynamically tuned RF/DC voltage conditions—the SQD2 delivers reliable unit-mass resolution across a validated mass range of 0–3000 m/z. Its architecture centers on stable ion optics, thermally regulated detector electronics, and a vacuum system optimized for continuous operation in high-throughput analytical laboratories. Unlike research-grade high-resolution instruments, the SQD2 is purpose-built for routine quantitative and qualitative LC-MS applications where method robustness, operator independence, and regulatory traceability outweigh ultra-high mass accuracy requirements. It serves as a core detection module within regulated QC/QA workflows, particularly in pharmaceutical impurity profiling, natural product screening, environmental residue analysis, and synthetic chemistry reaction monitoring.

Key Features

• IntelliStart™ automated system initialization and performance verification—reduces manual tuning time and ensures consistent baseline sensitivity prior to sample injection.
• ZSpray™ ion source architecture with orthogonal dual-channel design: enhances desolvation efficiency, minimizes neutral background, and extends source cleaning intervals by up to 3× compared to conventional ESI sources.
• Universal ion source compatibility: accepts interchangeable ESI, APCI, UniSpray, and ASAP probes without hardware modification—enabling rapid transition between liquid-phase, gas-phase, and direct solid/liquid analysis modes.
• Real-time diagnostic monitoring: embedded sensors continuously track vacuum integrity, detector gain stability, lens voltages, and ion transmission efficiency—triggering status alerts (green/yellow/red) via MassLynx console.
• Modular integration with Waters chromatography platforms: natively supports ACQUITY UPLC H-Class PLUS, I-Class PLUS, Premier, Arc, UPC², Alliance, and APC systems—ensuring seamless method transfer and retention time alignment.
• OpenLynx Open Access software enables role-based, guided LC-MS operation: non-expert users submit samples via web interface; predefined methods auto-assign acquisition parameters, calibration sequences, and report templates.

Sample Compatibility & Compliance

The SQD2 accommodates diverse sample matrices—including aqueous extracts, organic solvent solutions, crude reaction mixtures, and thermally labile small molecules—without requiring extensive derivatization or pre-purification. Its ion source flexibility permits analysis of compounds spanning pKa 2–12 and molecular weights from 2,500 Da (e.g., cyclic peptides, oligonucleotide fragments). For regulated environments, the instrument meets foundational requirements of ISO/IEC 17025:2017 (clause 5.9 on measurement traceability), supports electronic signatures and audit trail generation per FDA 21 CFR Part 11 (when deployed with MassLynx v4.2 or later), and aligns with ASTM D7892-15 for hydrocarbon fingerprinting in fuels. Routine performance qualification follows Waters’ PQP (Performance Qualification Protocol) framework, which includes mass calibration stability checks, SIR response linearity verification (R² ≥ 0.995 over 3 orders of magnitude), and carryover assessment (<0.05% at 100 ng/mL).

Software & Data Management

Data acquisition and processing are managed through MassLynx 4.2+ software, featuring integrated peak detection, spectral deconvolution, and customizable quantitation tables. Raw data files (.raw) adhere to Waters’ proprietary but openly documented format, enabling third-party import into UNIFI, Compound Discoverer, or open-source tools like MZmine 3. OpenLynx extends accessibility via browser-based submission portals, batch queue management, and dynamic report generation (PDF/Excel) with configurable metadata fields (sample ID, analyst, SOP version, instrument log ID). All acquisitions include embedded timestamped system logs, tuning reports, and calibration history—fully traceable for internal audits or regulatory inspections. Data archiving complies with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) when deployed with Waters’ Empower or UNIFI LIMS integrations.

Applications

• Pharmaceutical QC: Residual solvent testing (ICH Q3C), extractables/leachables screening, and forced degradation product identification using SIR or full-scan acquisition.
• Academic & industrial synthesis: Real-time reaction monitoring via automated fraction collection triggered by m/z-specific thresholds.
• Food safety: Pesticide multiresidue analysis in complex matrices (e.g., fruits, cereals) using QuEChERS extraction coupled with UPLC-SQD2.
• Environmental labs: Targeted analysis of PFAS, phthalates, and flame retardants in water and soil extracts per EPA Method 1694.
• Natural products: Rapid dereplication of plant extracts via database-matched SIR libraries (e.g., AntiBase, DNP) and retention index correlation.

FAQ

What chromatographic systems are natively supported by the SQD2?
The SQD2 integrates directly with all current Waters ACQUITY and Alliance platforms—including UPLC, UPC², HPLC, and preparative SFC systems—as well as third-party HPLC controllers via analog/digital I/O and LAN-based command protocols.
Does the SQD2 support GLP-compliant data handling?
Yes—when configured with MassLynx v4.2+ and appropriate network authentication, it provides full 21 CFR Part 11 compliance including electronic signatures, immutable audit trails, and role-based access control.
Can the SQD2 perform mass-directed purification?
Yes—through native integration with Waters AutoPurification systems and OpenLynx, it triggers fraction collection based on real-time SIR signals during HPLC or SFC runs.
Is ASAP probe compatibility included out-of-the-box?
Yes—the SQD2 ships with ASAP probe mounting hardware and dedicated acquisition methods in MassLynx; no additional licensing or firmware updates are required.
What maintenance intervals are recommended for routine operation?
Ion source cleaning every 2–4 weeks (depending on sample load); detector gain recalibration monthly; vacuum pump oil change every 6 months; annual preventive maintenance by Waters-certified field service engineers.
