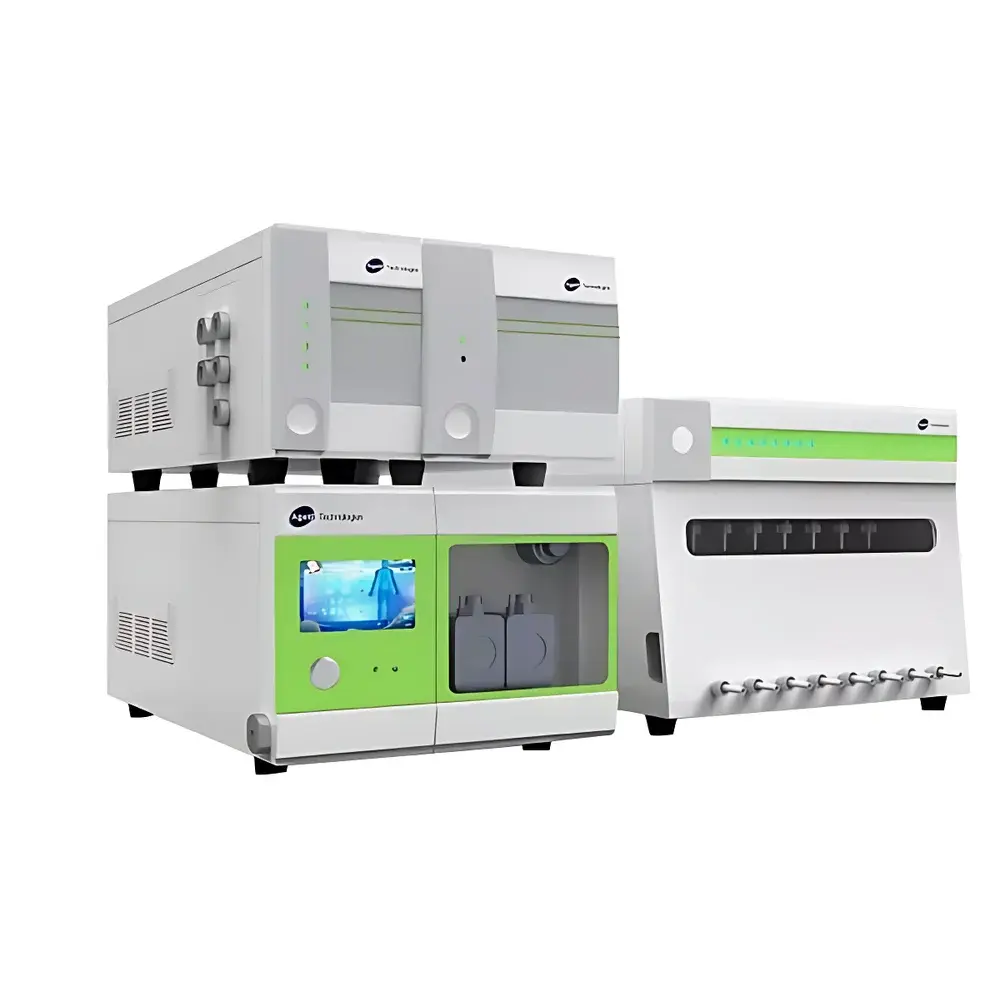

WHALE HP High-Flow Preparative Liquid Chromatography System

Overview

The WHALE HP High-Flow Preparative Liquid Chromatography System is an engineered solution for laboratory-scale purification of complex organic, natural product, and fermentation-derived compounds at gram-to-hundred-gram quantities. Designed around core principles of high-throughput preparative chromatography, the system implements a dual-pump, high-flow binary gradient architecture coupled with photodiode array (PDA) detection and intelligent fraction management. Its operational foundation lies in robust isocratic and gradient elution under controlled backpressure—up to 10 MPa—enabling efficient separation on large-diameter preparative columns (100–200 mm i.d. DAC) or high-capacity flash cartridges (800–5000 g). Unlike analytical or semi-preparative systems, the WHALE HP prioritizes volumetric throughput, flow stability, and spectral fidelity over ultra-high resolution, making it especially suitable for iterative purification workflows where speed, reproducibility, and solvent economy are critical.

Key Features

• High-flow binary gradient pumping system delivering stable flow rates from 300 to 1000 mL/min with ≤±3% accuracy across the full range
• Integrated liquid sample loading module supporting automated, pressure-compatible introduction of large-volume samples (up to several liters per run)
• PDA detector with real-time full-spectrum acquisition (200–800 nm), enabling dynamic baseline correction, peak purity assessment, and spectral library matching
• Valve-based 6-position fraction collector with programmable triggers (time, UV threshold, peak apex, or spectral deviation)
• Dedicated solvent recovery channel with spectral validation: automatically identifies contaminant-free fractions for reprocessing or reuse based on absorbance profiles
• Modular architecture supporting field-upgradable components including pump heads, detector cells, and collection trays
• Compliant with GLP documentation requirements: audit-trail enabled software logs all method parameters, instrument status, and user actions

Sample Compatibility & Compliance

The WHALE HP accommodates diverse sample matrices—including crude reaction mixtures, plant extracts, microbial broths, and peptide libraries—without requiring extensive pre-filtration or dilution. Its large-bore fluidic path minimizes clogging risk while maintaining laminar flow characteristics essential for consistent retention behavior. Column compatibility spans standard stainless-steel DACs (100–200 mm i.d., packed with silica, C18, or specialty media) and polypropylene flash cartridges (800–5000 g loading capacity). The system meets mechanical and electrical safety standards per IEC 61010-1 and supports compliance with ISO/IEC 17025 method validation protocols. All data handling conforms to FDA 21 CFR Part 11 requirements when used with validated software configurations, including electronic signatures, secure user roles, and immutable audit trails.

Software & Data Management

Control and analysis are performed via WHALE Control Suite—a Windows-based application supporting method development, sequence scheduling, real-time spectral visualization, and post-run deconvolution. Raw data is stored in vendor-neutral .cdf format (compatible with third-party chemometrics tools), while processed reports export to PDF or Excel with embedded chromatograms and spectral overlays. The software implements automatic wavelength optimization during method setup, calculates peak symmetry and resolution metrics per USP , and generates QC summaries aligned with internal SOPs. Instrument diagnostics—including pump pulse detection, detector lamp energy decay tracking, and valve cycle logging—are accessible through a dedicated maintenance dashboard. Remote monitoring via secure HTTPS interface allows lab managers to review run progress and system health without local access.

Applications

• Organic synthesis: isolation of intermediates and final products from multi-step reactions, particularly where thermal lability or low solubility limits alternative purification methods
• Natural product research: scalable fractionation of plant or marine extracts prior to structural elucidation by NMR or MS
• Biotechnology: purification of non-denatured peptides, glycoproteins, and small-molecule metabolites from fermentation supernatants
• Pharmaceutical development: early-stage impurity isolation for reference standard preparation and forced degradation studies
• Solvent sustainability programs: spectral-guided recovery of acetonitrile, methanol, and ethyl acetate reduces annual solvent consumption by up to 40% in high-throughput labs

FAQ

What column formats are supported by the WHALE HP system?

The system is optimized for preparative columns with internal diameters of 100–200 mm (DAC type) and flash cartridges rated for 800–5000 g stationary phase loading.
Does the PDA detector support quantitative analysis?

Yes—the detector provides linear response across 200–800 nm with calibrated absorbance units; quantitation is validated per ICH Q2(R2) guidelines using external standards and peak area integration.
Can the system operate under GMP conditions?

When deployed with validated software configuration, electronic signature modules, and documented IQ/OQ protocols, the WHALE HP meets foundational GMP data integrity expectations for non-clinical manufacturing support.
Is remote operation possible?

Remote monitoring and limited control (e.g., pause/resume, status query) are available via TLS-secured web interface; full method editing requires local authenticated access.
What maintenance intervals are recommended?

Pump seals and check valves require inspection every 500 hours of operation; PDA lamp replacement is advised at 2000 hours or upon energy drop >20% below baseline.
