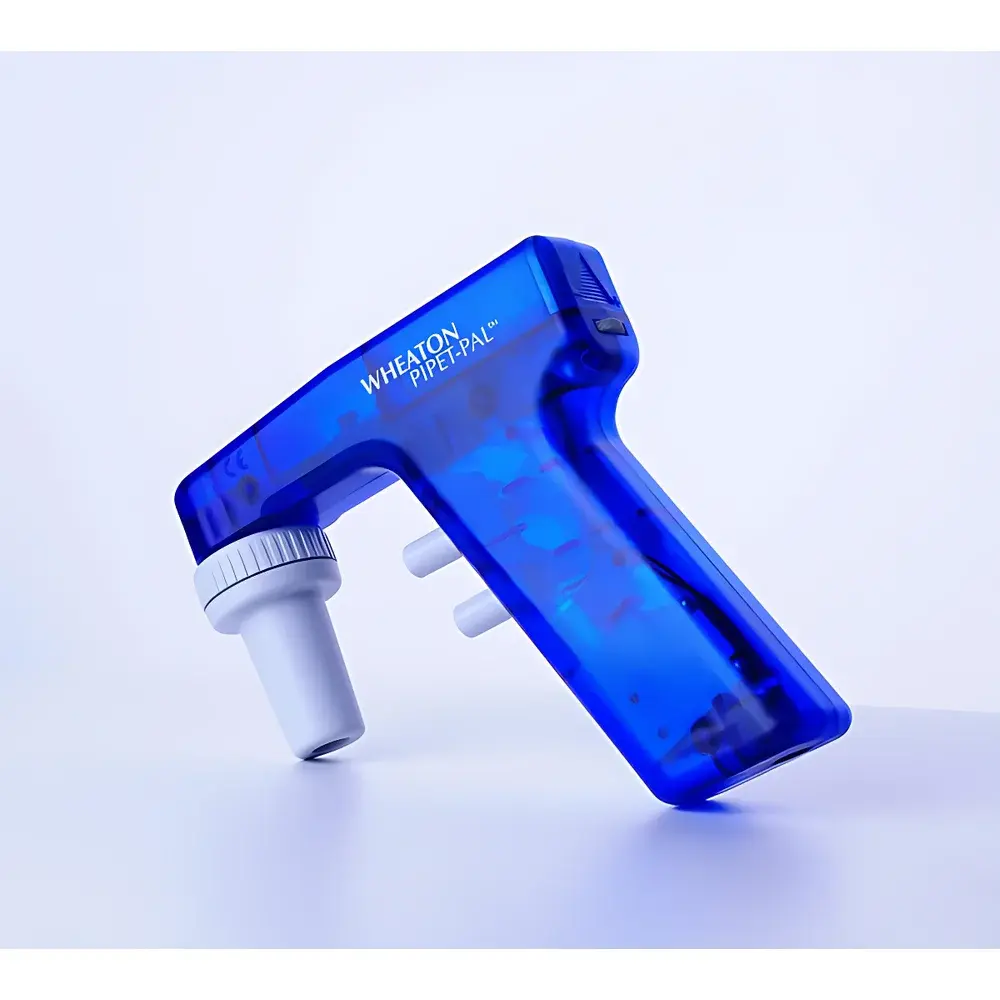

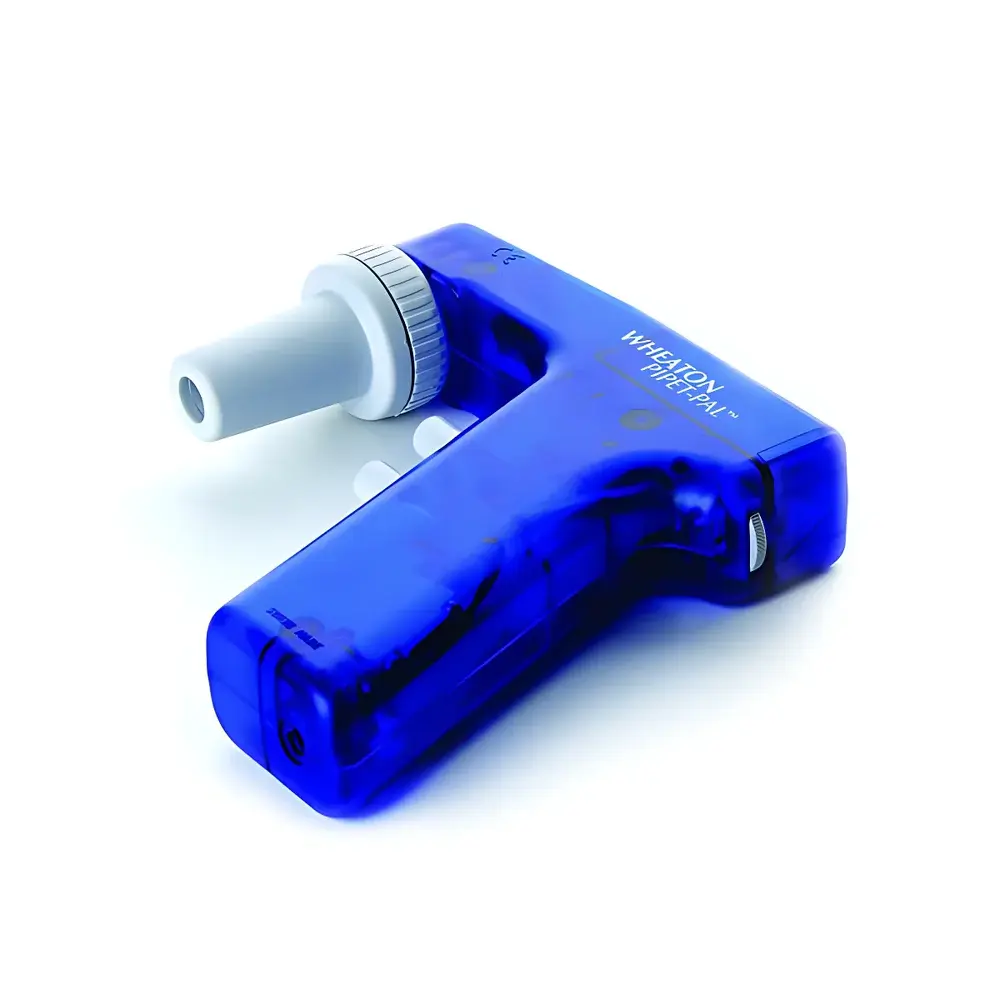

WHEATON PIPET-PAL Electric Pipette Controller

Overview

The WHEATON PIPET-PAL™ Electric Pipette Controller is a precision-engineered, single-channel motorized liquid handling instrument designed for high-reproducibility aspiration and dispensing across the full 1–100 mL range of standard glass and plastic serological pipettes. Unlike manual pipetting aids or basic electronic controllers, the PIPET-PAL operates on a closed-loop DC motor system coupled with pressure-sensing feedback and dual-mode fluid control logic—enabling both active vacuum-driven aspiration and passive gravity-assisted dispensing. Its ergonomic architecture prioritizes operator biomechanics: the 195 g mass distribution, balanced center of gravity, and natural hand posture alignment reduce musculoskeletal strain during extended workflows—making it suitable for GLP-compliant cell culture, QC testing, and routine clinical laboratory applications where repeatability and user fatigue mitigation are critical.

Key Features

• Ultra-lightweight construction (195 g) with optimized weight distribution for prolonged use without wrist or finger fatigue
• High-efficiency brushless DC motor delivering consistent aspiration speeds up to 13.5 mL/s (measured with 50 mL pipette), with minimal acoustic noise (<45 dB(A))
• Tactile fingertip control interface enabling sub-millisecond response time for precise drop-by-drop dispensing
• Dual dispensing modes: programmable vacuum release for controlled ejection and gravity-based “touch-off” mode activated by single-button press
• Integrated 0.45 µm hydrophobic PTFE filter (sterile and non-sterile options available); optional 0.20 µm filter for stringent aseptic applications
• Chemically resistant wetted materials: polyamide housing, polyoxymethylene (POM) pipette nose, and medical-grade silicone seals ensure compatibility with alcohols, dilute acids/bases, and common organic solvents
• Lithium-polymer battery (≥550 mAh) supporting >5500 full aspiration/dispense cycles per charge (tested with 25 mL pipette)
• Modular design permitting rapid disassembly of pipette interface and filter housing for autoclaving (121 °C, 20 min) or chemical sterilization

Sample Compatibility & Compliance

The PIPET-PAL is validated for use with Class A and Class B borosilicate glass serological pipettes (1–100 mL) and certified polypropylene disposable pipettes meeting ISO 8549 and ASTM E2237 standards. Its filtration system complies with ISO 8573-1:2010 Class 2 particulate and Class 3 moisture specifications when used with supplied 0.45 µm filters. The device meets IEC 61010-1:2010 safety requirements for laboratory electrical equipment and carries CE marking under the EU Low Voltage Directive. While not FDA 21 CFR Part 11–compliant out-of-the-box (no audit trail or electronic signature functionality), its operational consistency supports ALCOA+ data integrity principles when integrated into documented SOPs for GMP environments.

Software & Data Management

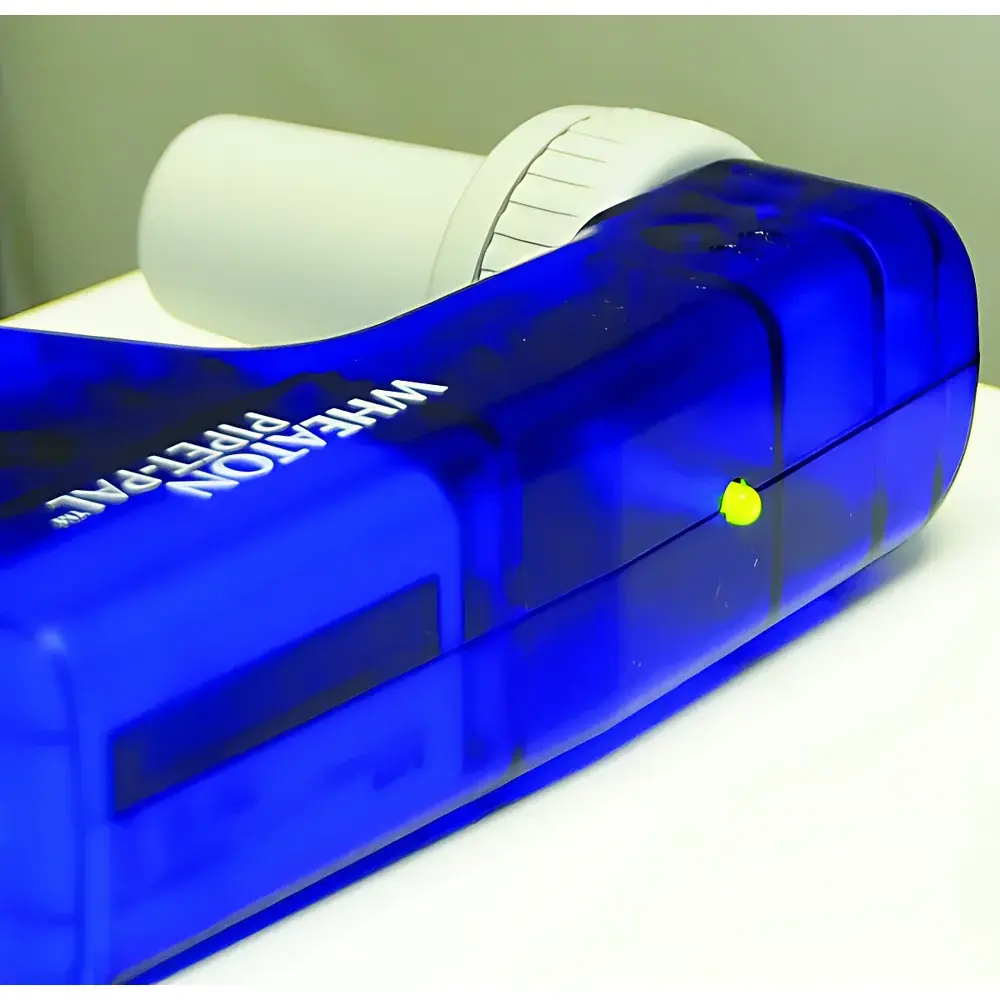

The PIPET-PAL operates as a standalone hardware controller with no embedded firmware update capability or USB/Bluetooth connectivity. All parameter adjustments—including speed ramp profiles, dispensing dwell time, and mode selection—are executed via tactile button interface with LED status feedback. No software installation or driver dependency is required. For traceability, users are advised to record controller serial number (engraved on base), filter lot number, and calibration verification date in lab notebooks or LIMS entries per ISO/IEC 17025 clause 7.7. Battery charge state and filter replacement prompts are indicated via multi-color LED illumination—eliminating reliance on proprietary software while maintaining operational transparency.

Applications

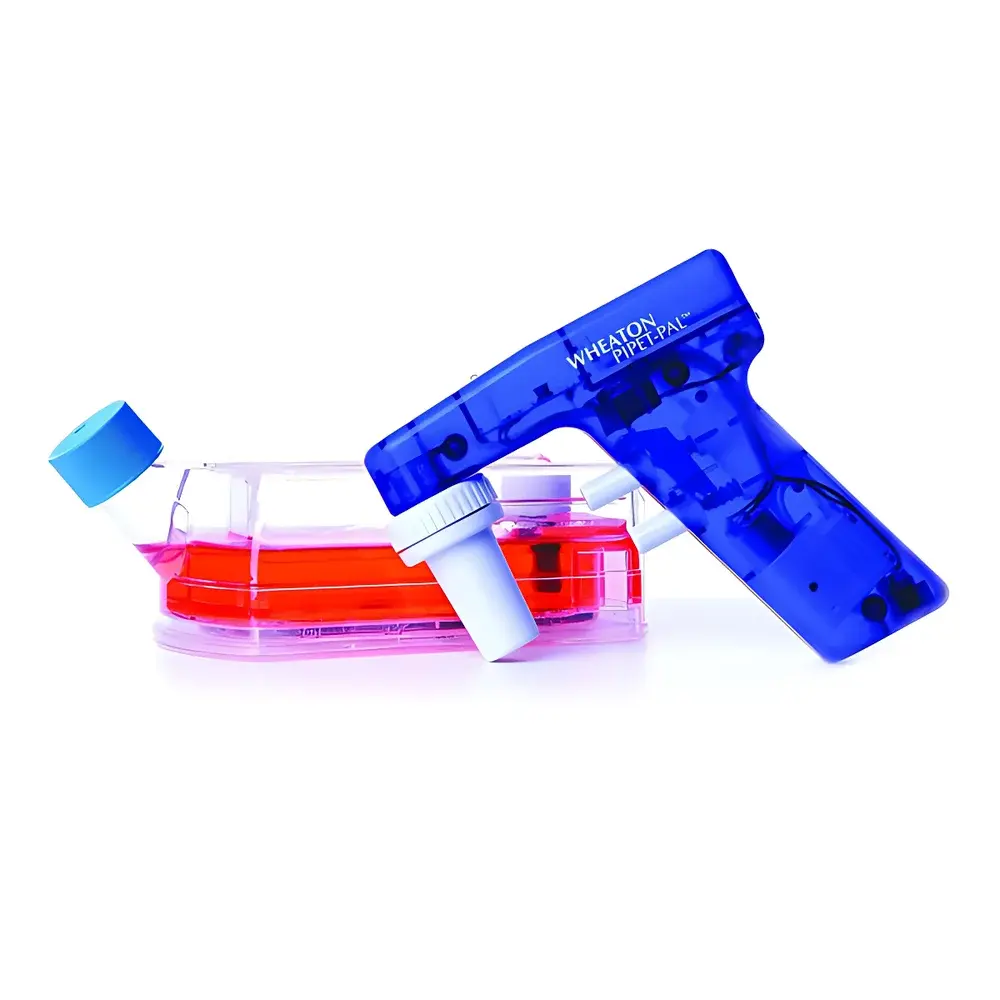

• Cell culture maintenance: gentle, contamination-controlled transfer of sensitive mammalian or stem cell suspensions using sterile-filtered 10–50 mL pipettes
• QC/QA volumetric transfers in pharmaceutical manufacturing: repeatable delivery of reference standards into HPLC vials or dissolution test vessels
• Microbiology media preparation: accurate dispensing of molten agar or broth into Petri dishes without thermal degradation
• Environmental testing labs: high-throughput sample aliquoting from large-volume containers prior to ICP-MS or GC-MS analysis
• Educational laboratories: teaching proper pipetting ergonomics and volumetric technique with real-time visual/tactile feedback

FAQ

Is the PIPET-PAL compatible with positive-displacement pipettes?
No—it is engineered exclusively for air-cushion serological pipettes (1–100 mL). Positive-displacement systems require different actuation mechanics and are not supported.
Can the unit be calibrated in-house?
Yes—gravimetric calibration per ISO 8655-6 is possible using certified weights and distilled water at 20 °C. Calibration intervals should follow internal SOPs or regulatory requirements (e.g., every 3–6 months for GLP labs).
What is the recommended maintenance schedule for the internal motor and seals?
No scheduled motor servicing is required. Silicone seals should be inspected quarterly for cracking or deformation; replacement kits (W155521 bracket + W153016 filter set) are available separately.
Does the lithium-polymer battery support hot-swapping?
No—battery replacement requires partial disassembly using Torx T5 tools. Units shipped with pre-installed battery; field replacement is not intended for end-users.
Are spare parts such as the POM pipette nose available for purchase?
Yes—replacement nose assemblies (SOCOREX part #PIPET-PAL-NOSE) are stocked and compatible with all PIPET-PAL generations manufactured after 2021.
