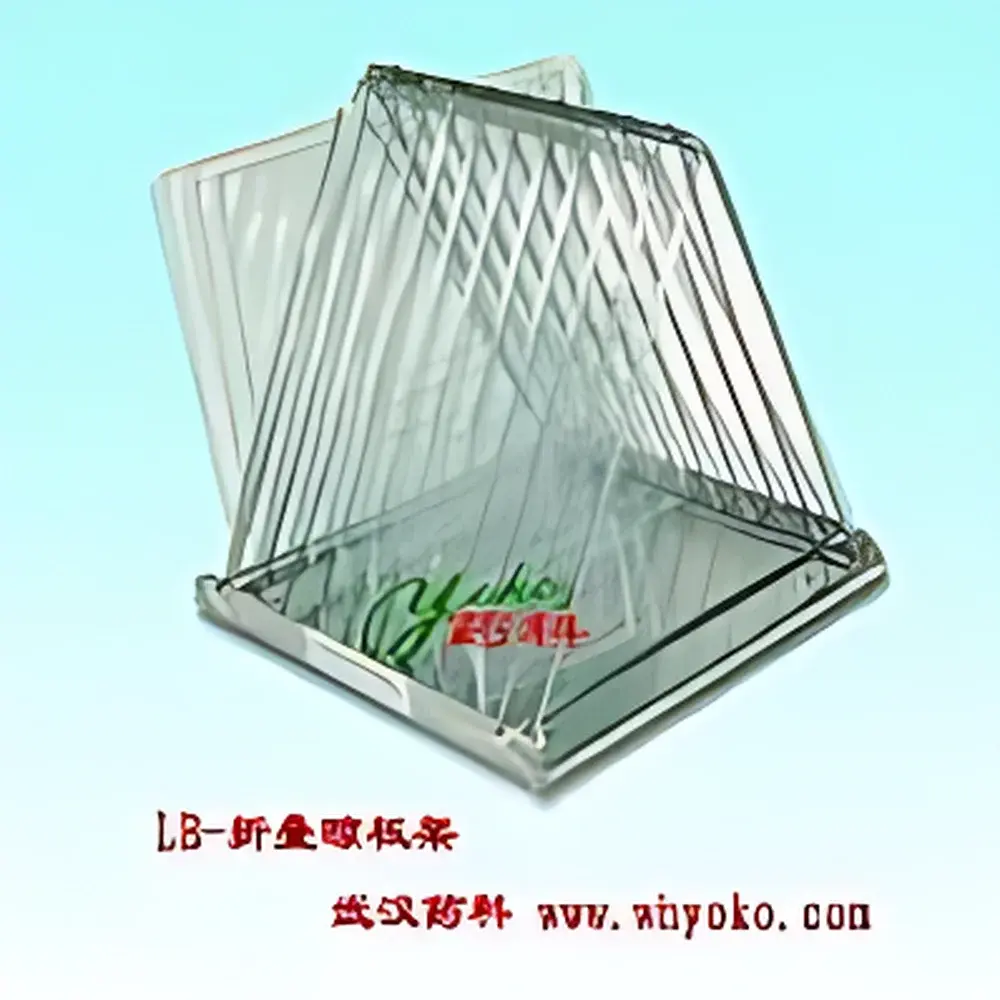

whYOKO YOKO-LB Dual-Mode Foldable TLC Plate Drying Rack

Overview

The whYOKO YOKO-LB Dual-Mode Foldable TLC Plate Drying Rack is an engineered laboratory accessory designed to support standardized thin-layer chromatography (TLC) plate handling in analytical chemistry laboratories. Unlike general-purpose drying racks, the YOKO-LB addresses two critical pre-analytical workflow stages: post-cleaning glass plate conditioning and post-development plate staging. It operates on passive air-drying principles—leveraging gravity drainage, controlled airflow exposure, and contamination-minimized vertical orientation—to ensure uniform solvent evaporation and prevent re-deposition of particulates or residual moisture films. Its design directly supports method reproducibility in TLC-based qualitative and semi-quantitative analysis, particularly where plate surface integrity affects R_f consistency, spot resolution, and detection sensitivity (e.g., UV visualization, derivatization, or densitometric scanning). The rack is not a measurement instrument but a validated ancillary device compliant with GLP-aligned lab infrastructure requirements for traceable, documented sample preparation environments.

Key Features

• Full stainless steel construction (AISI 304) ensures chemical resistance to common TLC cleaning agents—including aqueous detergent solutions, methanol, chloroform, and ethyl acetate—without corrosion, pitting, or metal ion leaching that could compromise plate surface purity.

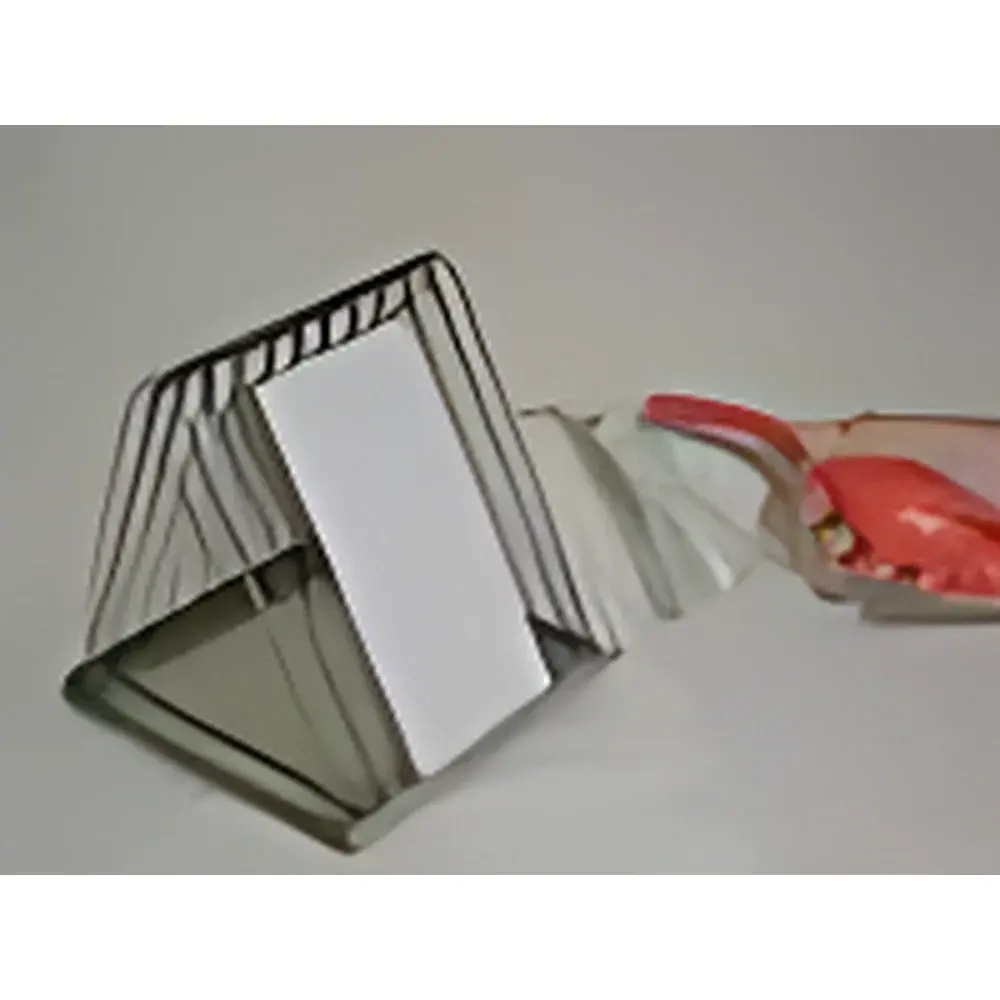

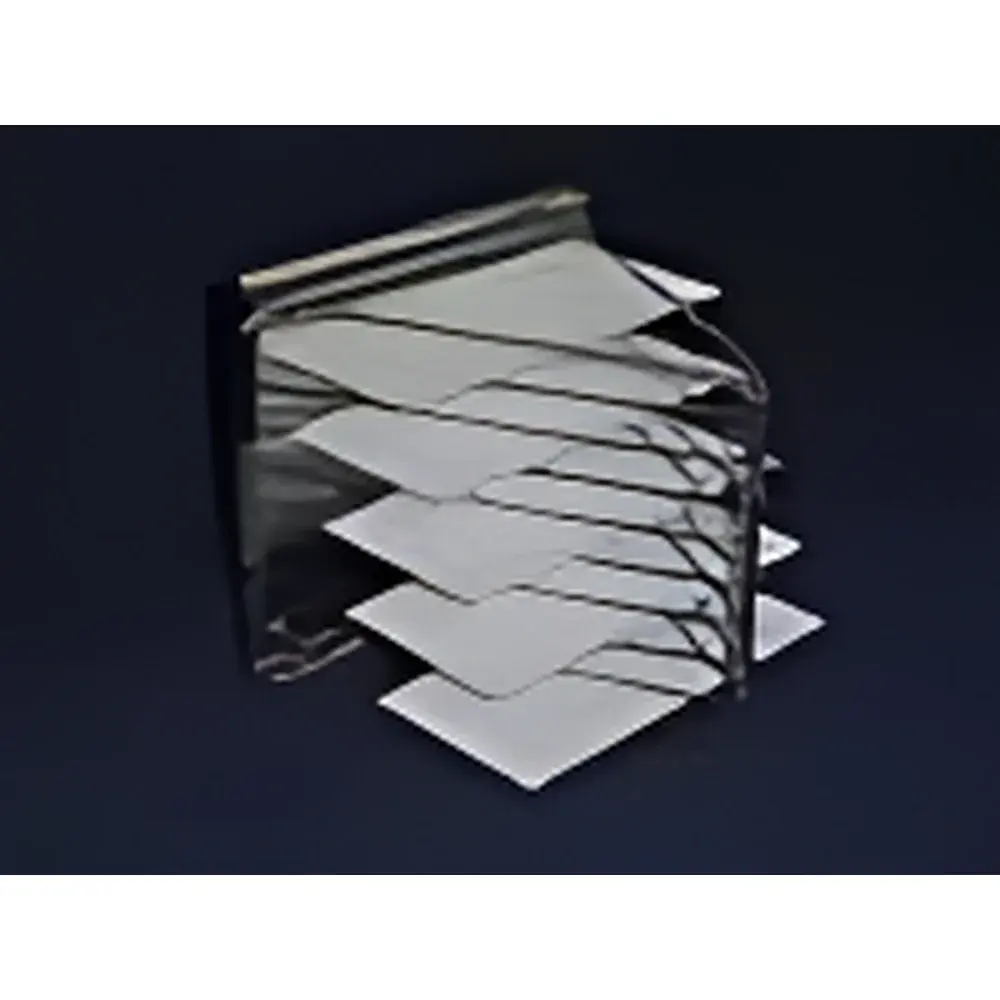

• Dual-mode mechanical configuration: upright mode enables vertical drainage and rapid air-drying of freshly cleaned plates; sideways orientation functions as a stable, non-slip staging platform for developed plates during documentation, cutting, or scraping procedures.
• Integrated micro-perforated base plate allows complete drainage of rinse water and volatile solvents, eliminating pooling and reducing drying time by up to 40% compared to flat-surface racks (empirical observation under ambient lab conditions: 23 °C, 45% RH).

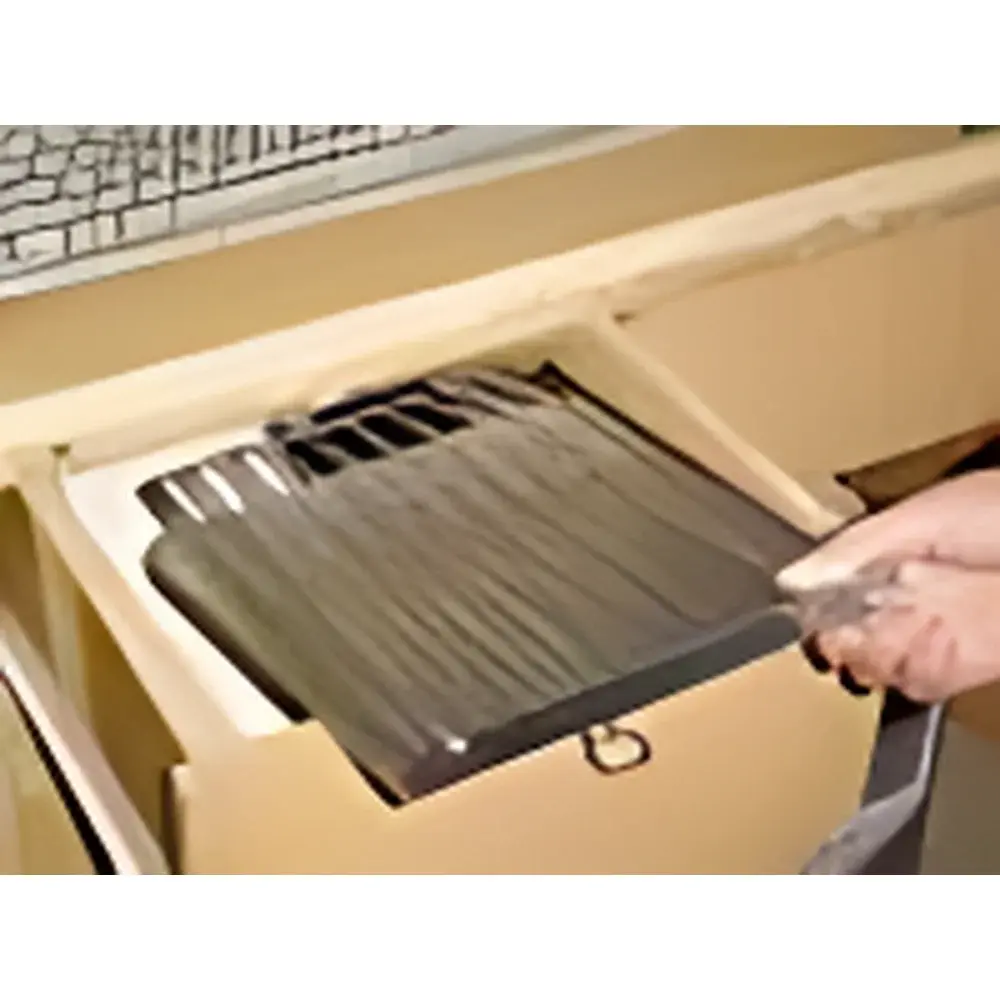

• Foldable hinge mechanism enables compact storage (≤120 mm depth when collapsed), minimizing footprint in crowded fume hoods or prep areas while maintaining structural rigidity during use.
• Universal slot geometry accommodates standard TLC glass plates (e.g., 5 × 10 cm, 10 × 10 cm, 20 × 20 cm) and aluminum-backed plates without slippage or edge chipping.

Sample Compatibility & Compliance

The YOKO-LB is compatible with all commercially available TLC substrates: silica gel 60 F₂₅₄, alumina, cellulose, reversed-phase C18, and polyamide layers—whether pre-coated or self-prepared. Its inert surface prevents adsorption of analytes or mobile phase components. From a regulatory standpoint, the rack supports compliance with ISO/IEC 17025:2017 Clause 6.4 (Equipment) and USP Chromatography guidelines requiring “clean, dry, and contaminant-free” plate handling surfaces. While not certified to specific standards, its material traceability (stainless steel grade documentation available upon request) and cleanability meet audit expectations for GMP-relevant QC labs performing identity testing or stability-indicating assays.

Software & Data Management

This is a hardware-only auxiliary device with no embedded electronics, firmware, or software interface. No data acquisition, logging, or network connectivity is provided. All usage records—including cleaning logs, maintenance schedules, and calibration verification (if applicable)—must be maintained manually in accordance with laboratory SOPs and 21 CFR Part 11–aligned electronic lab notebook (ELN) systems. Optional integration includes barcode labeling of individual racks for asset tracking within LIMS environments.

Applications

• Routine washing and air-drying of used TLC plates prior to re-coating or reuse in teaching labs or high-throughput screening.
• Staging of developed plates during multi-step visualization protocols (e.g., iodine chamber exposure followed by anisaldehyde spray and heating).
• Secure vertical positioning during automated TLC imaging—reducing shadow artifacts and improving scan uniformity.
• Temporary holding of freshly coated plates during solvent evaporation before activation (e.g., 110 °C oven treatment).
• Support structure for handheld sprayers during derivatization, minimizing overspray onto adjacent work surfaces.

FAQ

Is the YOKO-LB suitable for use inside a fume hood?
Yes—its open-frame design and non-outgassing stainless steel construction make it fully compatible with fume hood environments during solvent-intensive cleaning or spray development.

Can it accommodate plastic-backed TLC plates?
Yes, though prolonged contact with aggressive solvents (e.g., DMF, DMSO) may require verification of plate backing compatibility independent of the rack.

Does the rack require periodic calibration or certification?
No—this is a passive mechanical tool with no metrological function; however, visual inspection for deformation or surface damage should be included in routine lab equipment checks.

What is the recommended cleaning protocol for the rack itself?
Rinse with deionized water after each use; wipe dry with lint-free cloth. For organic residue, soak in 70% ethanol for 5 minutes, then air-dry. Avoid abrasive cleaners or steel wool.

Is there a warranty or service support available?
whYOKO provides a 24-month limited warranty covering manufacturing defects in materials and workmanship under normal laboratory use conditions. Technical documentation and installation guidance are supplied digitally upon purchase.
