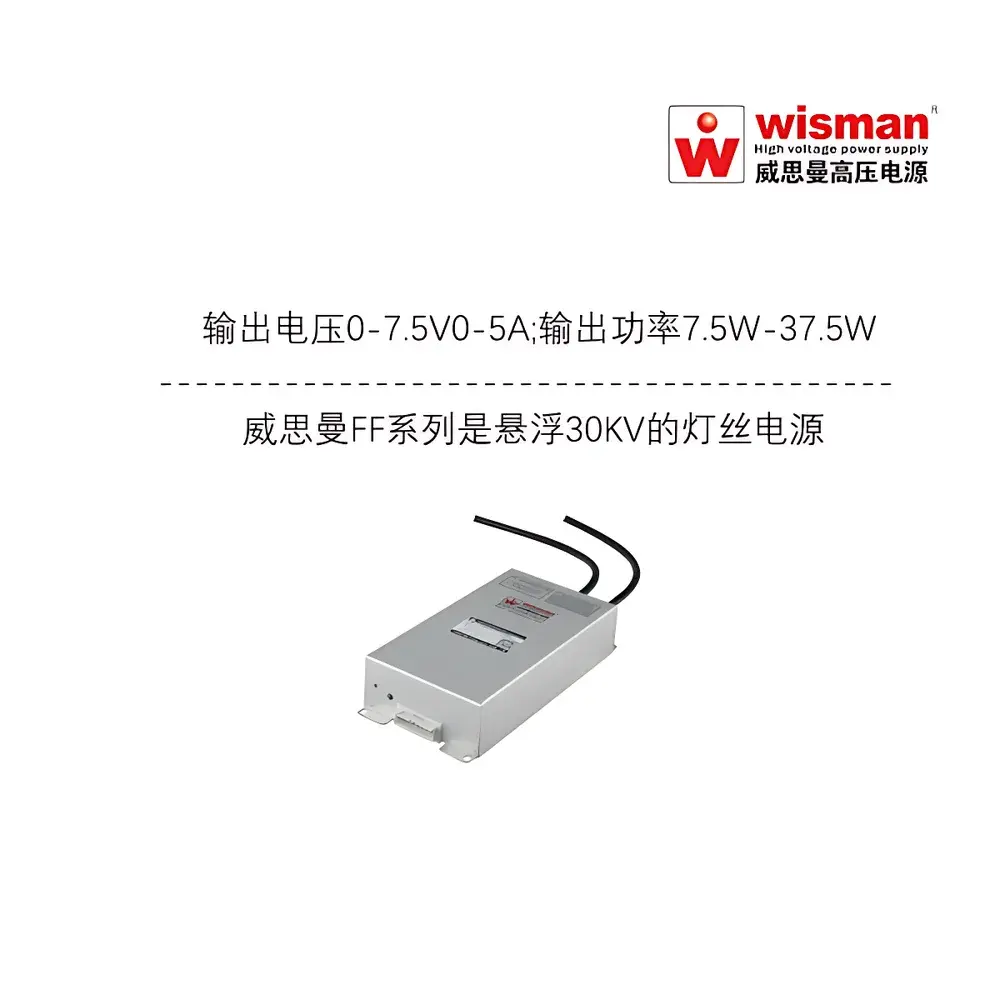

Wiseman FF7.5V/37.5W Suspended Filament Constant-Current High-Voltage Isolated Power Supply

Overview

The Wiseman FF7.5V/37.5W Suspended Filament Constant-Current High-Voltage Isolated Power Supply is a precision-engineered DC power module specifically developed for stable filament biasing in high-sensitivity analytical instrumentation—particularly quadrupole and time-of-flight mass spectrometers (MS). Unlike general-purpose DC supplies, the FF series employs a suspended filament architecture with galvanic isolation up to 30 kV, enabling direct, low-noise biasing of electron-emitting filaments without ground-loop interference or signal coupling. Its constant-current regulation mode ensures consistent thermionic emission across varying filament resistance during thermal cycling, while the ultra-low ripple (<200 mVpp) and exceptional line/load regulation (≤0.01 % typ.) preserve signal integrity critical for high-resolution mass spectral acquisition. The unit operates from a single 24 V DC input, delivering tightly regulated 7.5 V output at up to 37.5 W, with full programmability via 0–10 V analog control—a standard interface compatible with most MS system controllers and DAQ platforms.

Key Features

• Galvanically isolated output with selectable isolation ratings: 5, 10, 15, 20, 25, or 30 kV — optimized for vacuum chamber integration and EMI suppression in high-impedance filament circuits
• Constant-current regulation with real-time feedback loop, maintaining stable filament temperature despite resistance drift during warm-up and operational cycles
• Ultra-stable output: ≤0.1 %/hour drift after thermal stabilization; <0.1 %/°C temperature coefficient ensures minimal thermal drift in ambient-limited lab environments
• Low-noise design leveraging zero-current resonant topology and proprietary high-voltage insulation materials, minimizing electromagnetic emissions per CISPR 11 Class B limits
• Comprehensive protection suite: reverse-polarity input protection, analog control voltage fault detection, auto-recoverable short-circuit and arc sensing, and continuous overcurrent limiting
• Compact 205 × 100 × 43 mm chassis with 1.5 kg mass—designed for rack-mount or embedded OEM integration into mass spectrometer source modules

Sample Compatibility & Compliance

The FF7.5V/37.5W supply is engineered for seamless integration with electron ionization (EI) and chemical ionization (CI) sources in benchtop and high-end laboratory mass spectrometers. Its 7.5 V output matches standard tungsten/rhenium filament operating voltages, while its isolated architecture eliminates ground-reference conflicts common in multi-source or hybrid instrument configurations (e.g., GC-MS, LC-MS interfaces). The unit complies with IEC 61010-1:2010 for safety in measurement, control, and laboratory equipment, including dielectric strength testing at rated isolation voltage and creepage/clearance validation per Pollution Degree 2. It supports GLP/GMP-aligned workflows through stable, repeatable filament biasing—critical for method transfer, calibration consistency, and long-term instrument qualification under ISO/IEC 17025 and FDA 21 CFR Part 11-compliant data systems.

Software & Data Management

While the FF series is an analog-controlled module with no embedded firmware or digital communication bus, it is fully compatible with third-party instrument control software via standard 0–10 V analog I/O channels. When integrated into OEM mass spectrometer platforms, it supports closed-loop filament current monitoring when paired with external shunt-based current sensing and ADC feedback. For audit-ready operation, system-level software (e.g., Thermo Xcalibur, Agilent MassHunter, or custom LabVIEW-based controllers) can log control voltage inputs, timestamps, and associated spectral acquisition metadata—enabling traceable correlation between filament bias conditions and spectral reproducibility metrics. No internal storage or user-accessible configuration memory is present, ensuring deterministic behavior required for regulated analytical environments.

Applications

• Electron ionization (EI) source filament biasing in single-quadrupole, triple-quadrupole, and magnetic sector mass spectrometers
• Chemical ionization (CI) source filament control under reactive gas environments (e.g., methane, isobutane)
• OEM integration into compact portable MS systems where size, weight, and EMI resilience are critical constraints
• High-vacuum surface analysis tools requiring isolated low-voltage, high-stability filament excitation (e.g., Auger electron spectroscopy preamplifier stages)
• Research-grade ion trap and FT-ICR source modules demanding sub-0.1 % hour-to-hour emission stability

FAQ

What is the maximum recommended continuous output power for sustained operation?
The FF7.5V/37.5W model is rated for continuous 37.5 W output at 7.5 V (5 A), provided ambient temperature remains ≤40 °C with adequate airflow. Derating is advised above 40 °C per the thermal specification curve in the datasheet.

Can this supply be used with non-mass-spec applications requiring high isolation?
Yes—its 5–30 kV isolation rating and low-noise design make it suitable for photomultiplier tube (PMT) dynode chains, electrostatic lens arrays, and charged-particle beam focusing systems, though output voltage must remain within the 7.5 V fixed range.

Is remote on/off control supported?
No discrete TTL or RS-232 enable/disable line is provided; however, full output disable is achieved by driving the 0–10 V control input to 0 V, resulting in immediate current ramp-down with 100 ms fall time.

Does the unit include calibration documentation traceable to NIST standards?
Each production unit undergoes factory calibration against reference meters traceable to national metrology institutes. Calibration reports—including line/load regulation, ripple, and isolation test records—are available upon request for IQ/OQ validation packages.
