WITec cryoRaman Ultra-Low-Temperature High-Magnetic-Field Confocal Raman Microscope

Overview

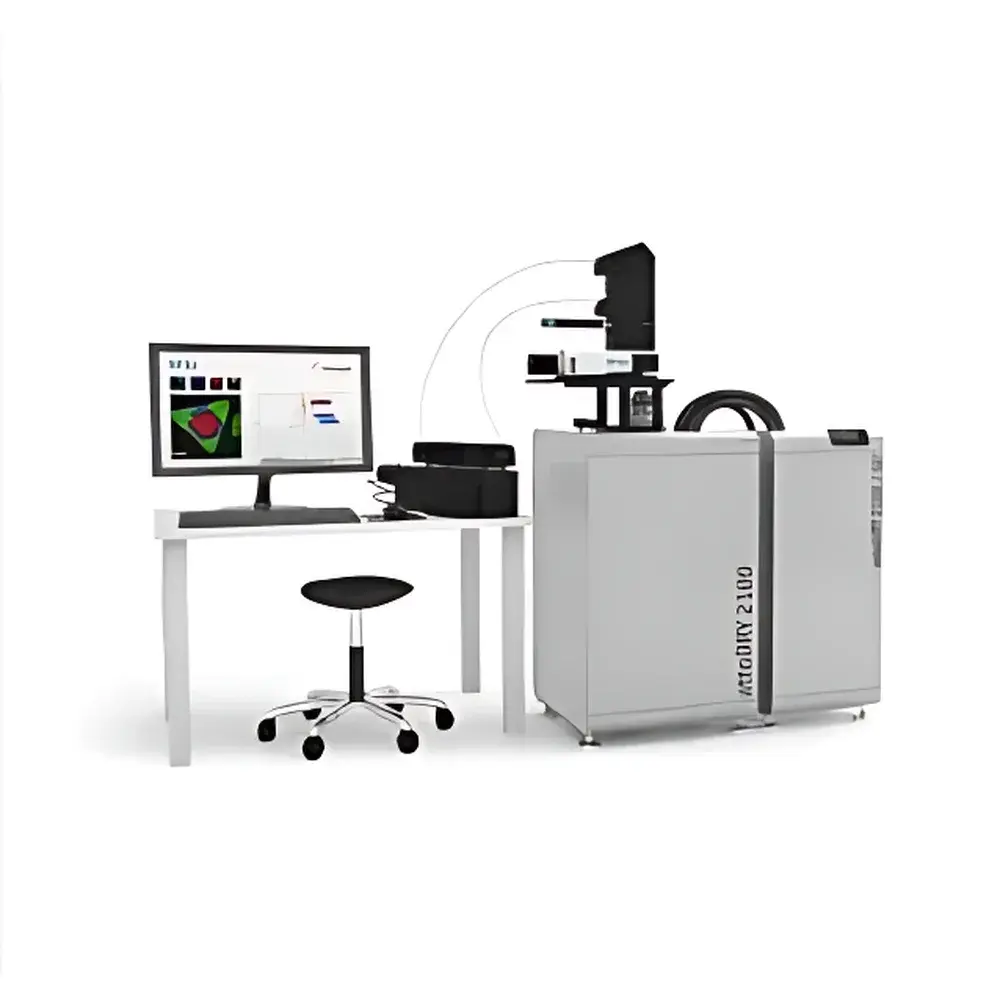

The WITec cryoRaman is an integrated ultra-low-temperature, high-magnetic-field confocal Raman microscopy platform engineered for quantum materials research under extreme physical conditions. It combines WITec’s alpha300-series confocal architecture—renowned for diffraction-limited spatial resolution and photon-efficient spectral acquisition—with Oxford Instruments’ attoDRY cryogenic systems and attocube’s precision nanomechanical positioning technology. The system operates across a continuous temperature range from 1.6 K to 300 K and supports magnetic fields up to 12 T via superconducting electromagnets or vector magnets. Its core measurement principle relies on confocal laser excitation coupled with high-throughput grating spectrometry and back-illuminated deep-depletion CCD detection, enabling high-fidelity Raman scattering acquisition even under cryogenic vacuum environments. This configuration satisfies the stringent requirements of phonon spectroscopy, magneto-optical coupling studies, and low-energy excitations in topological insulators, superconductors, 2D van der Waals heterostructures, and spintronic materials.

Key Features

• High-throughput confocal Raman spectrometer with excitation flexibility spanning visible to near-infrared (400–1000 nm)
• Low-vibration, closed-cycle attoDRY cryostat ensuring thermal stability <±5 mK over extended acquisition periods
• attocube AN-series closed-loop piezo nanopositioners with sub-nanometer reproducibility and 100 µm travel range
• Proprietary cryogenic-compatible objective lenses (attocube) optimized for minimal thermal drift and maximum NA retention at <4 K
• Automated polarization control and motorized rotation stages for angle-resolved Raman spectroscopy (AR-RS)
• Fully software-integrated laser power modulation (0.1 µW–100 mW range) with real-time feedback and safety interlocks
• Seamless switching between white-light imaging and Raman mapping modes without mechanical reconfiguration
• On-board calibration source and automated wavelength calibration routine compliant with ISO/IEC 17025 traceability protocols
• Time-correlated single-photon counting (TCSPC) module for fluorescence lifetime imaging (FLIM) and picosecond-scale decay analysis
• Extended low-wavenumber capability down to ±10 cm⁻¹, enabled by triple-stage notch filtering and adaptive background subtraction algorithms

Sample Compatibility & Compliance

The cryoRaman accommodates standard TEM grids, chip-based devices, bulk single crystals, and exfoliated flakes mounted on low-stress substrates. Sample chambers are compatible with UHV (<1×10⁻⁹ mbar) and He exchange gas environments. All optical and mechanical components conform to CE directives and meet IEC 61000-6-3 electromagnetic compatibility standards. Data acquisition workflows support audit-trail generation, electronic signatures, and user-access-level management in accordance with FDA 21 CFR Part 11 and EU Annex 11 requirements. System validation documentation—including IQ/OQ/PQ templates—is provided for GLP and GMP-regulated laboratories.

Software & Data Management

Control and analysis are unified within WITec Suite FIVE—a modular, Python-extendable platform supporting batch processing, multivariate statistical analysis (PCA, MCR-ALS), and spectral deconvolution using Voigt, Lorentzian, and Gaussian line-shape models. Raw hyperspectral cubes (x, y, λ) are stored in HDF5 format with embedded metadata (temperature, field, polarization, laser power, integration time). The software includes built-in tools for spectral drift correction, cosmic-ray removal, and polarization tensor reconstruction. Export options include ASCII, CSV, and vendor-neutral JCAMP-DX formats for third-party interoperability with OriginLab, MATLAB, or Python-based scientific stacks (e.g., SciPy, scikit-learn).

Applications

• Phonon softening and symmetry-breaking transitions in quantum paraelectrics and multiferroics
• Magnetic field–induced Raman-active mode splitting in antiferromagnetic monolayers (e.g., CrI₃, FePS₃)
• Strain-engineered bandgap tuning in twisted bilayer graphene under simultaneous low-T and high-B conditions
• Superconducting gap evolution mapping in cuprates and iron-based superconductors
• Spin-phonon coupling quantification in YIG and other magnon-hosting oxides
• Defect-state dynamics in wide-bandgap semiconductors (SiC, GaN) at cryogenic temperatures

FAQ

What is the minimum achievable temperature during magnetic field operation?
The system maintains stable operation at 1.6 K under zero field; with 12 T applied, base temperature remains ≤2.2 K due to optimized thermal anchoring and radiation shielding.
Is vacuum compatibility required for all experiments?
Yes—the cryostat requires high-vacuum pumping (≤10⁻⁶ mbar) prior to cooldown; optional He exchange gas mode enables rapid thermal equilibration for non-UHV applications.
Can the system perform simultaneous Raman and transport measurements?
While not integrated natively, the cryoRaman features standardized electrical feedthroughs (16-channel, 4 K-rated) and mounting flanges compatible with custom-designed electrical probe stations.
How is spectral calibration validated over long-term use?
The internal Ne/Ar lamp provides NIST-traceable reference lines; calibration stability is monitored daily via automated verification routines and logged for regulatory compliance.
Does the software support batch processing of large hyperspectral datasets?
Yes—Suite FIVE includes parallelized processing engines capable of handling >1 TB of spectral cube data across multi-core CPU/GPU architectures with memory-mapped I/O optimization.
