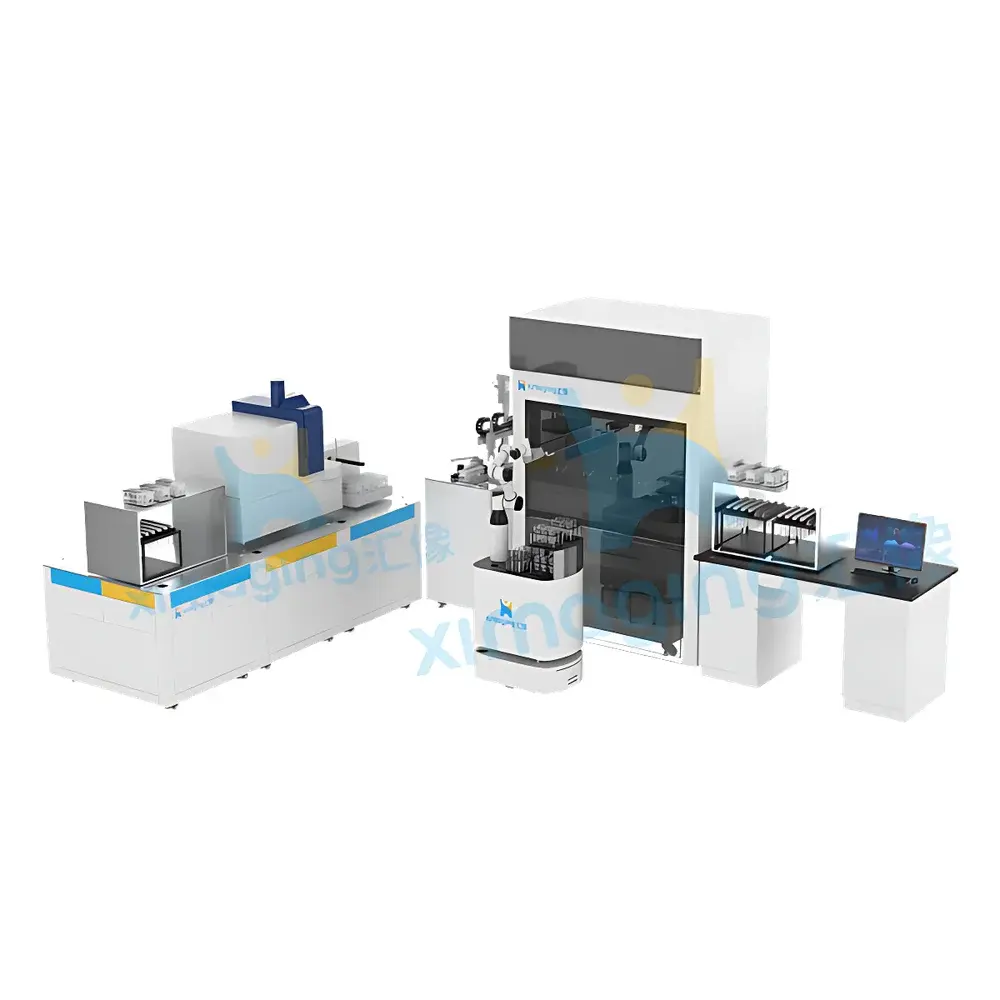

X-imaging Smart End-to-End Mass Spectrometry System

Overview

The X-imaging Smart End-to-End Mass Spectrometry System is an integrated laboratory automation platform engineered to unify sample preparation, instrumental analysis, and data lifecycle management for inductively coupled plasma mass spectrometry (ICP-MS). Unlike conventional workflows that rely on manual or semi-automated sample handling prior to ICP-MS injection, this system implements a closed-loop, robotics-driven architecture grounded in trace-metal analytical chemistry principles. It performs quantitative digestion (e.g., microwave-assisted acid digestion), precision liquid handling (including volumetric dispensing, dilution, and homogenization), autosampler integration with barcode-based sample tracking, and direct coupling to commercial ICP-MS instruments via standardized interface protocols (e.g., RS-232, Ethernet TCP/IP). The system operates under controlled inert atmosphere conditions where applicable and maintains full chain-of-custody documentation from vial registration to final report generation—ensuring metrological traceability per ISO/IEC 17025 requirements.

Key Features

• Fully automated sample workflow: sequential execution of digestion, pipetting, volumetric standardization, internal standard addition, and matrix-matched calibration preparation
• Robotic sample scheduler with dual-arm gantry system supporting ≥96-position sample racks and multi-tier reagent storage modules
• Real-time process monitoring via embedded vision sensors and torque feedback during pipette tip engagement and vessel sealing
• Intelligent fault recovery: automatic suspension upon power interruption, mechanical stall detection, vial drop recognition via accelerometer-triggered emergency brake, and resume-from-checkpoint capability
• Embedded audit trail engine compliant with FDA 21 CFR Part 11: time-stamped, immutable records of all user actions, instrument states, and calibration events
• Predictive maintenance module correlating system runtime metrics (e.g., pump cycles, valve actuations, sensor drift trends) with analytical performance indicators (e.g., sensitivity decay, oxide ratio stability)

Sample Compatibility & Compliance

The system accommodates standard ICP-MS consumables including polypropylene and PFA vials (12–15 mL), quartz and borosilicate digestion vessels, and certified reference materials (CRMs) such as NIST SRM 1640a, 1643e, and ERM-AE110. It supports aqueous, digested biological, environmental, and geological matrices across concentration ranges typical for ultratrace elemental analysis (sub-pg/g to µg/g). All wet chemistry modules meet ISO 8573-1 Class 2 compressed air purity specifications for critical pneumatic functions. Software validation documentation includes IQ/OQ/PQ protocols aligned with GLP and GMP environments, and the system is designed to support regulatory submissions requiring ALCOA+ data integrity principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Software & Data Management

The proprietary X-MS Control Suite provides a unified interface for method development, run scheduling, and QC review. It features a modular scripting environment supporting Python-based custom protocol extensions and integrates natively with LIMS platforms via HL7 and ASTM E1384 interfaces. Raw spectral data is exported in vendor-neutral .mzML format; processed results comply with ASTM D5174 and ISO 17294-2 reporting templates. All data transfers are encrypted using TLS 1.3; local storage employs AES-256 encryption at rest. Audit logs include SHA-256 hashed event records synchronized with NTP servers for cross-system temporal alignment—essential for multi-instrument laboratories undergoing ISO 17025 accreditation audits.

Applications

• Environmental testing labs performing EPA Method 200.8 and ISO 17294-2 compliance analyses for heavy metals in wastewater, soil extracts, and airborne particulates
• Pharmaceutical quality control units conducting elemental impurity screening per ICH Q3D guidelines using USP <232>/<233> workflows
• Geochemical research facilities executing high-throughput isotopic ratio measurements (e.g., Sr, Nd, Pb) with offline fractionation and online spike calibration
• Clinical toxicology laboratories validating reference measurement procedures for trace elements in serum and whole blood per CLIA and CAP requirements
• Materials science R&D centers quantifying dopant concentrations and contamination profiles in semiconductor-grade silicon wafers and battery cathode precursors

FAQ

Does the system support integration with third-party ICP-MS instruments?
Yes—it provides hardware abstraction layers and driver libraries compatible with major vendors including Thermo Fisher Scientific, Agilent Technologies, and PerkinElmer.
Is method validation support included out-of-the-box?
The system ships with pre-validated SOPs for EPA 200.8 and ISO 17294-2, along with template files for method transfer studies and uncertainty budgeting per EURACHEM/CITAC Guide.
How is data integrity ensured during remote operation?
All remote sessions require multi-factor authentication; screen sharing and command execution are logged separately from analytical data streams and retained for ≥36 months per internal retention policy.
Can the platform handle hazardous samples requiring fume hood integration?
Optional Class II biological safety cabinet and acid digestion hood interface kits are available with interlocked ventilation control and exhaust gas scrubbing compatibility.
What training and documentation are provided?
Comprehensive technical manuals, video-based operational tutorials, and on-site installation qualification (IQ) support are included; annual refresher training and software update packages are offered under service agreements.
