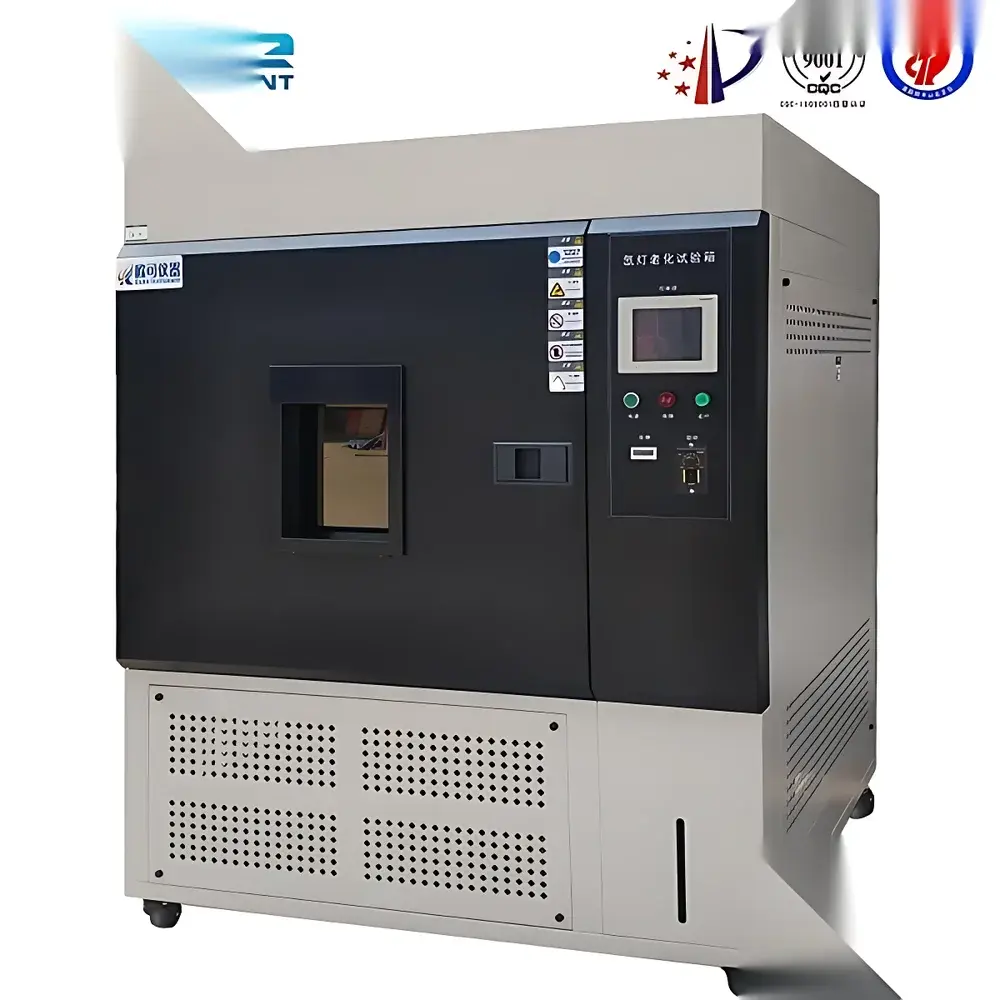

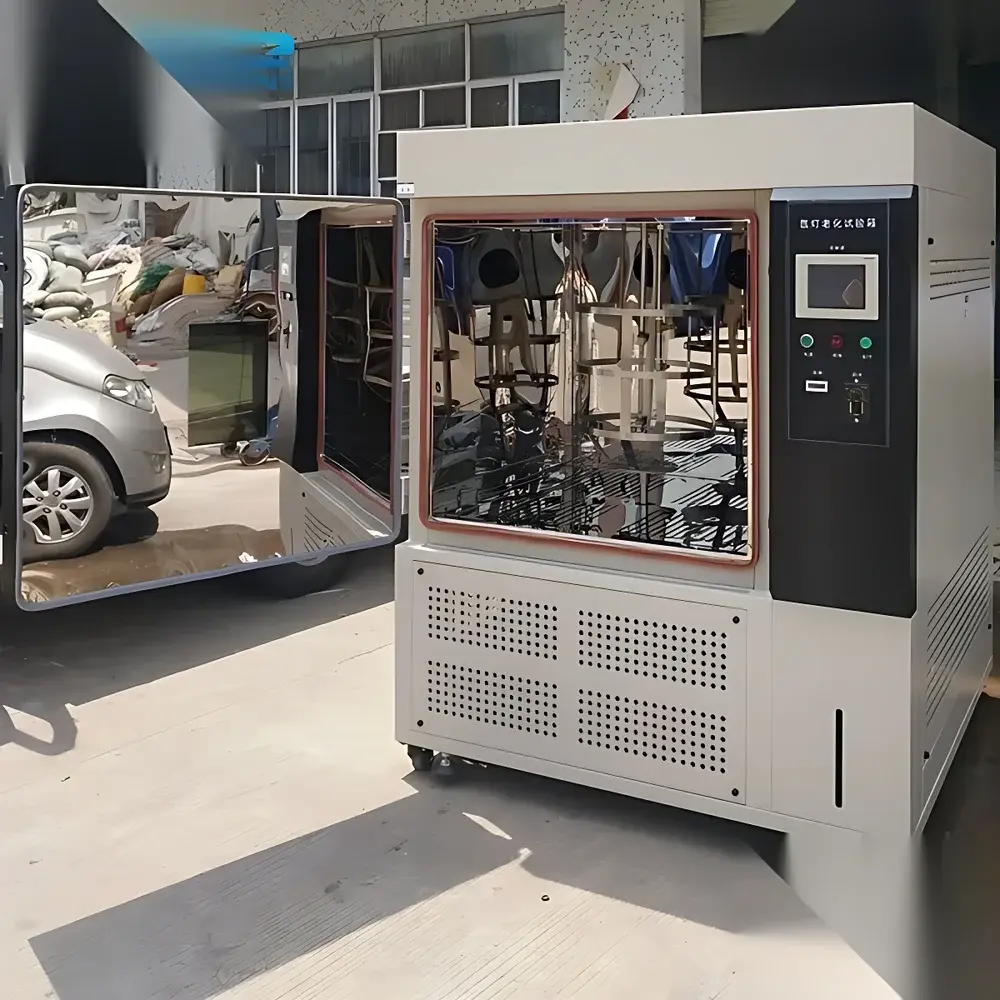

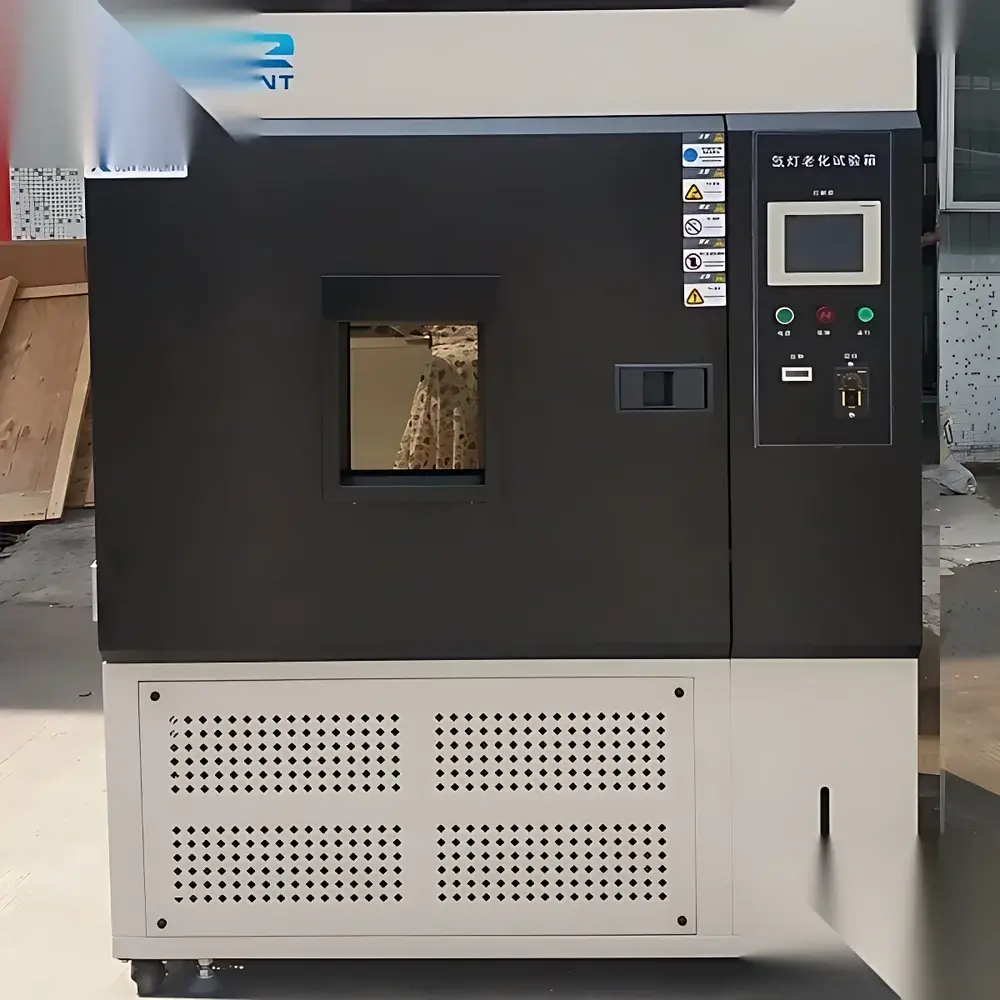

Xenon Arc Weathering Test Chamber

Overview

The Xenon Arc Weathering Test Chamber is an engineered environmental simulation system designed to replicate the full-spectrum solar radiation, temperature, and humidity conditions encountered in real-world outdoor exposure. It employs a high-intensity xenon arc lamp as the light source—filtered through borosilicate glass and optical filters—to closely match the spectral power distribution (SPD) of natural sunlight (290–800 nm), including critical UV-B, UV-A, visible, and near-infrared regions. Unlike water-cooled xenon systems, this chamber utilizes an advanced air-cooled xenon lamp assembly, eliminating fluid-based thermal management and its associated failure modes. The unit is purpose-built for accelerated aging studies of polymers, coatings, textiles, automotive components, and architectural materials under controlled, repeatable, and standards-compliant irradiance conditions.

Key Features

• Air-cooled xenon lamp system with adjustable airflow control, ensuring rapid, uniform heat dissipation and extended lamp service life (≥2,000 h typical; up to 3,000 h under optimized operation)
• Integrated automatic ignition circuit enabling precise on/off cycling—fully compliant with daylight/darkness cycle requirements per ISO 4892-2, ASTM G155, and GB/T 16422.2
• Real-time xenon lamp power compensation module: dynamically adjusts lamp current to counteract output decay over time, maintaining irradiance stability within ±5% of setpoint across test duration
• Robust mechanical architecture with minimal moving parts—no water pumps, reservoirs, valves, or flexible coolant hoses—resulting in significantly lower mean time between failures (MTBF) and reduced maintenance overhead
• High-reliability lamp housing design featuring corrosion-resistant aluminum alloy construction and thermally stable quartz envelope mounting
• Programmable irradiance control (typically 0.35–0.65 W/m² @ 340 nm or 1.2–1.5 W/m² @ 420 nm) with calibrated broadband or narrowband UV sensors

Sample Compatibility & Compliance

The chamber accommodates flat-panel specimens up to 600 mm × 600 mm (custom trays available), with optional specimen racks for 3D parts and textile swatches. It supports simultaneous control of black standard temperature (BST), chamber air temperature, and relative humidity (RH) via integrated PID-regulated heating, refrigeration, and steam humidification systems. The instrument meets or exceeds performance criteria defined in multiple international and national standards, including: ISO 4892-2 (Plastics — Methods of exposure to laboratory light sources — Part 2: Xenon-arc lamps), ASTM G155 (Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials), GB/T 16422.2–1999, GB/T 8427–2019 (Textiles — Tests for colour fastness — Colour fastness to artificial light: Xenon arc fading lamp test), GB/T 1865–2021 (Paints and varnishes — Artificial weathering and artificial radiation exposure — Exposure to filtered xenon-arc radiation), and MIL-STD-810H Method 505.6 (Solar Radiation). All operational parameters are traceable to NIST-calibrated references and support GLP/GMP audit readiness.

Software & Data Management

Equipped with a Windows-based control interface running proprietary firmware, the system provides real-time monitoring of irradiance, BST, chamber temperature, RH, and lamp operating hours. Data logging occurs at user-selectable intervals (1 s to 60 min) and is stored internally (SD card) with export capability via USB or Ethernet to CSV or XML formats. Audit trail functionality records all parameter changes, operator logins, calibration events, and alarm history—fully compliant with FDA 21 CFR Part 11 requirements when configured with electronic signature modules. Optional cloud synchronization enables remote diagnostics and multi-site data aggregation for centralized quality assurance workflows.

Applications

This xenon arc weathering chamber is routinely deployed in R&D laboratories, QC/QA departments, and third-party testing facilities for evaluating photochemical degradation mechanisms—including chalking, cracking, gloss loss, color shift (ΔE*), tensile strength reduction, and polymer chain scission—across diverse material classes. Key application domains include automotive exterior trim validation (per SAE J2527), aerospace composite durability assessment, PV module encapsulant stability testing, architectural cladding weatherability certification, and regulatory submission packages for FDA, EPA, and EU REACH compliance. Its reproducible spectral fidelity makes it suitable for inter-laboratory correlation studies and round-robin testing programs.

FAQ

Does this chamber support automated daylight/darkness cycling?
Yes—the system features fully programmable irradiance sequencing with independent timing control for light-on, light-off, and ramp phases, meeting ISO 4892-2 Cycle 1–4 and ASTM G155 protocols.
How is irradiance stability maintained over long-duration tests?
Through closed-loop feedback from a calibrated UV sensor and dynamic lamp power compensation, which adjusts electrical input to offset natural lamp aging effects.
What is the typical service life of the xenon lamp?
With proper cooling and voltage regulation, the air-cooled lamp achieves ≥2,000 hours of operation at nominal irradiance; many users report >3,000 hours under conservative operating conditions.
Is calibration documentation provided with the instrument?
Yes—each unit ships with a factory calibration certificate traceable to NIST standards for irradiance, temperature, and humidity sensors, valid for 12 months.
Can the chamber be integrated into an existing LIMS or MES environment?
Yes—via Modbus TCP or OPC UA protocol support, enabling bidirectional data exchange with enterprise laboratory information management systems.
