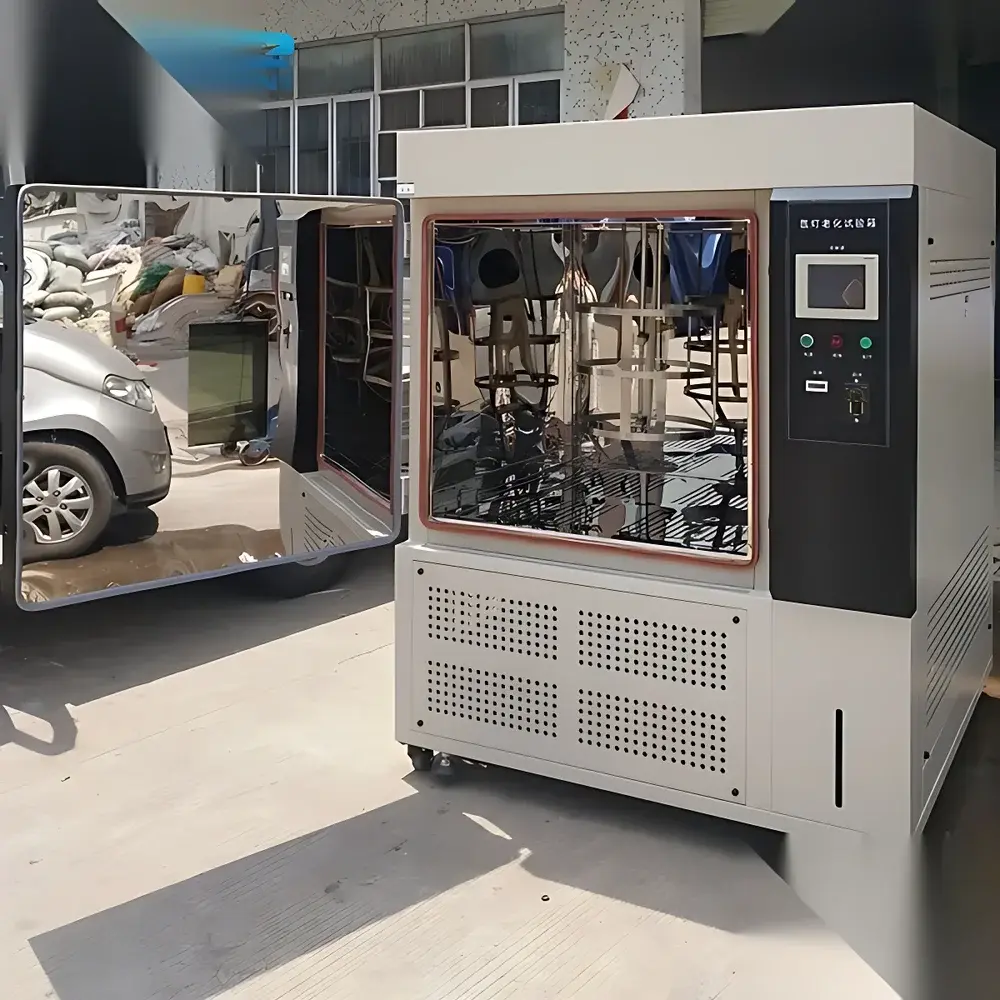

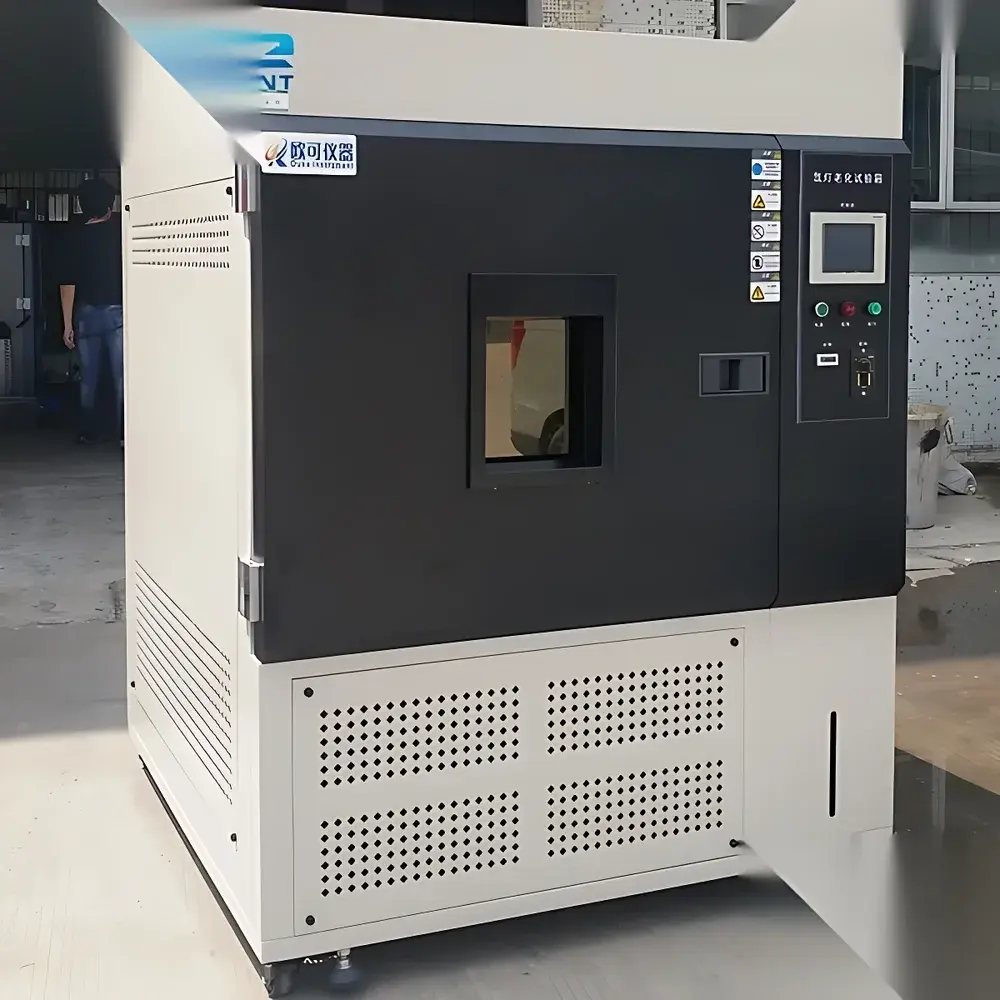

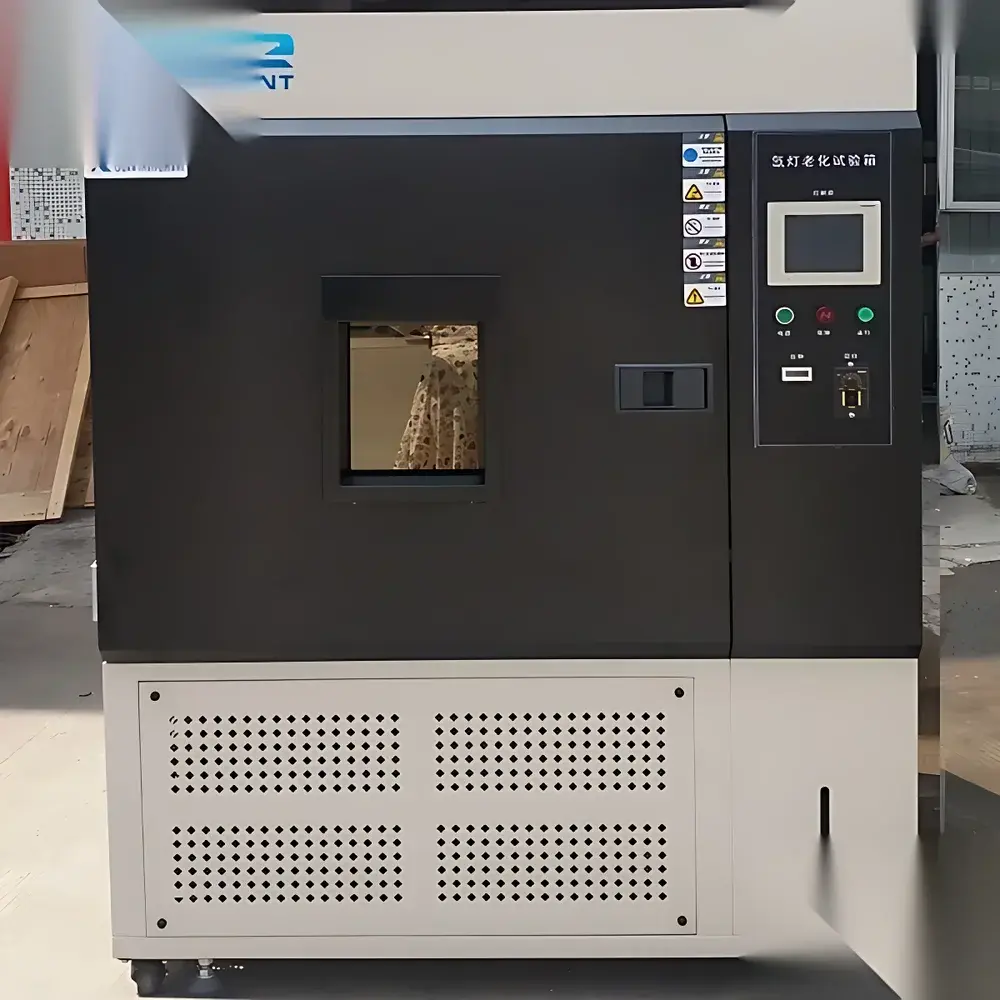

Xenon Arc Weathering Test Chamber

Overview

The Xenon Arc Weathering Test Chamber is a precision-engineered environmental simulation system designed to replicate the combined effects of solar radiation, thermal stress, and moisture exposure on polymeric, coating, textile, and automotive materials. It operates on the principle of xenon arc irradiation—utilizing a water-cooled xenon lamp whose spectral output closely matches natural sunlight (300–800 nm) when filtered through calibrated optical filters. This enables highly reproducible accelerated aging under controlled irradiance, temperature, and relative humidity conditions. The chamber complies with fundamental photometric and thermal calibration requirements defined in ISO 4892-2, ASTM G155, and GB/T 1865, serving as a primary tool for evaluating photochemical degradation mechanisms including chalking, cracking, gloss loss, color shift, and mechanical embrittlement.

Key Features

• Water-cooled xenon arc lamp system ensures stable spectral power distribution and extended lamp life under continuous operation.
• Full-spectrum irradiance control (0–1120 W/m²) with real-time monitoring via integrated F-ZA radiometer, traceable to NIST-calibrated reference standards.
• Dual temperature monitoring: independent black panel thermometer (BPT) and black standard thermometer (BST), both compliant with ISO 4892-2 Annex B specifications.
• Precision spray humidification system delivers uniform specimen wetting without condensation pooling—critical for simulating dew, rain, and cyclic moisture exposure per ASTM D2565 and ISO 4892-2.
• Rotating stainless steel sample rack ensures homogeneous irradiance distribution across all specimens; rotation speed adjustable to match test protocol requirements.
• TEMI850 touchscreen controller provides intuitive programming of multi-step exposure cycles—including irradiance ramping, temperature profiling, humidity cycling, and dark periods—with data logging at user-defined intervals.
• Robust chamber architecture: interior lined with SUS304 2B stainless steel; exterior finished with electrostatically applied epoxy-polyester powder coating; high-temperature silicone gasketing ensures leak-tight sealing up to 100°C black panel temperature.

Sample Compatibility & Compliance

The chamber accommodates flat-panel specimens up to 6500 cm² total surface area, supporting standard sample dimensions per ASTM G155 (e.g., 75 × 150 mm, 100 × 100 mm). It accepts rigid and semi-flexible substrates—including painted metal panels, plastic injection-molded parts, elastomeric seals, textile laminates, and composite aerospace components. All operational parameters adhere to international weathering test standards: ISO 4892-2 (plastics), ISO 11341 (coatings), ASTM D4459 (indoor plastics), ASTM D6695 (coatings), and GB/T 1865 (Chinese national standard for artificial climate aging). Calibration protocols align with ISO/IEC 17025 requirements for accredited testing laboratories, and the system supports GLP-compliant audit trails when paired with validated software extensions.

Software & Data Management

The TEMI850 controller features embedded Ethernet connectivity and supports export of time-stamped CSV logs containing irradiance (W/m²), chamber temperature (°C), black panel temperature (°C), relative humidity (%RH), and elapsed cycle time. Optional PC-based software enables remote monitoring, alarm notification via SMTP/email, and generation of PDF test reports compliant with ISO/IEC 17025 documentation requirements. For regulated environments (e.g., automotive Tier-1 suppliers or FDA-regulated medical device packaging validation), optional 21 CFR Part 11-compliant firmware upgrades provide electronic signature capability, user access levels, and immutable audit trails for all parameter changes and test executions.

Applications

This chamber is routinely deployed in R&D and QC labs for predictive durability assessment across multiple industries: automotive (headlamp lenses, dashboard trims, weatherstripping); aerospace (radome coatings, radar dome composites, sealant adhesion under UV/humidity cycling); coatings & inks (automotive clearcoats, architectural façade paints, inkjet-printed signage); textiles (outdoor awnings, military uniforms, geotextiles); and polymer manufacturing (PP, PE, PC, ABS, TPU formulations). It supports qualification testing per OEM-specific specifications—including Ford CETP, GMW14872, VW PV3929, and Boeing BSS 7240—where correlated outdoor exposure data is required for material release.

FAQ

What spectral filters are included with the standard configuration?
Standard configuration includes daylight-filtered (Daylight-Q/B) and extended UV (Extended UV-Q/B) optical filter sets, both compliant with ISO 4892-2 Annex A requirements.
Can the chamber operate without specimen wetting during irradiation cycles?
Yes—humidification is fully programmable and can be disabled or scheduled independently of irradiance and temperature profiles.
Is the black panel temperature sensor calibrated traceable to national standards?
Each BPT sensor is supplied with individual calibration certificate traceable to NIST or equivalent national metrology institute (e.g., NIM China, PTB Germany).
Does the system support automatic lamp power compensation over lamp lifetime?
Yes—the TEMI850 controller integrates closed-loop irradiance feedback using the F-ZA radiometer to dynamically adjust lamp current and maintain setpoint irradiance within ±5% tolerance.
What maintenance intervals are recommended for the water-cooling system?
Coolant replacement every 6 months; deionized water conductivity must be maintained below 5 µS/cm; heat exchanger inspection recommended quarterly.
