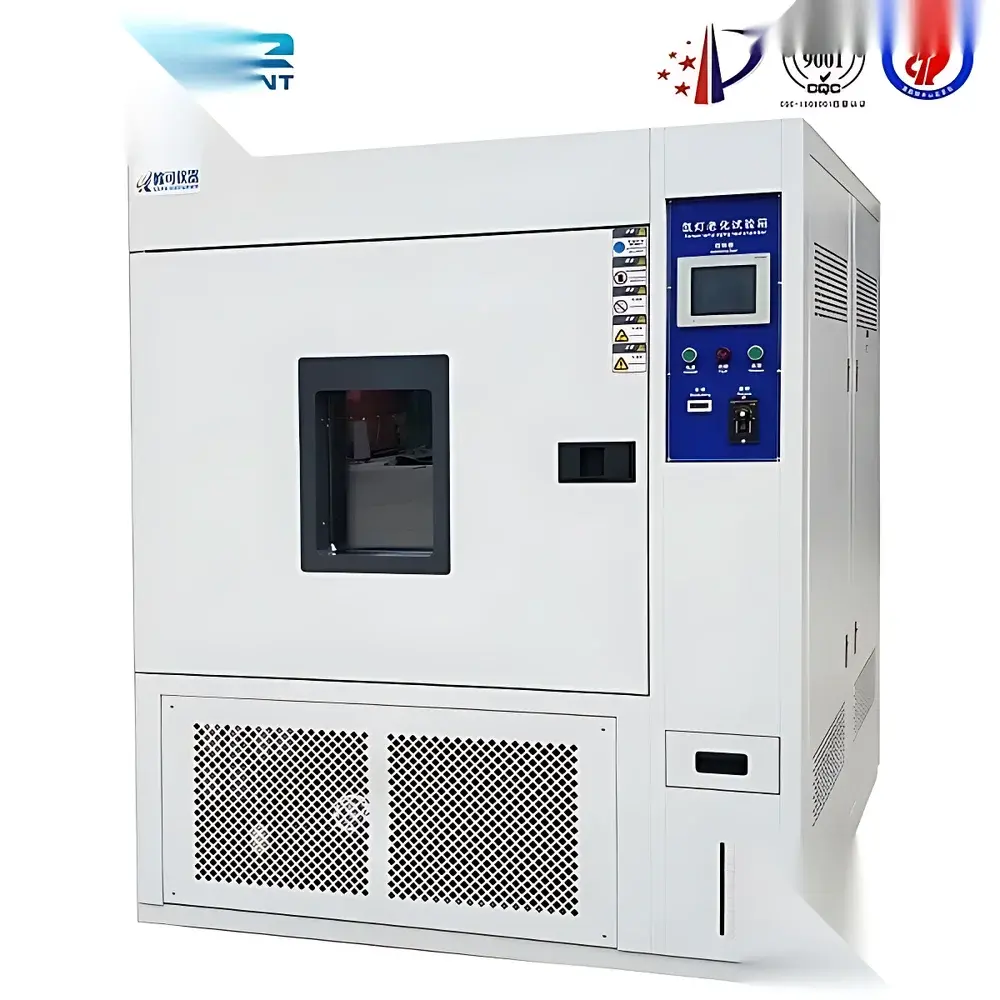

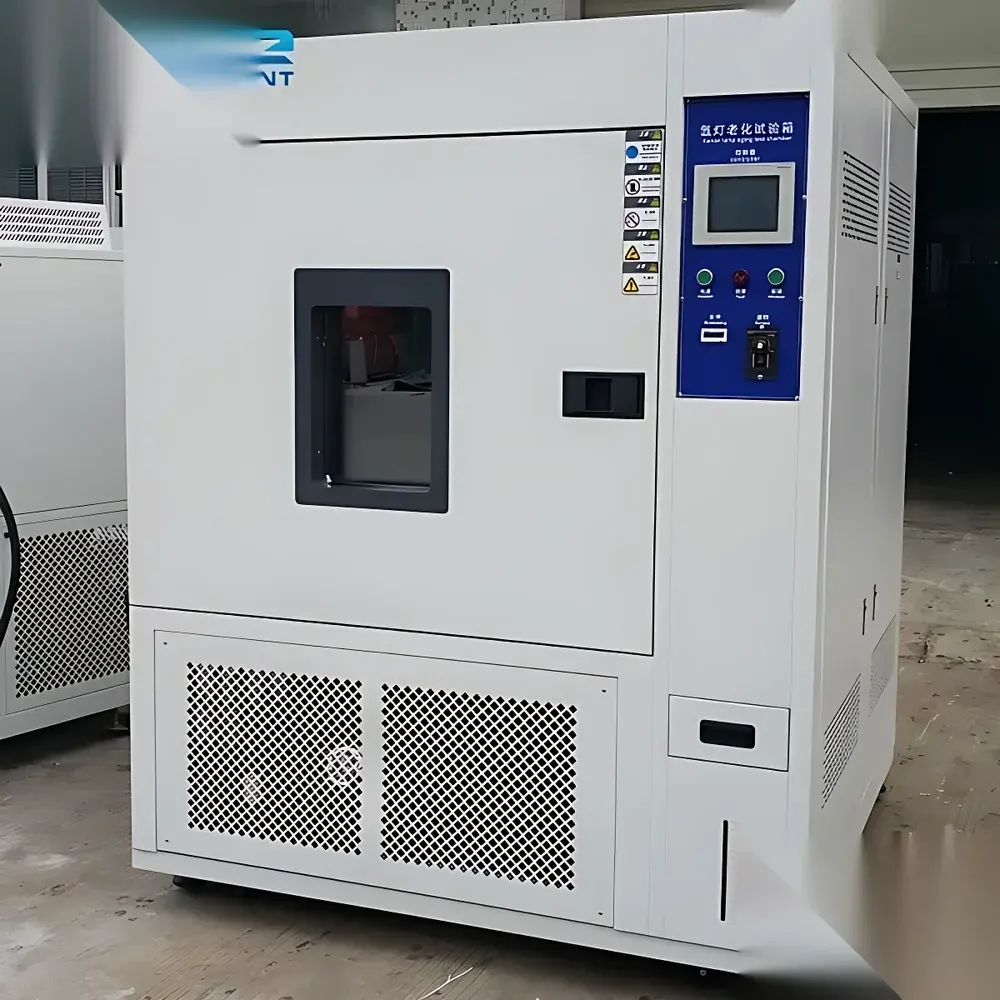

Xenon Arc Weathering Test Chamber LX-500J

Overview

The LX-500J Xenon Arc Weathering Test Chamber is an engineered environmental simulation system designed to replicate the combined effects of solar radiation, temperature, and moisture—key stressors in real-world outdoor exposure. It employs a high-intensity xenon arc lamp as its spectral source, filtered through borosilicate glass and quartz inner filters to closely match the terrestrial solar spectrum (290–800 nm), including critical UV-B and UV-A bands. This spectral fidelity enables accelerated aging assessments aligned with international material durability standards. The chamber integrates controlled cyclic irradiation, programmable rainfall simulation, and dynamic sample rotation to ensure uniform exposure across all test specimens. Its architecture supports long-term, repeatable testing under defined climatic profiles—essential for evaluating polymer degradation, coating adhesion loss, pigment fading, textile colorfastness, and automotive exterior component performance.

Key Features

• Seamless SUS304 stainless steel interior chamber with TIG-welded joints, eliminating crevices and preventing water retention or corrosion-induced contamination.
• Adjustable oscillating spray arm (±45° to ±90°) with precision-machined nozzles (φ0.4 mm or φ0.8 mm, spaced at 50 mm intervals) delivering calibrated rainfall intensity from 600 to 3600 mm/h—meeting both light drizzle and tropical downpour simulation requirements.

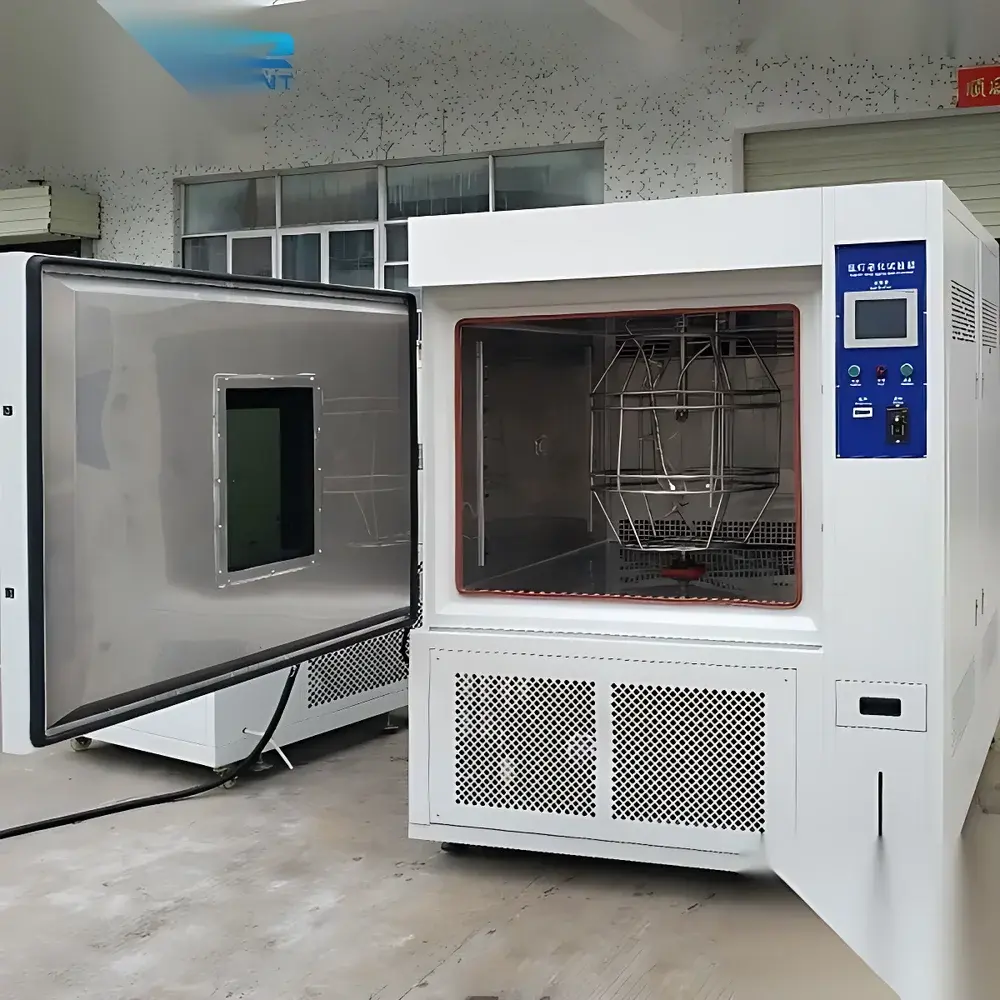

• Motor-driven turntable operating at 1–10 rpm, ensuring homogeneous angular exposure and minimizing irradiance gradients across multi-position sample racks.
• Fiber-optic radiation sensor system decouples photometric measurement from thermal drift, maintaining traceable irradiance control (typically monitored at 0.35 W/m² @ 340 nm or 1.10 W/m² @ 420 nm per standard protocols).
• Wireless black panel thermometer (BPT) and black standard thermometer (BST) integration enables real-time surface temperature monitoring without wiring interference or thermal conduction errors.
• Closed-loop chilled water circulation system cools the xenon lamp envelope, extending lamp life and stabilizing spectral output; eliminates continuous freshwater consumption and reduces operational cost.
• Comprehensive safety interlock architecture: xenon lamp ignition is hardware-locked to coolant flow verification, and automatic shutdown initiates upon detection of low water level, pump failure, or thermal over-limit conditions.

Sample Compatibility & Compliance

The LX-500J accommodates flat-panel specimens up to 800 mm × 800 mm × 800 mm in internal volume, supporting standard ISO 4892-2, ASTM G155, and SAE J2527 specimen holders. Its mechanical design conforms to the structural and functional requirements of GB/T 2423.23–1990 (guidelines for water testing) and GB/T 2423.38–1990 (test methods for rain resistance). Additional alignment includes GB/T 10485–1993 (road vehicle lighting and signaling device environmental tests), GB/T 4857.9–1992 (packaging vibration and weathering), and GB/T 4208–1993 (IPX3/IPX4-rated water ingress protection validation). All control logic and data logging functions support GLP-compliant audit trails when integrated with external laboratory information management systems (LIMS).

Software & Data Management

While the LX-500J operates via a dedicated microprocessor-based controller with membrane keypad interface, it supports RS485/Modbus RTU communication for integration into centralized test management platforms. Time-stamped event logs—including irradiance setpoint deviations, spray cycle initiation/termination, turntable speed variance, and BPT/BST readings—are stored internally for ≥30 days. Optional analog outputs (4–20 mA) enable connection to PLC-based facility monitoring systems. Firmware adheres to deterministic real-time scheduling principles, ensuring sub-second response to safety-critical interlocks. For regulatory environments requiring electronic records integrity, optional software modules provide 21 CFR Part 11–compliant user authentication, electronic signatures, and immutable log archiving.

Applications

• Accelerated weathering validation of automotive clearcoats, plastic fascias, and elastomeric seals per SAE J2412 and ISO 11341.
• UV stability benchmarking of architectural coatings, roofing membranes, and PVC window profiles against ISO 4892-2 and ASTM D4329.
• Photostability assessment of medical device packaging materials under ICH Q1B guidelines.
• Colorfastness evaluation of textiles and printed signage per AATCC TM16 and ISO 105-B02.
• Functional endurance testing of outdoor LED luminaires and photovoltaic module encapsulants per IEC 61215 and UL 1703.

FAQ

What spectral filters are included with the LX-500J?
The chamber is supplied with inner and outer borosilicate glass filters configured to meet ISO 4892-2 “Daylight” spectral requirements. Optional quartz inner filters are available for extended UV transmission (down to 290 nm) or “Window Glass” filtering (cut-off ~320 nm).
Is calibration certification provided with the unit?
A factory-issued irradiance calibration report traceable to NIM (National Institute of Metrology, China) is included. Users are advised to perform annual recalibration using a NIST-traceable reference radiometer.
Can the rainfall system be disabled during irradiation-only cycles?
Yes—the spray function is fully independent and can be deactivated while maintaining lamp operation, turntable rotation, and temperature control for dry-heat or UV-only exposure protocols.
What maintenance intervals are recommended for the water filtration system?
The ultra-fine stainless steel mesh filter requires cleaning every 50 hours of spray operation; replacement is recommended after 500 cumulative spray hours or if pressure drop exceeds 0.1 MPa.
Does the chamber support multi-step test programs?
The controller supports up to 99 sequential program steps, each defining irradiance level, chamber temperature, relative humidity (if equipped with optional RH module), spray duration/frequency, and dark cycle parameters—enabling full compliance with complex standards such as ISO 11341 cyclic exposures.
