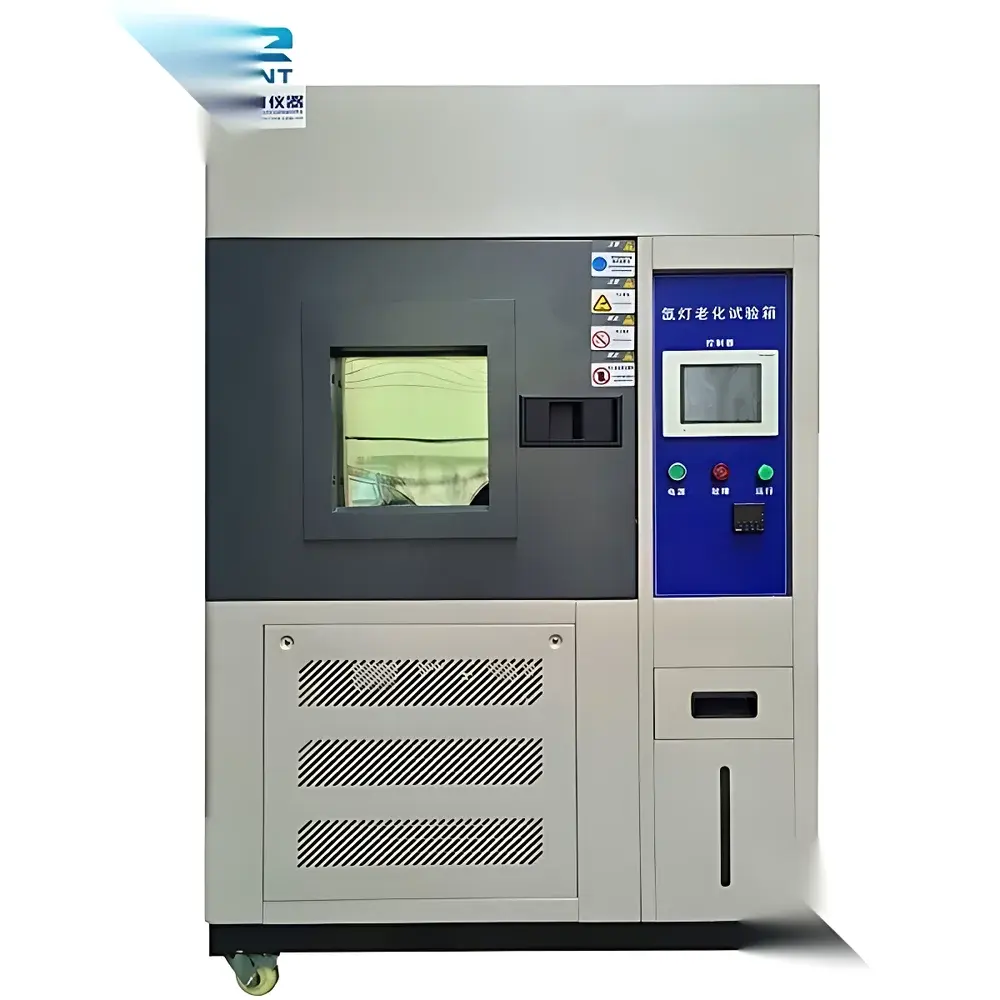

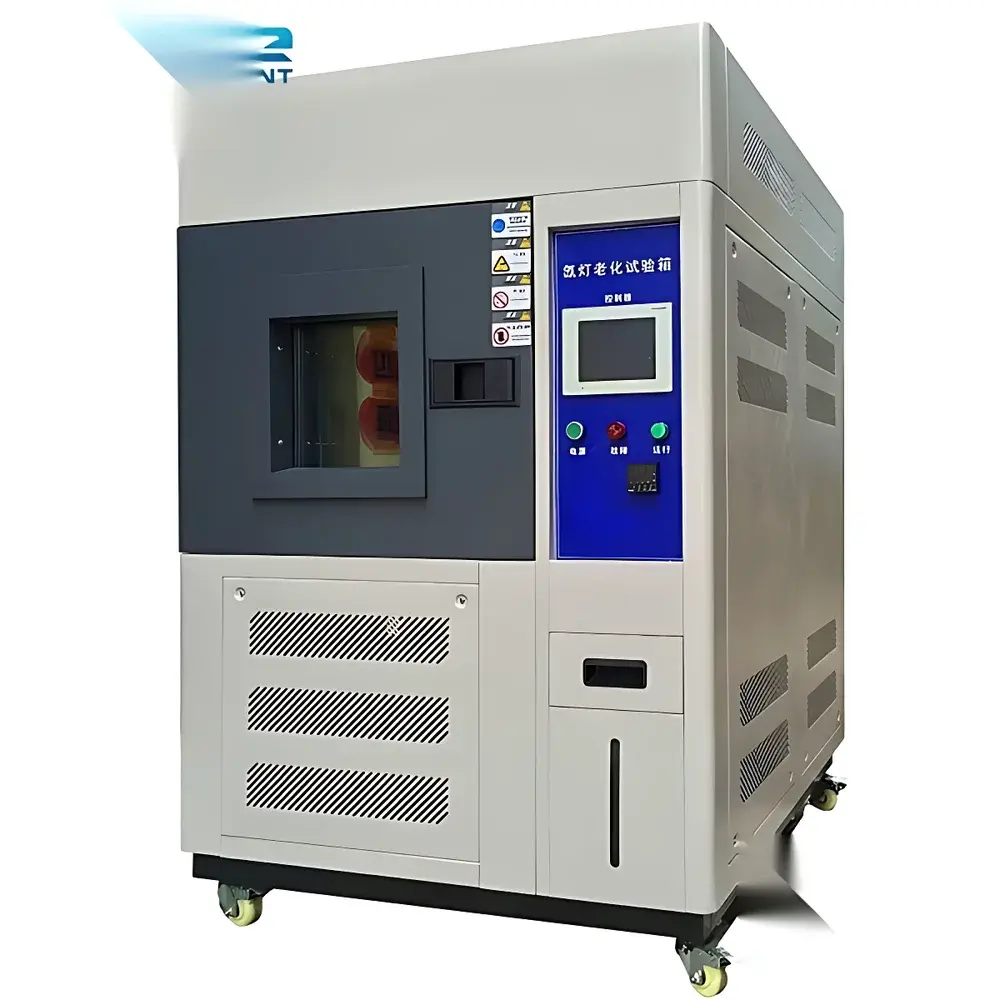

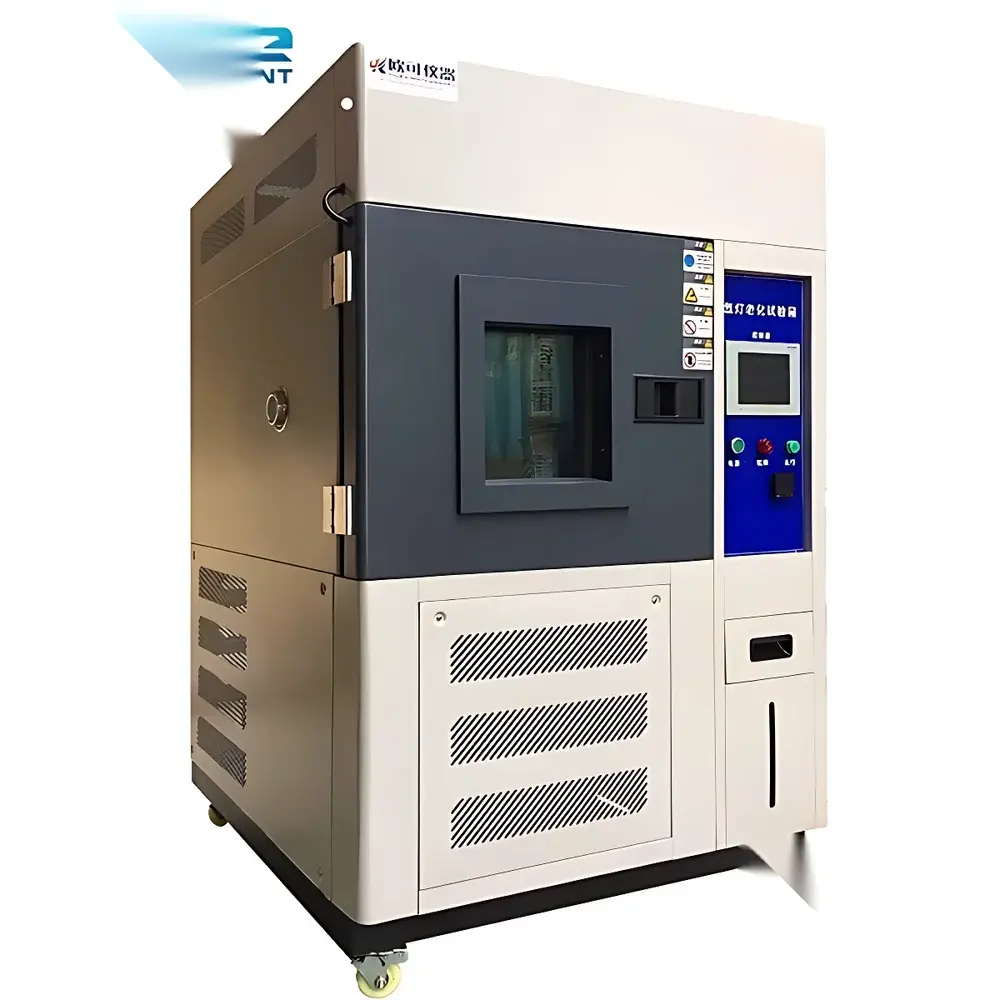

Xenon Arc Weathering Test Chamber – Reliable Environmental Aging Chamber

Overview

The Xenon Arc Weathering Test Chamber – Reliable Environmental Aging Chamber is an engineered solution for accelerated weathering simulation under controlled laboratory conditions. It replicates critical environmental stressors—including solar ultraviolet (UV-A and UV-B), visible light, heat, humidity, and cyclic condensation—using a high-intensity xenon arc lamp as the primary radiation source. Unlike fluorescent UV chambers, this system delivers a spectral power distribution closely matching natural sunlight (CIE No. 85, ISO 4892-2), enabling realistic assessment of photodegradation, color fading, chalking, cracking, and mechanical property loss in polymeric, coated, textile, automotive, and photovoltaic materials. Designed for long-term operational stability and repeatability, it supports standardized aging protocols required by international regulatory frameworks and industry-specific qualification workflows.

Key Features

• High-fidelity xenon arc irradiation source with spectral output calibrated to ISO 4892-2 and ASTM G155, ensuring traceable correlation to terrestrial solar exposure.
• Precise dual-loop climate control: independent regulation of chamber air temperature (RT+10°C to 70°C, ±0.5°C fluctuation) and relative humidity (90–98% RH) via integrated steam humidification and refrigerated dehumidification.
• Black panel temperature monitoring and control (40–65°C range) with thermocouple feedback, aligned with ASTM D7869 and ISO 11341 requirements for surface thermal load simulation.
• Adjustable irradiance setpoints across UV-A (315–400 nm) and UV-B (280–315 nm) bands, with real-time radiometric monitoring using calibrated broadband or narrowband sensors (optional).
• Programmable exposure/condensation cycling: UV irradiation, dark condensation, and spray phases can be sequenced and timed independently (0–999 hours per cycle).
• Rugged chamber construction: interior lined with electropolished SUS304 stainless steel; exterior available in corrosion-resistant powder-coated carbon steel or brushed SUS304; silicone rubber door gasket rated for -40°C to +150°C operation.
• Comprehensive safety architecture: overtemperature cutoff, water-level interlock, motor overload protection, earth leakage detection, and short-circuit interrupters compliant with IEC 61000-6-2/6-4 EMC standards.

Sample Compatibility & Compliance

This chamber accommodates standard test specimens up to 75 × 300 mm (or custom dimensions specified at order entry), mounted on a rotating or static SUS304 sample rack. The effective irradiated area (900 × 210 mm) ensures uniform exposure across multiple samples simultaneously. It meets or exceeds performance criteria defined in key international standards, including ISO 4892-2 (Plastics — Methods of exposure to laboratory light sources — Part 2: Xenon-arc lamps), ASTM G155 (Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials), IEC 61345 (Photovoltaic modules — Qualification testing — UV pre-stress test), and GB/T 19394–2003 (Chinese national standard equivalent to IEC 61345:1998). All control algorithms, data logging intervals, and alarm thresholds are configurable to support GLP-compliant validation and 21 CFR Part 11–ready audit trails when paired with optional software packages.

Software & Data Management

The embedded controller features a 7-inch TFT touchscreen HMI with intuitive menu navigation, multi-language interface (English, German, French, Chinese), and real-time graphical display of irradiance, black panel temperature, chamber humidity, and elapsed cycle time. Logged data—including timestamps, setpoint deviations, fault events, and sensor outputs—is stored internally (≥30 days at 1-min resolution) and exportable via USB or Ethernet to CSV or XML formats. Optional PC-based software enables remote monitoring, automated report generation (PDF/Excel), statistical process analysis (SPC), and integration into enterprise LIMS or MES platforms. Firmware updates maintain compatibility with evolving test method revisions and cybersecurity best practices (TLS 1.2 encryption, role-based access control).

Applications

• Automotive OEMs and Tier-1 suppliers validating exterior trim, headlamp lenses, dashboard polymers, and paint systems against SAE J2527 and ISO 20692.
• Photovoltaic manufacturers performing UV preconditioning per IEC 61215 and UL 1703 prior to thermal cycling and damp heat testing.
• Aerospace material developers assessing coating durability under simulated high-altitude solar loading per ASTM D4329 and MIL-STD-810H Method 505.6.
• Textile and leather producers evaluating colorfastness and tensile retention in accordance with AATCC TM16 and ISO 105-B02.
• Architectural product certifiers verifying long-term performance of sealants, membranes, and cladding under AS/NZS 4800 and EN 927-6.

FAQ

What standards does this xenon arc chamber comply with?
It conforms to ISO 4892-2, ASTM G155, IEC 61345, GB/T 19394–2003, and supports method development for additional specifications upon request.
Can the chamber operate without water supply for condensation cycles?
No. Continuous water supply is required for both humidity generation and condensation tray maintenance; automatic level control prevents dry-run operation.
Is calibration documentation included with shipment?
Yes—NIST-traceable calibration certificates for black panel thermometer and irradiance sensor are provided, along with a full factory acceptance test (FAT) report.
How often must the xenon lamp be replaced?
Typical service life is 1,500–2,000 hours under standard irradiance settings; replacement intervals are tracked automatically and logged in the system history.
Does the chamber support multi-step test programs with varying irradiance levels?
Yes—up to 99 programmable steps per test sequence, each with independent settings for irradiance (% of max), temperature, humidity, and phase duration.
