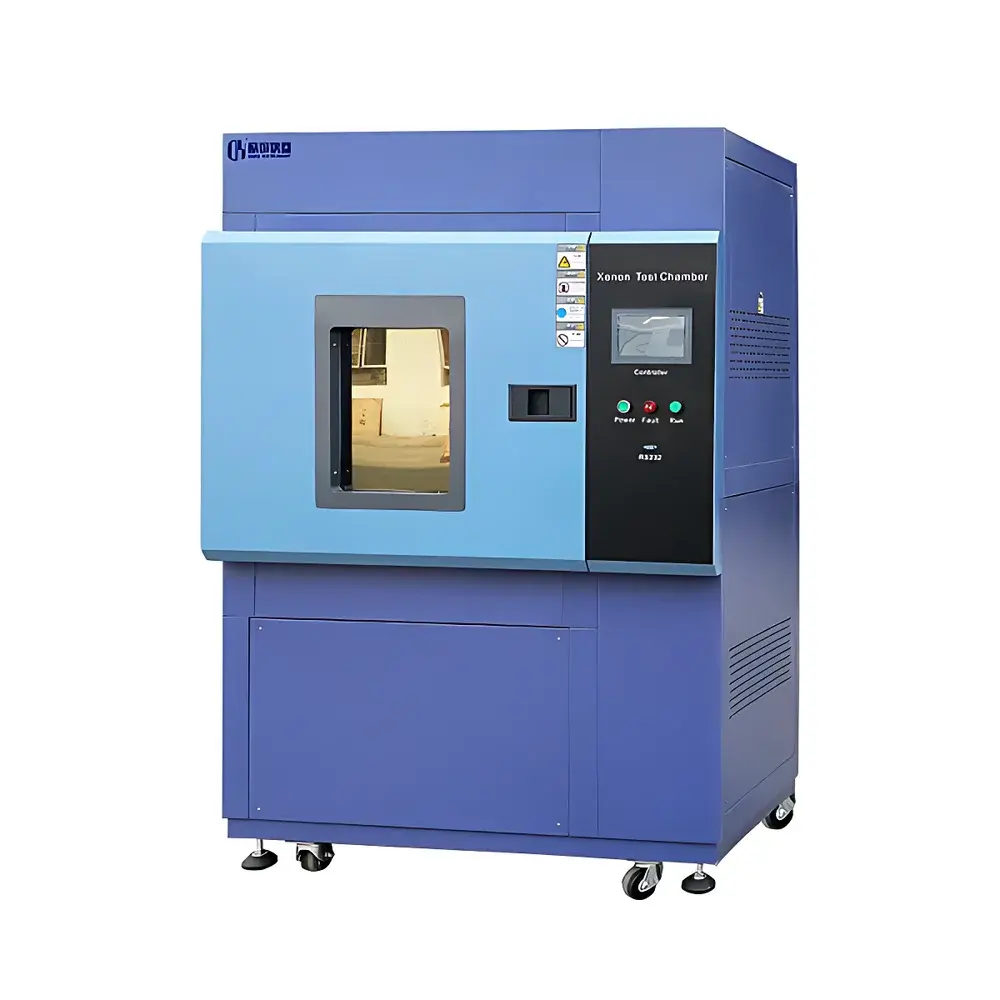

OK Xenon Arc Weathering Test Chamber OK-XD-100.10

Overview

The OK Xenon Arc Weathering Test Chamber OK-XD-100.10 is a precision-engineered environmental simulation system designed to replicate the integrated effects of natural outdoor weathering—specifically solar radiation, thermal cycling, humidity, and moisture exposure—in a controlled laboratory setting. At its core, the chamber employs a 5 kW air-cooled xenon arc lamp, which emits a continuous spectrum spanning ultraviolet (280–400 nm), visible (400–700 nm), and near-infrared (700–2500 nm) wavelengths. This full-spectrum output closely approximates terrestrial sunlight when filtered through standardized optical filters—such as Daylight-Q/B (ISO 4892-2), Window Glass-Q (ASTM G155), or Extended UV-Q—enabling correlation with real-world degradation mechanisms including photooxidation, hydrolysis, thermal embrittlement, and photomechanical fatigue. Unlike narrowband UV chambers, the OK-XD-100.10 models the synergistic interaction of light, heat, and moisture—critical for evaluating color stability, gloss retention, chalking, cracking, tensile strength loss, and surface morphology changes in polymeric, coated, textile, and composite materials.

Key Features

• High-fidelity spectral simulation via calibrated xenon arc source with interchangeable ISO/ASTM-compliant optical filters (Daylight, Window Glass, Extended UV)
• Precise irradiance control (≤1200 W/m², broadband 290–800 nm) with real-time feedback via integrated radiometer and auto-compensation algorithm
• Independent dual-zone climate control: black panel temperature (BPT) range 30–110°C; chamber air temperature 10–80°C; relative humidity 20–75% R.H. (±2% R.H. accuracy)
• Programmable multi-step test cycles integrating light/dark phases, humidity ramping, and timed water spray (rain simulation) with adjustable duration, frequency, and droplet size distribution

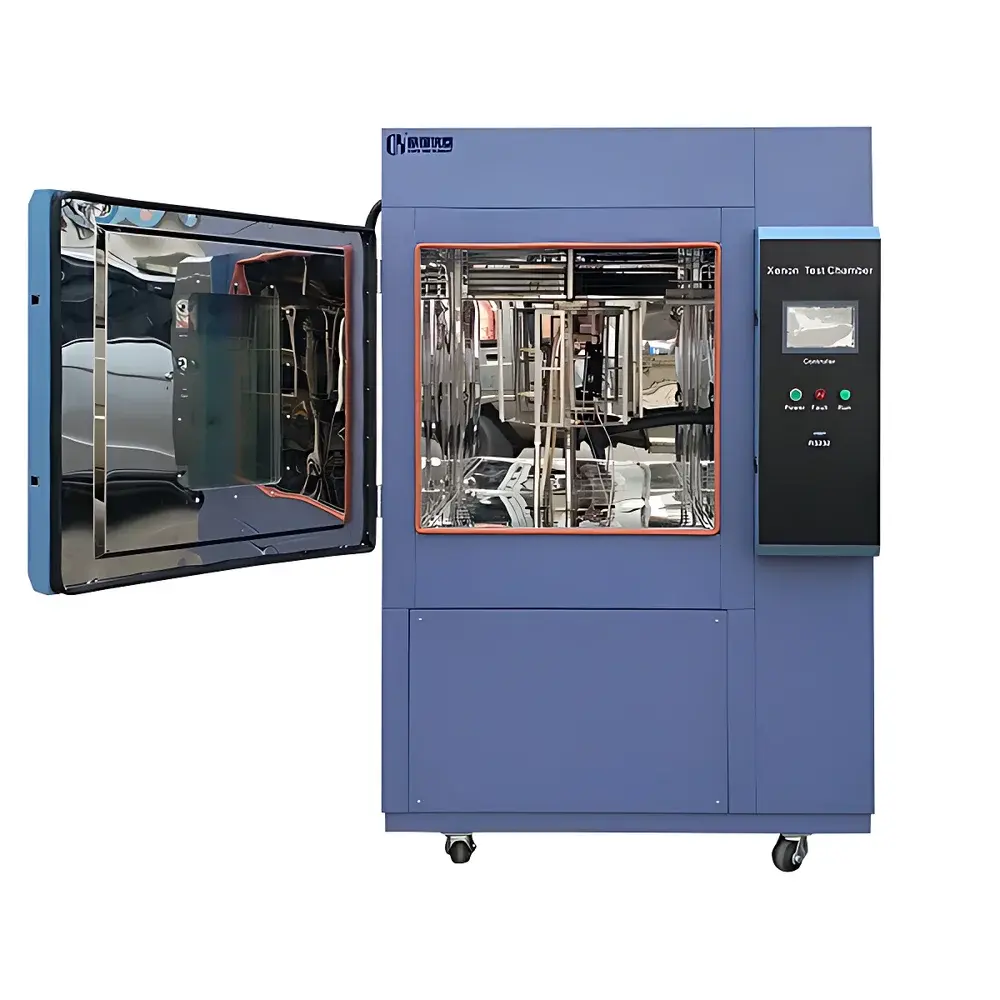

• Rotating sample rack (360° continuous rotation) ensuring uniform irradiance distribution across all specimens (IEC 60068-2-5 compliance)

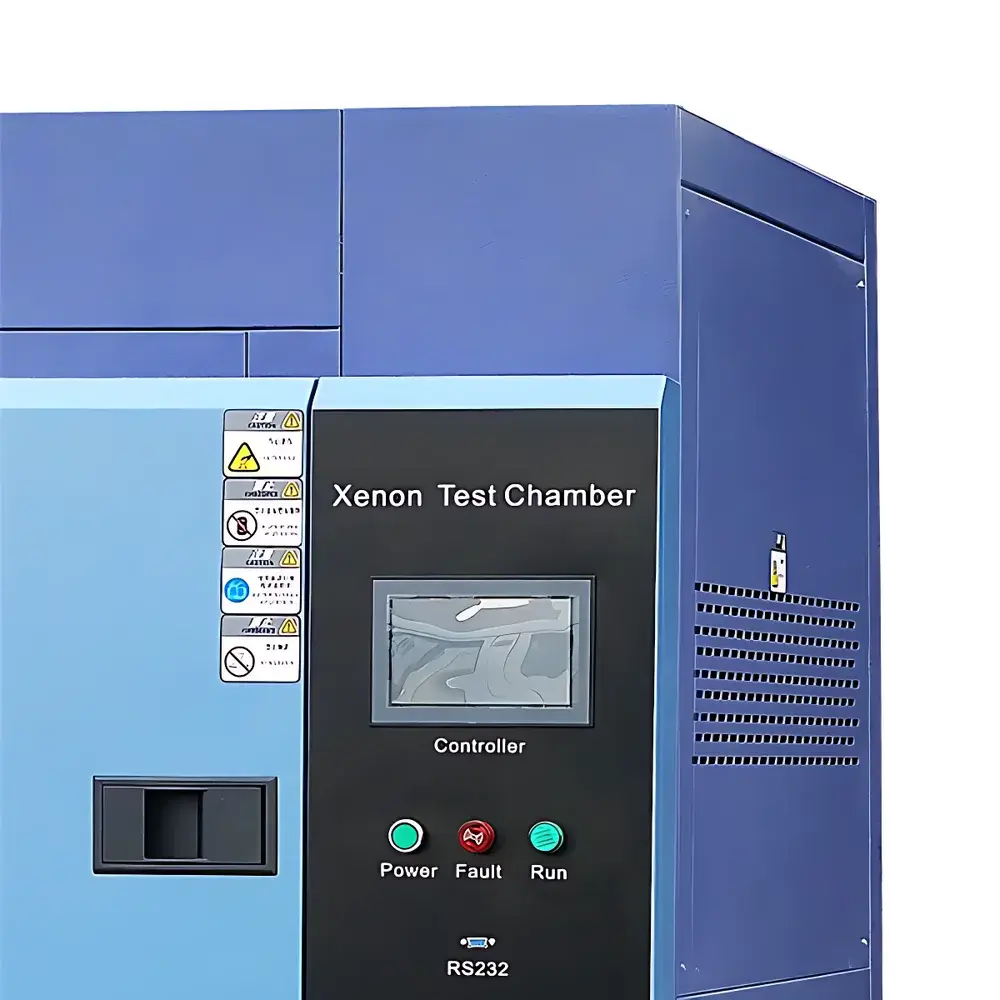

• Industrial-grade PLC-based controller with intuitive touchscreen HMI, USB data export, and password-protected parameter locking for audit-ready operation

Sample Compatibility & Compliance

The OK-XD-100.10 accommodates flat-panel specimens up to 100 × 100 mm per position (standard rack capacity: 24 positions), with optional fixtures for 3D automotive parts, textiles on frames, or PV module coupons. It supports testing of coatings, thermoplastics (PP, ABS, PC), elastomers, architectural sealants, aerospace composites, and photovoltaic encapsulants. The chamber is engineered to meet the operational requirements of major international standards—including ISO 4892-2 (plastics), ISO 105-B02 (textiles), ASTM G155 (non-metallic materials), ASTM D4459 (interior automotive), SAE J2527/J2412 (automotive exterior/interior), GB/T 16422.2 (Chinese national standard), and AATCC TM16. All control parameters—including irradiance setpoint, BPT, RH, spray timing, and cycle sequencing—are traceable and configurable to match specific standard clauses. System validation documentation supports GLP and ISO/IEC 17025 laboratory accreditation.

Software & Data Management

The embedded control firmware logs all operational parameters at user-defined intervals (minimum 1-second resolution), generating time-stamped CSV files compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures. Audit trail functionality captures operator ID, parameter changes, alarm events, and calibration timestamps. Optional Ethernet connectivity enables remote monitoring via secure HTTP interface and integration into centralized LIMS or MES platforms. Data integrity safeguards include write-protected storage, cyclic redundancy checksums, and automatic backup to external USB drives. Calibration certificates for irradiance sensors and humidity transducers are issued with NIST-traceable references and recommended recalibration intervals (12 months for radiometers, 6 months for RH sensors).

Applications

• Automotive OEMs and Tier-1 suppliers: Accelerated qualification of exterior trim, paint systems, headlamp lenses, and interior fabrics per SAE J2527 and J2412
• Polymer compounders: Formulation optimization for UV stabilizers, HALS, and pigment dispersion under realistic spectral load
• Coatings & inks manufacturers: Correlation of lab-scale weathering data with field exposure performance for architectural, industrial, and automotive finishes
• Textile mills and apparel brands: Assessment of colorfastness, pilling resistance, and tensile degradation in outdoor gear and awning fabrics (ISO 105-B02, AATCC TM16)
• PV module manufacturers: Durability validation of EVA encapsulants, backsheet polymers, and anti-reflective coatings under IEC 61215 sequence testing protocols
• Building product developers: Testing of roofing membranes, cladding panels, and sealants per ASTM D4798 and EN 927-6

FAQ

What spectral filters are included with the OK-XD-100.10?

The standard configuration includes Daylight-Q/B and Window Glass-Q filters compliant with ISO 4892-2 and ASTM G155. Extended UV-Q and borosilicate filters are available as options.
Does the chamber support dark cycles with condensation?

Yes—programmable dark periods can be combined with active humidity control to simulate overnight dew formation, per ISO 4892-2 Annex A.
How often must the xenon lamp and filters be replaced?

Lamp service life is rated at 1500 hours under typical irradiance settings; optical filters require replacement every 1000–1200 hours to maintain spectral fidelity and irradiance stability.
Is third-party calibration and IQ/OQ/PQ validation support available?

OK Instruments provides factory-issued IQ/OQ documentation and partners with accredited metrology labs for on-site PQ validation against ISO/IEC 17025 criteria.
Can the chamber be integrated into an automated test lab environment?

Yes—the unit features Modbus TCP and RS-485 interfaces for seamless integration with SCADA systems, robotic sample handlers, and enterprise quality management software.
