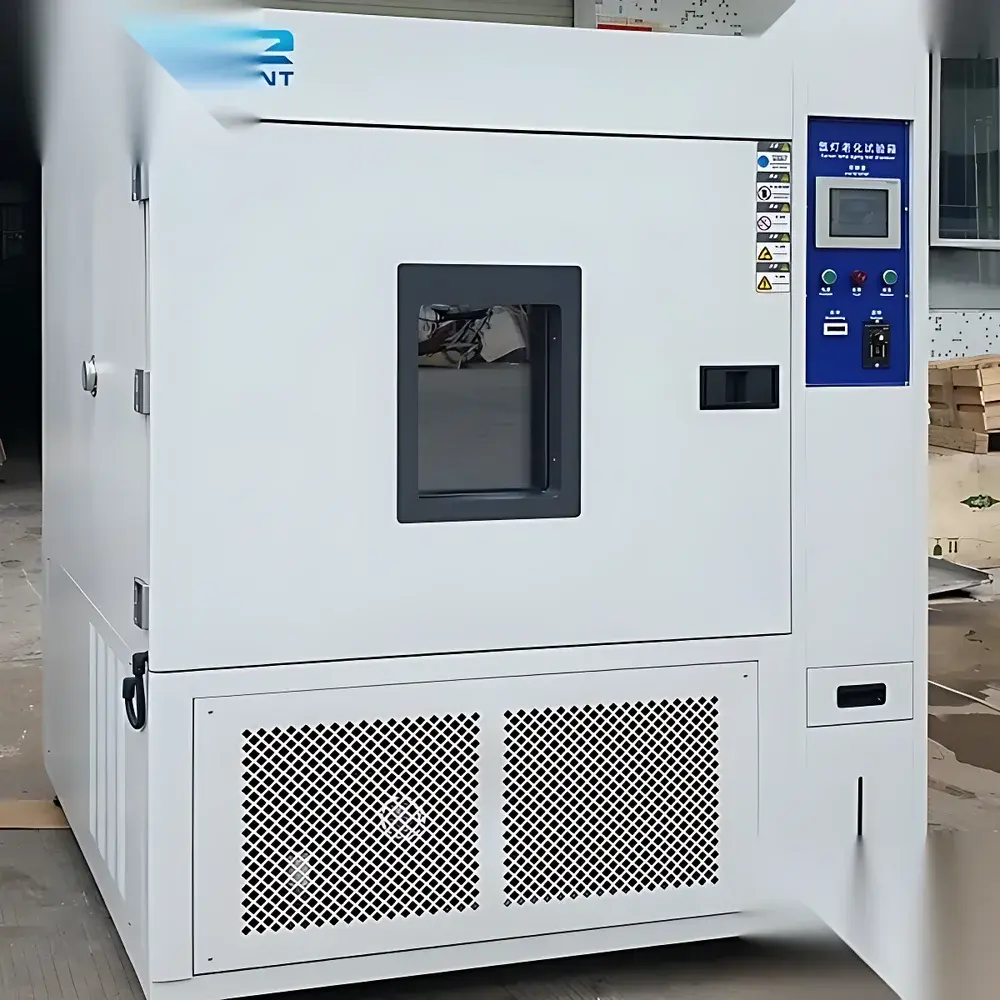

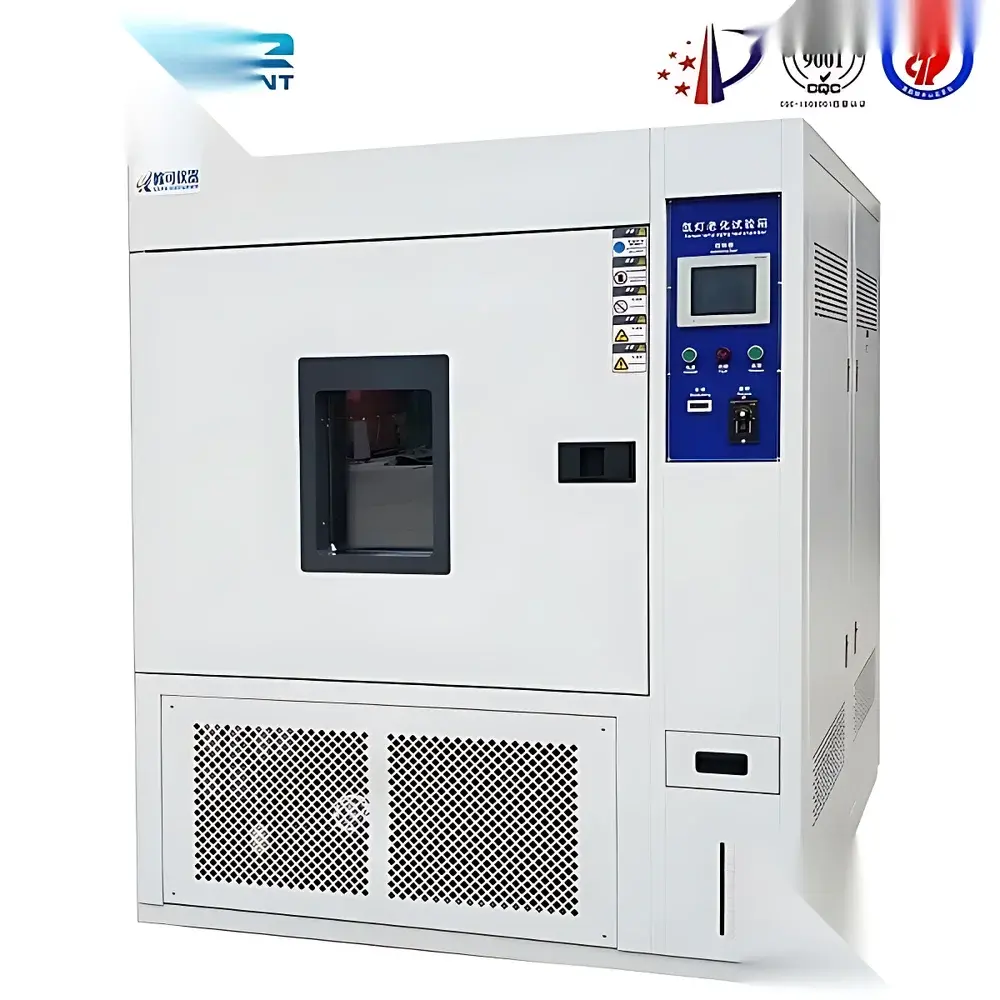

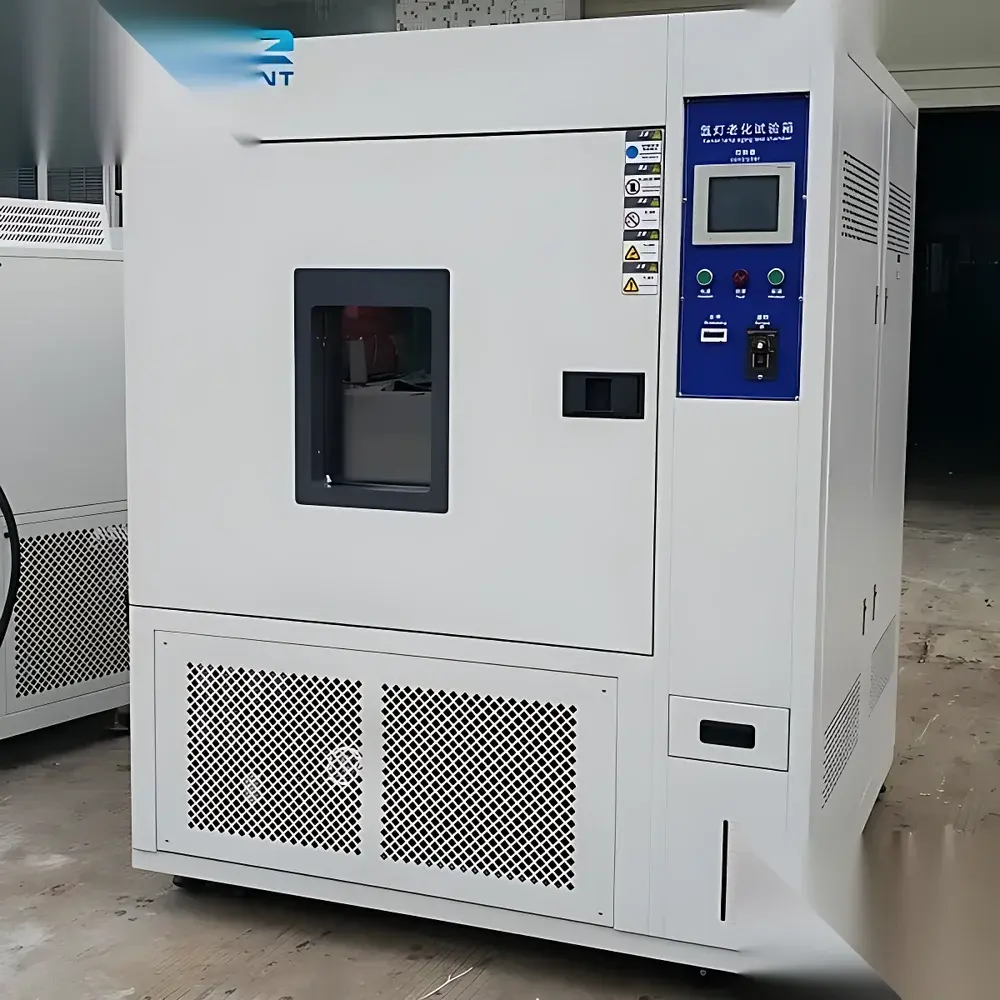

Xenon Arc Weathering Test Chamber – OK-XD Series

Overview

The OK-XD Series Xenon Arc Weathering Test Chamber is an engineered environmental simulation system designed to replicate the full spectrum of outdoor solar radiation—including UV, visible, and near-infrared wavelengths—alongside controlled temperature, humidity, and moisture exposure. Based on ASTM G155, ISO 4892-2, ISO 11341, SAE J2527, and AATCC TM16 standards, it employs a long-arc, air-cooled xenon lamp with precision spectral filtering to deliver photometrically stable irradiance across 300–1200 nm. Unlike UV fluorescent or metal halide sources, xenon arc technology provides the closest match to natural sunlight, enabling accurate assessment of photodegradation mechanisms such as polymer chain scission, pigment fading, coating chalking, and textile color shift. The chamber integrates synchronized light/dark cycles, programmable water spray (including rain simulation), and dynamic sample rotation or static multi-tier mounting—ensuring uniform exposure and statistically reproducible aging data for R&D validation, quality assurance, and regulatory compliance.

Key Features

• Full-spectrum xenon arc lamp with calibrated optical filters to maintain consistent spectral power distribution (SPD) over time, meeting CIE No. 85 and ISO 4892-2 spectral requirements.
• Independent black panel thermometer (BPT) and cabinet air temperature control, enabling precise thermal load simulation under irradiance—critical for evaluating heat-accelerated degradation pathways.
• Programmable humidity control with dual-range capability: 20–75 %RH during irradiation cycles and up to 98 %RH during dark condensation phases, supporting ISO 4892-2 cyclic test protocols.
• Adjustable water spray system with pressure regulation (70–127 kPa) and timer-based intermittent/continuous operation, simulating natural rainfall, dew formation, and thermal shock effects.

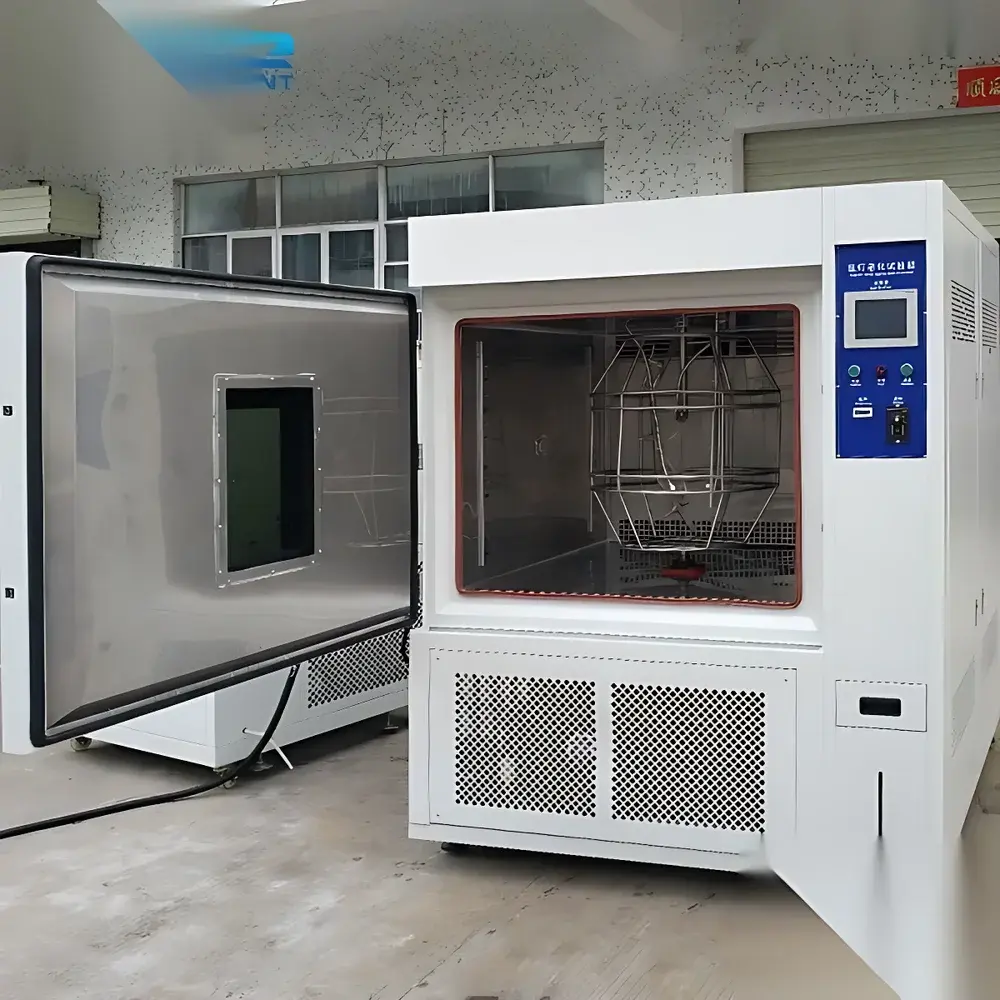

• Modular sample handling: choice between dual-layer flat stainless-steel mesh racks (for flat or irregularly shaped specimens) or a 500-mm-diameter rotating turntable (0–3 rpm), ensuring angular exposure uniformity per ISO 4892-2 Annex B.
• Robust construction using interior SUS304 stainless steel and exterior options of either stainless steel or powder-coated carbon steel—resistant to corrosion from salt mist, acidic condensate, and repeated thermal cycling.
• Integrated lamp life monitoring and quick-release lamp housing; standard xenon lamps operate at rated irradiance for approximately 1,500 hours before spectral drift exceeds acceptable limits per ASTM G155 Annex A3.

Sample Compatibility & Compliance

The OK-XD chamber accommodates diverse specimen geometries—from flexible textile swatches and painted automotive panels to rigid plastic housings and rubber gaskets—via configurable mounting fixtures. Its internal dimensions (100 L to 1000 L) support both standardized test coupons (e.g., ISO 105-B02, AATCC 16E) and full-size components requiring real-world exposure geometry. All models comply with international test method requirements for lightfastness (ISO 105-B02), weathering resistance (ISO 4892-2), and automotive material durability (SAE J2412, J2527). The system supports GLP-compliant operation when integrated with validated software: audit trails, user access levels, electronic signatures, and data integrity safeguards align with FDA 21 CFR Part 11 and ISO/IEC 17025 documentation expectations.

Software & Data Management

Equipped with a programmable touchscreen controller (optional PC-based software upgrade available), the chamber enables creation and storage of multi-step test profiles—including irradiance ramping, temperature/humidity ramps, spray timing sequences, and cycle repetition counts. Real-time logging captures irradiance (W/m²), black panel temperature (°C), cabinet temperature (°C), relative humidity (%RH), and elapsed time at user-defined intervals (minimum 1-minute resolution). Exported data files are CSV-compatible and timestamped with UTC synchronization. For regulated environments, optional software packages provide electronic record validation, change control logs, and role-based permissions—fully traceable to ISO/IEC 17025 clause 7.7 and ICH Q5C stability protocol guidelines.

Applications

• Textile and apparel testing: evaluation of color fastness to light and perspiration (AATCC TM16, ISO 105-B02/B04), including combined light/sweat exposure protocols.
• Automotive interiors and exteriors: accelerated aging of dashboards, seat fabrics, headlamp lenses, and elastomeric seals per SAE J2412 and GMW14124.
• Polymer and coating development: quantification of gloss loss, cracking, chalking, and yellowing in architectural paints, PVC window profiles, and polyolefin films.
• LED lighting and signage materials: verification of long-term chromatic stability under high-intensity broadband irradiation.
• Rubber and elastomer qualification: assessment of ozone resistance, tensile retention, and surface microcracking under cyclic UV/water exposure.
• Regulatory submission support: generation of aging data required for FDA 510(k) material biocompatibility dossiers (ISO 10993-12) and EU REACH SVHC screening.

FAQ

What spectral range does the OK-XD chamber replicate—and how is it filtered?
The chamber uses a long-arc xenon lamp with optical filters to deliver irradiance across 300–1200 nm. Optional Daylight (ISO 4892-2 Option 1) and Window Glass (Option 2) filters enable selection of relevant terrestrial spectra.
Can the chamber meet ASTM G155 Cycle 1 and Cycle 4 simultaneously?
Yes—the controller supports fully independent programming of irradiance setpoints, temperature/humidity ramps, spray duration/frequency, and dark/light phase timing per ASTM G155 Annex A1.
Is calibration traceable to NIST or equivalent national metrology institutes?
Irradiance sensors are supplied with factory calibration certificates traceable to PTB (Germany); on-site recalibration services include NIST-traceable spectroradiometer verification.
What maintenance is required beyond lamp replacement?
Routine tasks include quarterly cleaning of filter assemblies and quartz sleeves, biannual inspection of spray nozzles and humidity sensors, and annual verification of temperature/humidity sensor accuracy per ISO/IEC 17025.
Does the system support remote monitoring and alarm notification?
With optional Ethernet module and cloud-ready firmware, users can configure email/SMS alerts for temperature excursions, lamp failure, door open events, and program completion.
