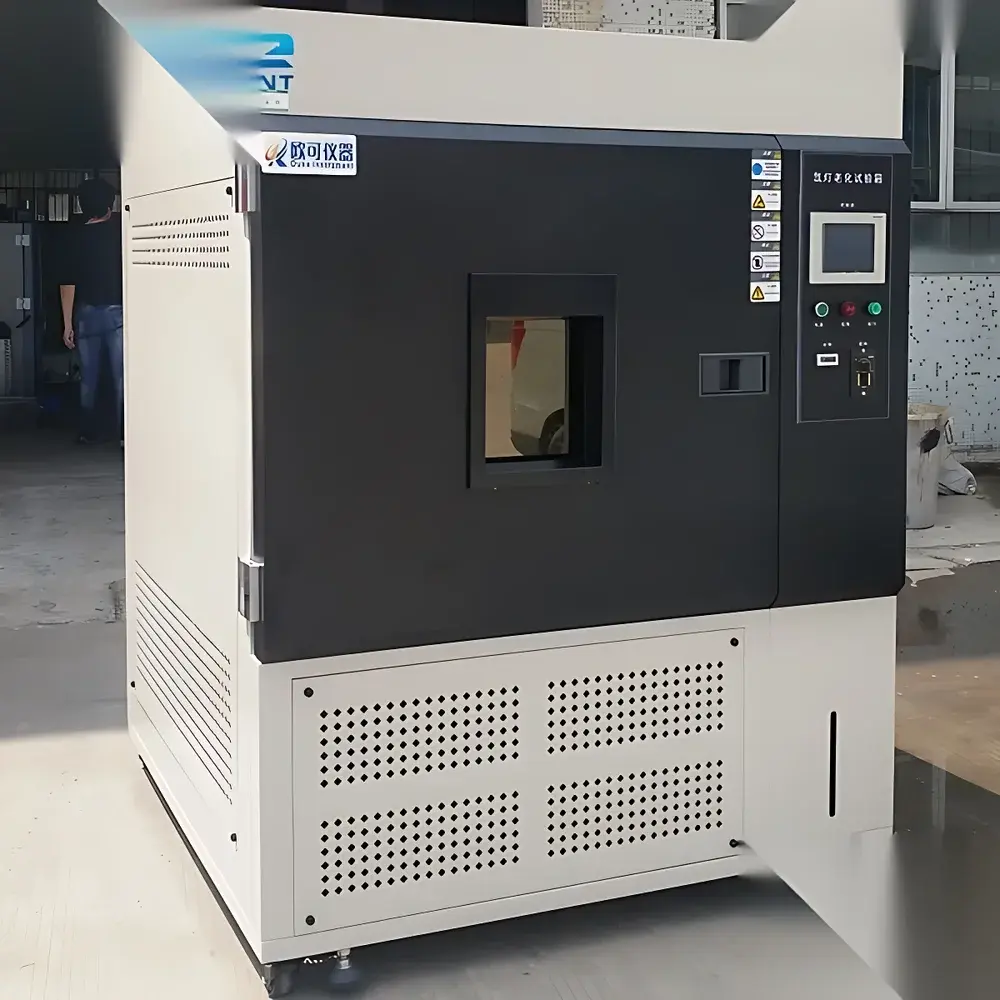

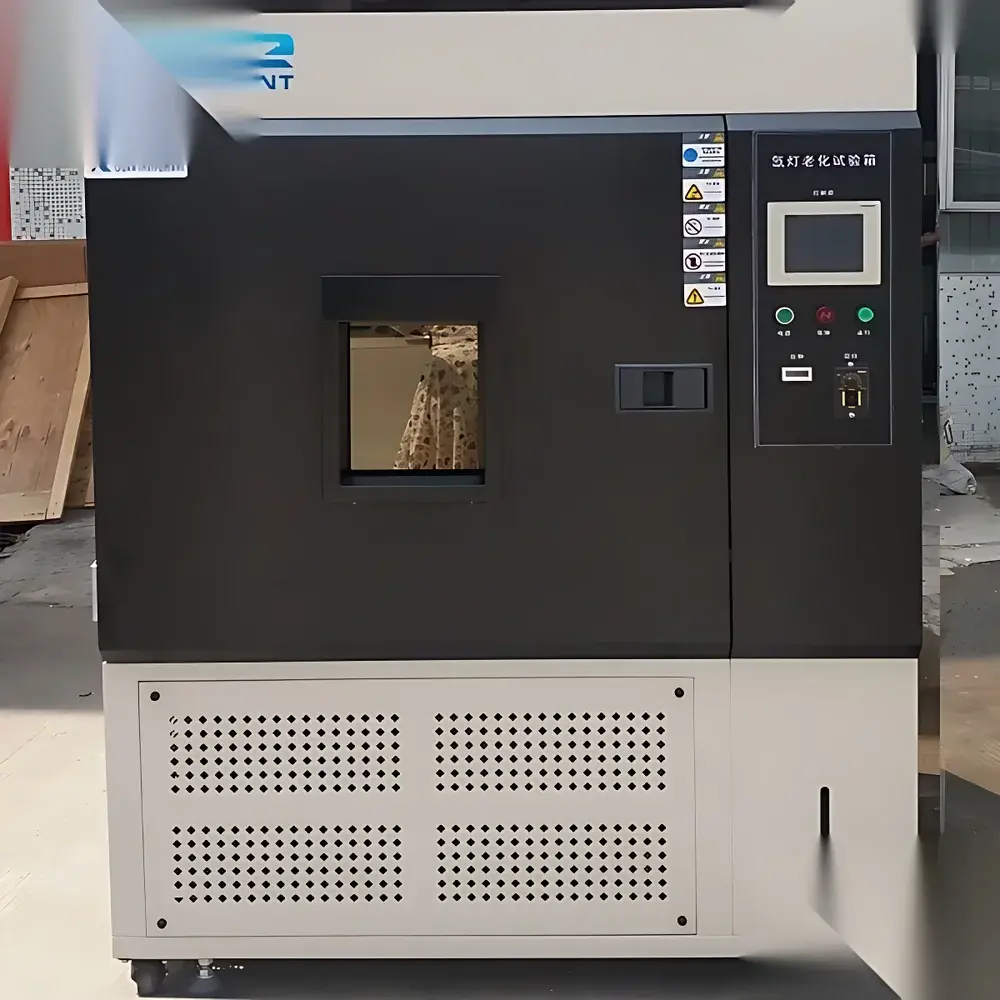

Xenon Arc Weathering Test Chamber OK-XD Series

Overview

The OK-XD Series Xenon Arc Weathering Test Chamber is an engineered environmental simulation system designed to replicate the full spectrum of terrestrial solar radiation—including UV, visible, and near-infrared wavelengths—alongside controlled temperature, humidity, and moisture exposure. Based on the principle of xenon arc irradiation, it employs long-arc, air-cooled xenon lamps filtered through precision optical systems to deliver spectrally stable output closely matching natural sunlight (CIE No. 85, ISO 4892-2). This enables accelerated evaluation of photodegradation, color fading, chalking, cracking, gloss loss, and mechanical property deterioration in materials subjected to outdoor service conditions. Unlike UV fluorescent or metal halide alternatives, xenon arc technology provides the most physiologically and chemically relevant stress profile for predicting real-world weathering performance across polymers, coatings, textiles, automotive trim, and architectural finishes.

Key Features

• Full-spectrum xenon arc source with calibrated spectral output (300–1200 nm), compliant with ISO 4892-2 and ASTM G155 irradiance requirements;
• Integrated water spray system with adjustable duration (1–999 min) and pressure control (70–127 kPa), enabling realistic wet/dry cycling per ISO 11341 and GB/T 16422-2;
• Precise black panel thermometer (BPT) and chamber air temperature control (0–150 °C), with independent regulation of relative humidity during both light and dark cycles (20–98% RH);

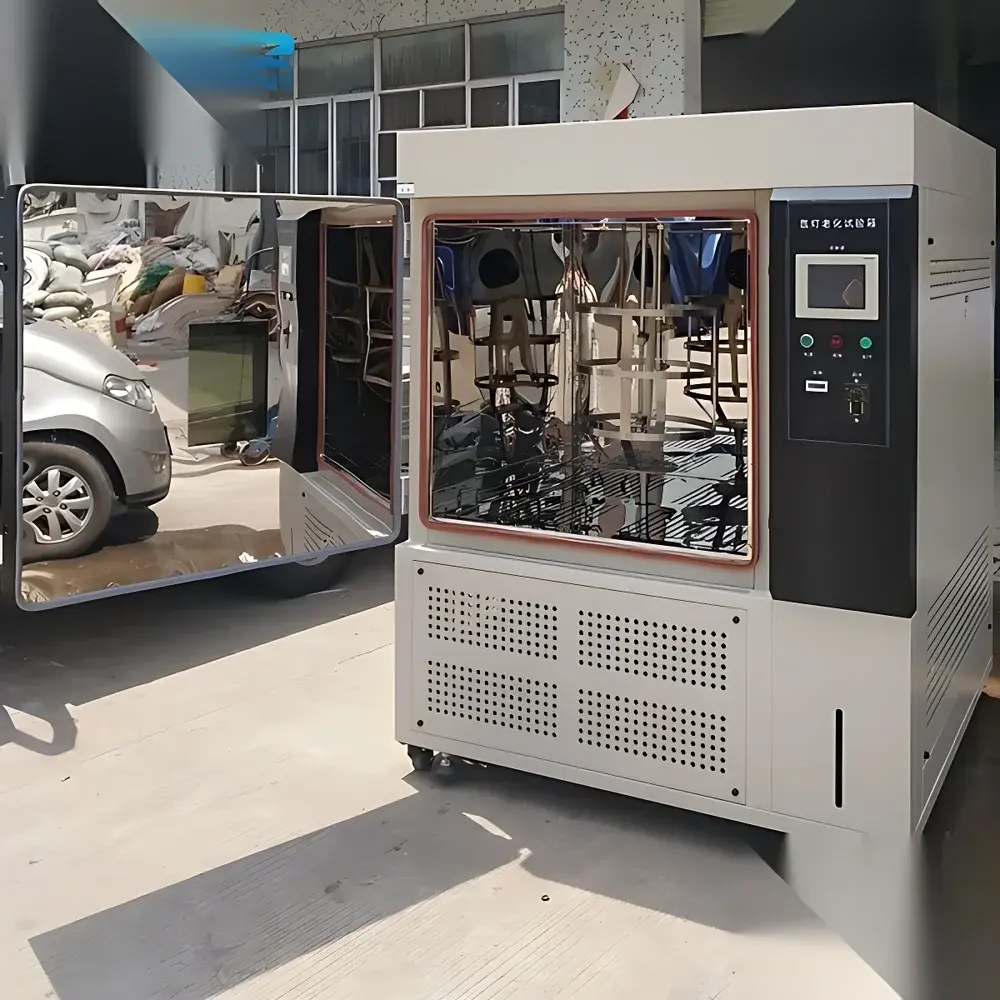

• Rotating sample holder (0–3 rpm, Ø500 mm) or dual-layer flat mesh rack—designed for non-uniform specimen geometries and optimized irradiance uniformity;
• High-stability optical filtration system using borosilicate and quartz outer/inner filters to maintain consistent spectral power distribution over lamp lifetime;
• Modular chamber architecture supporting custom internal dimensions (OK-XD-100 to OK-XD-1000) and user-defined test profiles via programmable controller;
• SUS304 stainless steel interior construction ensures corrosion resistance under prolonged condensation and saline spray exposure;
• Front-accessible lamp compartment and standardized lamp mounting facilitate rapid xenon tube replacement (~1500 h typical service life at rated irradiance).

Sample Compatibility & Compliance

The OK-XD series accommodates flat, curved, or irregular specimens—including fabric swatches, painted panels, plastic extrusions, rubber gaskets, and composite laminates—without requiring specialized fixtures. Its modular sample holders support simultaneous multi-material testing while maintaining compliance with international weathering standards including ISO 4892-2 (xenon arc exposure), ASTM D529 (textile colorfastness), GB/T 8427 (wool textile lightfastness), GB/T 14576 (photostability of dyes), and ISO 11341 (paints and varnishes). The chamber’s irradiance stability, temperature/humidity repeatability, and spectral fidelity meet the technical prerequisites for GLP-compliant laboratories and are suitable for generating data referenced in FDA submissions, automotive OEM specifications (e.g., GMW14124, Ford CETP), and ISO 9001-certified quality assurance protocols.

Software & Data Management

Equipped with a microprocessor-based programmable controller featuring a 7-inch TFT touchscreen interface, the OK-XD series supports up to 100 customizable test programs with segmented light/dark cycles, ramped temperature/humidity profiles, and synchronized spray events. Real-time logging records irradiance (W/m²), black panel temperature, chamber temperature, relative humidity, and elapsed time at user-defined intervals (1–60 min). Data export is available via USB port in CSV format for post-test analysis in MATLAB, Excel, or LIMS platforms. While native software does not include 21 CFR Part 11 audit trail functionality, the system architecture permits integration with third-party laboratory information management systems (LIMS) for electronic signature, version control, and secure data archiving—meeting core requirements for regulated industries operating under GMP or ISO/IEC 17025 frameworks.

Applications

• Accelerated aging of automotive interior and exterior components (dashboards, seat fabrics, headlamp lenses, sealants);
• Colorfastness and photostability assessment of reactive dyes, pigment dispersions, and inkjet inks per ISO 105-B02 and AATCC TM16;
• UV resistance validation of architectural coatings, roofing membranes, and PVC window profiles per ASTM D4329 and EN 927-6;
• Photodegradation kinetics studies of polyolefins, polyesters, and thermoplastic elastomers used in outdoor consumer goods;
• Correlation development between laboratory xenon exposure and field service life using Arrhenius-type modeling and spectral weighting functions (e.g., CIE S 016/E:2015);
• Qualification testing of LED luminaires and photovoltaic encapsulants per IEC 61215 and UL 1581 Section 1200.

FAQ

What standards does the OK-XD chamber comply with?
It meets the hardware and operational requirements of ISO 4892-2, ASTM G155, GB/T 16422-2, and related national and industry-specific weathering standards.
Can the chamber operate without water spray?
Yes—spray function is fully programmable and may be disabled for dry-heat or UV-only exposure protocols.
Is spectral calibration included with purchase?
Factory spectral verification is performed prior to shipment; annual recalibration using NIST-traceable radiometers is recommended for metrological continuity.
What maintenance is required for the xenon lamp system?
Lamp alignment, filter cleaning, and quartz envelope inspection should be conducted every 200 hours; lamp replacement is typically required after ~1500 hours at nominal irradiance.
Does the chamber support remote monitoring?
The standard controller lacks Ethernet or cloud connectivity, but analog voltage outputs (0–10 V) for key parameters enable integration with building management systems or SCADA networks.
