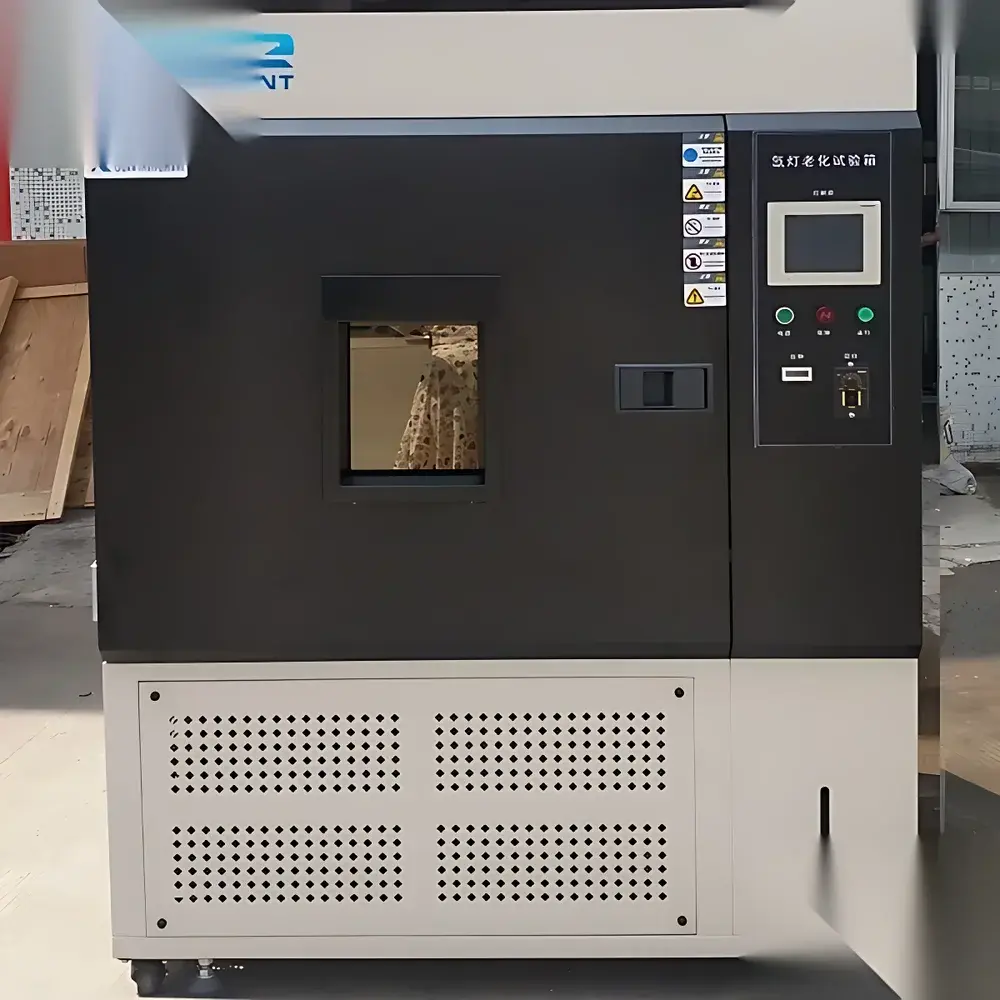

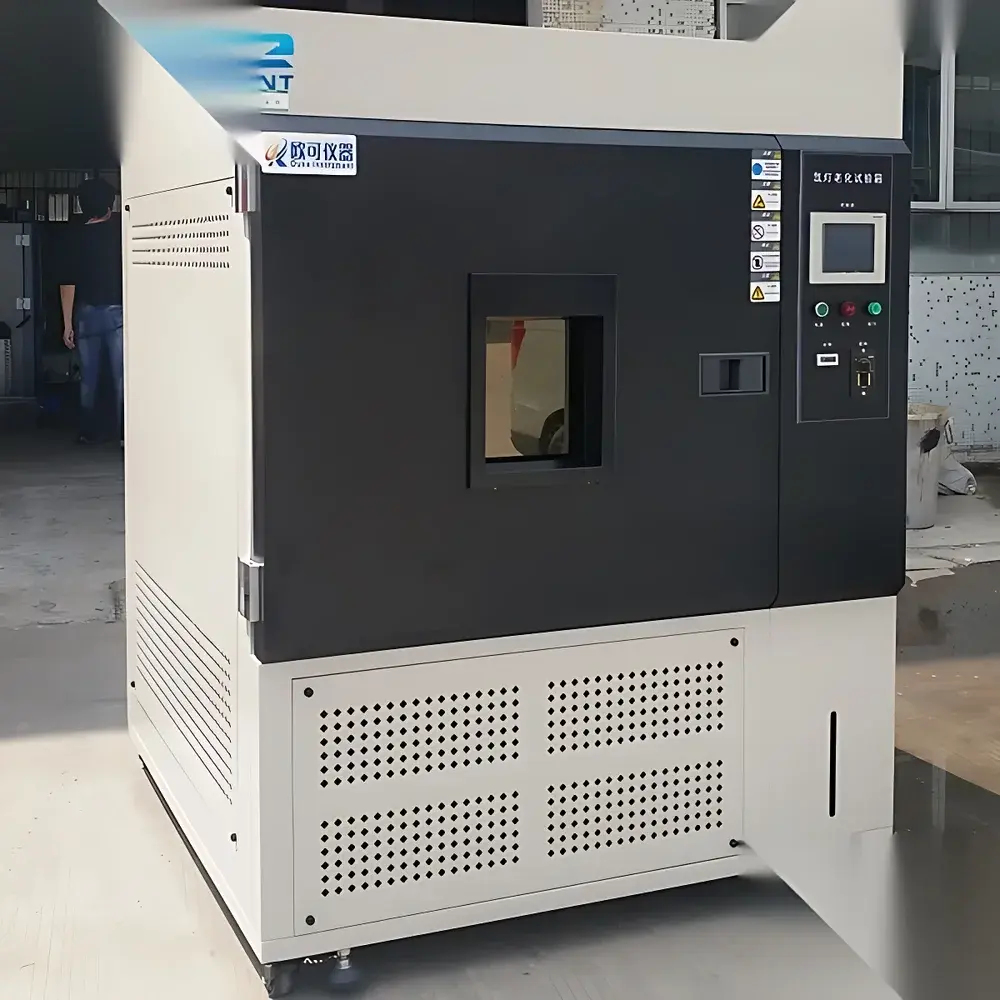

Xenon Arc Weathering Test Chamber – OK-XD Series (Imported, Full-Spectrum Solar Simulation)

Overview

The OK-XD Series Xenon Arc Weathering Test Chamber is an imported, precision-engineered environmental test system designed to simulate the full spectrum of terrestrial solar radiation—including UV, visible, and near-infrared wavelengths—under controlled temperature, humidity, and moisture conditions. Based on the principles of xenon arc irradiation, this chamber replicates natural sunlight degradation mechanisms such as photolysis, thermal oxidation, and hydrolytic aging. It is widely deployed in R&D laboratories, quality assurance departments, and certification bodies for accelerated weathering evaluation of polymeric, textile, coating, and automotive materials. Unlike UV fluorescent lamp systems, the xenon arc source delivers a continuous spectral output closely matching AM1.5 global solar irradiance (300–2500 nm), enabling high-fidelity correlation with real-world outdoor exposure data.

Key Features

• Full-spectrum air-cooled long-arc xenon lamp with calibrated spectral output, filtered to match daylight (ISO 4892-2 CIE Standard Illuminant D65) or extended UV (Boron-silicate or quartz filter options available).
• Integrated water spray system with adjustable pressure (70–127 kPa) and programmable duration (1–999 min), supporting both intermittent and continuous wetting cycles to simulate rain, dew, or condensation phases.
• Precise black panel temperature (BPT) control (40–85°C) and chamber air temperature regulation (0–150°C), independently monitored via PT100 sensors with ±0.5°C accuracy.
• Dual-mode humidity control: 20–75% RH during irradiation cycles and up to 98% RH during dark cycles, maintained via steam humidification and refrigerated dehumidification.

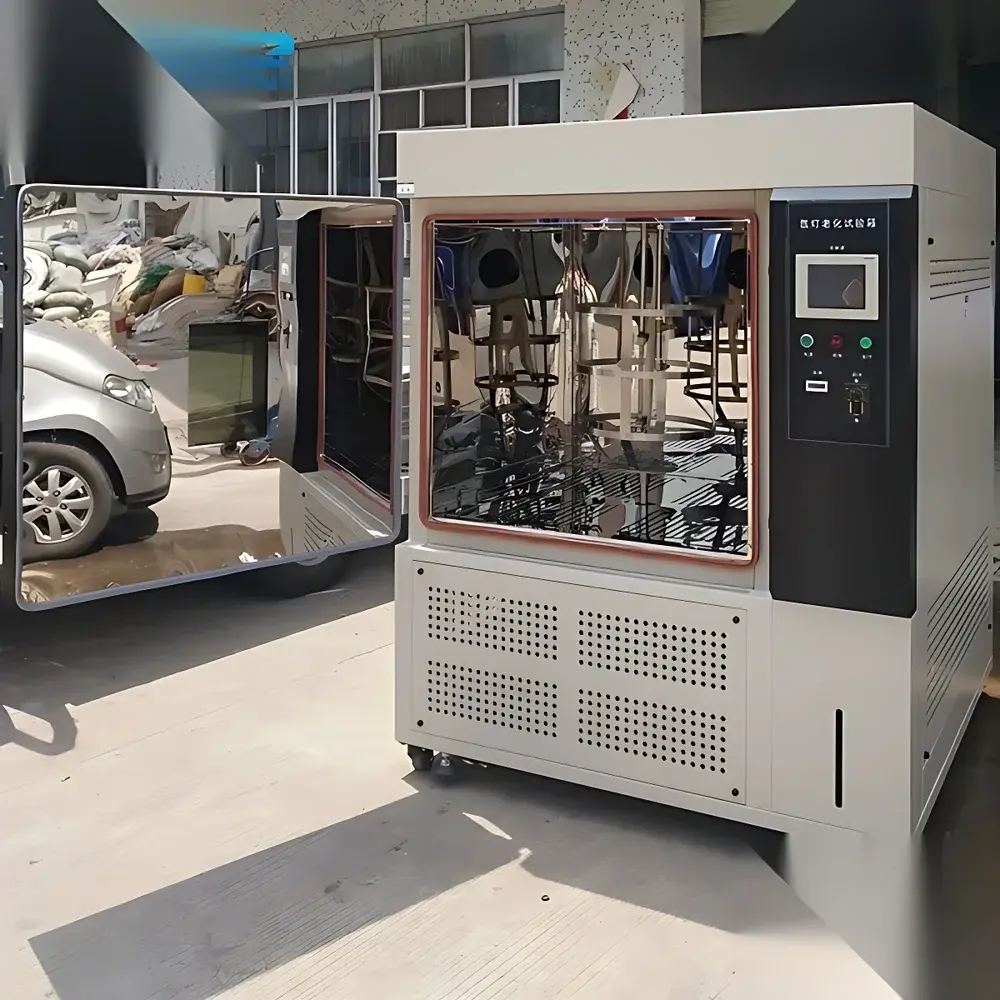

• Flexible sample mounting architecture: standard dual-layer stainless steel mesh trays or optional 500 mm diameter rotating carousel (0–3 rpm) for uniform angular exposure—ideal for irregularly shaped specimens including automotive trim, fabric swatches, and molded plastic parts.
• High-stability optical filtration system with long-life quartz or borosilicate filters ensures spectral consistency over lamp lifetime (~1500 h), minimizing drift in critical UV-B (280–320 nm) and UV-A (320–400 nm) irradiance bands.
• Robust chamber construction using interior SUS304 stainless steel (electropolished finish) and exterior SUS304 or powder-coated structural steel, compliant with IP54 ingress protection standards.

Sample Compatibility & Compliance

The OK-XD Series accommodates diverse material geometries—from flat textile coupons and painted metal panels to 3D automotive components—without requiring custom fixtures in most standard configurations. Its modular internal volume (100 L to 1000 L) supports both small-batch qualification testing and large-scale validation per ISO/IEC 17025-accredited protocols. The system is pre-configured to meet core international weathering standards, including ISO 4892-2 (xenon arc exposure), ASTM D529 (textile colorfastness), GB/T 16422-2 (Chinese national standard for plastics), and GB/T 8427 (textile lightfastness). All control parameters—including irradiance setpoints, temperature ramps, humidity profiles, and spray timing—are fully programmable and auditable, supporting GLP-compliant test execution and FDA 21 CFR Part 11–ready data integrity when paired with validated software.

Software & Data Management

Equipped with a 10.1-inch industrial touchscreen HMI running embedded Linux, the chamber provides intuitive multi-segment test programming, real-time graphing of irradiance, BPT, chamber temperature, and RH, plus automatic event logging (lamp ignition, spray activation, fault triggers). Optional PC-based software enables remote monitoring, report generation (PDF/CSV), and integration with LIMS environments via Modbus TCP or OPC UA. All operational parameters, calibration logs, and user access records are timestamped and stored with tamper-proof audit trails—fully traceable for ISO 9001, IATF 16949, or GMP audits. Firmware updates are delivered via secure HTTPS, maintaining cybersecurity compliance without service interruption.

Applications

• Accelerated lightfastness and color stability testing of dyed textiles, leather, and printing inks per ISO 105-B02 and AATCC TM16.
• Evaluation of UV resistance and gloss retention in automotive clearcoats, dashboards, and exterior trim under SAE J2527 and ISO 11341 protocols.
• Weathering performance validation of architectural coatings, roofing membranes, and PVC window profiles per ASTM D4329 and EN 927-6.
• Photostability assessment of medical device polymers and packaging materials subject to USP <661> and ISO 10993-12 requirements.
• Correlation studies between laboratory xenon exposure and natural outdoor aging (e.g., Florida or Arizona field sites) using established reciprocity models.

FAQ

What spectral filters are included by default, and can they be changed?
Standard configuration includes a daylight filter (CIE D65 equivalent); optional UV-enhanced, extended UV, or window glass filters are available upon request and require recalibration.
Is black panel temperature (BPT) measurement traceable to NIST standards?
Yes—each chamber ships with a factory-calibrated black panel sensor, with optional annual recalibration certificates traceable to NIST SRM 2242 available through authorized service partners.
Can the system operate unattended for extended test durations (e.g., 1000+ hours)?
Yes—the controller supports autonomous operation with built-in safety interlocks, lamp life tracking, and email/SMS alerting for critical faults or maintenance events.
Does the OK-XD Series support automated irradiance feedback control?
Yes—integrated broadband radiometer enables closed-loop irradiance regulation across user-defined wavelength bands (300–800 nm or 300–1200 nm), maintaining setpoint within ±10% tolerance throughout the test.
Are custom chamber dimensions or special sample handling mechanisms available?
Yes—OEM engineering services support application-specific modifications including oversized doors, robotic sample loaders, and multi-zone irradiance mapping for aerospace-grade composites.
