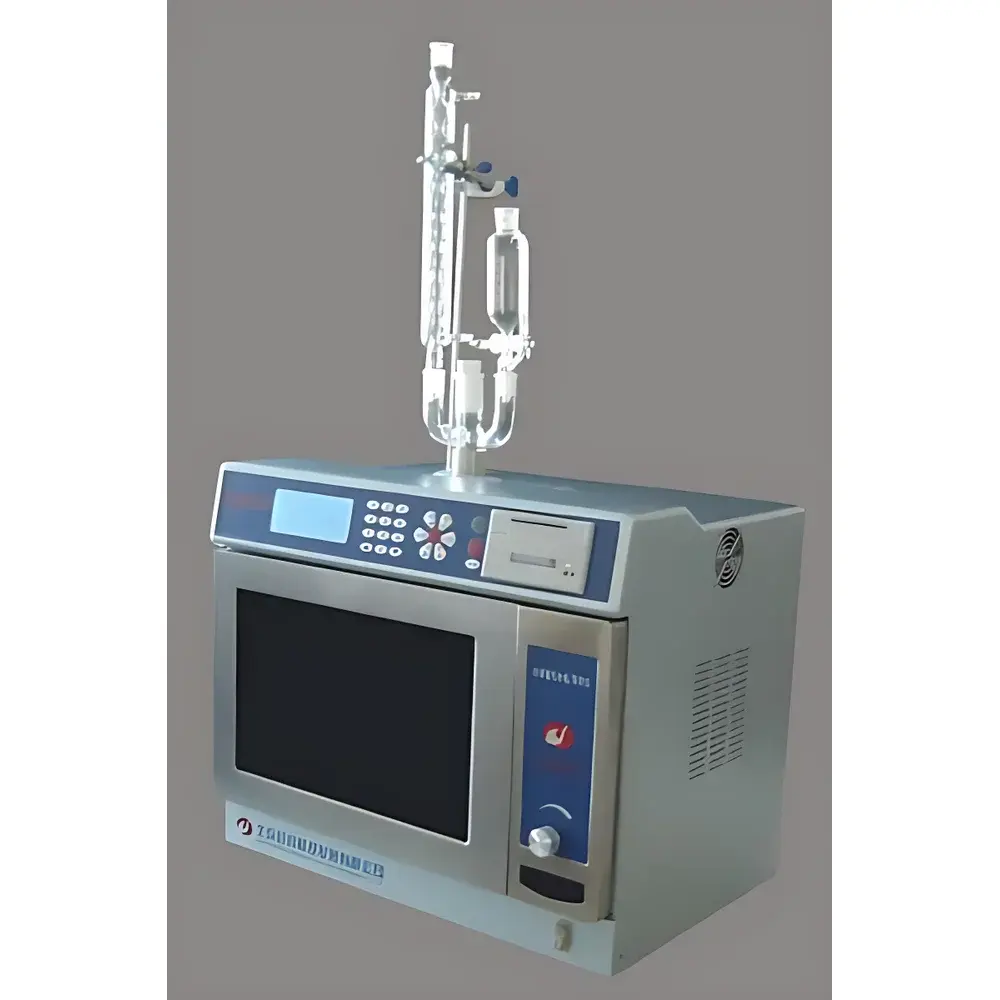

Xianghu XH-100B Computer-Controlled Microwave Synthesizer & Extractor

Overview

The Xianghu XH-100B Computer-Controlled Microwave Synthesizer & Extractor is a dedicated benchtop instrument engineered for precise, reproducible microwave-assisted chemical synthesis and extraction under ambient pressure conditions. Unlike high-pressure sealed-vessel systems, the XH-100B operates at atmospheric pressure, making it especially suitable for open-vessel liquid-phase reactions, solvent-based extractions, catalyst screening, and pedagogical demonstrations where safety, operational simplicity, and rapid method development are prioritized. Its core functionality relies on controlled 2450 MHz microwave irradiation—standard for industrial and laboratory-grade magnetrons—to deliver volumetric heating directly to polar solvents and reagents, thereby accelerating reaction kinetics while minimizing thermal gradients. The system integrates real-time digital temperature monitoring via a calibrated Pt100 sensor immersed in the reaction medium, enabling closed-loop feedback control with ±1 °C stability across the full 0–300 °C range. This architecture supports both kinetic studies and endpoint-controlled protocols without requiring specialized pressure-rated vessels or gas-handling infrastructure.

Key Features

• Computer-interfaced operation with dedicated Windows-based software for parameter programming, real-time data logging, and curve visualization (temperature vs. time, power vs. time)
• Adjustable microwave output (100–850 W) with stepless power modulation for fine-tuned energy delivery during sensitive transformations
• Integrated magnetic stirring mechanism ensuring homogeneous mixing and consistent thermal distribution throughout the 100 mL reaction volume
• Graphical LCD display showing instantaneous temperature, setpoint, microwave power, elapsed time, and system status
• One-touch experimental report generation with timestamped parameters and thermal profiles—exportable as CSV or printable via USB-connected thermal printer
• Rugged stainless-steel cavity with waveguide shielding and interlocked safety door compliant with IEC 61000-6-3 (EMC) and IEC 60335-1 (household appliance safety standards)

Sample Compatibility & Compliance

The XH-100B accommodates standard borosilicate glass or quartz reaction vessels (e.g., 100 mL round-bottom flasks with reflux condensers), enabling compatibility with common organic solvents (e.g., ethanol, DMF, ethylene glycol), aqueous solutions, and heterogeneous catalytic suspensions. As an ambient-pressure platform, it excludes volatile low-boiling solvents unless used with appropriate condensation traps. While not certified for GMP production environments, the instrument supports GLP-aligned workflows through its audit-ready data export, user-accessible calibration logs, and non-volatile parameter storage. It meets essential electromagnetic compatibility (EMC) and electrical safety requirements applicable to laboratory equipment in North America (FCC Part 18), EU (CE marking per 2014/30/EU and 2014/35/EU), and China (CCC certification). No ISO/IEC 17025 accreditation is claimed for the unit itself; however, its traceable temperature control facilitates method validation per ASTM E2847 or USP <1058> guidelines when integrated into validated lab processes.

Software & Data Management

The proprietary XH-Control software provides a secure, single-user interface for defining multi-segment temperature ramps, dwell times, and dynamic power profiles. All experimental sessions are automatically timestamped and stored locally with metadata including operator ID, vessel type, ambient lab temperature, and firmware revision. Data files adhere to UTF-8 encoded CSV format, supporting direct import into MATLAB, Python (pandas), or LIMS platforms. Audit trails record all parameter modifications, start/stop events, and system alerts—retained for ≥90 days unless manually archived. The software does not support FDA 21 CFR Part 11 compliance out-of-the-box (no electronic signatures or role-based access control); however, institutions may implement supplemental IT controls (e.g., network-level authentication, encrypted backups) to meet internal QA requirements.

Applications

• Rapid optimization of transition-metal-catalyzed cross-coupling reactions (e.g., Suzuki, Heck, Buchwald–Hartwig) in academic and industrial discovery labs
• Green chemistry applications: solvent-free or low-solvent syntheses, biomass depolymerization, and plant metabolite extraction (e.g., polyphenols, alkaloids)
• Materials science: preparation of metal–organic frameworks (MOFs), quantum dot precursors, and doped nanomaterials via controlled nucleation
• Undergraduate and graduate teaching: hands-on demonstration of microwave-specific rate enhancement, Arrhenius analysis, and calorimetric estimation of activation energy
• Quality control screening: comparative reaction yield studies across catalyst batches or solvent lots under identical thermal histories

FAQ

Is the XH-100B suitable for high-pressure chemistry?
No. It is strictly an ambient-pressure system. For sealed-vessel high-temperature/pressure synthesis, consider dedicated high-pressure microwave reactors with reinforced cavities and pressure-rated vessels.
Can I use Teflon-lined or PEEK reaction vessels?
Only glass or quartz vessels rated for temperatures up to 300 °C are recommended. Polymers such as PTFE, PEEK, or silicone are not microwave-transparent at full power and may deform or release volatiles.
Does the system include temperature calibration documentation?
Yes—a factory calibration certificate (traceable to NIST-standard Pt100 reference) is supplied with each unit, along with instructions for user-performed verification using a secondary calibrated thermometer.
What maintenance is required for long-term reliability?
Annual inspection of magnetron cooling airflow, waveguide integrity, and stirrer motor torque is advised. Cleaning of cavity interior with isopropanol and lint-free cloth prevents carbon buildup from spilled reagents.
Is remote operation supported via Ethernet or Wi-Fi?
No. Communication is limited to USB 2.0 connection. Network integration requires third-party hardware gateways and custom scripting.
