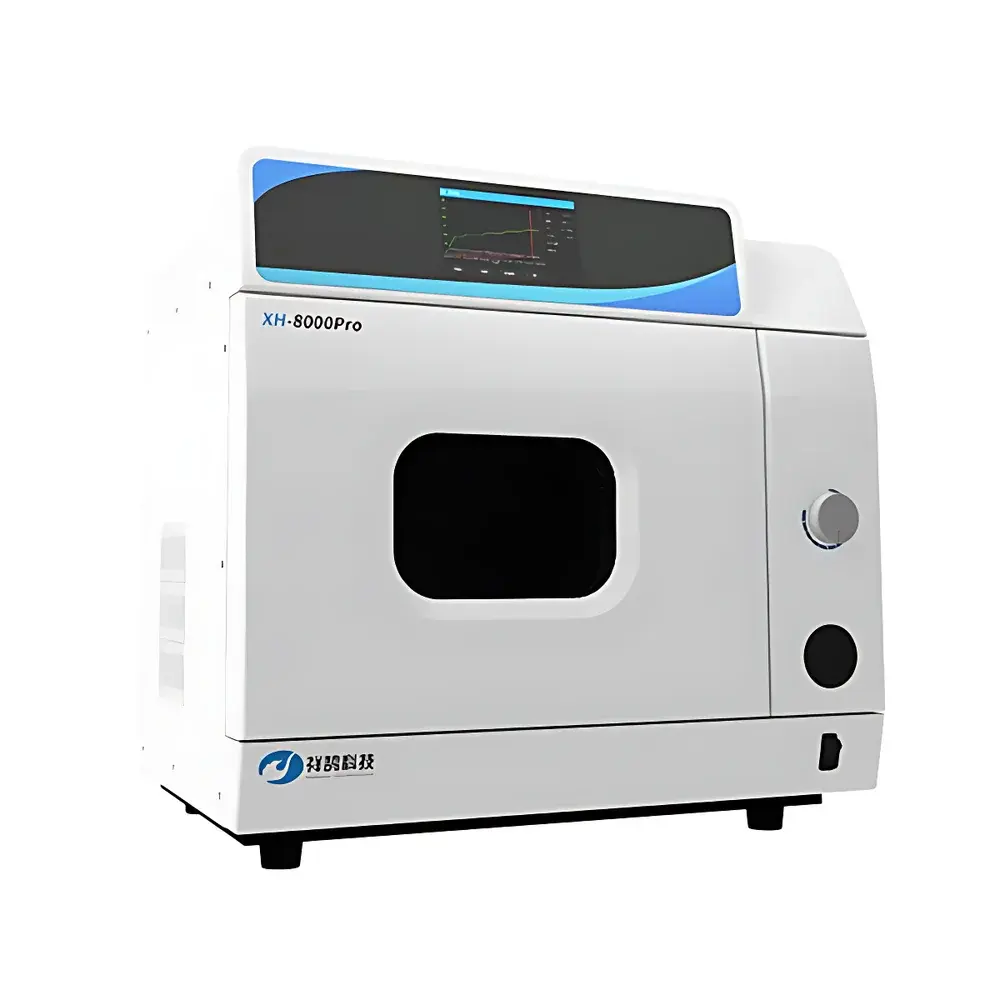

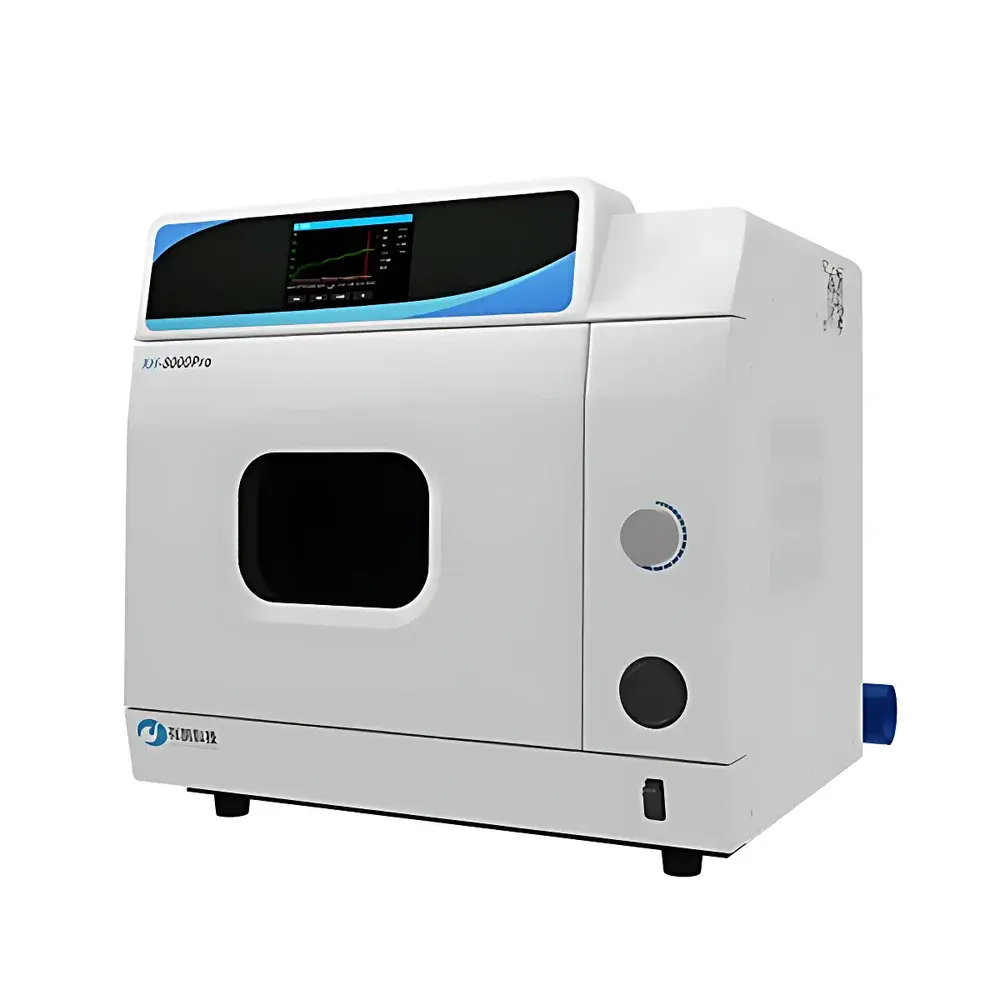

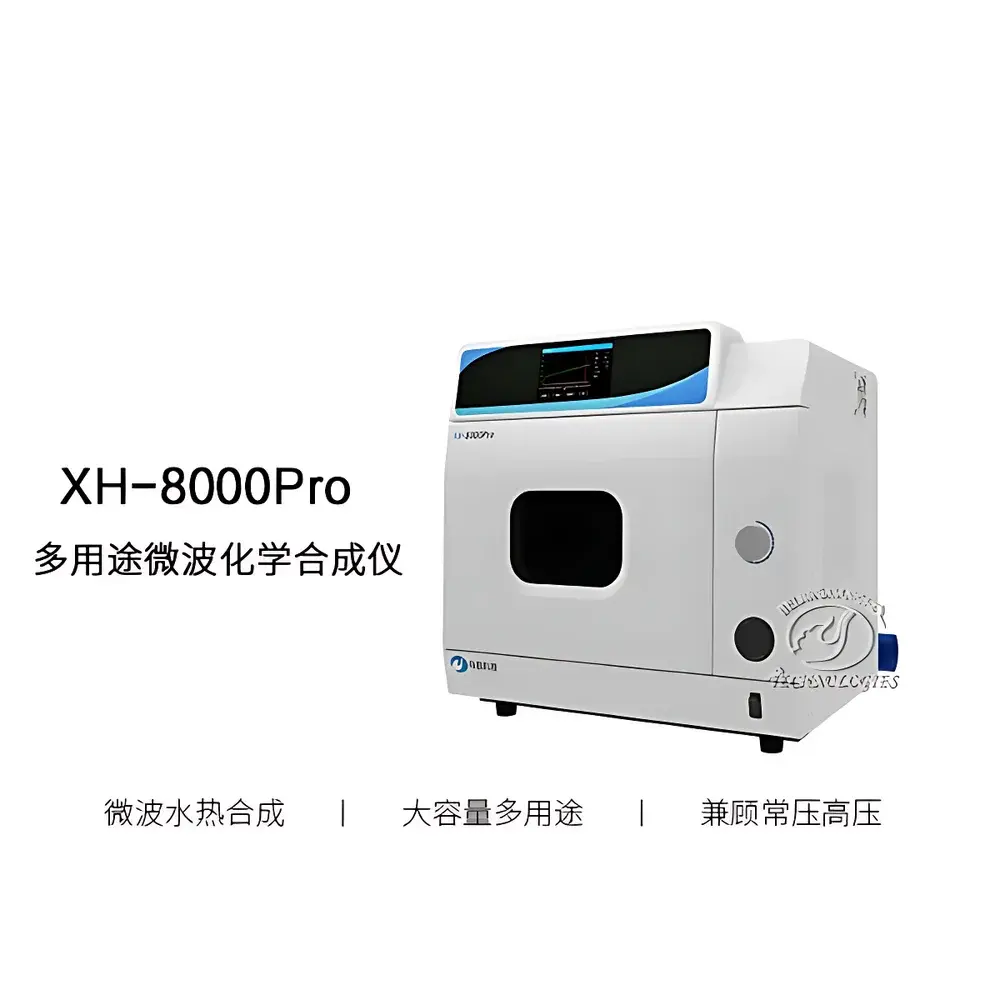

Xianghu XH-8000Pro Multi-Mode Microwave Synthesis System
| Brand | Xianghu |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Category | Multi-Mode Microwave Synthesizer |
| Temperature Range | 0–300 °C |
| Pressure Range | 0–6 MPa |
| Microwave Power Output | 0–1000 W |
| Magnetron Frequency | 2450 MHz |
| Stirring Method | Magnetic Stirring |
| Reaction Vessel Capacity | 10–1000 mL |
| Control Interface | 5-inch Touchscreen (Bilingual: English & Chinese) |
| Safety Certification | Dual Independent Pressure & Temperature Monitoring, Auto-Cooling Protocol, Remote Operation Capability, Real-Time Curve Logging & Playback |
Overview
The Xianghu XH-8000Pro Multi-Mode Microwave Synthesis System is an engineered platform for controlled, reproducible, and scalable chemical synthesis under microwave irradiation. Unlike single-mode cavities optimized for small-volume, high-field homogeneity, the XH-8000Pro employs a multi-mode resonant cavity design—enabling uniform energy distribution across variable vessel geometries and volumes (10–1000 mL). It operates at the industrial-standard magnetron frequency of 2450 MHz, delivering up to 1000 W of adjustable microwave power with closed-loop regulation. The system integrates real-time, dual-sensor monitoring of both temperature (via fiber-optic or shielded Pt100 probe, depending on vessel configuration) and pressure (via piezoresistive transducer), ensuring compliance with fundamental safety requirements for high-temperature/pressure reaction protocols. Designed for academic research laboratories, pharmaceutical process development, and materials science labs, the XH-8000Pro supports rapid method screening, kinetic studies, and optimization of heterocyclic, nanoparticle, and coordination compound syntheses where conventional conductive heating proves inefficient or thermally degradative.
Key Features
- Multi-mode cavity architecture with mode stirrer for enhanced field homogeneity across diverse vessel sizes and shapes
- Independent, simultaneous control of temperature (0–300 °C) and pressure (0–6 MPa) with configurable ramp-hold profiles
- Intelligent adaptive algorithm that dynamically modulates microwave power output to maintain setpoint stability under exothermic or endothermic load variations
- 5-inch capacitive touchscreen interface with bilingual (English/Chinese) firmware, supporting intuitive parameter entry, real-time graphing, and historical data recall
- Integrated magnetic stirring mechanism compatible with standard PTFE- or quartz-lined vessels; speed adjustable from 0–1200 rpm
- Automated post-reaction cooling protocol using forced-air circulation, reducing cooldown time by up to 40% compared to passive dissipation
- Remote operation capability via Ethernet or optional Wi-Fi module, enabling secure access through institutional LANs for GLP-compliant workflow integration
Sample Compatibility & Compliance
The XH-8000Pro accommodates a broad range of reaction vessels—including sealed quartz, borosilicate glass, and reinforced PEEK/PTFE composite reactors—enabling compatibility with corrosive reagents (e.g., HF,浓H₂SO₄), air-sensitive substrates (under inert gas purge), and heterogeneous catalytic systems. All pressure-rated components conform to ASME BPVC Section VIII Division 1 design principles, and the integrated safety interlock system meets IEC 61010-1:2010 requirements for laboratory electrical equipment. Temperature and pressure logging functions support audit-ready traceability in accordance with FDA 21 CFR Part 11 when paired with validated software configurations. While not certified to ISO/IEC 17025 as a standalone measurement instrument, the system is routinely deployed in ISO 9001-certified R&D environments for method development aligned with ASTM E2872 (Standard Guide for Microwave-Assisted Organic Synthesis) and USP <1058> (Analytical Instrument Qualification).
Software & Data Management
The embedded operating system records all critical parameters—microwave power (%), cavity temperature, vessel internal temperature, absolute pressure, stirring speed, and time—at user-defined intervals (default: 1 s resolution). Data are stored locally in CSV format and exportable via USB or network transfer. The system supports timestamped curve replay with overlay functionality for comparative analysis of replicate runs. Optional PC-based software (XH-SynControl v3.x) extends functionality to batch scheduling, statistical process control (SPC) charting, and export to LIMS-compatible formats (e.g., ASTM E1384, ANSI/NIST ITL 11-1). Audit trails include operator ID, parameter changes, alarm events, and calibration timestamps—fully compliant with GLP documentation standards.
Applications
- Rapid synthesis of pharmaceutical intermediates (e.g., Suzuki couplings, SNAr substitutions) with improved regioselectivity and reduced side-product formation
- Hydrothermal and solvothermal preparation of metal–organic frameworks (MOFs), perovskites, and transition metal oxides
- Accelerated esterification, amidation, and cyclization reactions under solvent-free or low-solvent conditions
- Development of nanomaterials including quantum dots, magnetic nanoparticles, and carbon-based catalysts
- Green chemistry workflows emphasizing energy efficiency, reduced E-factor, and shortened reaction cycles per IUPAC Green Chemistry Principles
FAQ
What is the maximum recommended working temperature and pressure for routine use?
The system is rated for continuous operation up to 260 °C and 4 MPa under standard validation protocols; 300 °C and 6 MPa represent absolute safety limits requiring pre-approved risk assessment and vessel-specific qualification.
Does the XH-8000Pro support external temperature probes for direct reaction mixture measurement?
Yes—fiber-optic temperature probes (compatible with electromagnetic fields) can be inserted directly into reaction vessels; calibration against reference thermocouples is recommended prior to GMP-critical applications.
Can the system be integrated into an automated lab platform?
It provides Modbus TCP and RS-485 interfaces for bidirectional communication with PLCs or central lab automation systems, supporting trigger-based start/stop and real-time status polling.
Is method transfer between XH-8000Pro units reproducible?
When vessel geometry, fill volume, and microwave absorption characteristics are matched, inter-unit deviation in time-to-target temperature remains within ±3% under identical power profiles—validated per ASTM E2872 Annex A2.
What maintenance is required for sustained performance?
Biannual inspection of waveguide integrity, magnetron cooling airflow, and pressure sensor zero-drift calibration is advised; no consumable parts beyond standard stir bars and vessel gaskets are specified.
