Xinertel HunterATE Intelligent Manufacturing Automated Test Platform

Overview

The Xinertel HunterATE Intelligent Manufacturing Automated Test Platform is a purpose-built, rack-mountable hardware-software integrated system engineered for high-volume, production-line validation of network forwarding devices—including PON ONUs, enterprise switches, residential gateways, and broadband CPE. Built upon the principles of deterministic traffic generation, real-time packet analysis, and synchronized multi-port stimulus-response measurement, HunterATE implements a modular, slot-based architecture that decouples test scalability from software complexity. Unlike generic protocol analyzers or benchtop traffic generators, HunterATE is architected specifically for manufacturing environments where repeatability, throughput, and integration with factory automation infrastructure are non-negotiable. Its embedded Linux runtime ensures deterministic timing behavior, while its dual-layer control model—hardware-level FPGA-accelerated packet engines paired with application-layer Tcl/Python orchestration—enables precise emulation of real-world network stress conditions across hundreds of concurrent ports.

Key Features

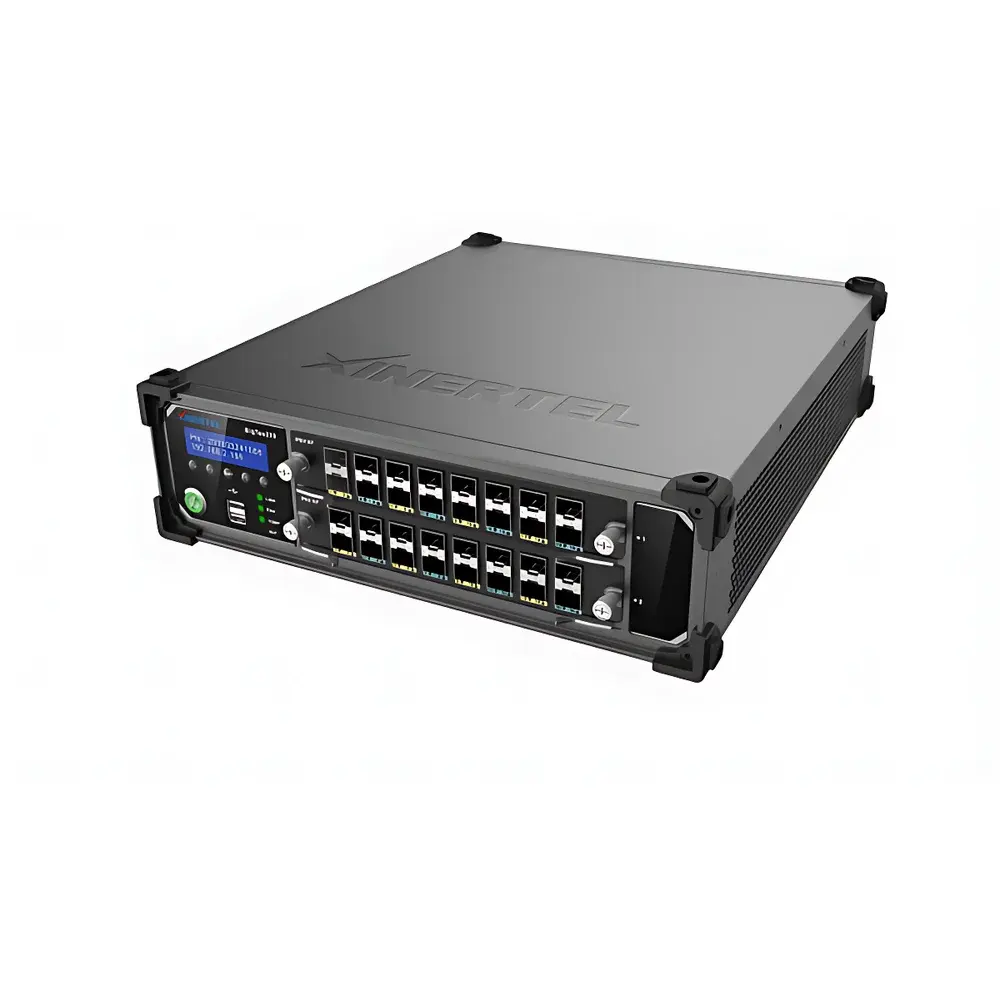

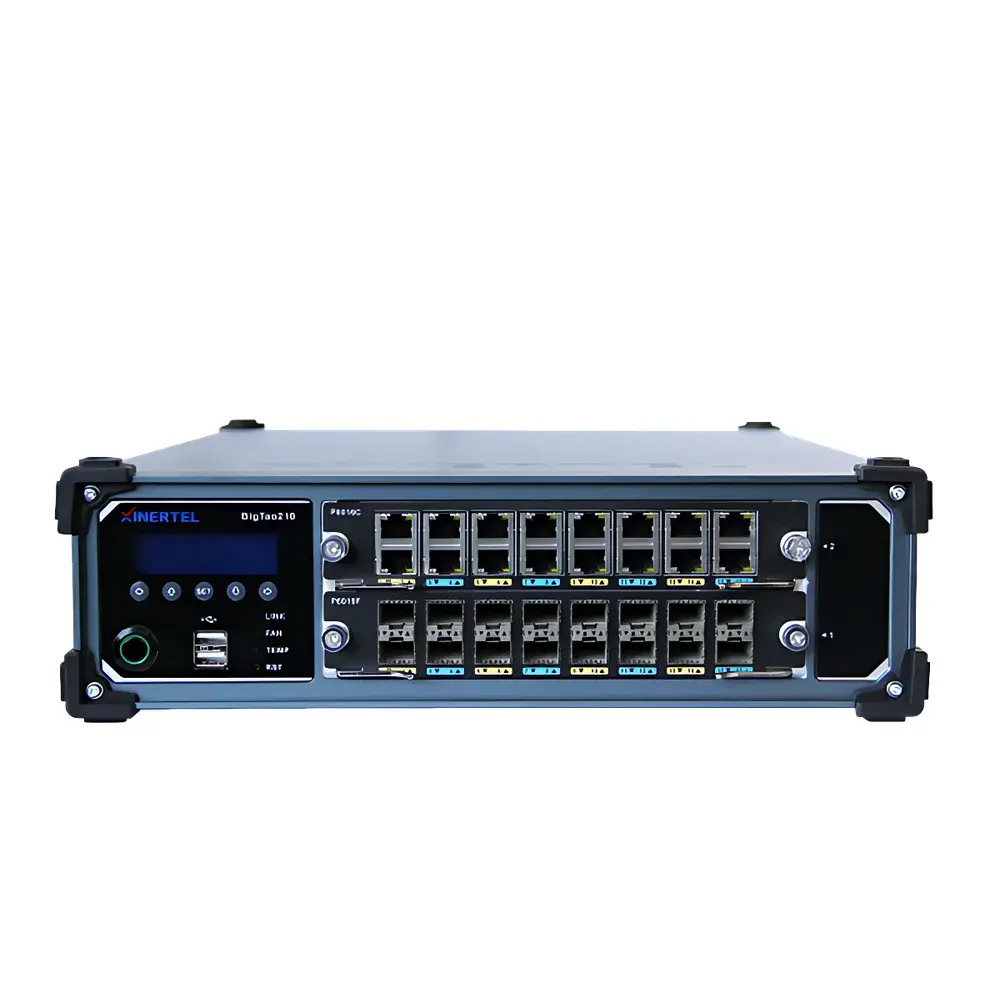

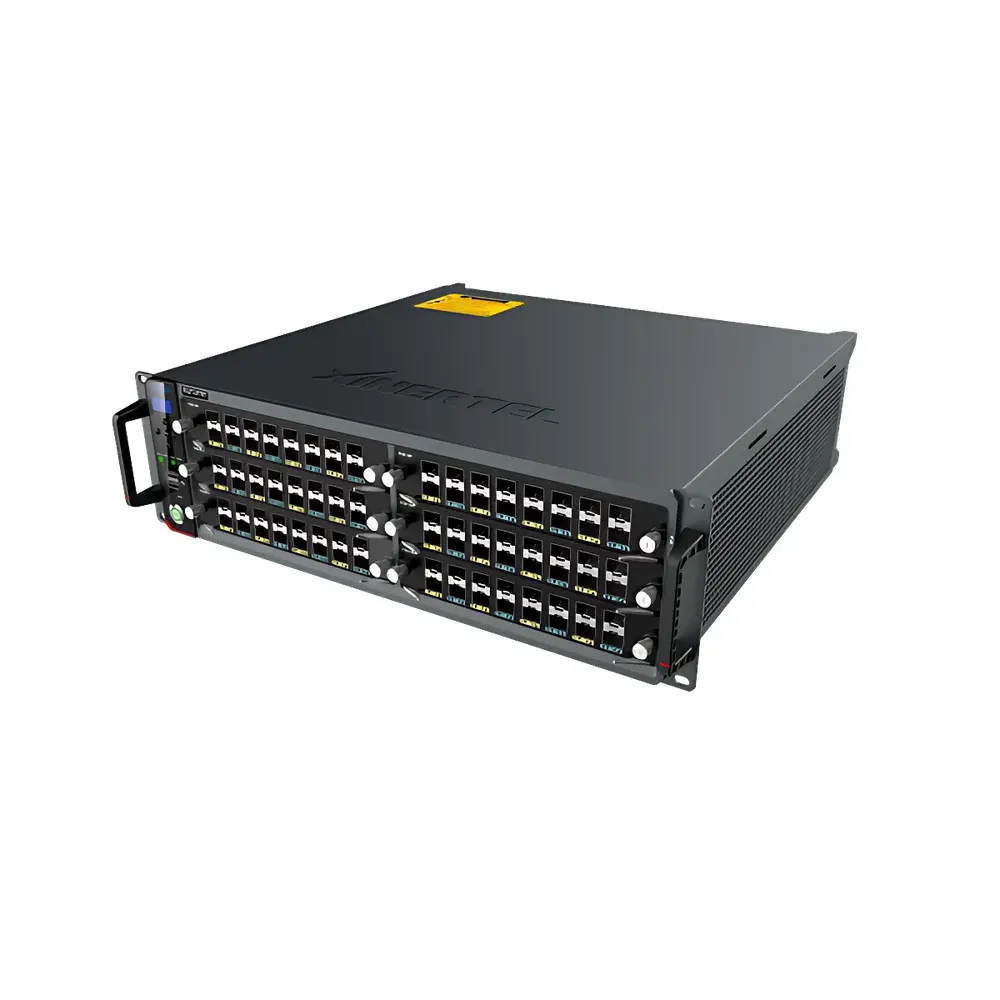

• Modular Scalability: Two chassis variants—BigTao210 (2-slot) and BigTao6100 (6-slot)—support incremental deployment. A fully populated BigTao6100 delivers up to 96 independent Gigabit Ethernet test interfaces, enabling consolidated testing of multiple DUTs per station without port contention.

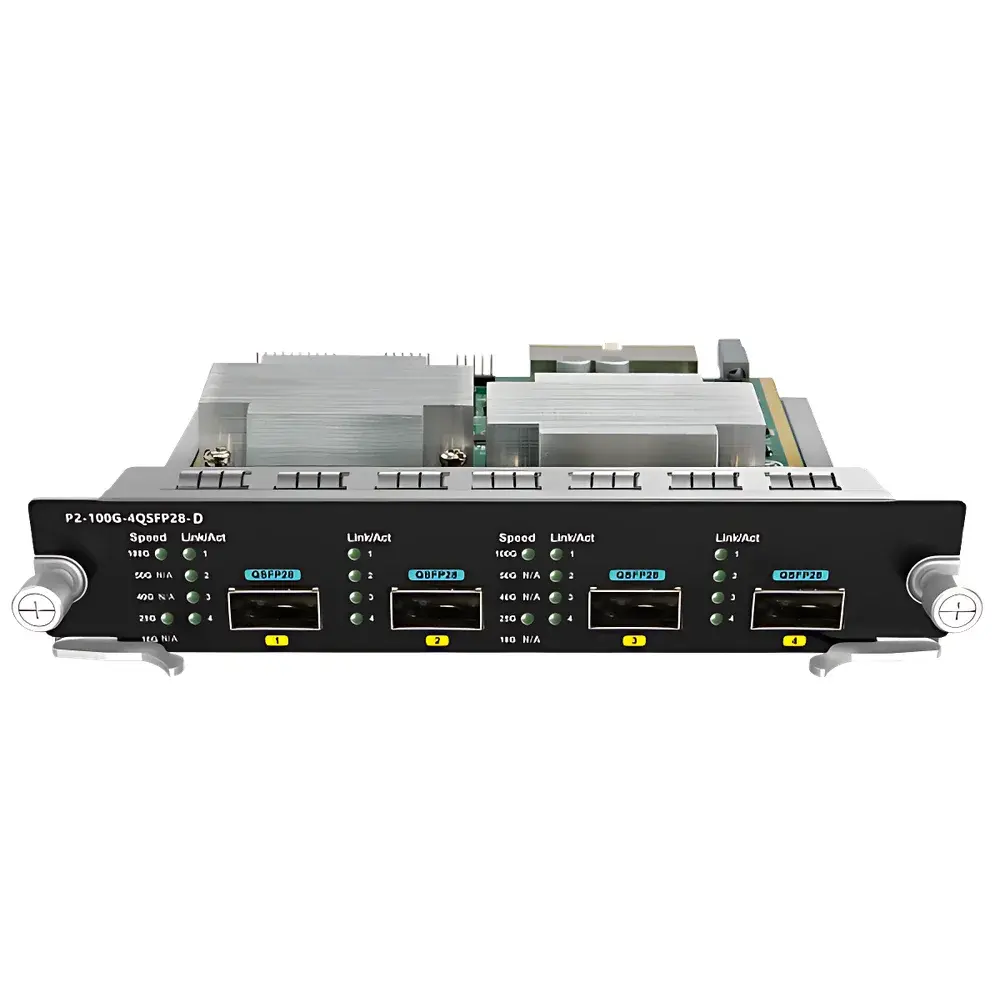

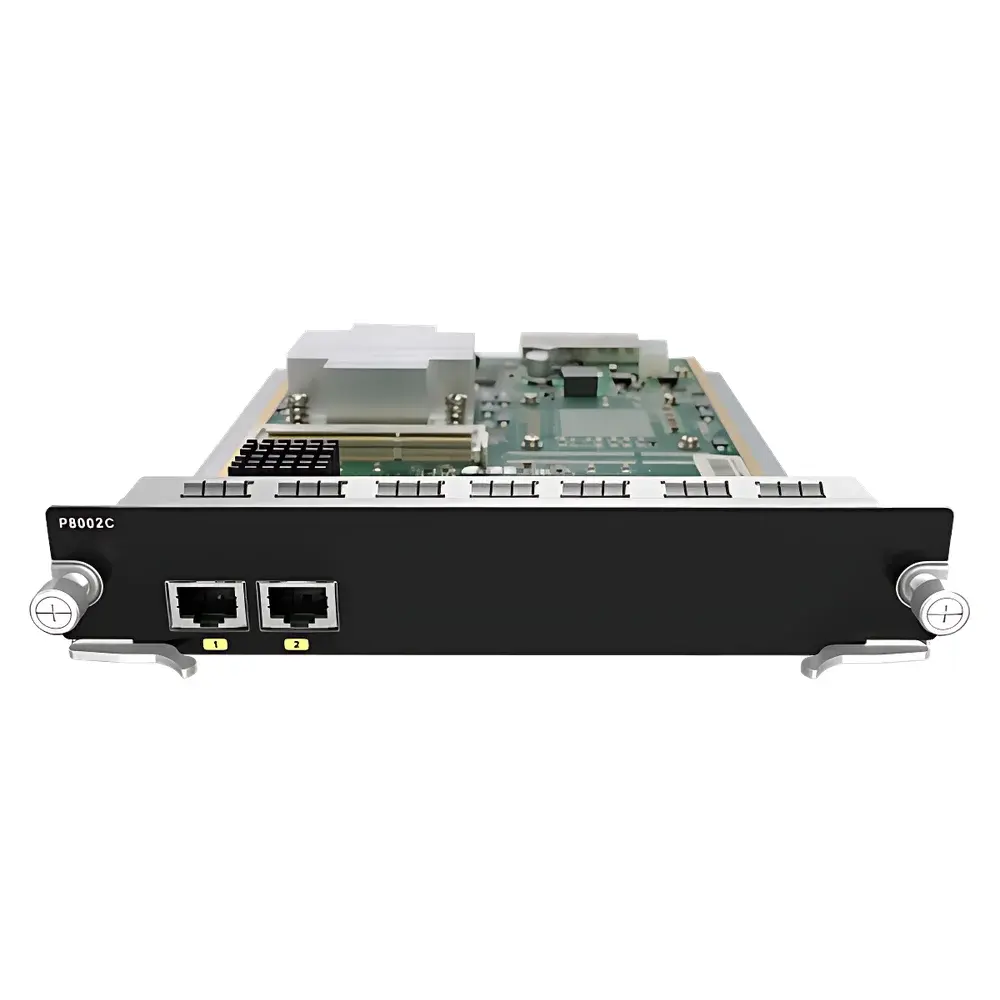

• Multi-Rate Wired Testing: P-series interface modules (P6000, P8000, P2-10G, P2-100G) cover full-speed Layer 2–3 traffic generation and analysis at 1G, 2.5G, 5G, 10G, 25G, 40G, and 100G, compliant with IEEE 802.3 standards and RFC 2544/Y.1564 methodologies.
• Wi-Fi 6 Production Validation: The P6008R module integrates calibrated RF front-end circuitry and real-time MAC-layer instrumentation to measure TX power (dBm), RX frame loss ratio, airtime efficiency, and end-to-end UDP/TCP throughput under controlled channel conditions—without requiring external anechoic chambers or manual antenna alignment.
• RF Coupling Test Capability: The P6016W module operates across 300 MHz–8 GHz, supporting conducted and radiated coupling tests for wireless DUTs. It enables automated calibration of transmit EIRP, receiver sensitivity, and coexistence interference margins—critical for DOCSIS 4.0, Wi-Fi 7 readiness, and multi-radio convergence validation.
• Asynchronous Multi-DUT Execution: TeleATT’s scheduler supports time-sliced, non-blocking test execution across heterogeneous DUTs on shared physical ports, increasing effective test station utilization by up to 3.2× compared to sequential polling models.
• Factory Integration Readiness: Native RESTful API surface, OPC UA-compatible metadata export, and bidirectional MES handshake protocols (e.g., SEMI E10/E11, ISA-95 Level 2) ensure seamless alignment with existing shop-floor control systems and quality data lakes.

Sample Compatibility & Compliance

HunterATE is validated for functional and parametric testing of Layer 2–3 network equipment in accordance with industry-standard conformance criteria. It supports automated execution of test sequences aligned with Telcordia GR-1089-CORE (EMC), FCC Part 15 Subpart B (radiated emissions), and IEEE 802.1AS-2020 (time-sensitive networking). All test logs include immutable timestamps, digital signatures, and audit trails compliant with FDA 21 CFR Part 11 Annex 11 requirements for electronic records in regulated manufacturing. Calibration certificates for RF modules are traceable to NIST standards via CNAS-accredited laboratories. The platform meets ISO/IEC 17025:2017 clause 7.7 for test method validation and supports GLP-compliant reporting templates required for Tier-1 OEM supplier qualification programs.

Software & Data Management

TeleATT—the proprietary production automation software—provides a unified interface for test plan authoring, execution orchestration, pass/fail decision logic, and statistical process control (SPC) dashboarding. Test scripts are authored in industry-standard Tcl or Python, leveraging a comprehensive instrument abstraction layer that eliminates low-level register programming. Each test run generates structured JSON/XML artifacts containing raw metrics (e.g., latency percentiles, jitter histograms, error counters), metadata (DUT serial number, firmware version, operator ID), and environmental context (temperature, voltage rails, fan RPM). These artifacts feed directly into enterprise MES databases or cloud-based analytics platforms via configurable SFTP, MQTT, or HTTP POST pipelines. Role-based access control (RBAC), encrypted configuration backups, and rollback-capable firmware update workflows further reinforce operational integrity.

Applications

• Final functional test (FFT) of ONT/ONU units prior to packaging
• Throughput and QoS validation of managed Layer 3 switches in burn-in stations
• Wi-Fi 6/6E coexistence testing for dual-band mesh routers under dynamic channel switching
• Automated verification of TR-069/TR-369 ACS interoperability during firmware provisioning
• Regression testing of security features (e.g., MAC ACL enforcement, DoS mitigation) across firmware revisions
• Yield analysis and defect root-cause correlation using multivariate test metric clustering

FAQ

Does HunterATE support third-party instrument integration (e.g., power supplies, thermal chambers)?
Yes—via SCPI-over-TCP and Modbus TCP drivers embedded in TeleATT; custom drivers can be developed using the published SDK.
Can test results be exported in formats compatible with JMP or Minitab for SPC analysis?
All raw and aggregated metrics are natively exported as CSV, Parquet, or HDF5 files with column headers conforming to ASQ C1-2022 statistical reporting conventions.
Is remote firmware update capability available over secure out-of-band management?
Yes—BigTao chassis include a dedicated 100BASE-TX management port supporting TLS 1.3-encrypted firmware upgrades and rollback-safe dual-image storage.
How does HunterATE handle clock synchronization across distributed test nodes?
The chassis integrate IEEE 1588v2 (PTP) grandmaster clocks with sub-100 ns precision; optional GPS-disciplined oscillators provide long-term stability traceable to UTC(NIST).
Are calibration certificates provided with RF modules, and what is the recommended recalibration interval?
Each P6008R and P6016W module ships with a CNAS-accredited certificate valid for 12 months; recalibration is advised annually or after 2,000 operational hours, whichever occurs first.
