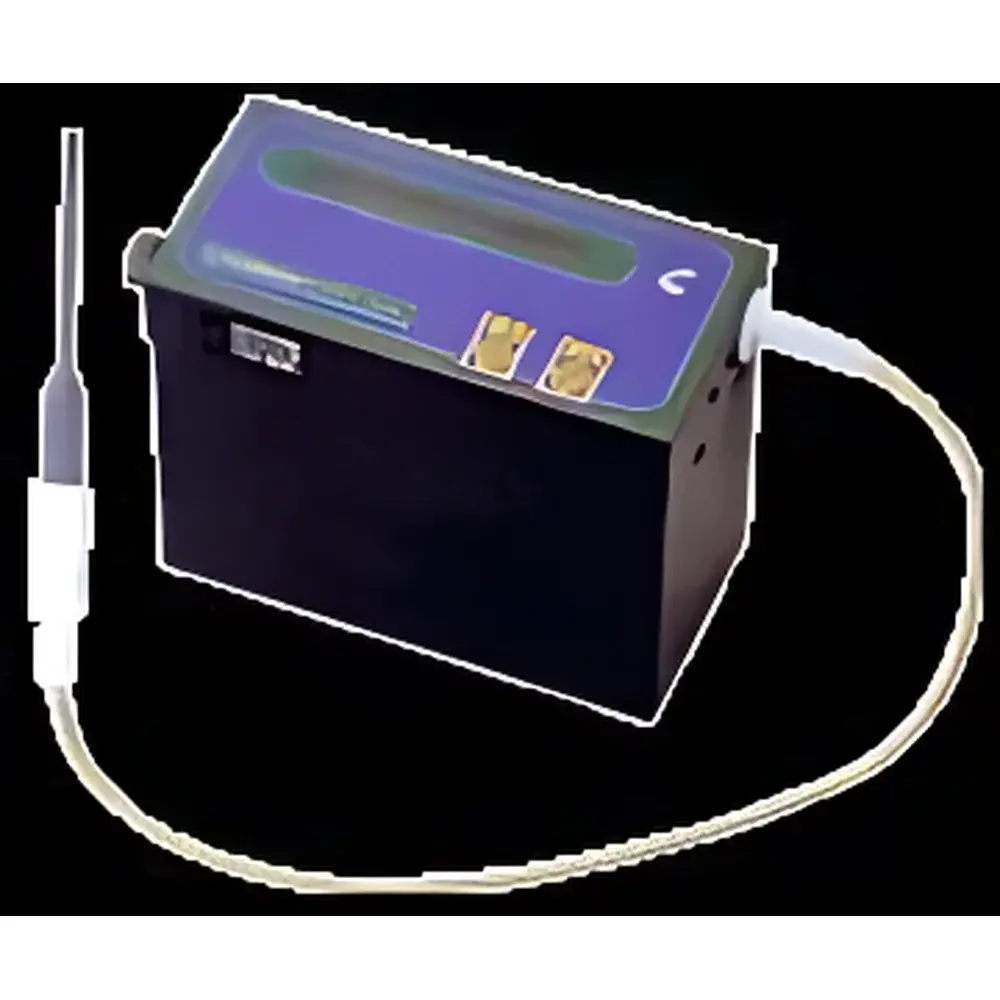

XP-308II Formaldehyde Analyzer by New Cosmos (Japan)

Overview

The XP-308II Formaldehyde Analyzer is a portable, field-deployable electrochemical gas detection instrument engineered for reliable, real-time quantification of formaldehyde (HCHO) vapor in ambient air and indoor environments. Designed and manufactured under strict quality control standards in Japan by New Cosmos Electric Co., Ltd., this analyzer employs a highly selective electrochemical sensor cell calibrated specifically for formaldehyde — minimizing cross-sensitivity to common interferents such as ethanol, acetaldehyde, carbon monoxide, and nitrogen dioxide. Its operational principle relies on the amperometric measurement of current generated during the oxidation of formaldehyde at the working electrode surface, proportional to gas concentration within the 0.00–3.00 ppm range. The device meets fundamental requirements for occupational hygiene monitoring per JIS T 8201 and aligns with sampling protocols referenced in ISO 16000-23 (Indoor air — Determination of formaldehyde — Active sampling method using sorbent tubes followed by HPLC analysis), serving as a rapid screening tool prior to laboratory-grade validation.

Key Features

• Electrochemical sensor with built-in interference-rejection filter — significantly reduces false positives from volatile organic compounds (VOCs) and combustion byproducts.
• On-site zero calibration capability — eliminates dependency on external zero-air sources; enables immediate recalibration directly in the measurement environment.
• Dual-mode display interface: high-contrast digital numeric readout complemented by a dynamic bar-graph scale for intuitive trend assessment.
• Active sampling system featuring an integrated micro-pump with adjustable flow rate — ensures consistent sample delivery across varying pressure and humidity conditions.
• Flexible power architecture supporting both rechargeable Ni-MH battery operation (up to 10 hours continuous use) and AC adapter input — suitable for extended field surveys or fixed-location monitoring.
• Robust, ergonomic housing compliant with IP54 ingress protection — resistant to dust and water splashes during routine industrial or building inspection tasks.

Sample Compatibility & Compliance

The XP-308II is optimized for gaseous formaldehyde detection in non-condensing, non-corrosive air samples at temperatures between 0–40 °C and relative humidity up to 90% RH (non-condensing). It is not intended for use in explosive atmospheres (ATEX/IECEx zones) or in environments containing high concentrations of sulfur-containing gases, chlorine, or strong oxidizers that may poison the sensor. While not a primary compliance instrument for regulatory reporting under OSHA PEL (0.75 ppm TWA) or WHO guidelines (0.1 ppm 30-min average), it supports preliminary exposure assessment workflows aligned with ANSI/ASHRAE Standard 62.1 and Japanese Industrial Standards (JIS) for indoor air quality evaluation. Data logging functionality satisfies basic GLP documentation needs when paired with optional PC software and thermal printer accessories.

Software & Data Management

The analyzer supports data export via RS-232 serial interface to Windows-based configuration and reporting software (sold separately). Logged measurements include timestamp, concentration value, and pump status — enabling traceable record generation for internal QA audits. Optional thermal printer attachment allows hard-copy output of real-time readings or batch summaries. Though the device itself does not incorporate FDA 21 CFR Part 11-compliant electronic signatures or audit trails, its data structure is compatible with validated third-party LIMS integration when deployed in controlled environments under documented SOPs.

Applications

• Indoor air quality (IAQ) assessments in residential, commercial, and educational buildings post-renovation or furniture installation.
• Occupational health monitoring in laboratories, manufacturing facilities, and textile processing plants where formaldehyde-based resins are handled.
• Verification of off-gassing performance in low-emission building materials and composite wood products (e.g., particleboard, MDF).
• Field validation of HVAC system effectiveness in reducing formaldehyde accumulation in sealed spaces.
• Educational demonstrations of VOC detection principles and environmental chemistry concepts in university teaching labs.

FAQ

What is the expected service life of the electrochemical sensor?
The standard sensor has a typical functional lifespan of 24 months under normal operating conditions; replacement is recommended annually for mission-critical applications or after exposure to extreme contaminant loads.
Can the XP-308II be used for continuous unattended monitoring?
No — it is designed for intermittent spot-checking and short-term survey work. For fixed-position continuous monitoring, consider wall-mounted analyzers with 4–20 mA output and relay alarms.
Does the device require periodic factory recalibration?
Yes — annual verification and adjustment against NIST-traceable formaldehyde gas standards are advised to maintain measurement integrity per ISO/IEC 17025 guidance.
Is the instrument certified for use in EU markets?
It carries CE marking under the EMC Directive 2014/30/EU and RoHS 2011/65/EU, but lacks UKCA or specific PED certification for hazardous area deployment.
How does the built-in filter improve selectivity?
The proprietary chemical filter layer pre-scrubs incoming air to adsorb or catalytically convert common interferents before they reach the sensing electrode, thereby enhancing formaldehyde-specific response fidelity.
