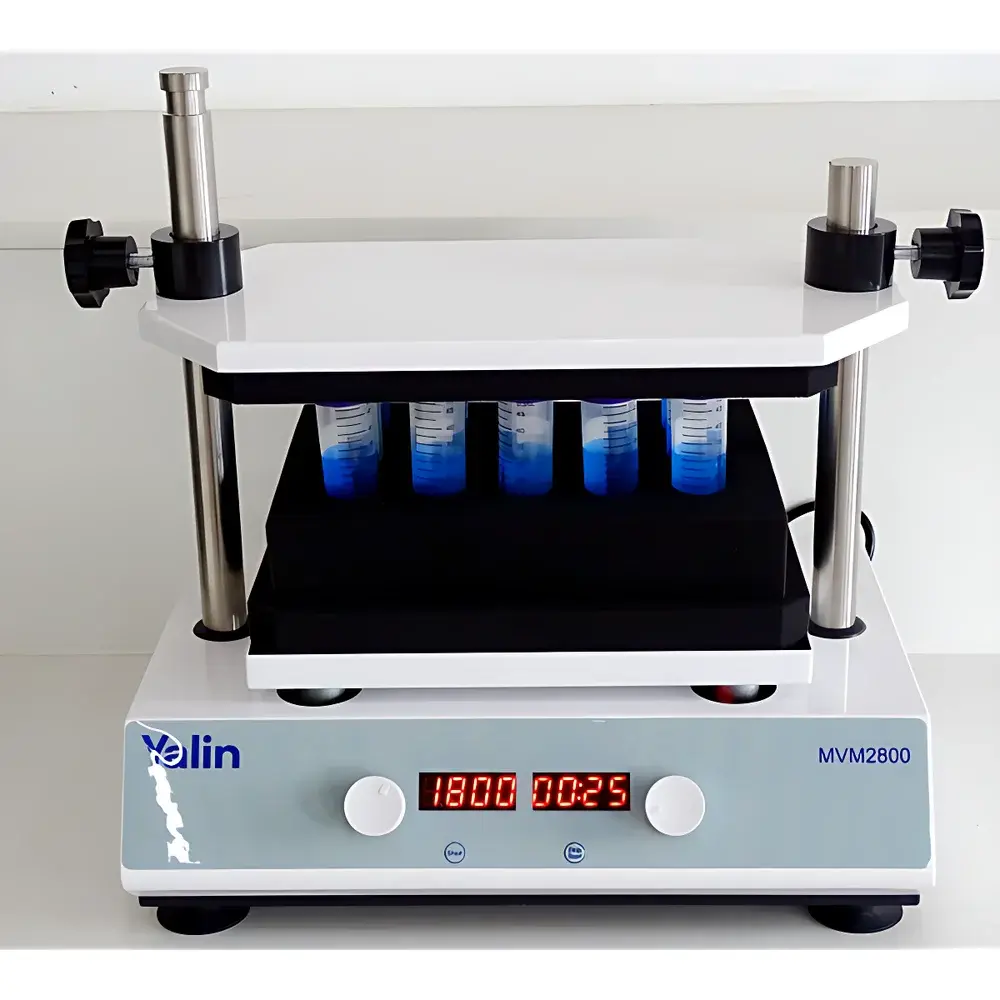

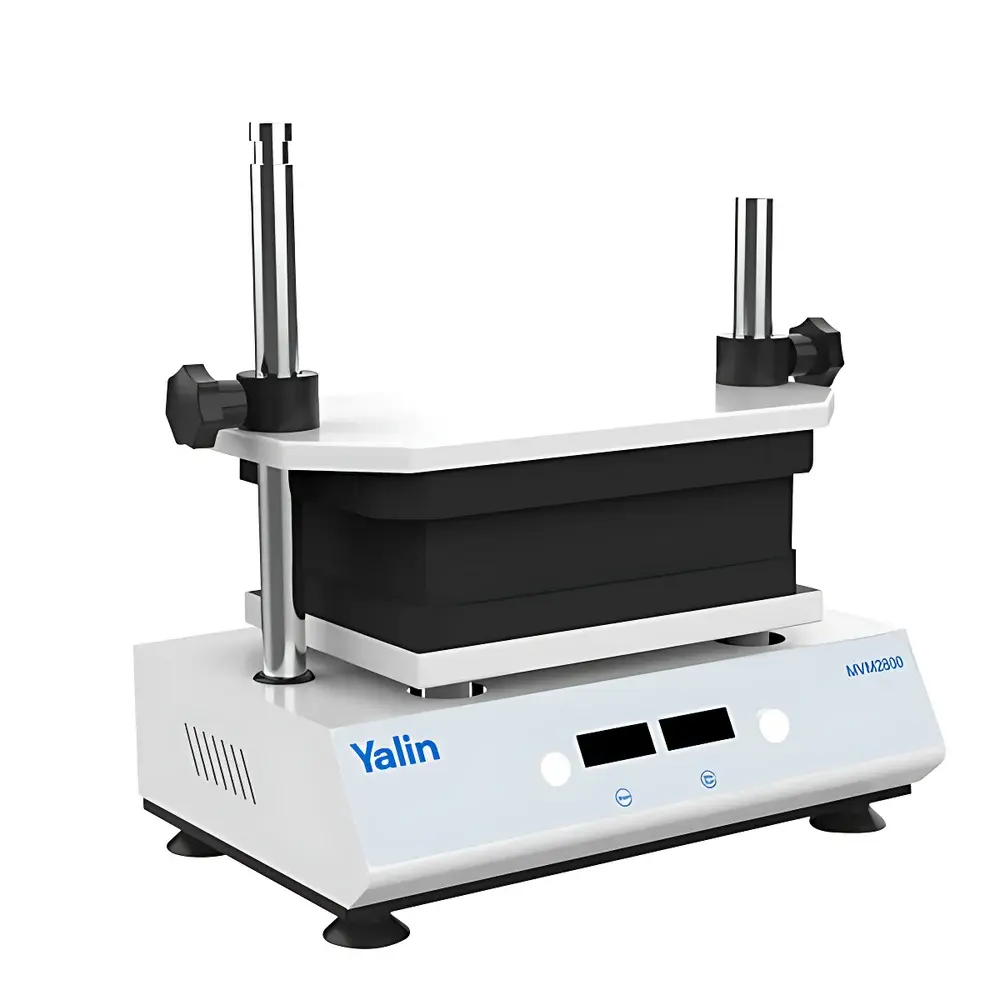

Yalin MVM2800 Digital Multi-Tube Vortex Mixer

Overview

The Yalin MVM2800 Digital Multi-Tube Vortex Mixer is an engineered solution for high-throughput sample homogenization in modern molecular biology, clinical diagnostics, and quality control laboratories. Designed around a robust brushless DC motor architecture, the MVM2800 delivers consistent horizontal circular orbital motion with a precisely controlled 4 mm amplitude—optimized to induce efficient vortex formation without splashing or tube displacement. Unlike single-tube vortexers, the MVM2800 accommodates up to 50 samples simultaneously across six interchangeable rack configurations (VM801–VM806), supporting standard microcentrifuge tubes (1.5–2 mL), conical tubes (5–15 mL and 50 mL), and custom-diameter vessels (Ø9–Ø32 mm). Its operating principle relies on mechanical resonance transfer from a dynamically balanced eccentric drive shaft to the platform, generating uniform shear forces across all loaded positions. This design ensures high reproducibility between runs and eliminates positional bias—a critical requirement for applications governed by ISO/IEC 17025 or CLIA-compliant workflows.

Key Features

• Brushless DC motor with 100 W nominal output: Ensures maintenance-free operation, extended service life (>20,000 h MTBF), and stable torque delivery across the full 500–2800 rpm speed range
• Dual LED digital display: Simultaneously shows real-time rotational speed (rpm) and remaining timer duration (hh:mm:ss format), enabling precise protocol adherence
• Three operational modes: Continuous run, momentary touch-start (ideal for intermittent mixing of sensitive samples), and programmable timed operation (1 minute to 99 hours 59 minutes)
• Intelligent soft-start algorithm: Gradually ramps up rotational velocity over 0.8 seconds to prevent liquid ejection, cap loosening, or tube tipping—particularly beneficial for low-volume or viscous samples
• IP21-rated enclosure: Provides protection against vertically falling drips and solid objects ≥12.5 mm, suitable for general laboratory benchtop use under controlled environmental conditions (5–40 °C, ≤80% RH)
• Modular rack system: Six certified tube holders (VM801–VM806) allow rapid reconfiguration for diverse vessel geometries; all racks are precision-machined from chemical-resistant polymer and feature anti-slip grooves

Sample Compatibility & Compliance

The MVM2800 supports routine compliance with analytical procedures requiring mechanical homogenization prior to downstream processing—including ASTM D4097 (polymer dispersion testing), USP <711> (dissolution media mixing), and ISO 15195:2018 (clinical laboratory equipment validation). Its standardized rack interface ensures traceable fitment for globally recognized tube formats: 1.5/2.0 mL microtubes (VM802), 5/15 mL conicals (VM803), and 50 mL centrifuge tubes (VM806). All racks undergo dimensional verification per ISO 8573-1 for repeatability of centering force. The device itself does not require calibration certification but is compatible with GLP/GMP audit documentation protocols when paired with validated SOPs and logbook entries for speed/timer settings, rack configuration, and daily performance checks.

Software & Data Management

As a standalone electromechanical instrument, the MVM2800 operates without embedded firmware or network connectivity. All parameter inputs—speed setpoint and timer duration—are entered manually via tactile membrane buttons and retained in volatile memory only during active operation. No data logging, USB export, or remote control capability is implemented, aligning with IEC 61000-6-2/6-4 immunity standards for electromagnetic compatibility in shared lab environments. For regulated environments requiring electronic records, users may integrate the MVM2800 into broader LIMS or ELN ecosystems via external time-stamped video monitoring or manual entry of run parameters into validated electronic notebooks compliant with FDA 21 CFR Part 11 requirements.

Applications

• Molecular biology: Resuspension of lyophilized DNA/RNA pellets, mixing PCR master mixes, homogenizing bacterial cell lysates prior to centrifugation
• Clinical labs: Uniform blending of whole blood samples for hematocrit analysis, anticoagulant mixing in EDTA/K2EDTA tubes, serum separation preparation
• Pharmaceutical QC: Dissolution medium agitation per USP apparatus II auxiliary protocols, excipient dispersion in suspension formulations
• Environmental testing: Extraction buffer homogenization for soil/water matrices prior to heavy metal analysis (EPA Method 3050B)
• Academic research: High-throughput sample prep for ELISA plate loading, bead-based immunoassays, and nanoparticle dispersion studies

FAQ

Is the MVM2800 suitable for use with sealed tubes containing volatile solvents?
Yes—provided tubes are rated for internal pressure buildup and caps are fully tightened. The 4 mm orbital motion minimizes cavitation and vapor release compared to vertical shakers.
Can the timer be paused mid-run?
No—the timer is non-interruptible once initiated. To pause mixing, users must stop the unit manually and restart with a new timer setting.
Does the MVM2800 include CE or UL certification?
The device complies with IEC 61010-1:2010 safety requirements for laboratory electrical equipment and carries China Compulsory Certification (CCC); CE marking is available upon request for EU-distributed units with accompanying DoC.
What maintenance is required for the brushless motor?
None—brushless DC motors contain no consumable brushes or lubrication points. Routine cleaning of the platform and rack surfaces with 70% ethanol is recommended between uses.
Are replacement racks available separately?
Yes—VM801 through VM806 racks are orderable as spare parts with individual part numbers and serialized calibration certificates for traceability in regulated labs.
