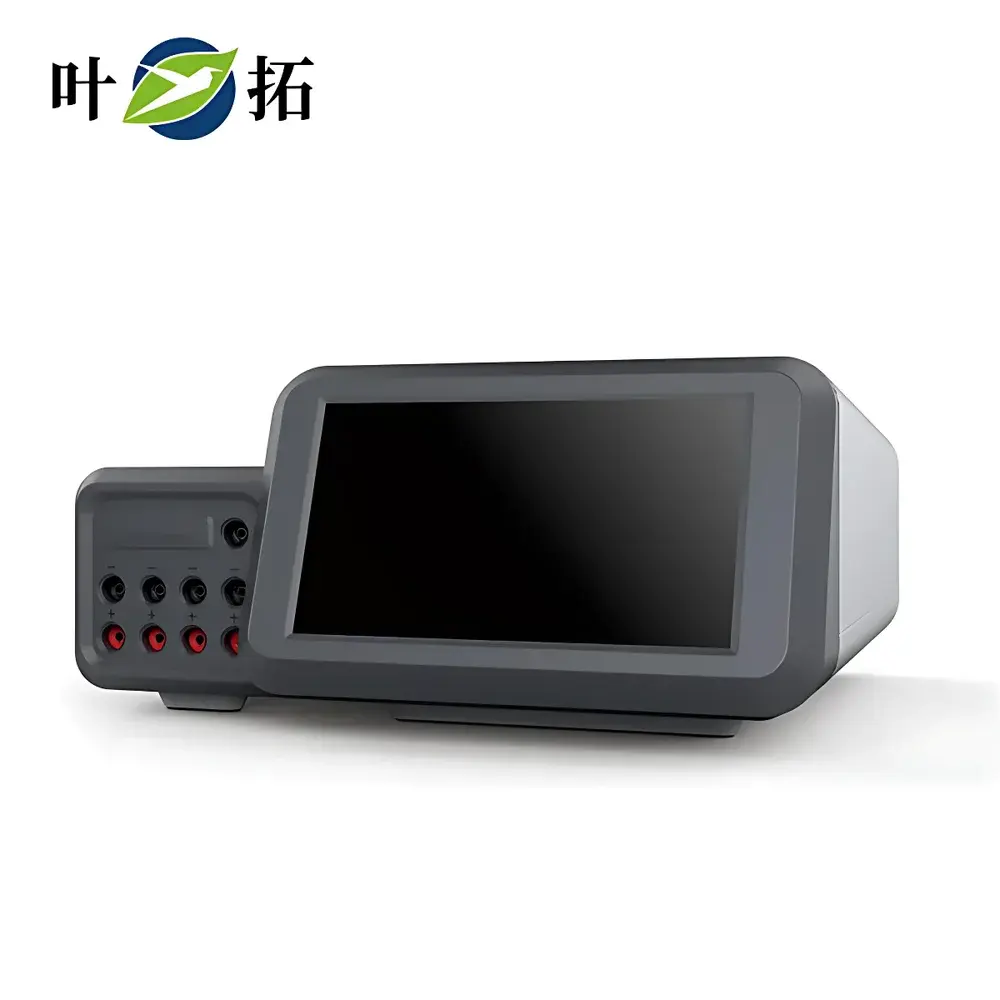

Yetuo DYY-6D Electrophoresis Power Supply

Overview

The Yetuo DYY-6D Electrophoresis Power Supply is a programmable, multi-mode DC power source engineered for precision control in analytical and preparative electrophoretic separations. It operates on the fundamental principle of applying a stable, adjustable electric field across electrophoresis matrices—including agarose, polyacrylamide, and SDS-PAGE gels—to drive charged biomolecules (DNA, RNA, proteins, peptides) at rates proportional to their charge-to-mass ratio and conformational resistance. Designed for laboratory environments requiring flexibility across diverse electrophoretic techniques—such as nucleic acid genotyping (SSR), protein electrophoresis, Western blot transfer (electroblotting), two-dimensional gel electrophoresis (2D-PAGE), and isoelectric focusing (IEF)—the DYY-6D delivers consistent output stability under variable load conditions. Its universal input range (110–250 V AC) enables seamless deployment in both North American and European mains environments without external voltage converters.

Key Features

• Triple-output mode selection: user-selectable constant voltage (CV), constant current (CC), or constant power (CP) operation—each with real-time feedback and closed-loop regulation.
• 7-inch high-resolution capacitive touchscreen interface supporting intuitive navigation, multi-level parameter entry, and visual status monitoring (including live temperature readout from internal thermal sensors).
• Four independent DC output channels—enabling simultaneous operation of up to four electrophoresis tanks with individual parameter assignment and isolation.
• Programmable multi-step protocols: store up to 10 complete methods, each comprising up to 10 sequential steps with independent voltage, current, power, and timer settings per step.
• Comprehensive safety architecture: hardware-enforced protection against overcurrent, short circuit, open-circuit (no-load), thermal runaway (>85 °C), and abrupt load transients—ensuring instrument longevity and experimental reproducibility.
• Post-timer microcurrent hold function: maintains a user-defined low-current output (e.g., 0.1–5 mA) after countdown completion to prevent sample diffusion or gel drying during unattended overnight runs.

Sample Compatibility & Compliance

The DYY-6D supports standard electrophoresis formats used across academic, clinical, and industrial life science laboratories—including mini-gel systems (e.g., Bio-Rad Mini-PROTEAN, Thermo Fisher Owl E1, Cleaver Scientific HE), large-format horizontal and vertical slab gels, and semi-dry and wet transfer units. Its output specifications align with common requirements defined in ISO 13485–aligned quality systems and are compatible with GLP-compliant documentation workflows when paired with external logging software. While not certified to IEC 61010-1 Annex BB (electrophoresis-specific supplement) out-of-the-box, its electrical isolation, creepage/clearance design, and protective earth continuity meet baseline Class I safety requirements for laboratory-grade DC power supplies operating below 1000 V.

Software & Data Management

The DYY-6D operates as a standalone instrument with no proprietary PC software dependency; all method configuration, execution, and parameter review occur via the embedded touchscreen UI. Protocol data—including stepwise setpoints, actual measured outputs, elapsed time, and thermal sensor logs—are retained in non-volatile memory and accessible for manual verification. For integration into regulated environments (e.g., FDA-regulated QC labs), users may employ third-party audit-trail-capable data acquisition tools connected via RS-232 or USB-to-serial adapters (cable not included) to capture timestamped output telemetry. The device supports basic CSV export via USB flash drive for offline analysis in Excel or Python-based validation scripts.

Applications

• Nucleic acid analysis: routine agarose gel electrophoresis for PCR product verification, restriction digest profiling, and SSR marker screening.
• Protein characterization: SDS-PAGE for molecular weight estimation, native PAGE for oligomeric state assessment, and 2D-PAGE for proteomic mapping.
• Electrotransfer: controlled semi-dry and wet blotting of proteins from gels to PVDF or nitrocellulose membranes with optimized current ramping to minimize overheating.
• Isoelectric focusing: precise voltage ramping and stabilization required for narrow-range IPG strip focusing (pH 3–10).
• Method development: iterative optimization of run conditions (e.g., voltage gradient, current ceiling, power-limited ramping) for novel matrix formulations or custom electrophoresis chambers.

FAQ

Does the DYY-6D support remote control via USB or Ethernet?
No—remote command interface is not implemented. All operation is local via touchscreen or front-panel controls.
Can the DYY-6D be used with high-voltage applications such as capillary electrophoresis?
No—it is rated for maximum 600 V DC output and is not designed for kV-range capillary systems.
Is calibration traceable to NIST or other national standards?
The unit ships with factory calibration documentation; end-user recalibration requires qualified service personnel using calibrated multimeters and electronic load banks.
What is the accuracy specification for voltage and current outputs?
Per manufacturer documentation: ±2% of full scale for voltage and current across operating ranges, verified at 25 °C ambient.
Are replacement fuses or service manuals available directly from Yetuo?
Yes—authorized distributors provide technical bulletins and OEM-specified fuse kits (type: T3.15A/250V, 5×20 mm) upon request.
