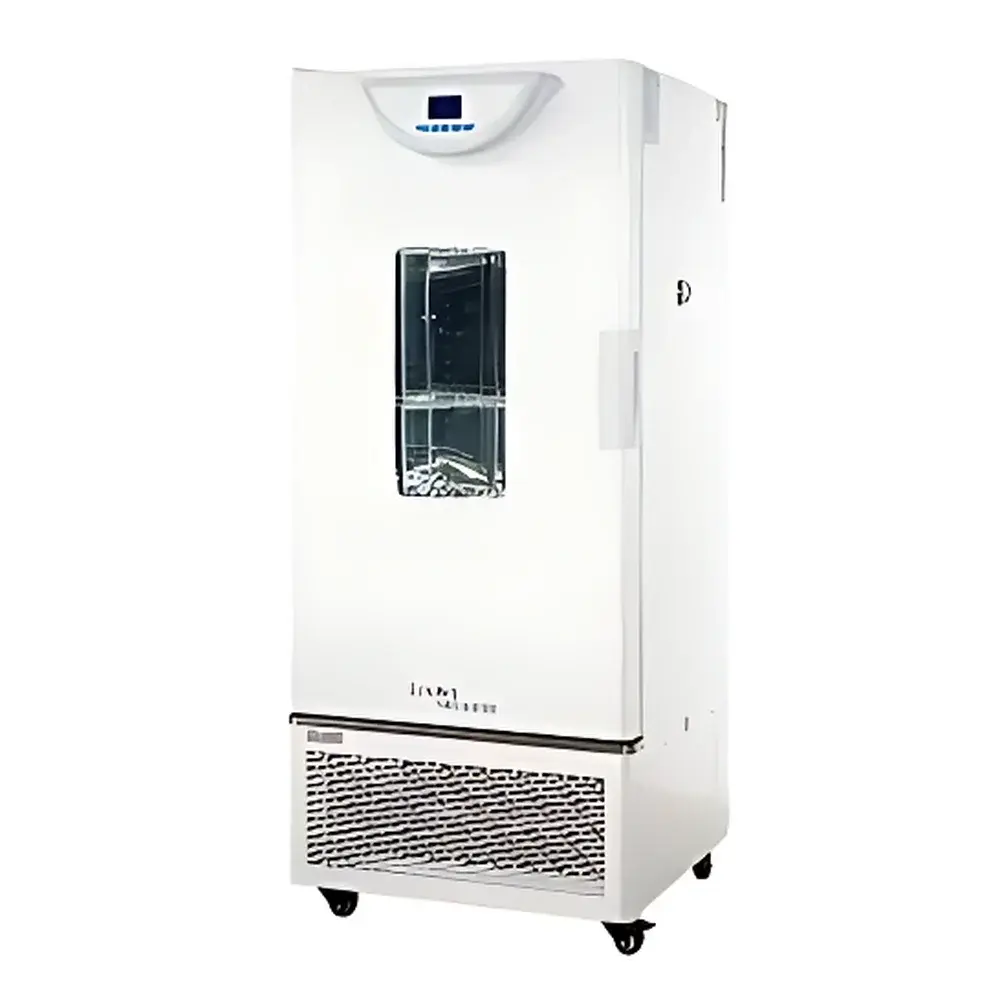

Yi Heng BPC Series Biochemical Incubators

Overview

The Yi Heng BPC Series Biochemical Incubators are precision-engineered environmental chambers designed for stable, long-term cultivation of microorganisms, mammalian cells, and biochemical samples under tightly controlled temperature conditions. Based on over a decade of iterative design and manufacturing expertise in laboratory incubation systems, these units employ a non-CFC refrigeration cycle—fully compliant with global ozone-layer protection standards—and integrate advanced thermal management architecture to deliver high reproducibility across extended operational cycles. The core control principle relies on a fuzzy logic PID temperature regulation system coupled with variable-speed axial circulation fans, enabling dynamic airflow modulation that balances thermal homogeneity with sample integrity. Unlike static benchtop incubators, the BPC series supports optional integration of orbital shakers (via internal mounting points), permitting simultaneous temperature-controlled agitation for suspension cultures or enzymatic assays—making it suitable for both standard incubation and active bioprocessing workflows.

Key Features

• Environmentally Compliant Refrigeration: CFC-free cooling system meets Montreal Protocol requirements and eliminates ozone-depleting substances without compromising cooling capacity or stability.
• Intuitive Human-Machine Interface: Backlit LCD display presents real-time temperature, setpoint, timer status, and fault codes simultaneously; menu-driven navigation enables rapid parameter adjustment without training overhead.
• Hygienic Chamber Construction: Mirror-finish stainless steel interior with radius-corner transitions minimizes microbial harborage zones and simplifies decontamination; removable shelf supports allow full access for cleaning and sterilization validation.
• Configurable Utility Access: 25 mm diameter pass-through port on left side permits external sensor cabling, gas line routing, or data acquisition connections without compromising chamber seal integrity.
• Adaptive Airflow Control: Fan speed automatically reduces during steady-state operation to limit evaporative loss from open vessels while maintaining uniform temperature distribution per ISO 15189 Annex A.3 guidelines.
• Multi-Stage Programmable Logic: Up to 7 user-defined programs (63 total steps), each supporting independent temperature setpoints, ramp rates, dwell times, and fan speed profiles—enabling complex protocols such as cold acclimatization, thermal cycling, or overnight dormancy transitions.

Sample Compatibility & Compliance

The BPC series accommodates standard culture formats including Petri dishes, multi-well plates, Erlenmeyer flasks (up to 2 L), and roller bottles. Its −5 °C to 70 °C operating envelope supports psychrophilic, mesophilic, and thermophilic applications—including enzyme activity profiling, antibiotic susceptibility testing, and recombinant protein expression optimization. All models conform to IEC 61010-1:2010 safety standards for laboratory equipment and incorporate dual-limit thermal protection: primary PID control plus independent mechanical overtemperature cutoff (audible/visual alarm at ≥75 °C). Optional UV-C germicidal lamps (254 nm) mounted in the ceiling provide periodic air and surface disinfection—critical for low-bioburden cell culture environments aligned with USP and ISO 14644-1 Class 5 cleanroom adjunct practices.

Software & Data Management

While the base unit operates via embedded firmware, optional connectivity modules support GLP-compliant data governance. A USB host interface accepts FAT32-formatted flash drives for timestamped logging of temperature history (1-min resolution, >30 days continuous storage). RS-485 Modbus RTU output enables integration into centralized building management systems (BMS) or LIMS platforms. Optional thermal printer interface provides hard-copy audit trails meeting FDA 21 CFR Part 11 requirements when paired with electronic signature-capable host software. All logged data includes operator ID fields, event timestamps, and calibration verification markers—facilitating traceability during GMP audits or ISO/IEC 17025 accreditation reviews.

Applications

• Bacterial and fungal growth studies requiring precise sub-ambient or elevated temperatures
• Long-term stability testing of diagnostic reagents and pharmaceutical intermediates per ICH Q1A(R2)
• Enzyme kinetics experiments where thermal drift must remain below ±0.5 °C over 72-hr durations
• Cell line expansion under defined hypothermic conditions (e.g., 4–8 °C for hybridoma preservation)
• Environmental simulation for material degradation analysis (e.g., polymer hydrolysis at 40 °C/75% RH with optional humidity add-on)
• Quality control of probiotic formulations under accelerated shelf-life conditions

FAQ

Can the BPC incubator maintain temperature stability at −5 °C in ambient environments above 30 °C?
Yes—the refrigeration system is rated for continuous operation within +5 °C to +35 °C ambient range, with validated performance down to −5 °C even at maximum specified ambient load.
Is the UV lamp integrated or field-installable?
UV-C modules are factory-installed as optional accessories on BPC models designated for sterile applications; retrofit kits are not available post-purchase.
Does the incubator support Ethernet or Wi-Fi connectivity?
No native Ethernet/Wi-Fi; communication is limited to USB mass storage, RS-485 serial, and optional RS-232 printer interface.
What calibration documentation is provided?
Each unit ships with a factory calibration certificate traceable to NIM (National Institute of Metrology, China), covering temperature uniformity and fluctuation at three reference points (25 °C, 37 °C, and 60 °C).
Are replacement shelves and door gaskets available as spare parts?
Yes—standard stainless steel shelves, silicone door seals, and fan assemblies are stocked globally through authorized Yi Heng service partners with lead times under 10 business days.
