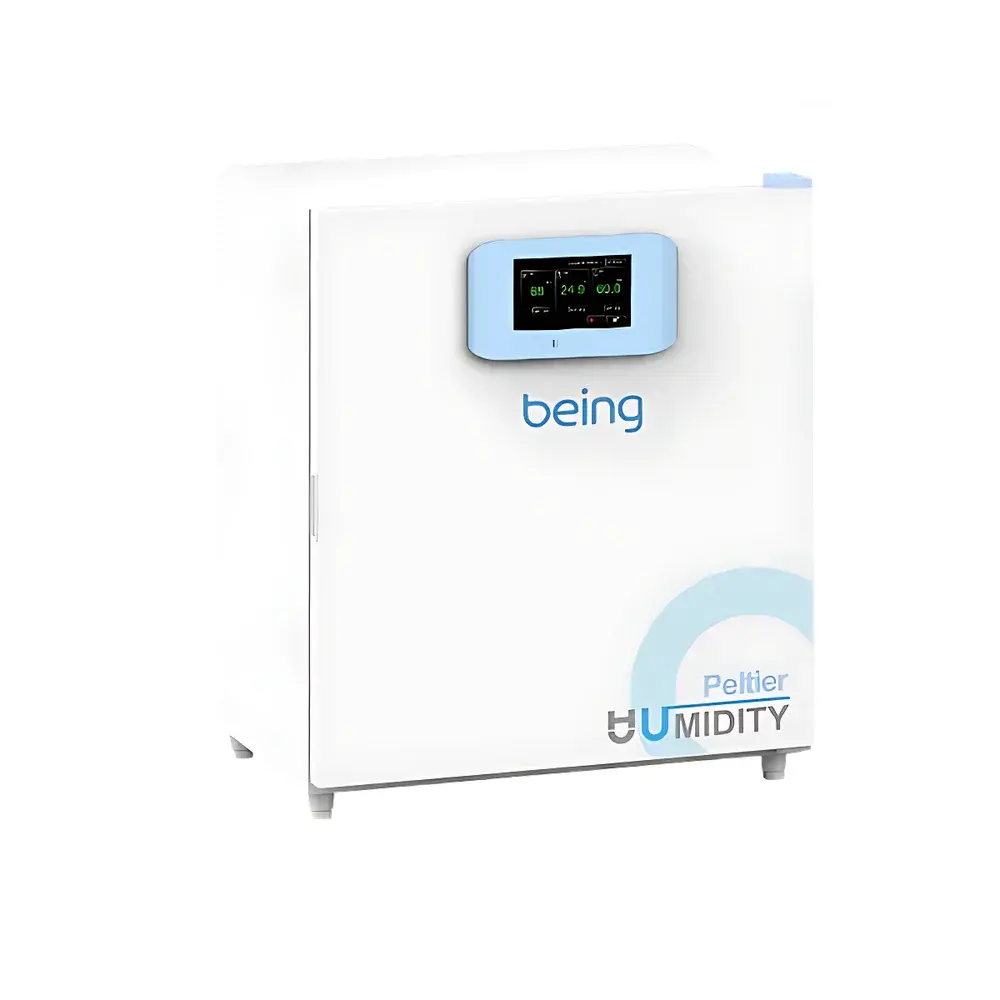

Yiheng BEH-100 Peltier-Based Temperature & Humidity Controlled Incubator

Overview

The Yiheng BEH-100 is a precision-engineered, thermoelectric (Peltier)-driven temperature and humidity controlled incubator designed for demanding life science applications requiring stable, programmable environmental simulation. Unlike conventional compressor-based systems, the BEH-100 leverages solid-state Peltier modules to deliver bidirectional thermal control—enabling both active cooling and heating within a single compact architecture. This eliminates mechanical wear, refrigerant handling, and oil-lubricated compressors, resulting in inherently quieter operation, reduced maintenance burden, and enhanced long-term stability. The unit maintains tight thermal control across its full operating range (10–65 °C) with ±0.2 °C accuracy and ≤±0.5 °C uniformity at 37 °C—a performance benchmark aligned with ISO 13408-1 and USP <1211> requirements for sterile process simulation and microbiological growth studies. Integrated capacitive humidity sensing ensures reliable RH measurement up to 95% RH without wet-bulb drift or wick replacement, supporting consistent hygrothermal validation across pharmaceutical stability testing (ICH Q1A–Q1E), cell culture preconditioning, and textile material conditioning per ASTM D1776.

Key Features

• Thermoelectric (Peltier) cooling/heating system: Achieves >85% lower energy consumption vs. equivalent compressor-based units; zero refrigerant emissions; no oil degradation or vibration-induced sample disturbance.
• Advanced 7-inch color touchscreen controller with multilingual interface (English/Chinese), real-time trend graphing, and 8 programmable profiles (24 steps per profile, max 99h 59m per step).
• Robust stainless steel 304 interior with seamless rounded corners and removable adjustable shelves—fully compliant with ISO 14644-1 Class 5 cleanroom-compatible cleaning protocols.
• Balanced PID-controlled air circulation with optimized duct design ensures uniform temperature distribution and minimal gradient deviation across the 480×400×560 mm working chamber.
• Triple-tier permission management (Administrator / Operator / Guest) with user-specific login, electronic signature capability (optional), and comprehensive audit-trail logging per FDA 21 CFR Part 11 Annex 11 requirements.
• Dual independent safety systems: Hardware-based overtemperature cutoff + software-monitored thermal/humidity fault detection (overheat, overcurrent, fan failure, low-water alarm).

Sample Compatibility & Compliance

The BEH-100 accommodates standard ISO-compliant cell culture vessels (T-flasks, multiwell plates, Petri dishes), stability test chambers (ICH-aligned), and material samples (e.g., polymer films, woven textiles per ASTM D76). Its stainless steel chamber and smooth internal geometry support routine sterilization via 70% ethanol wipe-down or optional UV-C irradiation (254 nm, mounted on ceiling panel). The unit conforms to IEC 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and meets electromagnetic compatibility standards per EN 61326-1. Humidity and temperature performance data are traceable to NIST-traceable reference standards, facilitating GLP/GMP documentation workflows.

Software & Data Management

Data integrity is ensured through dual-path recording: onboard USB mass storage (standard) enables immediate export of time-stamped temperature/humidity logs in CSV format; optional RS485 serial interface supports integration into centralized LIMS or SCADA environments using Modbus RTU protocol. The controller embeds automatic power-failure recovery—retaining all program parameters and resuming from the exact step upon restoration. Optional embedded thermal printer provides hard-copy traceability of real-time curves, including device ID, timestamp, operator ID, and electronic signature—critical for regulatory submissions under EMA Annex 11 and WHO TRS 961.

Applications

• Pharmaceutical stability testing per ICH Q1 series guidelines (long-term, accelerated, intermediate conditions)
• Cell line expansion and pre-conditioning for bioreactor inoculation under controlled hygrothermal stress
• Microbial growth curve analysis (e.g., E. coli, S. aureus) under defined RH/temperature matrices
• Textile moisture regain and dimensional stability assessment (ASTM D1776, ISO 139)
• Food packaging permeability studies and shelf-life modeling under variable humidity regimes
• Environmental stress screening for diagnostic reagent kits and lateral flow assay components

FAQ

Does the BEH-100 require refrigerant servicing or compressor maintenance?
No. The Peltier-based cooling system contains no moving parts, lubricants, or volatile refrigerants—eliminating scheduled refrigerant recharging or mechanical compressor overhaul.
Can the unit operate continuously at 40 °C and 75% RH?
Yes. The capacitive humidity sensor and balanced air circulation system maintain stable setpoints across the full operational envelope without condensation or sensor saturation.
Is electronic signature functionality compliant with 21 CFR Part 11?
When enabled, the optional electronic signature module records user identity, timestamp, device ID, and action context in tamper-evident audit logs—meeting core technical controls for electronic records and signatures.
What validation support documentation is provided?
Yiheng supplies IQ/OQ documentation templates, factory calibration certificates (NIST-traceable), and a complete set of test protocols aligned with ISO/IEC 17025 and ASTM E2500 for user-executed PQ.
Is remote monitoring available without third-party gateways?
Yes—the optional IoT-ready firmware enables direct MQTT/HTTPS communication with enterprise cloud platforms or local servers via built-in Wi-Fi/Ethernet, supporting real-time alerting and historical data retrieval via secure REST API.
