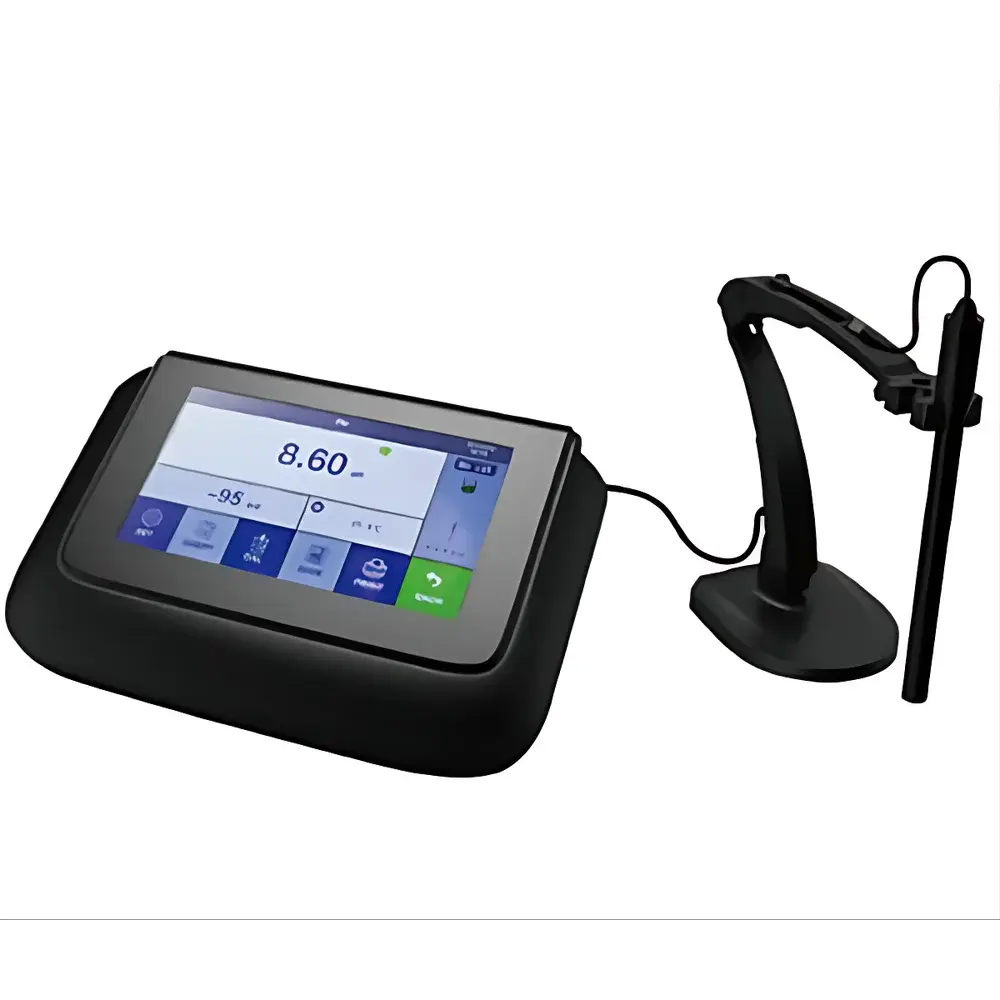

Yoke L-403 Multi-Parameter Water Quality Analyzer
| Brand | Yoke |
|---|---|
| Origin | Shanghai, China |
| Model | L-403 |
| Instrument Type | Benchtop Laboratory Analyzer |
| Measurement Principles | Potentiometric (pH/mV), Conductometric (Conductivity/TDS/Salinity/Resistivity), Polarographic (Dissolved Oxygen) |
| pH Range | 0.00–20.00 pH |
| pH Accuracy | ±0.01 pH |
| pH Resolution | 0.001 / 0.01 / 0.1 pH (selectable) |
| mV Range | ±2000.0 mV |
| mV Accuracy | ±0.2 mV |
| mV Resolution | 0.01 / 0.1 / 1 mV (selectable) |
| Conductivity Range | 0.01 μS/cm – 100 mS/cm |
| Conductivity Accuracy | ±1% FS |
| Conductivity Detection Limit | 0.01 μS/cm |
| Dissolved Oxygen Range | 0.00–20.00 mg/L |
| DO Accuracy | ±0.1 mg/L |
| DO Detection Limit | 0.01 mg/L |
| DO Saturation Range | 0.0–200.0% |
| Temperature Range | 0–50 °C |
| Temp. Accuracy | ±0.2 °C |
| Repeatability | ≤±0.5% |
| Data Storage | Up to 2000 datasets with timestamp, operator ID, and metadata |
| Calibration Options | Auto-buffer recognition (15 built-in standards), 1–3 point pH calibration, single-point conductivity calibration (8 preloaded standard solutions), DO zero & span calibration |
| Compliance | IP54-rated enclosure |
| Software Features | Statistical analysis (mean, SD, min/max), audit trail (GMP-compliant), firmware update via USB, auto-diagnostic reporting, power-fail recovery |
| Operating System | Dual-language (English/Chinese), adjustable screen brightness & time format, configurable temperature units (°C/°F) |
Overview
The Yoke L-403 Multi-Parameter Water Quality Analyzer is a benchtop laboratory instrument engineered for precise, simultaneous measurement of critical water quality parameters—including pH, redox potential (mV), conductivity, resistivity, total dissolved solids (TDS), salinity, dissolved oxygen (DO) concentration and saturation, and temperature. It integrates three independent electrochemical sensing modalities: potentiometric detection for pH and mV, conductometric measurement for ionic strength-related parameters, and polarographic amperometry for dissolved oxygen quantification. Designed for routine QC/QA in municipal water labs, environmental monitoring agencies, academic research facilities, and pharmaceutical manufacturing environments, the L-403 delivers traceable, repeatable results under controlled laboratory conditions. Its architecture supports full compliance with data integrity requirements outlined in FDA 21 CFR Part 11 and EU Annex 11 when configured with user access controls and electronic signature protocols.
Key Features
- 7-inch high-resolution color capacitive touchscreen with glove-compatible operation, UV-resistant surface coating, and automatic screen dimming to conserve power and extend display lifespan.
- Modular sensor interface supporting interchangeable pH, ORP, conductivity, and Clark-type DO electrodes—each with automatic recognition and real-time status diagnostics.
- Selectable resolution modes: pH (0.001 / 0.01 / 0.1), mV (0.01 / 0.1 / 1), enabling method-specific precision alignment per ASTM D1293 (pH), ASTM D5391 (conductivity), or ISO 5814 (DO).
- Comprehensive calibration suite: 15 preloaded pH buffer definitions (including NIST, DIN, and Chinese national standards), auto-slope calculation with electrode health indicator, and 8 certified conductivity standards (0.01–1413 μS/cm) for traceable single-point calibration.
- Intelligent temperature compensation algorithms—both automatic (using integrated Pt1000 sensor) and manual—with configurable compensation curves per parameter (e.g., linear for conductivity, non-linear for DO).
- Robust data management: 2000-entry internal memory with timestamp, operator ID, calibration history, and environmental metadata; exportable via USB to CSV or PDF for LIMS integration.
Sample Compatibility & Compliance
The L-403 accommodates aqueous samples across a broad physicochemical spectrum—from ultrapure water (resistivity >18.2 MΩ·cm) to high-salinity brines (up to 100 mS/cm). Its modular electrode design allows selection of appropriate cell constants (k = 0.01, 0.1, or 1.0 cm⁻¹) for optimal accuracy across conductivity ranges, while the polarographic DO probe includes integrated temperature sensing to eliminate external thermistor errors. The instrument meets IP54 ingress protection for dust and splash resistance during daily lab use. All measurement protocols align with ISO/IEC 17025:2017 general requirements for competence of testing and calibration laboratories. Firmware and software architecture support ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available), facilitating GLP and GMP audits.
Software & Data Management
The embedded operating system provides dual-language UI (English/Chinese), customizable screen brightness, date/time stamping, and unit switching (°C/°F, mg/L/% saturation, μS/cm/mS/cm). Built-in statistical tools compute mean, standard deviation, relative standard deviation (RSD), minimum/maximum values, and trend analysis over user-defined data subsets. Audit trail functionality logs all critical events—including calibration actions, parameter changes, data deletions, and firmware updates—with immutable timestamps and operator identifiers. Data export supports CSV (for Excel or LIMS ingestion) and printer-ready PDF reports compliant with 21 CFR Part 11 Annex A requirements when paired with validated peripheral printers. Firmware updates are performed securely via encrypted USB drive, preserving configuration integrity during version transitions.
Applications
- Drinking water treatment: Monitoring pH stability, disinfectant residual correlation (via ORP), and conductivity-based total ion concentration in finished water streams.
- Wastewater effluent compliance: Verifying DO levels against EPA Method 4500-O G and conductivity thresholds per NPDES permit limits.
- Pharmaceutical water systems: Supporting USP purified water and WFI specifications through concurrent pH, conductivity, and TOC-correlated DO verification.
- Academic limnology: Field-deployable lab validation of lake/river sampling campaigns using standardized calibration and temperature-compensated DO profiles.
- Electroplating bath control: Tracking acid concentration (pH), metal ion activity (mV), and electrolyte strength (conductivity) in real time.
FAQ
What electrode configurations are supported for conductivity measurements?
The L-403 accepts interchangeable conductivity cells with cell constants of 0.01, 0.1, and 1.0 cm⁻¹. The default 1.0 cm⁻¹ electrode covers 0.01 μS/cm–100 mS/cm; for ultrapure water (<20 μS/cm), a 0.1 or 0.01 cm⁻¹ cell is recommended to improve signal-to-noise ratio.
Does the instrument support GLP-compliant data archiving?
Yes—when operated with enabled audit trail, user authentication, and electronic signature configuration, the L-403 satisfies core GLP data integrity requirements including traceability, immutability of records, and retention of calibration metadata.
Can the DO module measure both concentration and saturation simultaneously?
Yes—the polarographic sensor outputs mg/L and % saturation concurrently, with automatic temperature and atmospheric pressure compensation applied using built-in sensors and user-input barometric values.
Is firmware upgrade capability available without external service intervention?
Yes—firmware updates are delivered as signed binary packages via USB flash drive; the device validates digital signatures prior to installation to ensure code authenticity and system integrity.
How does the L-403 handle electrode drift during extended measurements?
The system continuously monitors electrode impedance and slope deviation from nominal values, triggering visual alerts when performance falls outside ISO 7888-defined acceptance criteria for pH electrodes or ASTM D5391 tolerance bands for conductivity cells.
