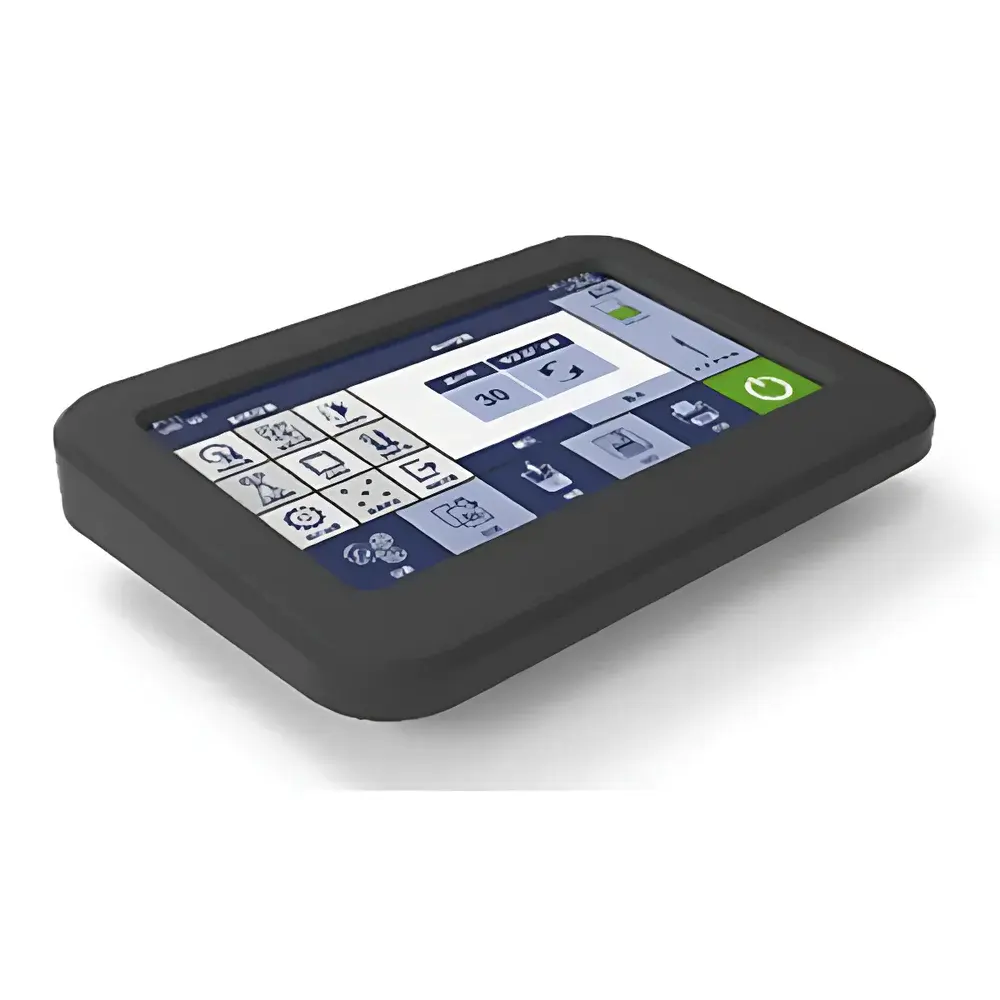

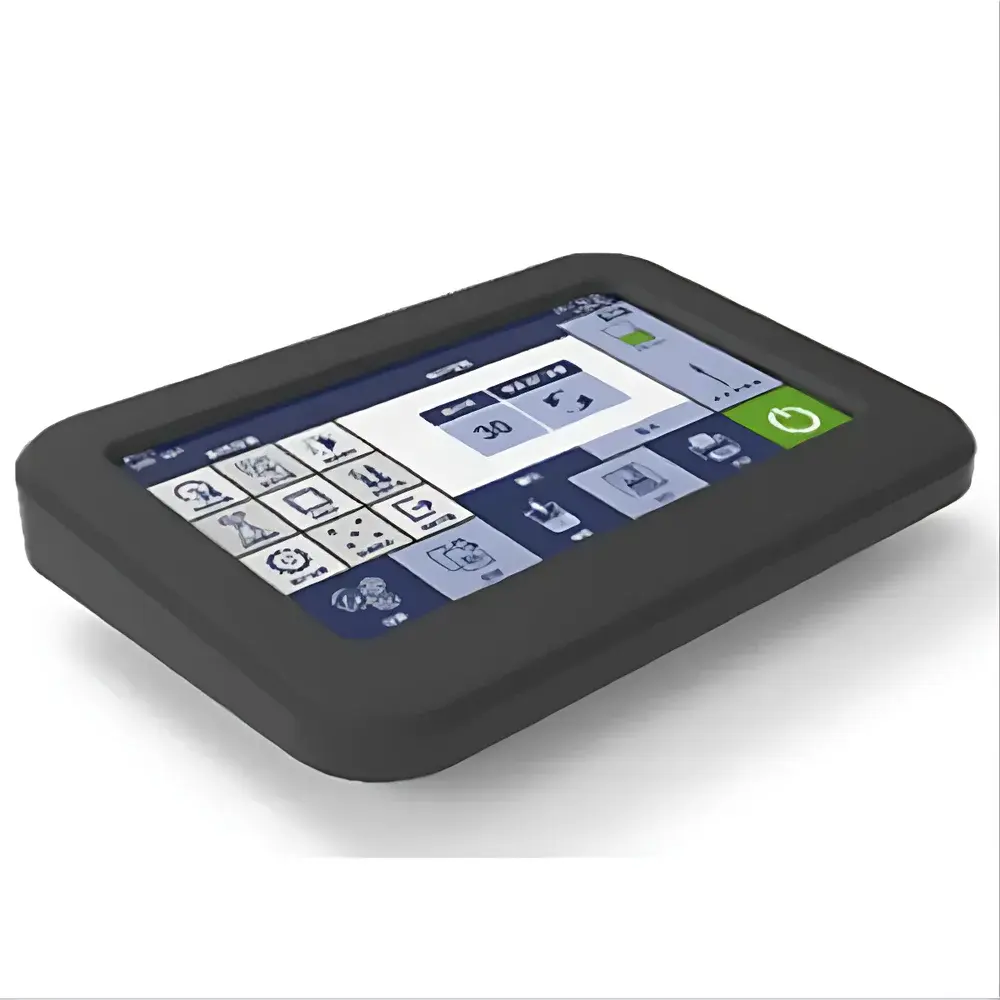

Yoke i-503 Portable Multi-Parameter Water Quality Analyzer

Overview

The Yoke i-503 Portable Multi-Parameter Water Quality Analyzer is an engineered field and laboratory instrument designed for simultaneous, high-fidelity measurement of critical water quality parameters—including pH, oxidation-reduction potential (mV), electrical conductivity (EC), total dissolved solids (TDS), salinity, resistivity, dissolved oxygen concentration (DO in mg/L), dissolved oxygen saturation (%), and temperature. Its modular sensor architecture integrates three independent electrochemical and optical sensing pathways: a high-stability glass electrode system for potentiometric pH/mV determination; a four-range conductometric cell (K = 0.1, 1.0, or 10 cm⁻¹ configurable) for wide-span EC measurement; and a solid-state fluorescence-quenching DO sensor that operates without electrolyte, membrane polarization, or flow dependency—ensuring long-term stability and minimal maintenance. The device adheres to fundamental metrological principles defined in ISO 7888 (conductivity), ISO 5814 (optical DO), and ASTM D1293 (pH of water), supporting traceable calibration and repeatable field deployment across freshwater, wastewater, aquaculture, and environmental monitoring applications.

Key Features

• 7-inch full-color capacitive touchscreen with glove-compatible responsiveness, UV-resistant tempered glass, and automatic screen dimming to conserve battery life
• Dual-language OS (English/Chinese) with adjustable brightness, user-configurable time/date stamping, and selectable temperature units (°C/°F)
• Intelligent electrode diagnostics: real-time slope calculation, hydration status feedback, and auto-recognition of up to 15 built-in buffer standards (including NIST, DIN, and Chinese GB buffers)
• Flexible calibration protocols: 1–3 point pH calibration with user-defined buffers; single-point EC calibration across eight certified standard solutions (ranging from 84 μS/cm to 1413 mS/cm); optical DO calibration via zero-oxygen and air-saturation methods
• Fluorescence-based DO sensor with replaceable optical cap—no electrolyte refills, no warm-up delay, unaffected by H₂S or chloride interference, and stable over >12 months under routine use
• Multi-parameter auto-compensation: simultaneous temperature compensation (ATC/MTD), barometric pressure correction (for DO), and salinity compensation (for EC and DO)
• IP54-rated enclosure for dust resistance and limited water ingress protection during transport and outdoor operation

Sample Compatibility & Compliance

The i-503 supports direct immersion measurements in liquid samples ranging from ultrapure water (resistivity >18 MΩ·cm) to high-conductivity brines (up to 200 mS/cm). Its pH electrode accommodates samples with turbidity, suspended solids, and moderate organic load—provided proper cleaning and storage protocols are followed. For regulatory compliance, the instrument logs all measurements with timestamps, operator IDs (via optional login), calibration history, and sensor diagnostic flags. Data files include embedded metadata required for GLP and GMP environments, and the firmware architecture supports 21 CFR Part 11–compatible audit trails when paired with validated Yoke DataLink software. While not FDA-cleared as a medical device, it meets the performance criteria referenced in USP , EPA Method 150.1 (conductivity), and ISO 5667-3 (sampling preservation).

Software & Data Management

All measurements are stored internally (≥10,000 records) with searchable tags (sample ID, location, operator, date/time). Data export is supported via USB mass storage mode or Bluetooth 5.0 to Yoke’s companion desktop application (Windows/macOS) and mobile app (iOS/Android). Export formats include CSV (with headers), PDF reports (customizable templates), and XML (for LIMS integration). Statistical functions include mean, SD, min/max, trend analysis, and pass/fail flagging against user-defined limits. Firmware updates are delivered over-the-air or via USB, preserving user configurations and historical data. Built-in power-loss recovery ensures no measurement interruption during battery replacement or charging.

Applications

• Environmental field surveys: stream, lake, and groundwater quality assessment per national monitoring protocols (e.g., China’s HJ 91.1–2019, US EPA Region 10 guidelines)
• Wastewater treatment plant process control: aeration basin DO optimization, influent/effluent EC and pH trending, sludge dewatering salinity monitoring
• Aquaculture and hydroponics: real-time DO saturation management, nutrient solution EC/TDS tracking, pH stabilization in recirculating systems
• Laboratory QC/QA: verification of calibration standards, validation of reference materials, method development for multi-parameter correlation studies
• Educational use: undergraduate environmental science labs requiring robust, intuitive instrumentation with pedagogical data visualization tools

FAQ

What calibration standards are supported for conductivity measurement?
The i-503 includes eight preloaded conductivity standards (84.0, 1413 μS/cm; 12.88, 141.3 mS/cm; and others per IEC 60788), enabling single-point calibration across its full 0.01 μS/cm–200 mS/cm range.
Can the DO sensor be used in viscous or high-sediment samples?
Yes—the optical sensor is insensitive to flow rate and does not require stirring; however, periodic cap cleaning is recommended for samples with heavy biofouling or particulate coating.
Is the device compatible with LIMS integration?
Via CSV or XML export and optional Yoke DataLink middleware, the i-503 supports structured data ingestion into common LIMS platforms including LabWare, STARLIMS, and Thermo Fisher SampleManager.
Does the instrument meet international waterproofing requirements for field use?
It carries an IP54 rating—protected against dust ingress and water splashes from any direction—suitable for transport and intermittent outdoor exposure, though submersion or heavy rain is not advised.
How is data integrity ensured during battery replacement?
The internal non-volatile memory retains all logged data and settings; the rechargeable Li-ion battery supports hot-swap charging via USB-C or DC adapter without interrupting active measurement sessions.
