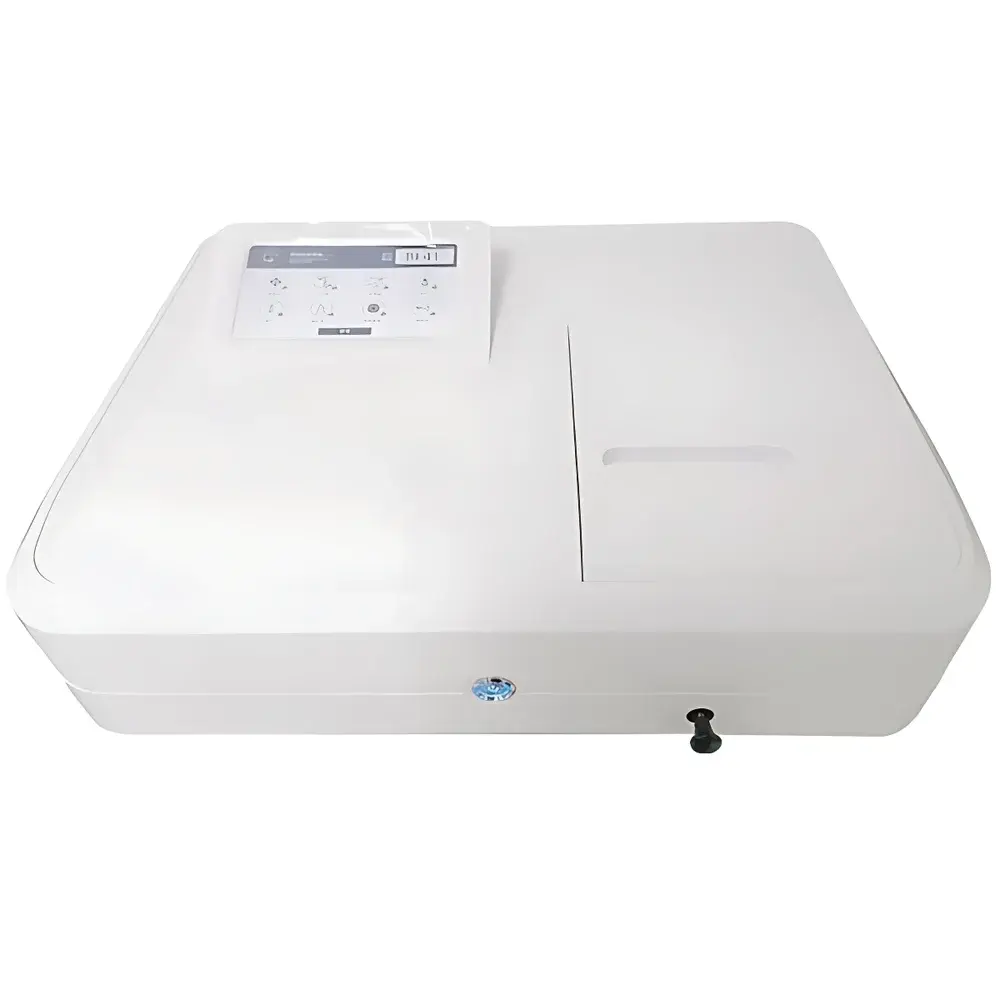

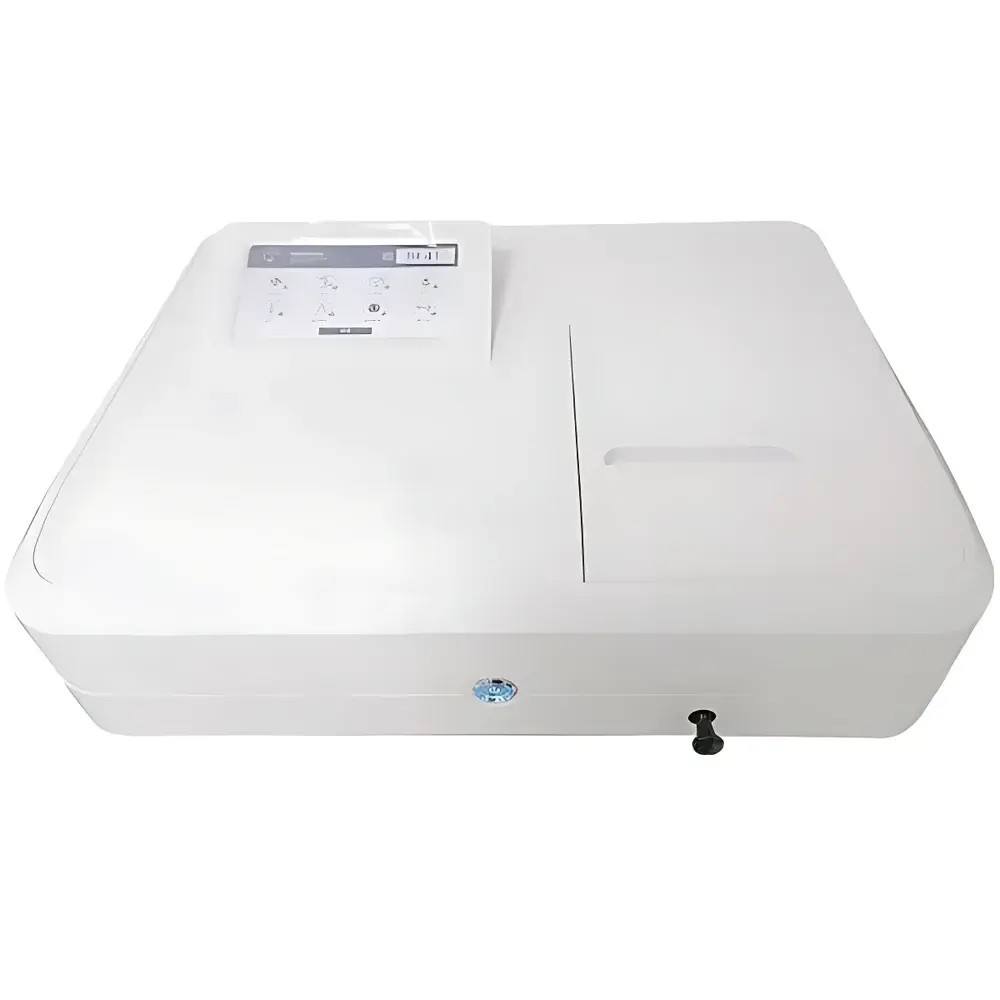

Yoke L6 IoT-Enabled Dual-Beam UV-Vis Spectrophotometer

Overview

The Yoke L6 IoT-Enabled Dual-Beam UV-Vis Spectrophotometer is a precision optical instrument engineered for routine and advanced absorbance measurements across the ultraviolet and visible spectral regions (190–1100 nm). Based on the dual-beam optical architecture, it continuously compares sample and reference beam intensities in real time, effectively compensating for source drift, detector instability, and environmental fluctuations—ensuring high photometric stability and measurement reproducibility over extended operation cycles. The system employs a high-sensitivity photomultiplier tube (PMT) detector, delivering superior signal-to-noise ratio particularly in low-light conditions such as deep-UV measurements or dilute sample analysis. Its 1 nm spectral bandwidth meets standard requirements for pharmaceutical QC, academic research, and environmental testing where resolution and accuracy are critical for compliance with ISO 8579, ASTM E275, and USP guidelines.

Key Features

• High-resolution 7-inch capacitive color touchscreen interface with intuitive icon-driven navigation—designed for glove-compatible operation in laboratory environments.
• Integrated IoT functionality: native support for cloud-based data synchronization via secure TLS 1.2–encrypted Wi-Fi; compatible with Yoke’s proprietary mobile application (iOS/Android) for remote instrument status monitoring, method recall, and preliminary spectral preview.
• Dual-lamp system (deuterium + tungsten-halogen) with fully automated lamp switching and wavelength-dependent alignment—eliminating manual intervention during full-spectrum scans.
• Onboard storage capacity for up to 500 full-spectrum datasets and 30 user-defined calibration curves—enabling offline operation without external computing resources.
• Multi-protocol connectivity: USB 2.0 host port for direct flash drive data export (CSV format, natively readable in Microsoft Excel and Python/Pandas); Bluetooth 4.2 for wireless thermal printer pairing; optional Yokelab PC software for GLP-compliant data management.
• Comprehensive measurement modes: photometric mode (A/T/%T), quantitative analysis (single/multi-point calibration, linear/nonlinear regression), kinetic assays (time-resolved absorbance tracking), nucleic acid/protein quantification (A₂₆₀/A₂₈₀ ratio calculation), derivative spectroscopy, and spectral overlay.

Sample Compatibility & Compliance

The L6 accommodates standard 10 mm pathlength cuvettes (glass, quartz, and plastic), with optional accessories supporting microvolume (0.5–2 µL) and flow-cell configurations. Its optical path design minimizes stray light (<0.03% at 220 nm using NaI solution), satisfying stringent requirements for UV-sensitive applications including oligonucleotide purity assessment and nitrate/nitrite detection in water quality testing. The instrument conforms to IEC 61010-1 for electrical safety and meets electromagnetic compatibility (EMC) standards per EN 61326-1. Firmware supports audit trail logging and electronic signature capability when used with Yokelab software under FDA 21 CFR Part 11 and EU Annex 11 environments—facilitating GxP-aligned workflows in regulated laboratories.

Software & Data Management

Yokelab PC Suite (v3.2+) provides full instrument control, advanced data processing (e.g., baseline correction, peak integration, Savitzky-Golay smoothing), and report generation compliant with ISO/IEC 17025 documentation requirements. All exported CSV files include metadata headers (wavelength, absorbance, timestamp, operator ID, method name), enabling traceable data lineage. Cloud-synced measurements retain version-controlled history, supporting retrospective analysis and cross-site collaboration. Internal firmware supports periodic self-diagnostics—including wavelength accuracy verification using holmium oxide reference filter—and automatic calibration reminders aligned with internal QA schedules.

Applications

• Pharmaceutical QC: assay of active pharmaceutical ingredients (APIs), excipient compatibility studies, dissolution profile analysis.
• Life sciences: DNA/RNA quantification, Bradford/Lowry protein assays, enzyme kinetics (e.g., NADH/NADPH monitoring at 340 nm).
• Environmental monitoring: spectrophotometric determination of COD, phosphate, ammonia, and heavy metal complexes (e.g., Cr(VI) with diphenylcarbazide).
• Academic research: ligand-binding studies, photochemical reaction monitoring, thin-film transmittance characterization.
• Food & beverage: colorimetric analysis (e.g., anthocyanin content in juices), preservative concentration validation (e.g., sulfites via formaldehyde complexation).

FAQ

Does the L6 support GLP-compliant data integrity requirements?
Yes—when paired with Yokelab PC Suite and configured with user access controls, electronic signatures, and audit trail activation, the system satisfies core elements of FDA 21 CFR Part 11 and EU Annex 11 for electronic records.
Can the instrument perform kinetic measurements over extended time periods?
Yes—supports time-based scanning up to 999 minutes with programmable interval resolution (0.1–60 sec), ideal for slow enzymatic reactions or polymerization monitoring.
Is quartz cuvette calibration required before each use?
No—baseline correction is performed automatically at startup using air/reference blank; however, regular verification with NIST-traceable holmium oxide or didymium filters is recommended per ISO/IEC 17025 calibration intervals.
What file formats does the L6 export for spectral data?
Native CSV (comma-separated values) with wavelength-absorbance columns and embedded metadata; no proprietary binary formats—ensuring long-term data accessibility and third-party tool interoperability.
How is firmware updated on the L6?
Via USB flash drive or over-the-air (OTA) through secured Wi-Fi connection using signed firmware packages authenticated by Yoke’s public key infrastructure.
