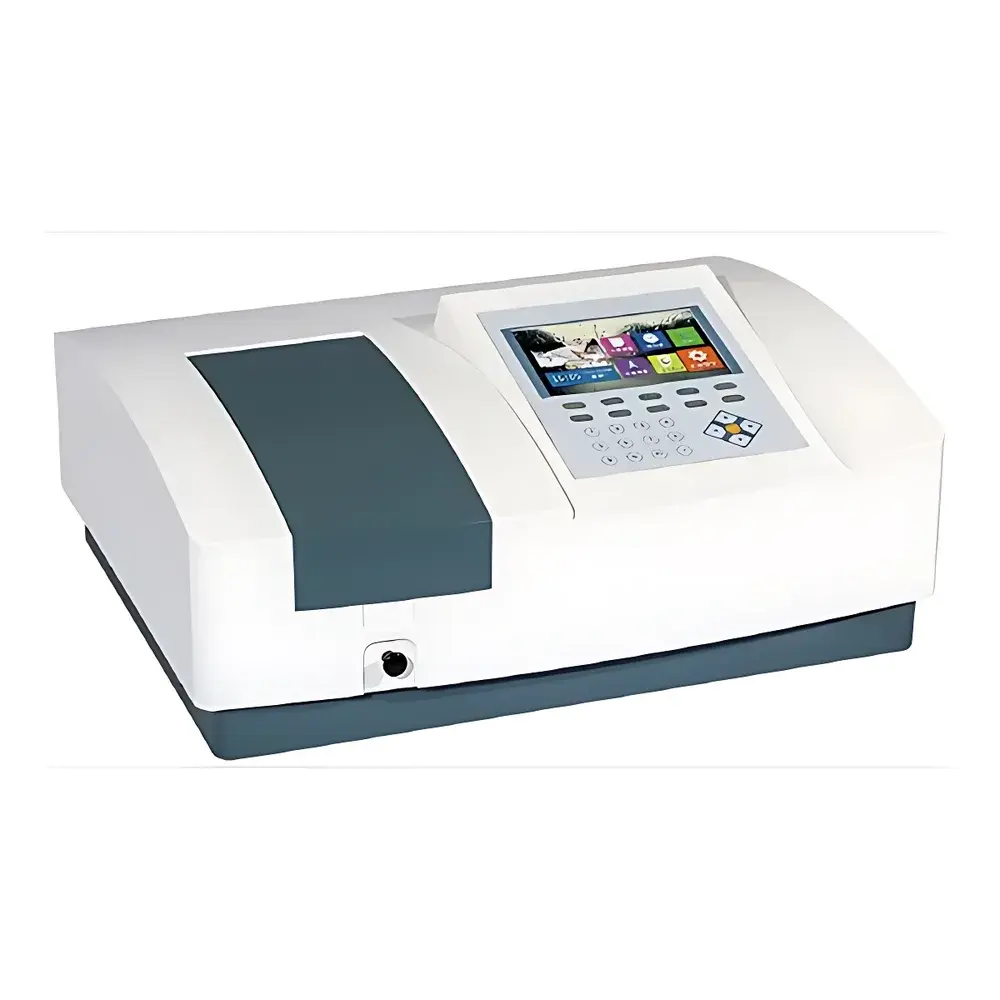

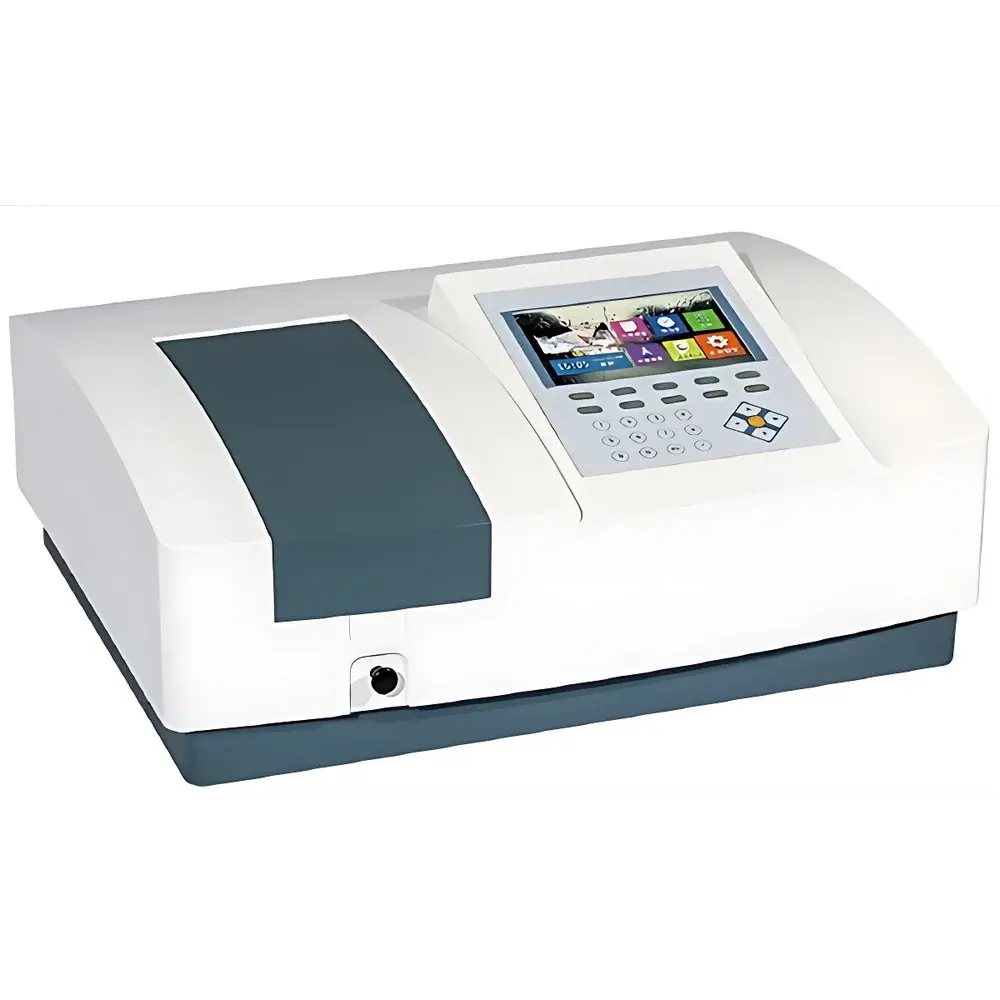

Yoke T-N6000Plus Dual-Beam UV-Vis Spectrophotometer

Overview

The Yoke T-N6000Plus Dual-Beam UV-Vis Spectrophotometer is engineered for precision molecular absorption spectroscopy across the ultraviolet, visible, and near-infrared spectral regions (190–1100 nm). Based on a sealed, self-aligning Czerny-Turner (CT) optical architecture with dual-beam compensation, it delivers high photometric stability and minimized baseline drift during kinetic or time-scan measurements. The instrument employs a high-efficiency 1200 lines/mm holographic plane grating and a thermally stabilized photodiode array (PDA) detector to ensure consistent spectral resolution and signal-to-noise performance. Its dual-beam design continuously compares sample and reference beam intensities in real time, eliminating errors from source fluctuation or detector drift — a critical requirement for quantitative analysis in regulated environments such as pharmaceutical QC, environmental monitoring, and academic research laboratories.

Key Features

• 7-inch high-resolution color TFT LCD touchscreen interface enabling full instrument control, real-time spectral visualization, and on-device data analysis without external PC dependency
• Robust optomechanical architecture featuring suspended optical bench design to isolate the spectrometer core from mechanical vibration and thermal deformation
• Automated dual-lamp system (deuterium and tungsten-halogen) with intelligent lamp selection, usage-hour logging, and plug-in socket mounting for rapid field replacement
• Integrated 32-bit ARM Cortex-M3 microcontroller operating at 120 MHz, supporting onboard storage of up to 5000 single-point measurements or 500 multi-point calibration curves
• Standard 8 GB internal flash memory with direct USB mass-storage mode — export data natively to CSV, QUA, TXT, or BMP formats; no proprietary software required for spreadsheet or image editing
• Expandable sample handling via optional accessories: 8-position automated rotating sample carousel or 5-position ultra-wide cuvette holder accommodating up to 100 mm pathlength cells
• Firmware-upgradable via Ethernet or USB — supports remote maintenance, feature expansion, and compliance-aligned updates without hardware intervention

Sample Compatibility & Compliance

The T-N6000Plus accommodates standard 10 mm square quartz or glass cuvettes, as well as specialized cells including long-path (up to 100 mm), microvolume, and flow-through configurations. Its large sample compartment enables integration with temperature-controlled holders, Peltier devices, and liquid-handling accessories for automated assay workflows. While not pre-certified to specific regulatory frameworks, the instrument’s design aligns with foundational principles of GLP and GMP practices: audit-trail-capable data logging (via timestamped internal storage), traceable wavelength calibration (NIST-traceable standards recommended), and reproducible photometric response per ISO 6425 and ASTM E275. Optional PC software provides enhanced reporting tools compliant with FDA 21 CFR Part 11 requirements when deployed with appropriate user access controls and electronic signature modules.

Software & Data Management

The embedded operating system supports direct data export to USB drives in four interoperable formats: CSV (for Excel-compatible tabular analysis), QUA (Yoke’s native quantitative format), TXT (ASCII-readable absorbance/ transmittance lists), and BMP (static spectral plot images). No proprietary runtime or license key is required to open or edit exported files. For advanced applications, the optional Windows-based PC software offers full spectral processing capabilities — including peak identification, derivative spectra, multi-component quantitation, kinetics modeling, and method validation templates. All data files include embedded metadata (wavelength range, slit width, date/time stamp, operator ID if configured), facilitating traceability in quality-controlled laboratory environments.

Applications

• Quantitative determination of nucleic acid concentration (A₂₆₀/A₂₈₀ ratio analysis) and protein purity assessment using Bradford or BCA assays
• Enzyme kinetics monitoring (e.g., NADH/NADPH oxidation at 340 nm) under controlled temperature conditions
• Pharmaceutical dissolution testing and content uniformity verification per USP and
• Water quality analysis — nitrate, phosphate, and heavy metal speciation via colorimetric methods (e.g., APHA Standard Methods)
• Material science studies involving thin-film transmittance/reflectance and bandgap estimation from Tauc plots
• Educational use in undergraduate chemistry and biochemistry labs due to intuitive interface, built-in tutorials, and self-contained operation

FAQ

Does the T-N6000Plus support GLP-compliant data integrity requirements?
Yes — when used with the optional PC software package and configured with user authentication, electronic signatures, and audit-trail logging, it meets foundational elements of GLP and 21 CFR Part 11. Internal storage retains timestamped raw data and method parameters independently of external systems.
Can the instrument perform kinetic scans over extended durations?
Yes — its dual-beam architecture and thermally stabilized PDA detector enable stable baseline performance for time-course measurements exceeding 60 minutes, provided ambient temperature variation remains within ±2°C.
Is third-party software integration possible?
The instrument exports fully structured CSV and TXT files compatible with MATLAB, Python (pandas/numpy), GraphPad Prism, and LabArchives ELN platforms without conversion utilities.
What maintenance is required for long-term wavelength accuracy?
Annual verification using NIST-traceable holmium oxide or didymium filters is recommended; the built-in wavelength calibration routine supports user-initiated recalibration using any certified standard.
Are cuvette adapters available for non-standard cell geometries?
Yes — Yoke offers optional holders for semi-micro (50 µL), ultra-micro (1–5 µL), and flow-cell configurations, all mechanically registered to maintain optical alignment consistency.
